ARIA Double parallel telephone socket silver GPT-2UR/M/18

Místní index:
MET080OSPE
Katalogové číslo.:
GPT-2UR/M/18
EAN kód:
5907577483548
Výrobce: OSPEL
Depth [mm]: 33
Number of sockets: 2
Color: Silver
Cena:
58,39 zł
gross / kusů.
(včetně DPH 23%)
do 4 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

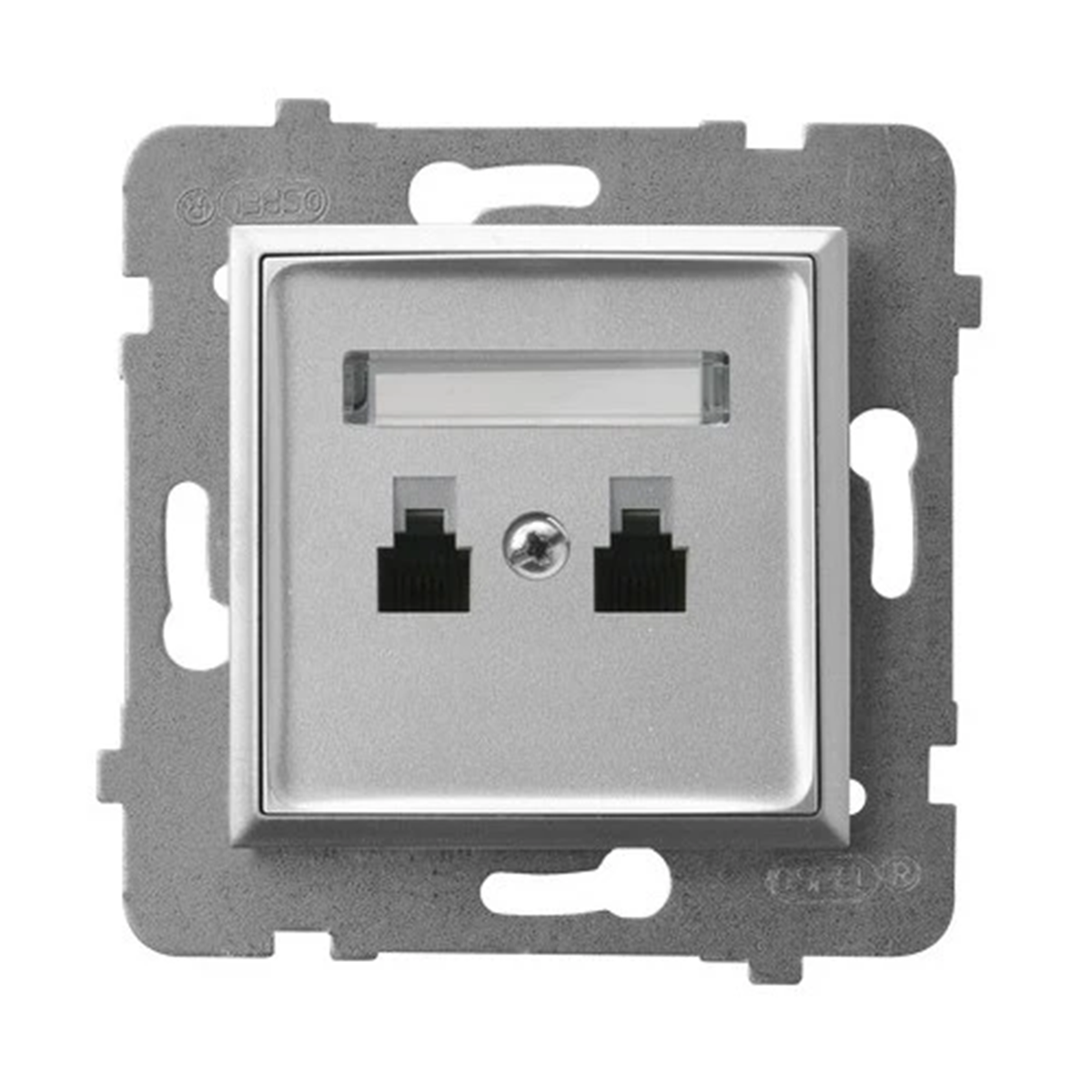

Telephone socket from the Aria series, from Ospel. The product part number is GPT-2UR/M/18.



FEATURES

  • Double.
  • RJ11.
  • Róparallel, i.e. one connected telephone line is split into two entrances.
  • Module without frame.
  • Thread terminals.
  • Color silver .
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 71  ;x 71 mm (height x width).



SERIES DESCRIPTION

Series Aria is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of the Aria connectors is not only practical but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from several backlight colors. The telephone socket has all the features of this unique series.

Technické údaje

  • Depth [mm]
    33
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    by phone
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Exact material
    Plastic Metal
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    ARIA
  • Width [mm]
    71
  • Height [mm]
    71
  • Mounting depth [mm]
    23
  • Variant
    RJ11
  • Additional information
    In parallel
  • PKWIU
    26.30.30.0

Další technické údaje

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Model
    RJ11 6(4)
  • RAL-number
    9006
  • Centre plate
    No
  • Compatible with third-party covers
    No
  • Height
    82 mm
  • Duct installation
    No
  • Type of fastening
    Screwing
  • Colour
    Silver
  • Connection type
    Screw
  • With label space
    Yes
  • Width
    82 mm
  • Depth
    37 mm

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Pudełko
Množství 4 kusů.
Šířka (m) 0,710
Délka (m) 0,710
Hloubka (m) 0,230
