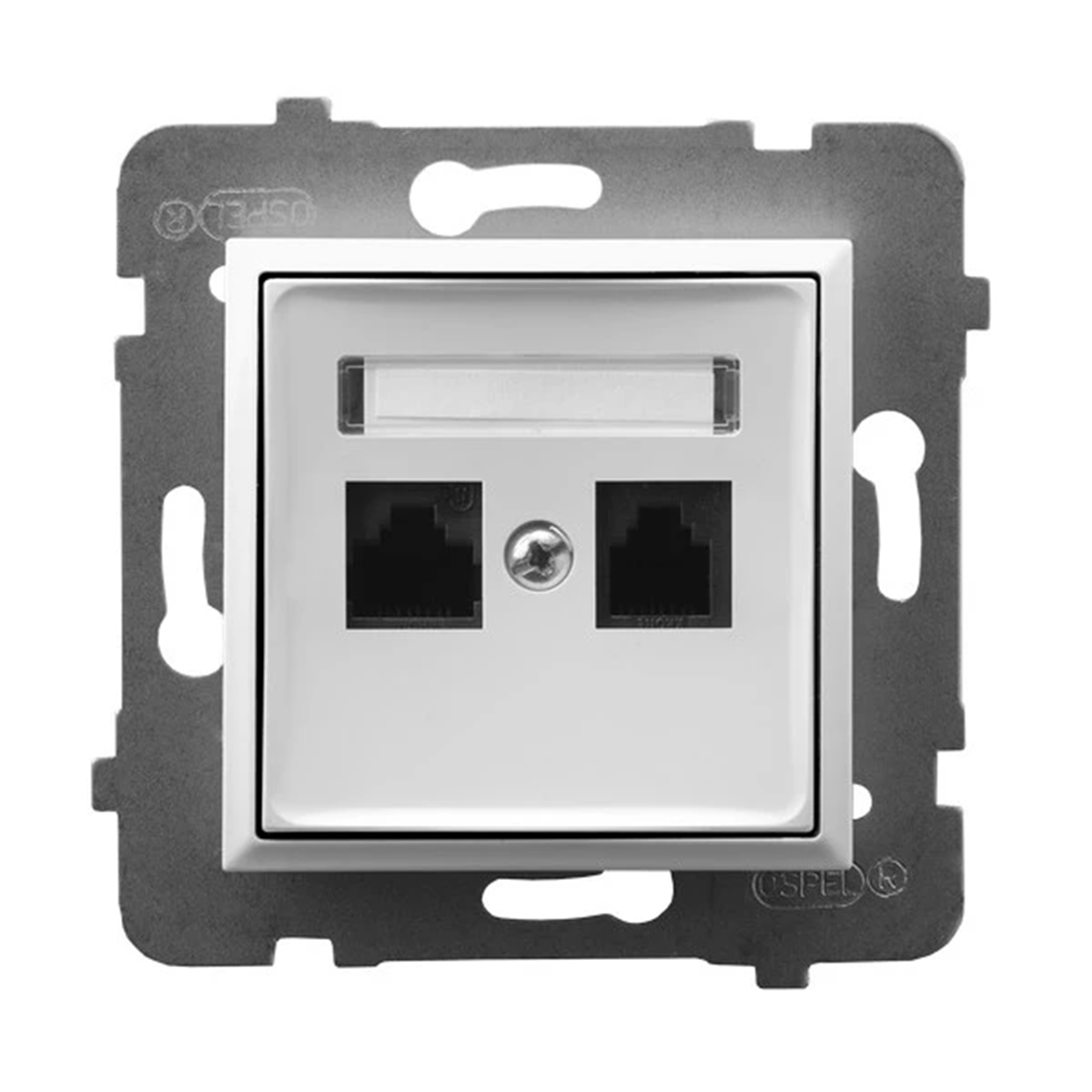

Double computer socket RJ-45 category 5e MMC. It is used to connect two unshielded twisted pair signal cables, category 5e. The data transfer rate is 1Gb/s.

SERIES DESCRIPTION

TheAria series is a combination of modern design and perfect proportions . Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.

Depth [mm]

37
Color

White
Material

Plastic
Installation

Flush-mounted
Type

Internet
Level of security

IP20
Type

Flush-mounted
Height [mm]

71
Mounting depth [mm]

26
Variant

RJ45 (twisted pair)
Number of internet sockets

2
Exact material

Plastic Metal

Category

5e
Shape

Square
Fixing

claws screws
Descriptive field

Yes
Family

ARIA
Width [mm]

71
Version

UTP
Surface protection

Natural
Terminal type

Threadless MMC
For the frame system

Yes
Dust cover

NO
PKWIU

26.30.30.0

Other technical data

Surface mounting

No
Floor box/subfloor mounted

No
Assembly arrangement

Basic element with complete housing
With buses/couplings

Yes
Category

5E
RAL-number

9003
Shielded buses

No
Separate earthing connection

No
Compatible with third-party covers

No
Mounting method shielding connection

None
With dust cover

No
Mechanical coding

No
Device width

82 mm
Device depth

37 mm

Duct installation

No
Type of fastening

Engage (snap)
Type of connector

2x RJ45 8(4)
Suitable for number of connectors

2
Colour

White
Connection type

Other
Shielded housing

No
With label space

Yes
Separate strain relief

No
Outlet direction

Straight
Degree of protection (IP)

IP20
Colour coding

Yes
Device height

82 mm

A kind of package		Pudełko
Quantity	1 pcs.	10 pcs.
Weight (kg)	0,067	-
Width (m)	0,071	0,162
Length (m)	0,071	0,290
Depth (m)	0,037	0,090
