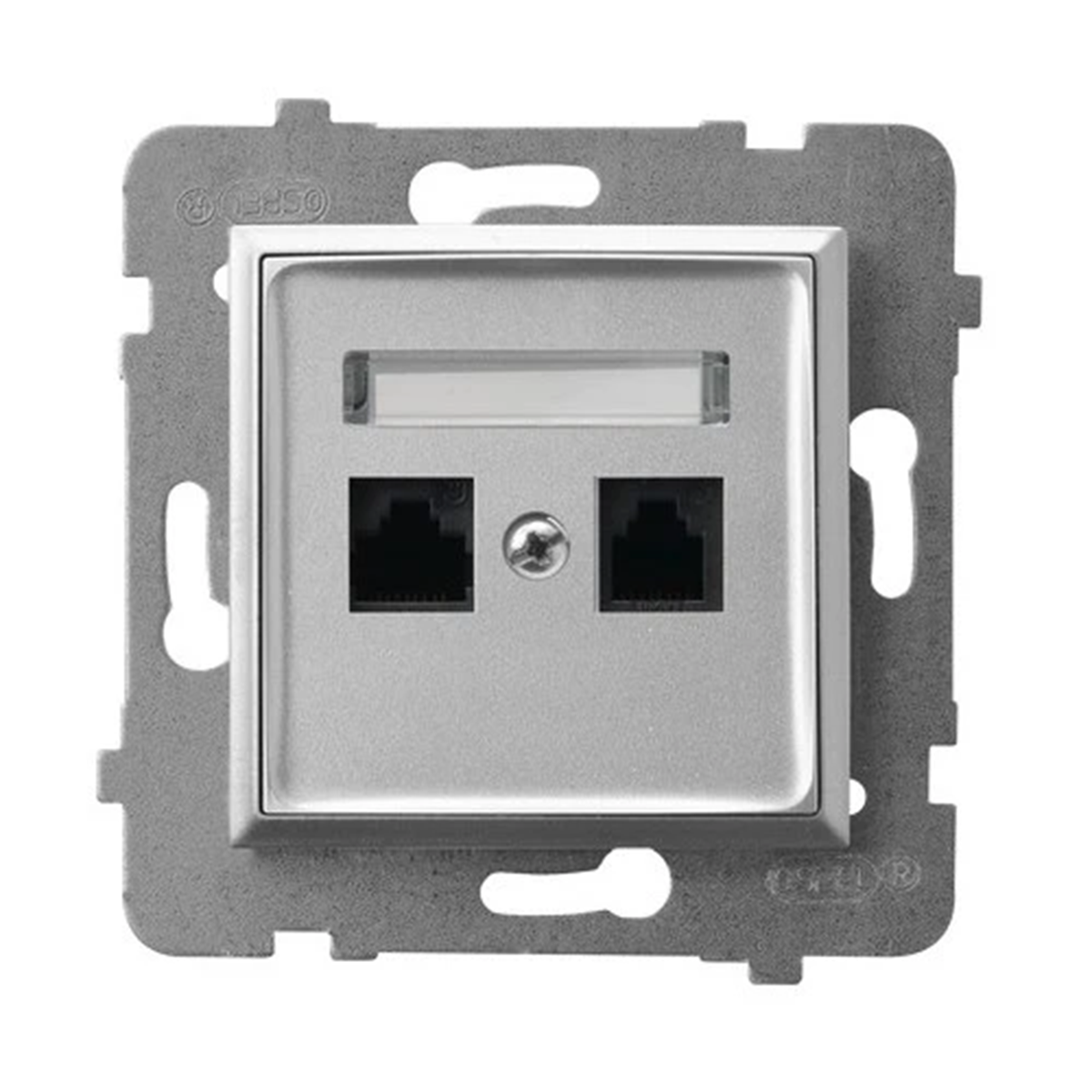

ARIA Double computer socket, cat. 5e silver GPK-2U/K/M/18

local index:
MEI095OSPE
Catalog No:
GPK-2U/K/M/18
EAN code:
5907577483586
Manufacturer: OSPEL
Depth [mm]: 37
Category: 5e
Color: Silver
Price:
21,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double computer socket RJ-45 category 5e MMC. It is used to connect two unshielded twisted pair signal cables, category 5e. The data transfer rate is 1Gb/s.



SERIES DESCRIPTION

TheAria series is a combination of modern design and perfect proportions . Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.

Technical data

  • Depth [mm]
    37
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Mounting depth [mm]
    26
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    2
  • Exact material
    Plastic Metal
  • Category
    5e
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    ARIA
  • Width [mm]
    71
  • Version
    UTP
  • Surface protection
    varnishing
  • Terminal type
    Threadless MMC
  • For the frame system
    Yes
  • Dust cover
    NO
  • PKWIU
    26.30.30.0

Other technical data

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with complete housing
  • With buses/couplings
    Yes
  • Category
    5E
  • RAL-number
    9006
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    No
  • Mounting method shielding connection
    None
  • With dust cover
    No
  • Mechanical coding
    No
  • Device width
    82 mm
  • Device depth
    37 mm
  • Duct installation
    No
  • Type of fastening
    Engage (snap)
  • Type of connector
    2x RJ45 8(4)
  • Suitable for number of connectors
    2
  • Colour
    Silver
  • Connection type
    Other
  • Shielded housing
    No
  • With label space
    Yes
  • Separate strain relief
    No
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    Yes
  • Device height
    82 mm

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090

Files to download
