ARIA Double closing switch gray mat ŁP-17U/M/70
local index:
MMZ028OSPE
Catalog No:
ŁP-17U/M/70
EAN code:
5907577484934
Price:
8,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

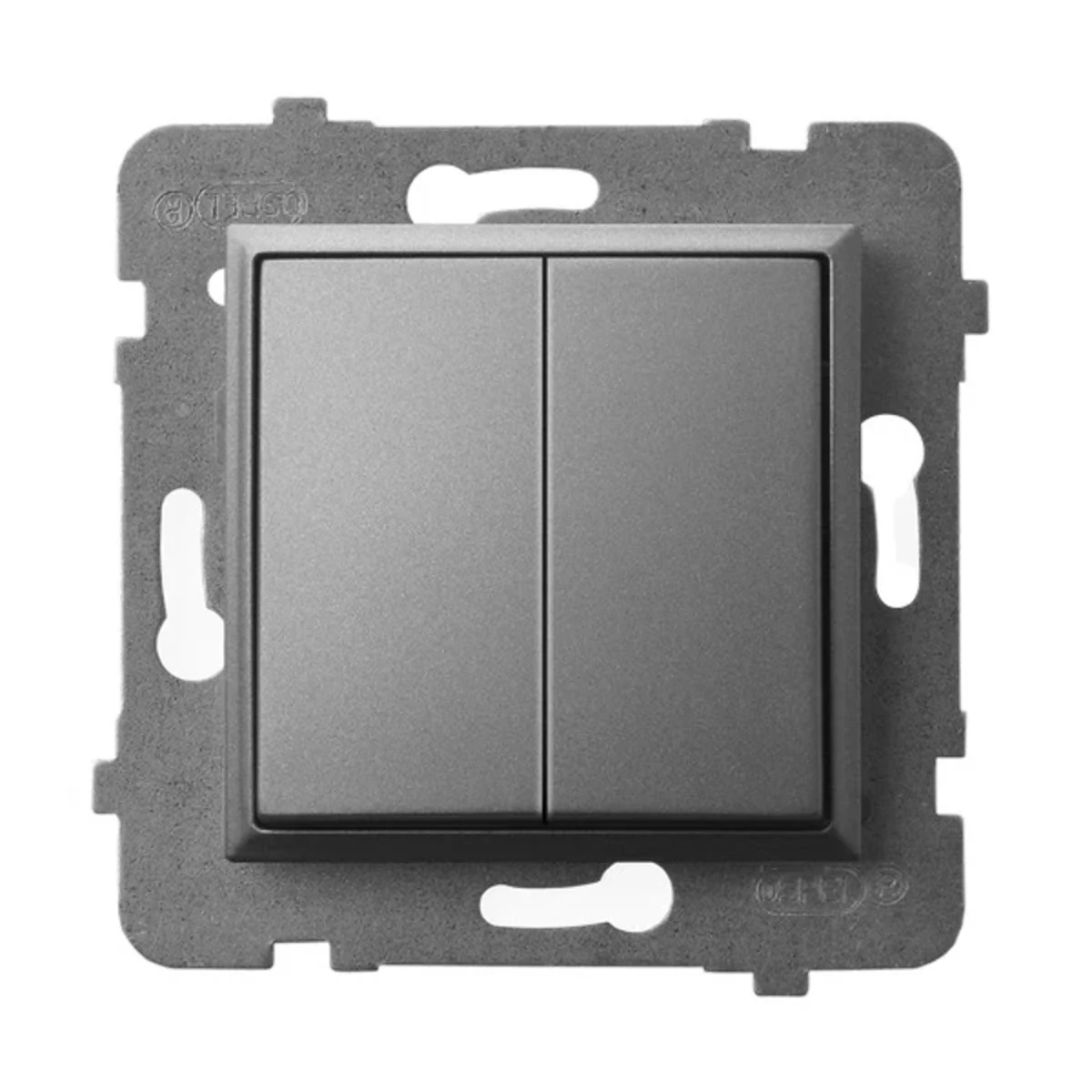

Double make switch of the Aria series, from the manufacturer Ospel. The product catalog number is ŁP-17U/M/70. Matte gray
FEATURES
- To be equipped with a frame
The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from several backlight colors.
Technical data
-
Depth [mm]40
-
ColorGray
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyARIA
-
Width [mm]71
-
VersionConfident
-
Surface protectionvarnishing
-
BacklightNO
-
Terminal typeThreadless
-
For the frame systemYes
-
PKWIU27.33.11.0
-
Number of keys2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorgray matt
-
Mounting depth [mm]25
-
VariantOrdinary
-
Exact materialPlastic Metal
Other technical data
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers2
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)7031
-
IlluminationNo
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width82 mm
-
Device depth40 mm
-
Assembly arrangementBasic element with complete housing
-
Push button switchYes
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourGrey
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height82 mm
-
Built-in depth25 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
