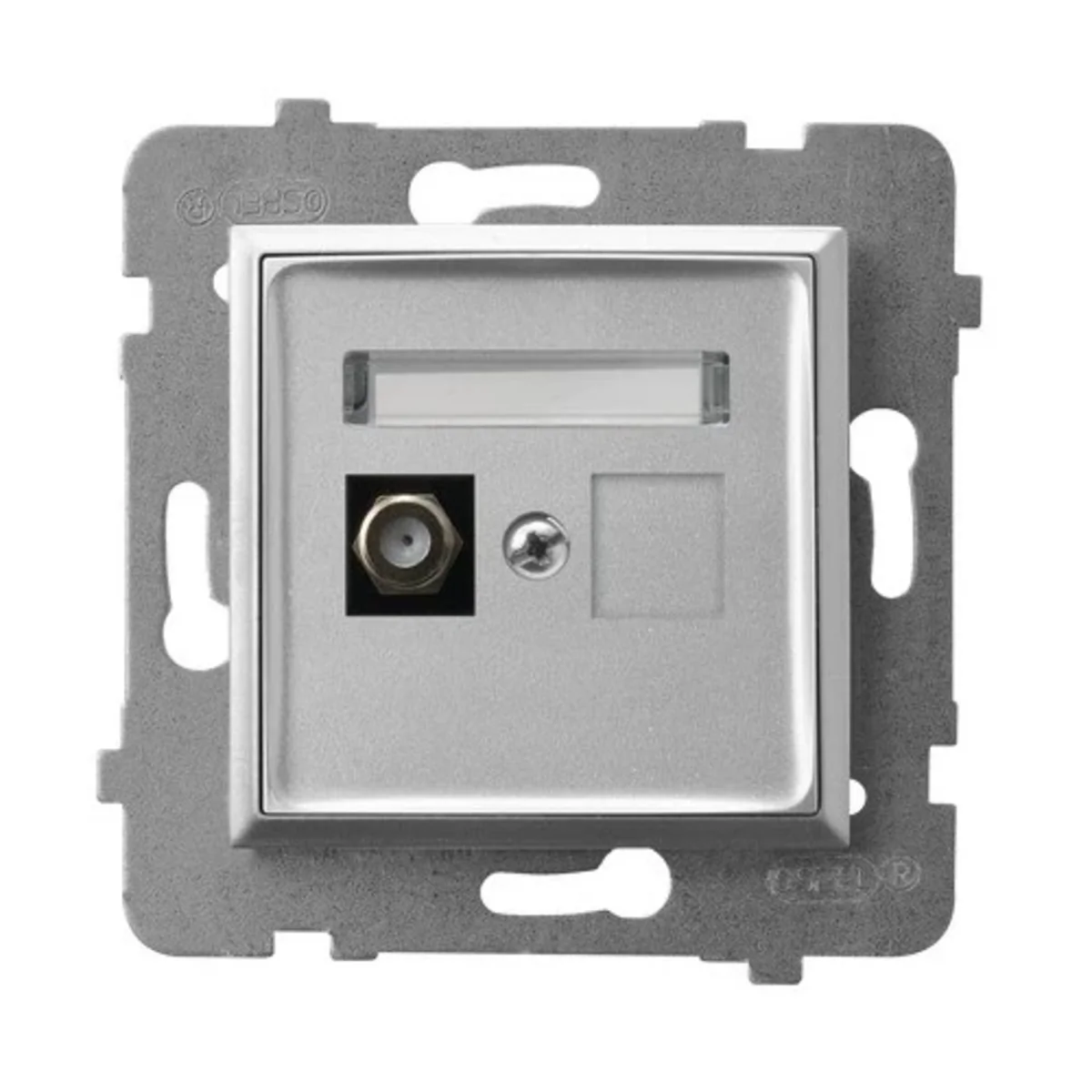

ARIA Antenna socket type F single silver GPA-1UF/M/18
local index:
MEA169OSPE
Catalog No:
GPA-1UF/M/18
EAN code:
5907577483500
Price:
6,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
F-type single antenna socket. To be equipped with a frame.
SERIES DESCRIPTION
Series Aria is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.
Technical data
-
Depth [mm]39
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
TypeAntenna
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Mounting depth [mm]22
-
Variantsat
-
For the frame systemYes
-
PKWIU26.40.52.0
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws screws
-
OverprintNO
-
FamilyARIA
-
Width [mm]71
-
Height [mm]71
-
BacklightNO
-
Terminal typeThreaded
-
F-type inputYes
-
Exact materialPlastic Metal
Other technical data
-
ModelEnd socket
-
CoverComplete housing
-
Tap loss at 2150 MHz0 dB
-
Suitable for cable modemNo
-
Through loss at 2150 MHz0 dB
-
Frequency5 ... 2400 MHz
-
ColourSilver
-
Surface protectionLacquered
-
MaterialPlastic
-
Halogen freeYes
-
Mounting methodFlush-mounted
-
Tap loss at 860 MHz0 dB
-
Number of outlets1
-
Through loss at 860 MHz0 dB
-
Suitable for remote power supplyNo
-
Type of fasteningMounting with claw and screw
-
RAL-number (similar)9006
-
Surface finishingGlossy
-
Material qualityThermoplastic
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
