AQUARIUS Hermetic push button light IP54 with white backlight AQS1L/11

Name: AQUARIUS Hermetic push button light IP54 with white backlight
Brand: KONTAKT-SIMON
SKU: MNZ002KONT
Price: 5.95 PLN

local index:

MNZ002KONT

Catalog No:

AQS1L/11

EAN code:

5902787574475

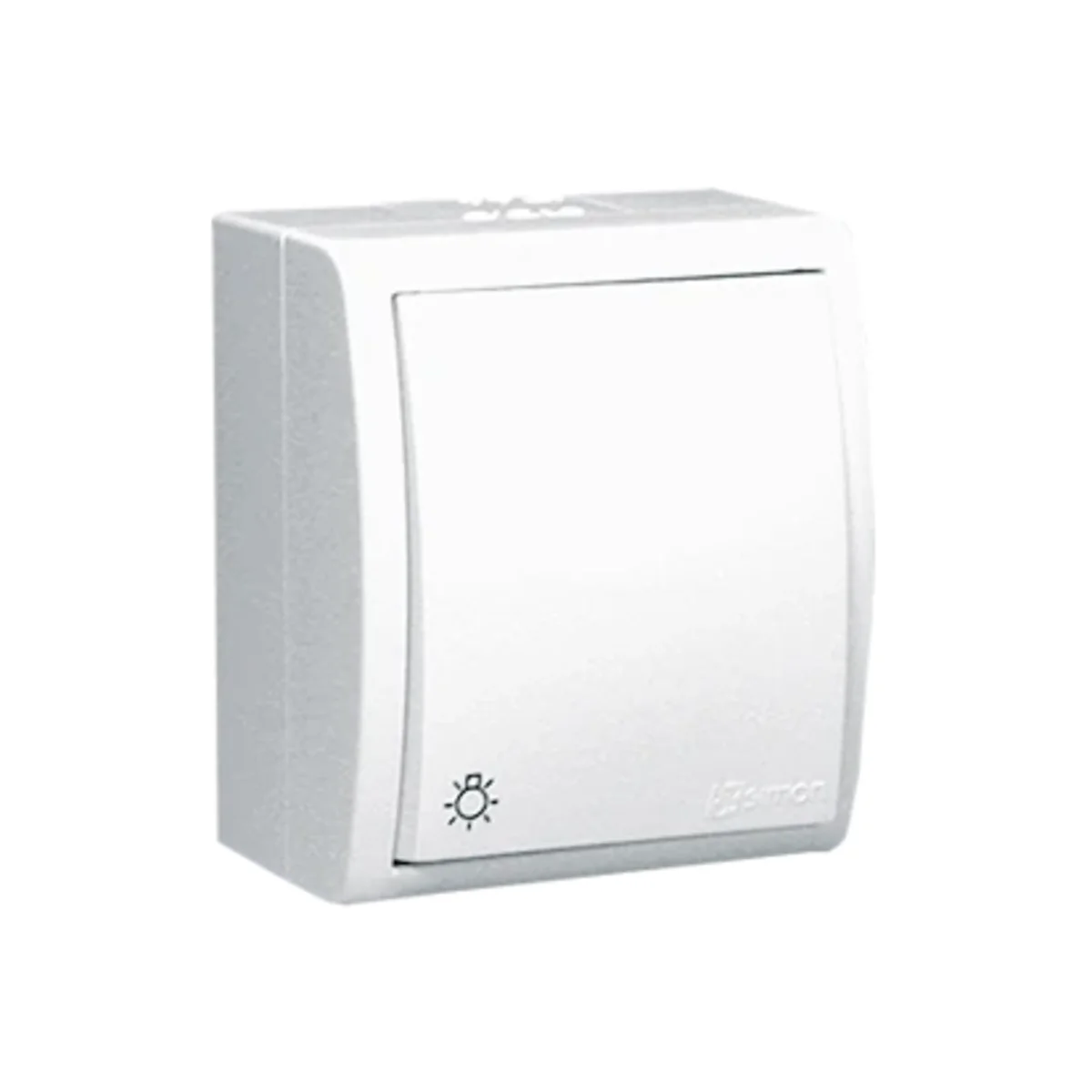

AQUARIUS Hermetic push button light IP54 with white backlight

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 48

Number of keys: 1

See full description

Price:

5,95 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Hermetic "light" button from the Simon Aquarius series. The product catalog number is AQS1L/11.

FEATURES

With built-in orientation backlight.
Complete product.
Rocker switch.
Single-pole pushbutton (monostable).
Screw fixing ( for a can).

SERIES DESCRIPTION

Simon Aquarius is a series of surface-mounted, splash-proof accessories electrical installation designed for use in unfavorable conditions. Hermetic "light" button characterize the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Rectangular
Fixing

Screws
Rated voltage [V]

230
Type

Short
Level of security

IP54
Width [mm]

60
Version

Confident
Surface protection

Natural
Backlight

Yes
Variant

Light
Exact material

ABS
Backlight color

Orange

Depth [mm]

48
Color

White
Material

Plastic
Installation

Surface-mounted
Rated current [A]

10
Family

SIMON AQUARIUS
Symbol

Light
Type

Surface-mounted
Height [mm]

70
Surface finish

Shiny
Terminal type

Threaded
For the frame system

NO
Backlight type

Smoldering lamp
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with complete housing
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V

Mounting method

Surface mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP54

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,082	0,082	0,907
Width (m)	0,070	0,110	0,190
Length (m)	0,060	0,053	0,230
Depth (m)	0,048	0,160	0,100
