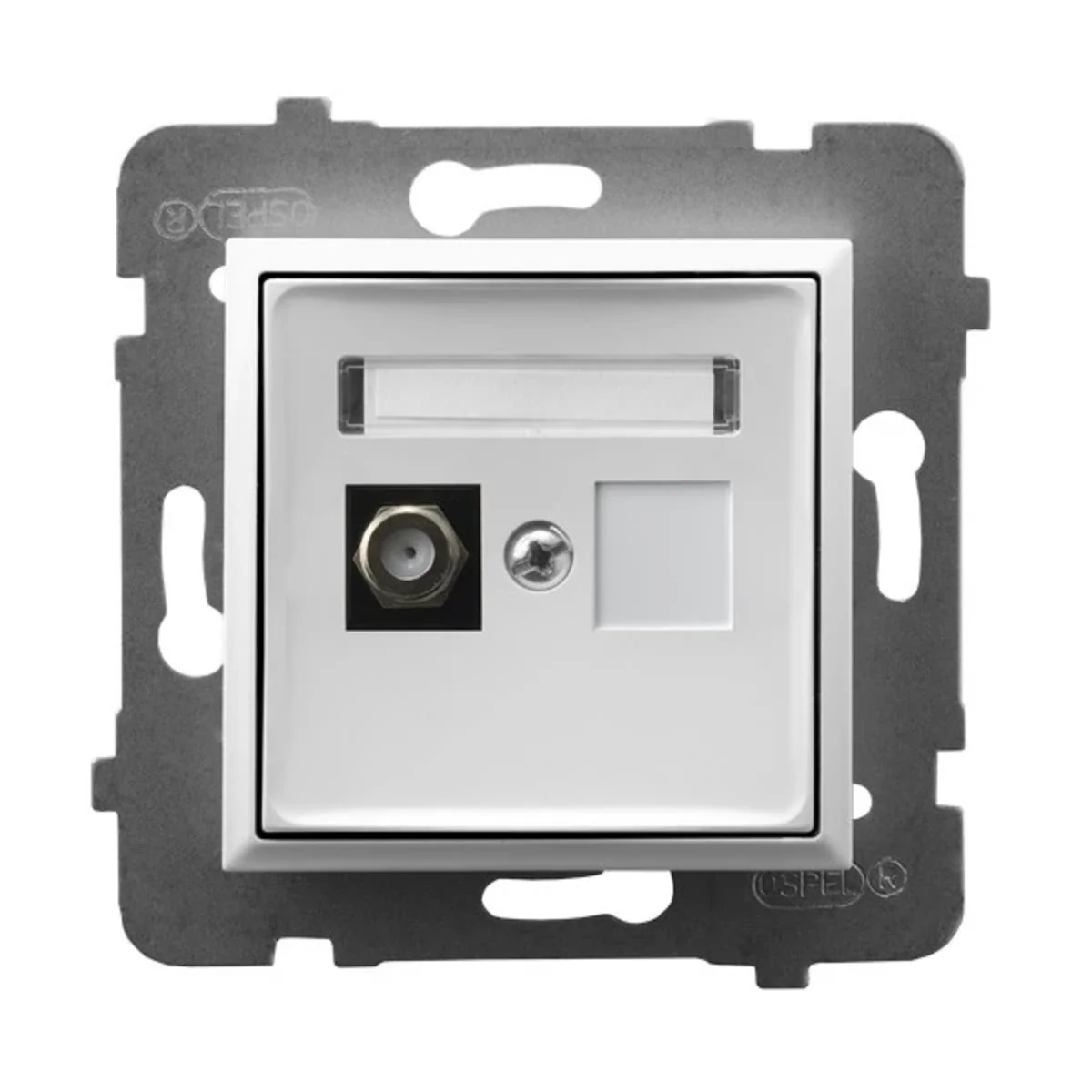

Antenna socket type F single white GPA-1UF/M/00

local index:
MEA376OSPE
Catalog No:
GPA-1UF/M/00
EAN code:
5907577482541
Manufacturer: OSPEL
Depth [mm]: 39
Number of sockets: 1
Color: White
Price:
5,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 12 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Antenna socket from the Aria series, from the manufacturer Ospel. The product part number is GPA-1UF/M/00.



FEATURES

  • Single .
  • Type F.
  • Module without frame.
  • Color white.



SERIES DESCRIPTION

Aria products have internal decorative frame which adds originality and sets them apart from other series. The flush-mounted antenna socket has all the features of this unique feature.

Technical data

  • Depth [mm]
    39
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Descriptive field
    Yes
  • Family
    ARIA
  • Width [mm]
    71
  • Height [mm]
    71
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    Yes
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Type
    Antenna
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Mounting depth [mm]
    22
  • Variant
    sat
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0

Other technical data

  • Model
    End socket
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 2400 MHz
  • Colour
    White
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    Yes
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    0 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9003
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,290
Depth (m) 0,090
