Antenna socket R-TV-DATA satin (metallic) AAD/29

Name: Antenna socket R-TV-DATA satin (metallic)
Brand: KONTAKT-SIMON
SKU: MEA040KONT
Price: 26.32 PLN

local index:

MEA040KONT

Catalog No:

AAD/29

EAN code:

5902787550431

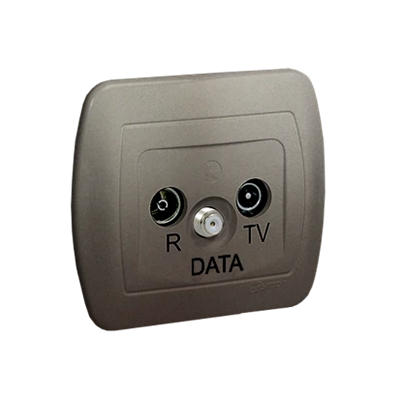

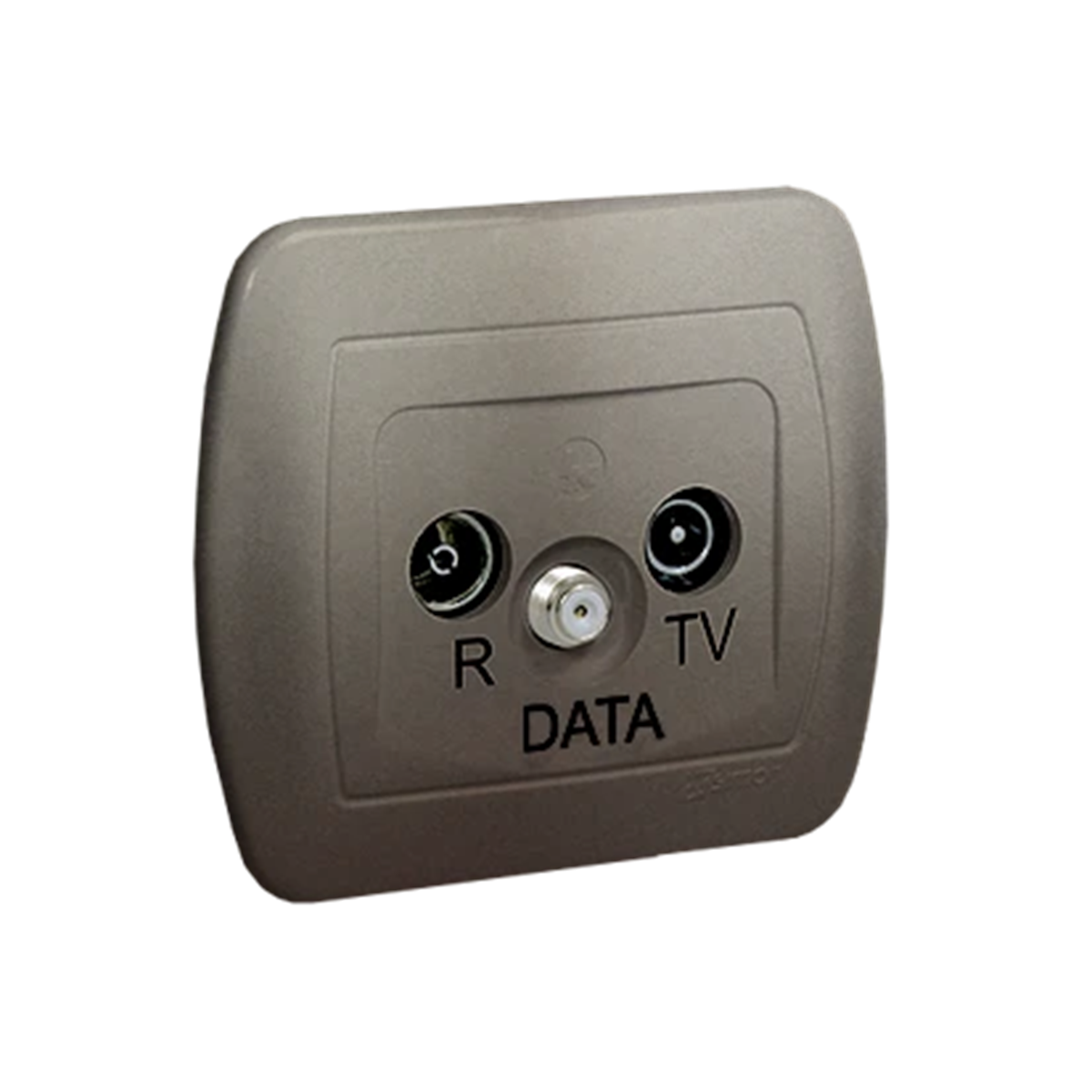

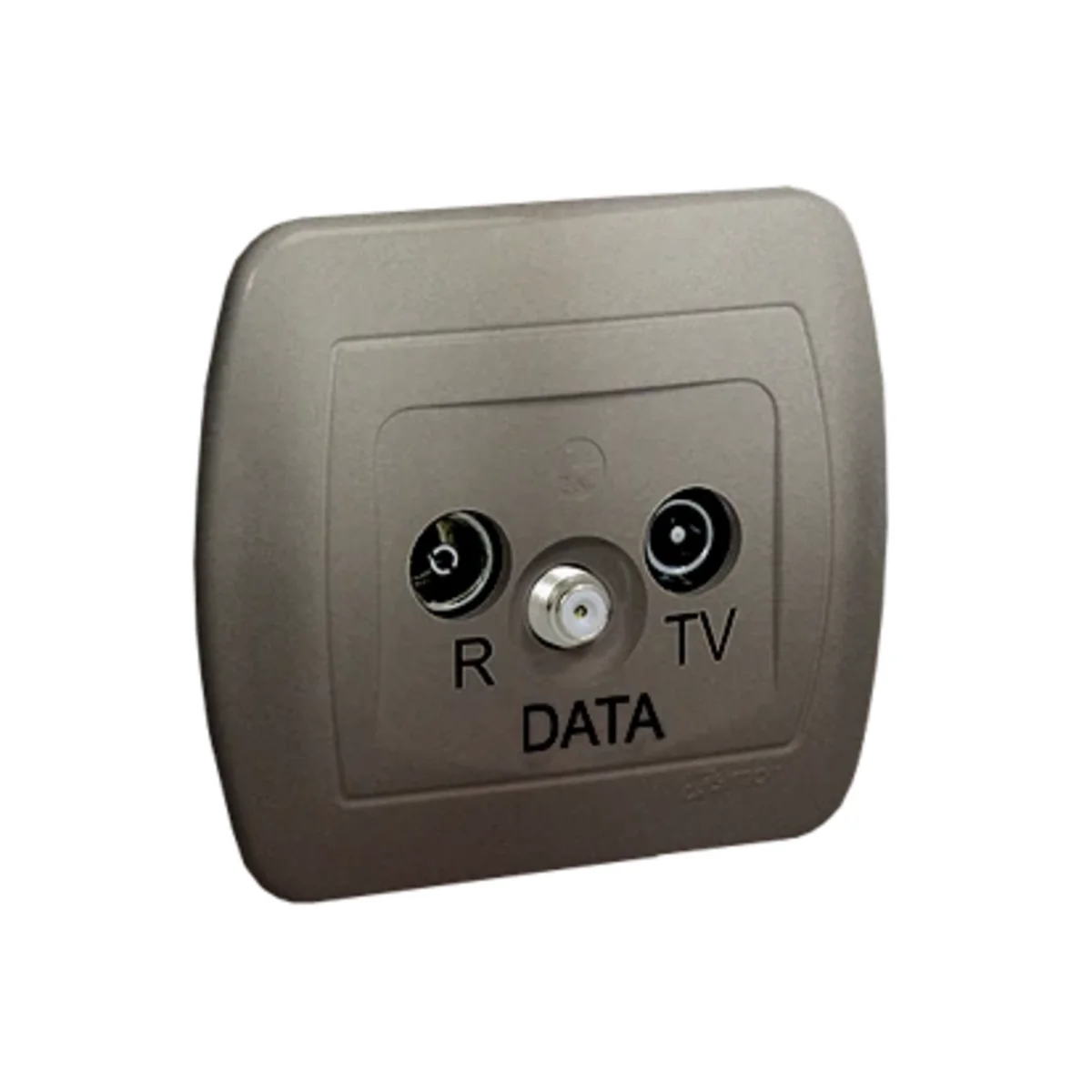

Antenna socket R-TV-DATA satin (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Depth [mm]: 41

Number of sockets: 3

Color: Silver

See full description

Price:

26,32 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

R-TV-DATA antenna socket

SERIES DESCRIPTION

Slightly longer base and spine line relative to the sides ;w and clearly rounded frame corners distinguish this series from others. Simon AKORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Technical data

Depth [mm]

41
Color

Silver
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 10
Version

Final
Surface protection

varnishing
Surface finish

matte
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

PC

Number of sockets

3
Shape

Rectangular
Fixing

claws Screws
Overprint

Yes
Family

SIMON CHORD
Width [mm]

90
Type

Flush-mounted
Height [mm]

80.5
Frequency Range [MHz]

5-862
Accurate color

Satin metallic
Mounting depth [mm]

29
Variant

R TV DATE
For the frame system

NO
PKWIU

27.33.13.0

Other technical data

Model

End socket
Number of outlets

3
Frequency

5 ... 862 MHz

Tap loss at 860 MHz

10 dB
Suitable for remote power supply

No

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,105	0,105	1,140
Width (m)	0,080	0,110	0,190
Length (m)	0,090	0,046	0,230
Depth (m)	0,041	0,160	0,100
