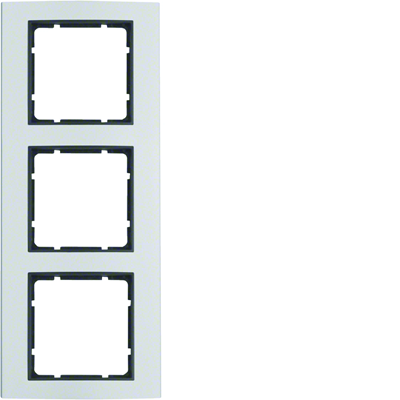

Aluminum/anthracite triple frame 10133004

local index:
MAR185BERK
Catalog No:
10133004
EAN code:
4011334222743
Manufacturer: BERKER
Depth [mm]: 9.5
Number of modules: 3
Color: silver | Graphite
Price:
64,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

3-fold frame from the B.3 series from the manufacturer Berker. The product catalog number is 10133004.



SERIES DESCRIPTION

Berker B.3 Series fits perfectly into modern interiors, thanks to its elegant design and the use of precious materials.

Technical data

  • Depth [mm]
    9.5
  • Color
    silver Graphite
  • Material
    Metal
  • Family
    B.3
  • Width [mm]
    90.7
  • Surface finish
    matte
  • Mounting direction
    Universal
  • Exact material
    Anodized aluminum
  • PKWIU
    27.12.40.0
  • Number of modules
    3
  • Shape
    Rectangular
  • Type
    Standard + Intermediate
  • Level of security
    IP20
  • Height [mm]
    223.1
  • Accurate color
    Aluminum Anthracite
  • For modular equipment
    Not applicable
  • The shape of the matching accessory
    Square, Rectangular

Other technical data

  • Number of units
    3
  • Number of units horizontal
    3
  • Number of modules horizontal (module system)
    0
  • Liczba łączników
    3
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    Yes
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • With hinged lid
    No
  • Impact strength
    IK07
  • Width
    223.1 mm
  • Depth
    9.5 mm
  • Built-in height
    56 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    3
  • Number of modules vertical (module system)
    0
  • With mounting grid
    No
  • Suitable for wall duct
    Yes
  • Label space/information surface
    No
  • Material quality
    Aluminium
  • Surface protection
    Anodised
  • Colour
    Aluminium
  • Transparent
    No
  • Degree of protection (IP)
    IP20
  • Type of fastening
    Clamp mounting
  • Height
    90.7 mm
  • Built-in width
    56 mm
  • Diameter bore hole (opening)
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 80 pcs. 2560 pcs.
Weight (kg) 0,076 0,865 7,373 260,927
Width (m) 0,091 0,103 0,300 0,800
Length (m) 0,009 0,089 0,225 1,050
Depth (m) 0,223 0,241 0,400 1,200
