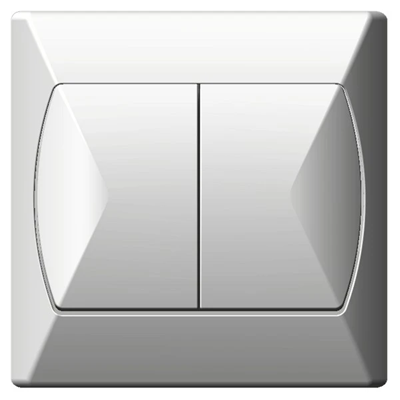

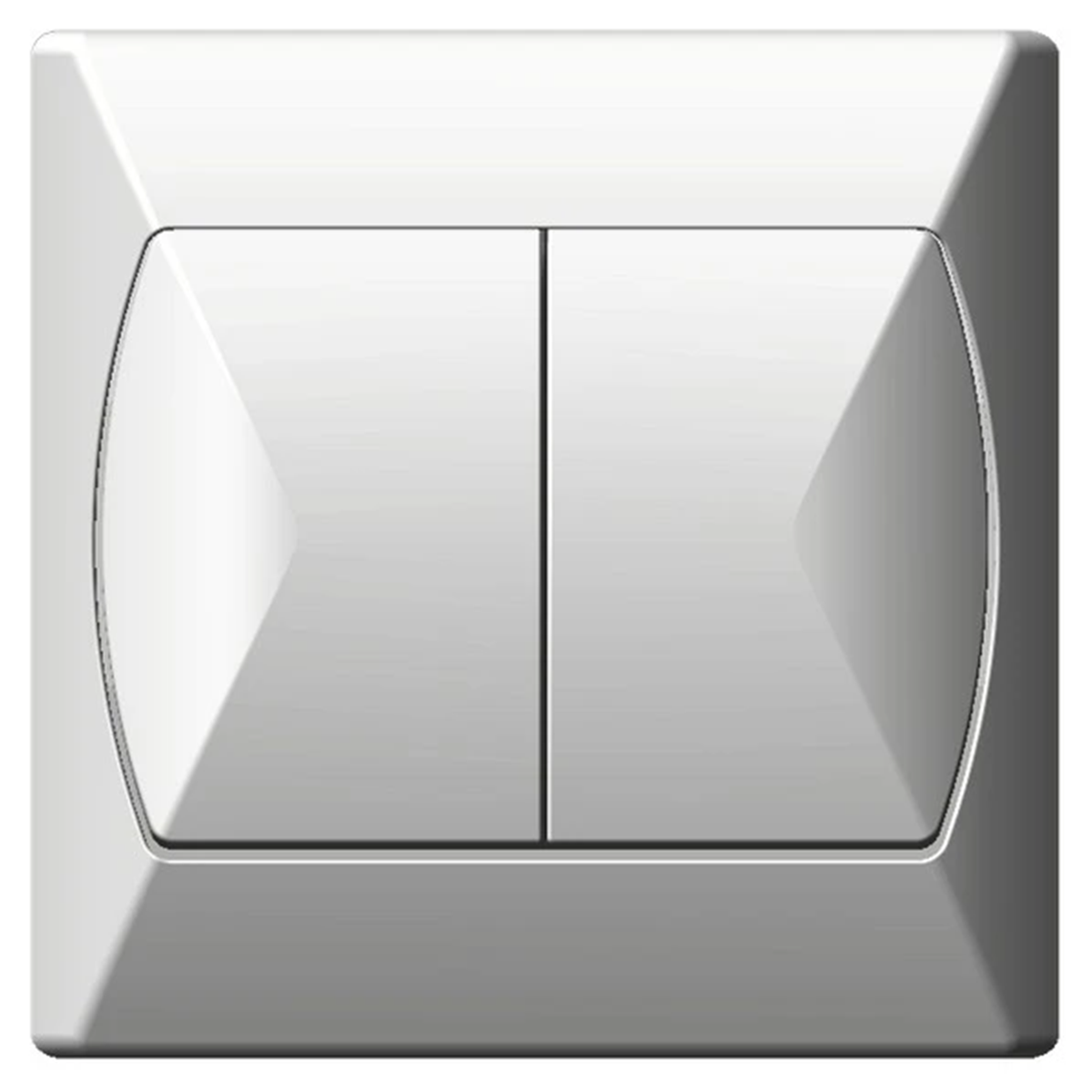

AKCENT White double stair switch ŁP-10A/00
local index:
MMS001OSPE
Catalog No:
ŁP-10A/00
EAN code:
5907577426422
Price:
6,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Stair switch from the Akcent series, from Ospel. The product catalog number is ŁP-10A/00.
FEATURES
- Doubleó jny.
- Complete; with frame.
- Thread clamps.
- Color white.
- Rated current 10AX.
- Rated voltage 230V.
- Mounting flush.

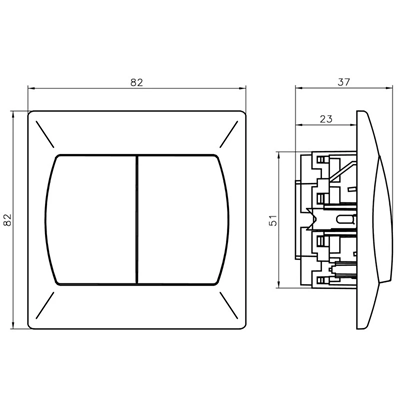

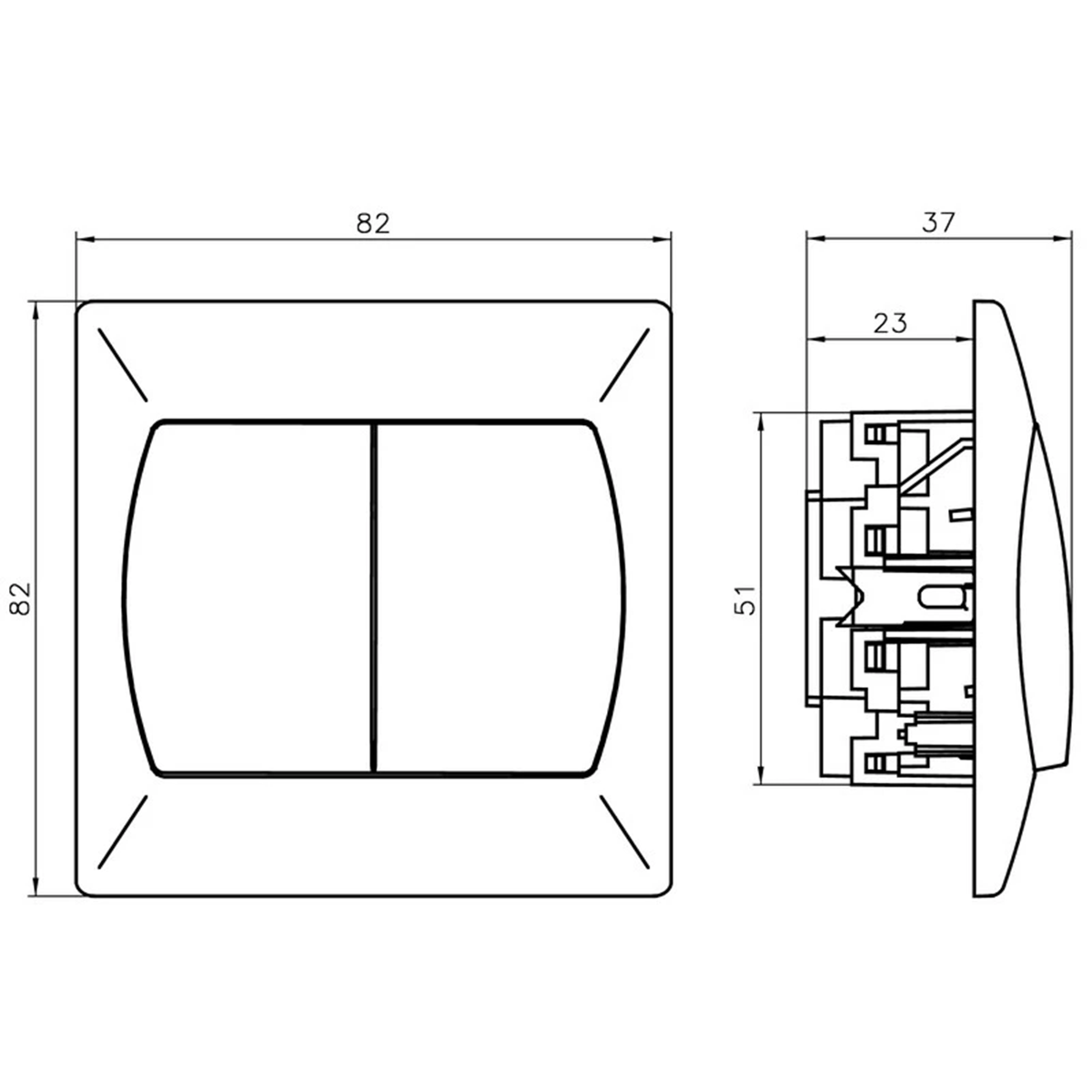

- Dimensions: 82 x 82 mm (height x width).
SERIES DESCRIPTION
Series products Akcent includes complete connectors with frames. They are mounted flush. Akcent is characterized by an original style and adapts to any interior.
Technical data
-
Depth [mm]36
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyACCENT
-
Width [mm]82
-
Height [mm]82
-
BacklightNO
-
Terminal typeThreaded
-
Exact materialPlastic Metal
-
Number of keys2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
Mounting depth [mm]23
-
For the frame systemNO
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemAlternating-/alternating switch
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceNo
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height82 mm
-
Built-in depth23 mm
-
Method of operationRocker/button
-
Number of modules (module system)0
-
Number of rockers2
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9003
-
IlluminationNo
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width82 mm
-
Device depth37 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
