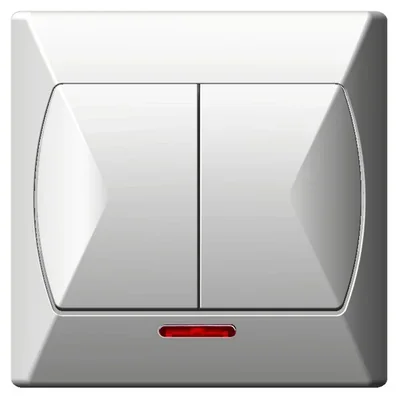

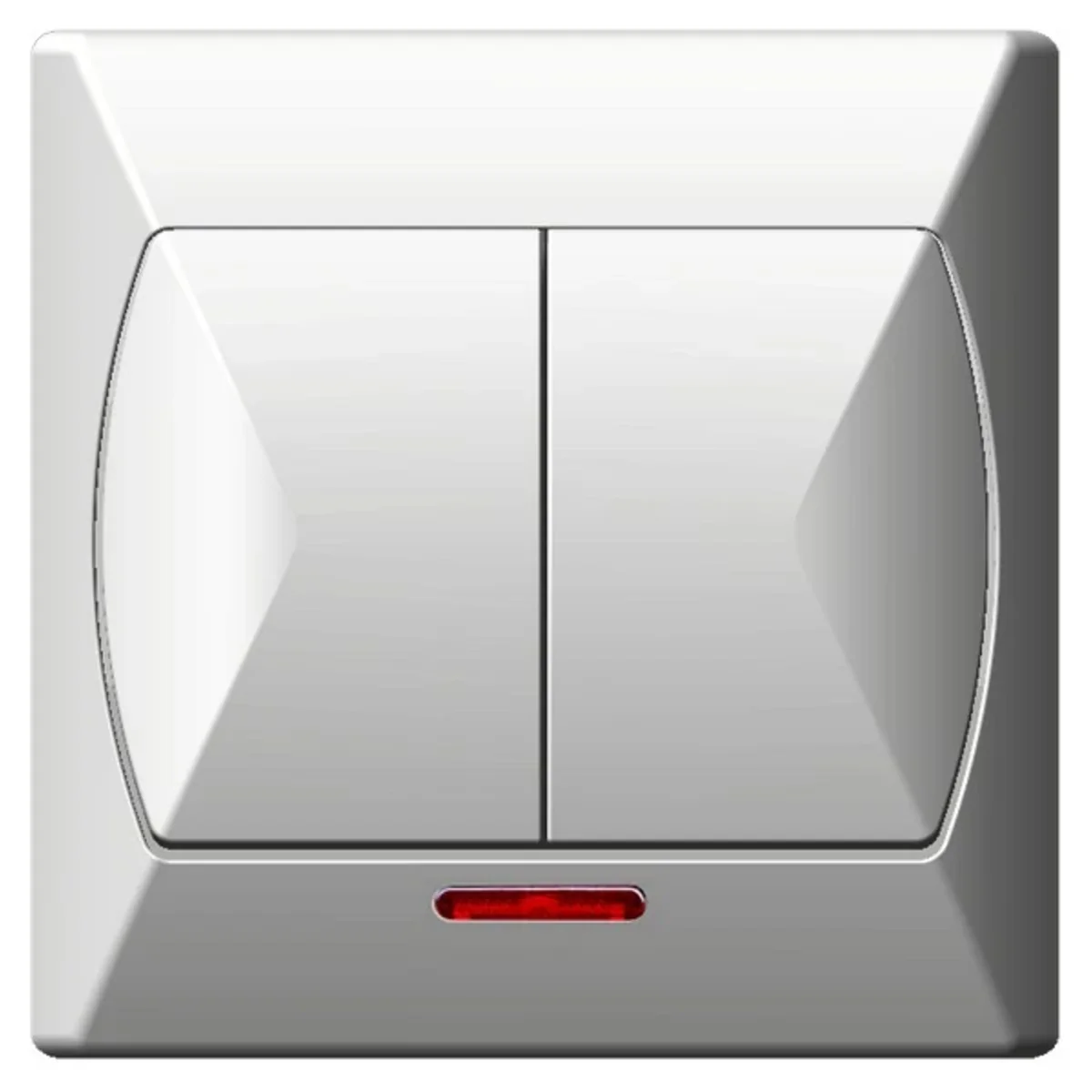

AKCENT Two-group switch, white candlestick ŁP-2AS/00

local index:
MMT006OSPE
Catalog No:
ŁP-2AS/00
EAN code:
5907577410766
Manufacturer: OSPEL
Depth [mm]: 36
Number of keys: 2
Color: White
Price:
5,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Candle holder from the Akcent series, from Ospel. The product's catalog number is ŁP-2AS/00.



FEATURES

  • Two-group< /strong>.
  • With orange backlight (LTS lamp).
  • Complete; with frame.
  • Thread clamps.
  • Color white.
  • Rated current 10AX.
  • Rated voltage 230V.
  • Ingress protectionIP20.< /li>
  • flushmount.

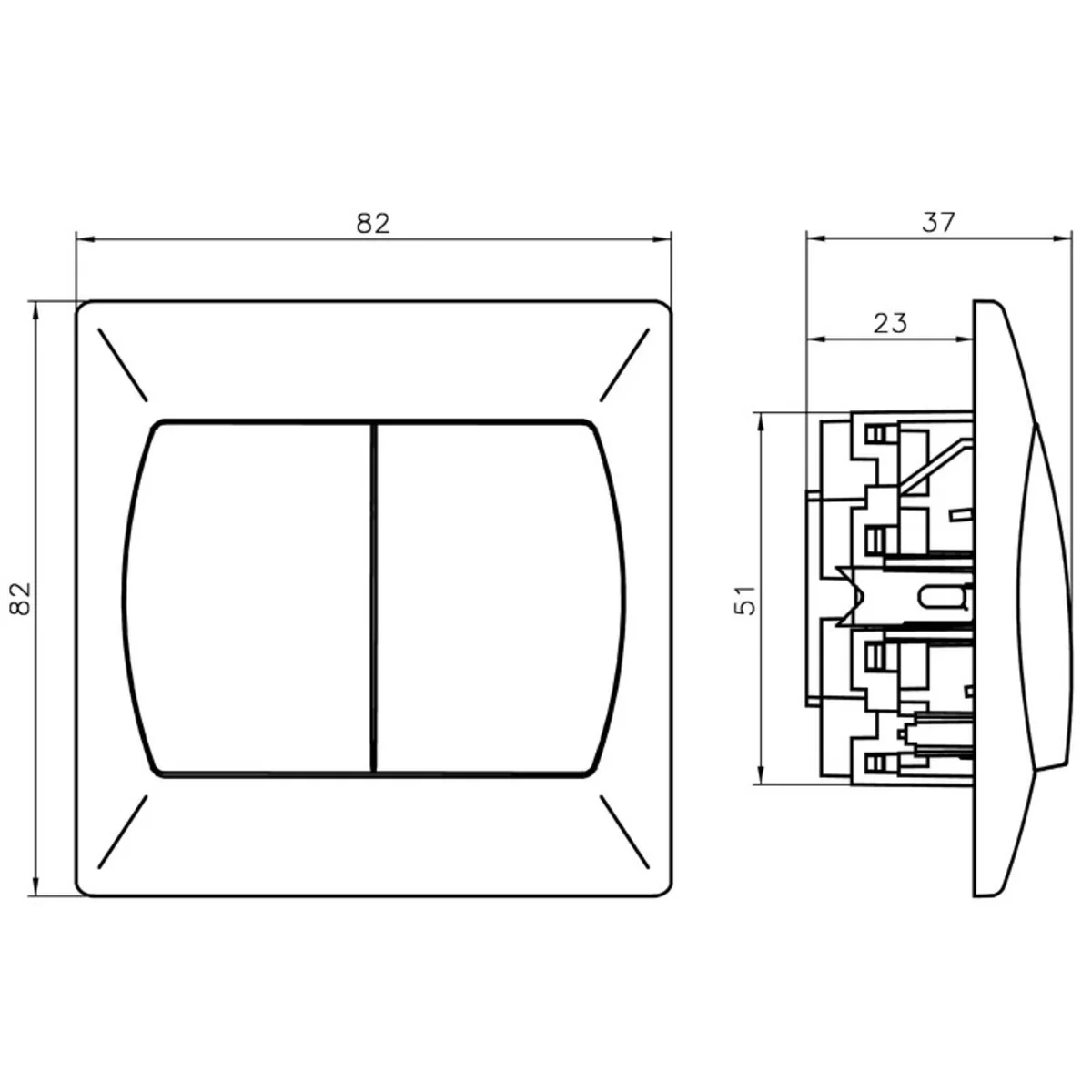

  • Dimensions: 82 x 82 mm (height x width).



SERIES DESCRIPTION

The products of the Akcent series include complete connectors equipped with frames. They are mounted flush. Akcent is characterized by an original style and adapts to any interior.

Technical data

  • Depth [mm]
    36
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ACCENT
  • Width [mm]
    82
  • Height [mm]
    82
  • Backlight
    Yes
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal
  • Backlight color
    Orange
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Candlestick
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Mounting depth [mm]
    23
  • For the frame system
    NO
  • Backlight type
    LTS lamp
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 2x1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    82 mm
  • Built-in depth
    23 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    0
  • Number of rockers
    2
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    82 mm
  • Device depth
    37 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,290
Depth (m) 0,090
