AKCENT Stair switch with backlight brown ŁP-3AS/24
local index:
MMS048OSPE
Catalog No:
ŁP-3AS/24
EAN code:
5907577413767
Price:
5,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

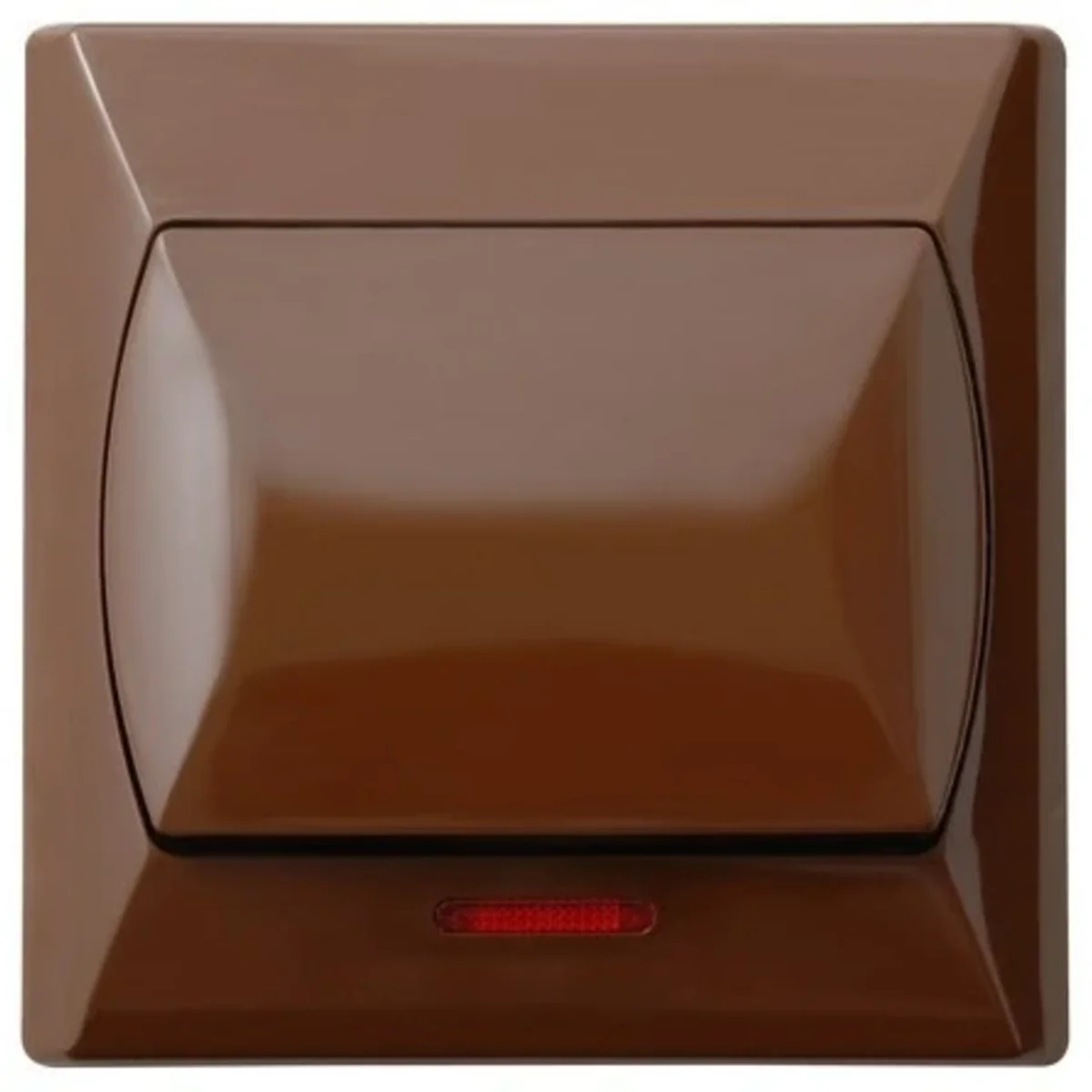

Stair switch from the Akcent series, from Ospel. The product catalog number is ŁP-3AS/24.
FEATURES
- Single.
- Backlit in orange (LTS lamp).
- Complete; with frame.
- Thread clamps.
- Color brown.
- Rated current 10AX.
- Rated voltage 230V.
- Mounting flush.
- Rating IP20.

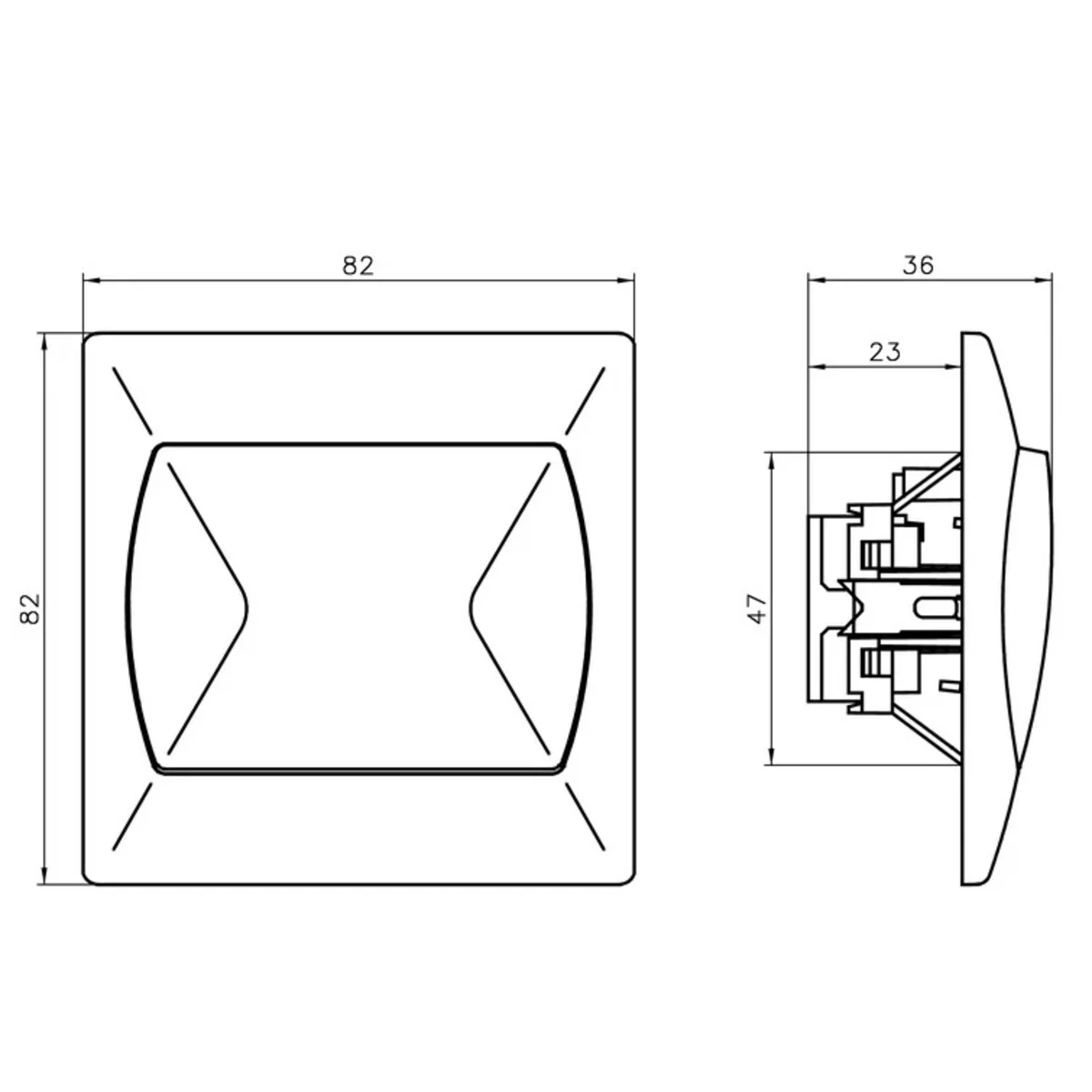

- Dimensions: 82 x 82 mm (height x width).
SERIES DESCRIPTION
The products of the Akcent series include complete connectors equipped with frames. They are mounted flush. Akcent is characterized by an original style and adapts to any interior.
Technical data
-
Depth [mm]36
-
ColorBrown
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyACCENT
-
Width [mm]82
-
Height [mm]82
-
BacklightYes
-
Terminal typeThreaded
-
Exact materialPlastic Metal
-
Backlight colorOrange
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
Mounting depth [mm]23
-
For the frame systemNO
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourBrown
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height82 mm
-
Built-in depth23 mm
-
Method of operationRocker/button
-
Number of modules (module system)0
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)8014
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width82 mm
-
Device depth36 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,290 |
| Depth (m) | 0,090 |
