AKCENT Stair switch + single-pole white ŁP-9A/00
local index:
MMS006OSPE
Catalog No:
ŁP-9A/00
EAN code:
5907577426347
Price:
5,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

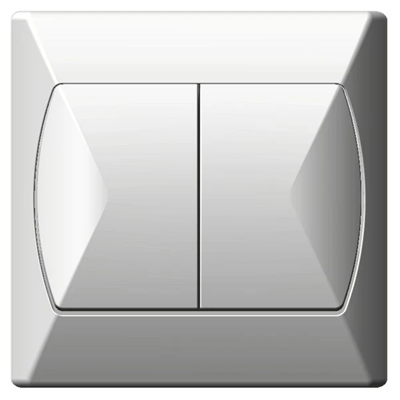

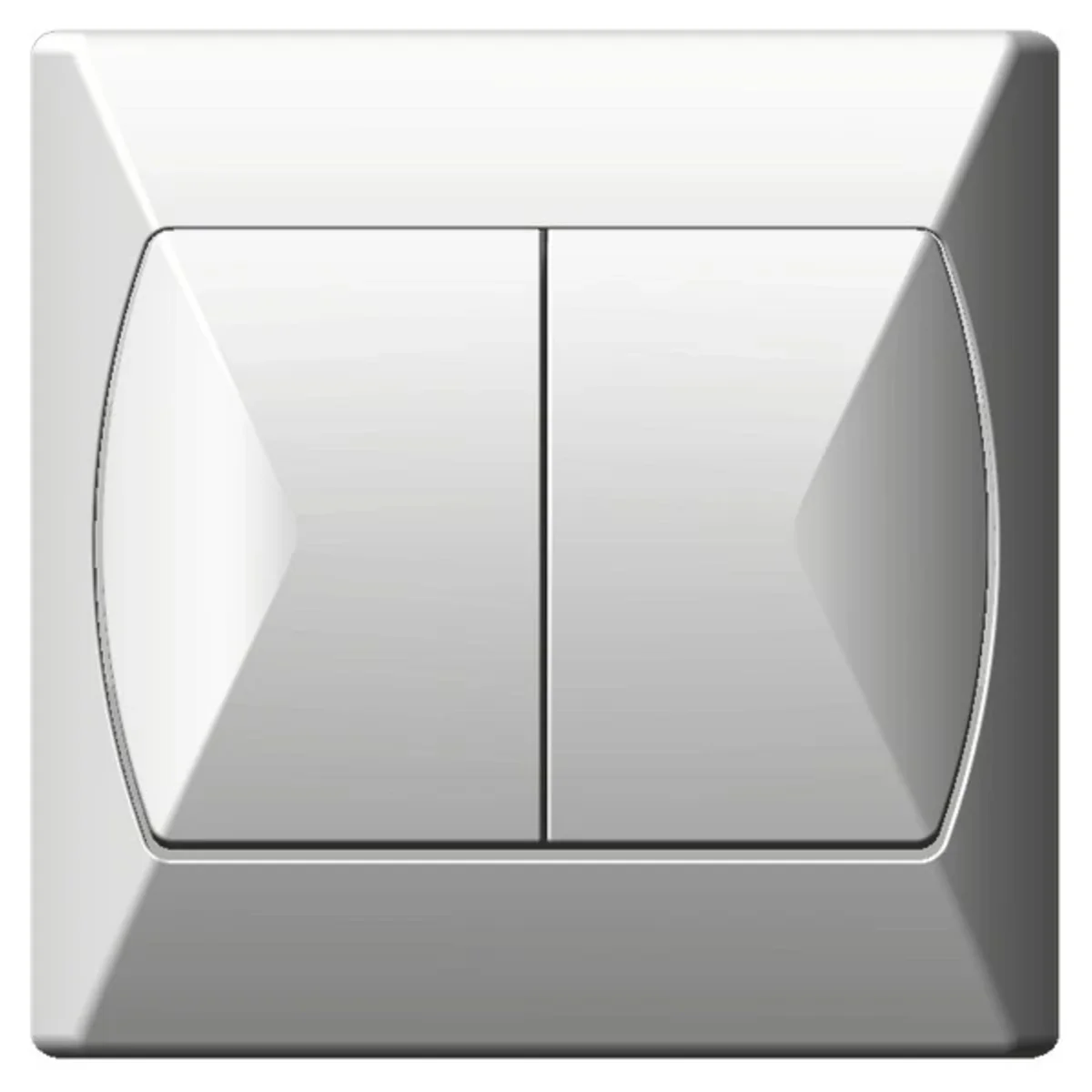

Stair switch + single-pole from the Akcent series, from Ospel. The product catalog number is ŁP-9A/00.
FEATURES
- Doubleó jny; one button works as stair switch the other as single-pole switch.
- Complete; with frame.
- Thread clamps.
- Color white.
- Rated current 10AX.
- Rated voltage 230V.
- Mounting flush.
- Rating IP20.

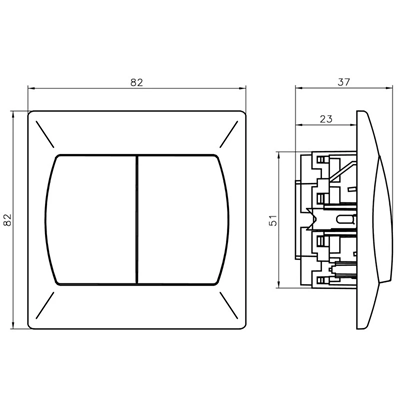

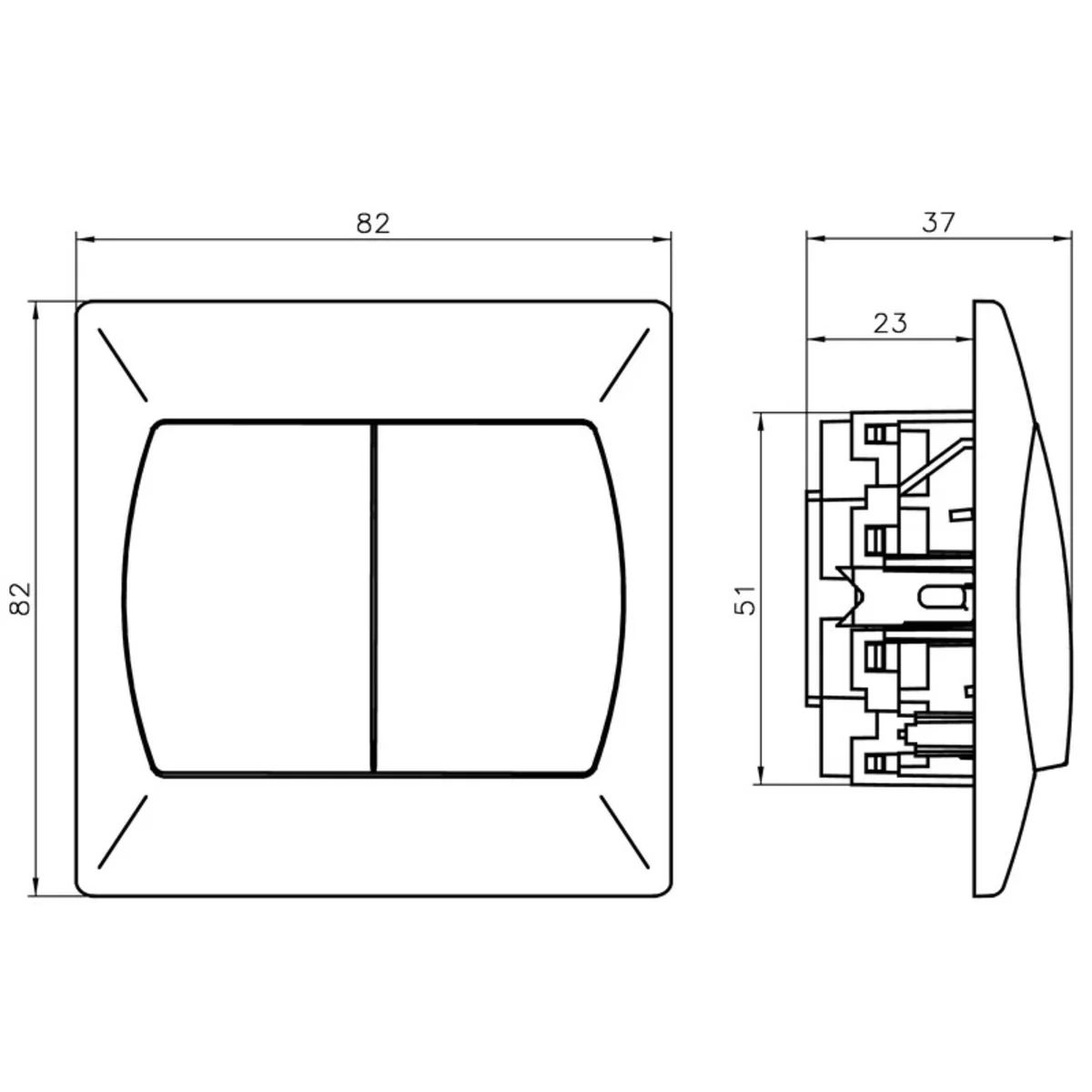

- Dimensions: 82 x 82 mm (height x width).
SERIES DESCRIPTION
The products of the Akcent series include complete connectors equipped with frames. They are mounted flush. Akcent is characterized by an original style and adapts to any interior.
Technical data
-
Additional featuresIntegrated with unipolar
-
Number of keys2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
Mounting depth [mm]23
-
For the frame systemNO
-
PKWIU27.33.11.0
-
Depth [mm]36
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyACCENT
-
Width [mm]82
-
Height [mm]82
-
BacklightNO
-
Terminal typeThreaded
-
Exact materialPlastic Metal
Other technical data
-
Wiring systemOther
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceNo
-
Function lightingOther
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height82 mm
-
Built-in depth23 mm
-
Method of operationRocker/button
-
Number of modules (module system)0
-
Number of rockers2
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9003
-
IlluminationNo
-
Type of lightingOther
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width82 mm
-
Device depth37 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
