AKCENT Single-pole switch with white backlight ŁP-1AS/00

Name: AKCENT Single-pole switch with white backlight
Brand: OSPEL
SKU: MMP037OSPE
Price: 22.15 PLN
Availability: BackOrder

Indice locale:

MMP037OSPE

Numero di catalogo:

ŁP-1AS/00

Codice EAN:

5907577410759

AKCENT Single-pole switch with white backlight

Clicca sulla foto per ingrandire

Produttore: OSPEL

Depth [mm]: 36

Number of keys: 1

Color: White

Vedi la descrizione completa

Prezzo:

22,15 zł

gross / pezzi

(inclusa IVA 23%)

fino a 2 settimane

Su ordinazione

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso

Descrizione del prodotto

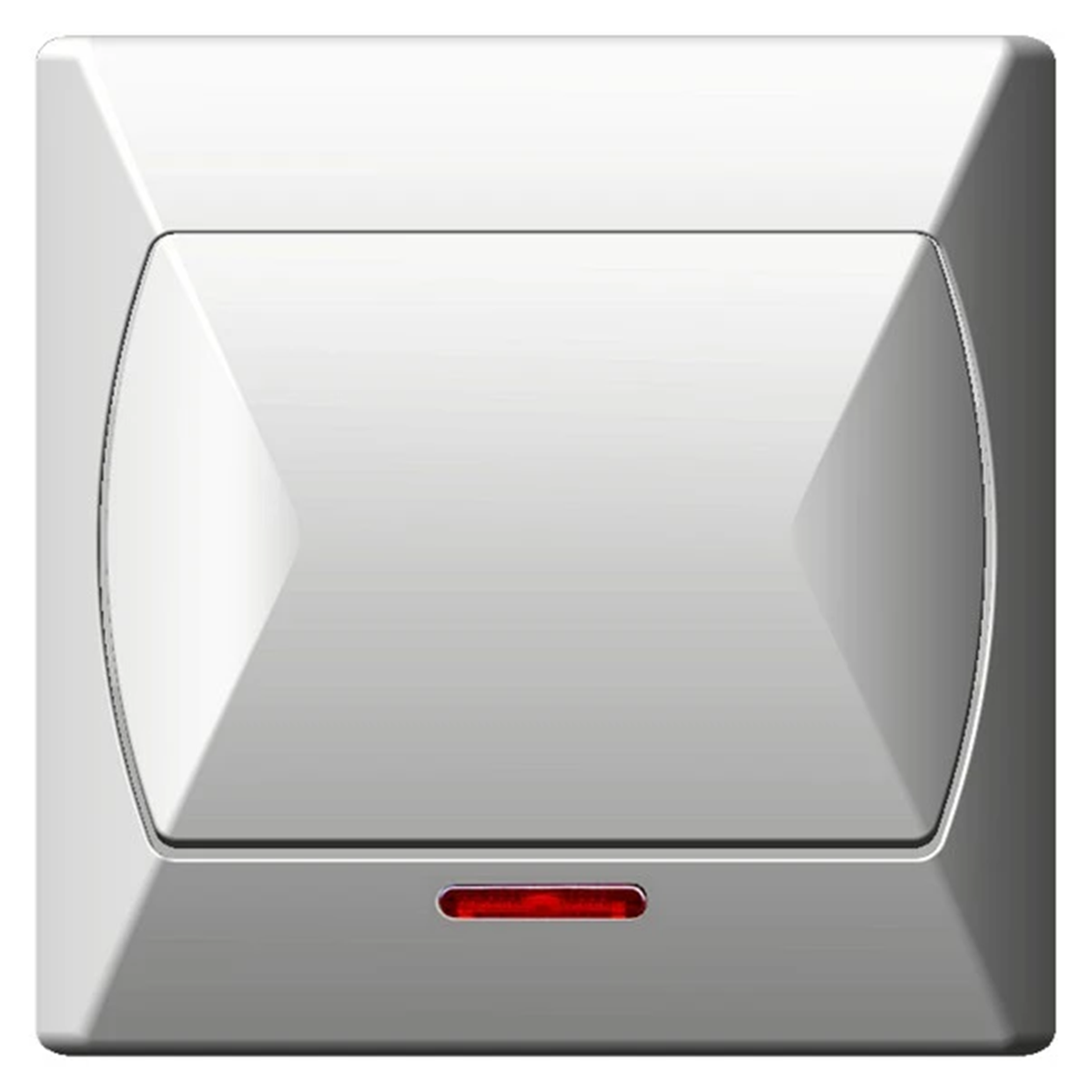

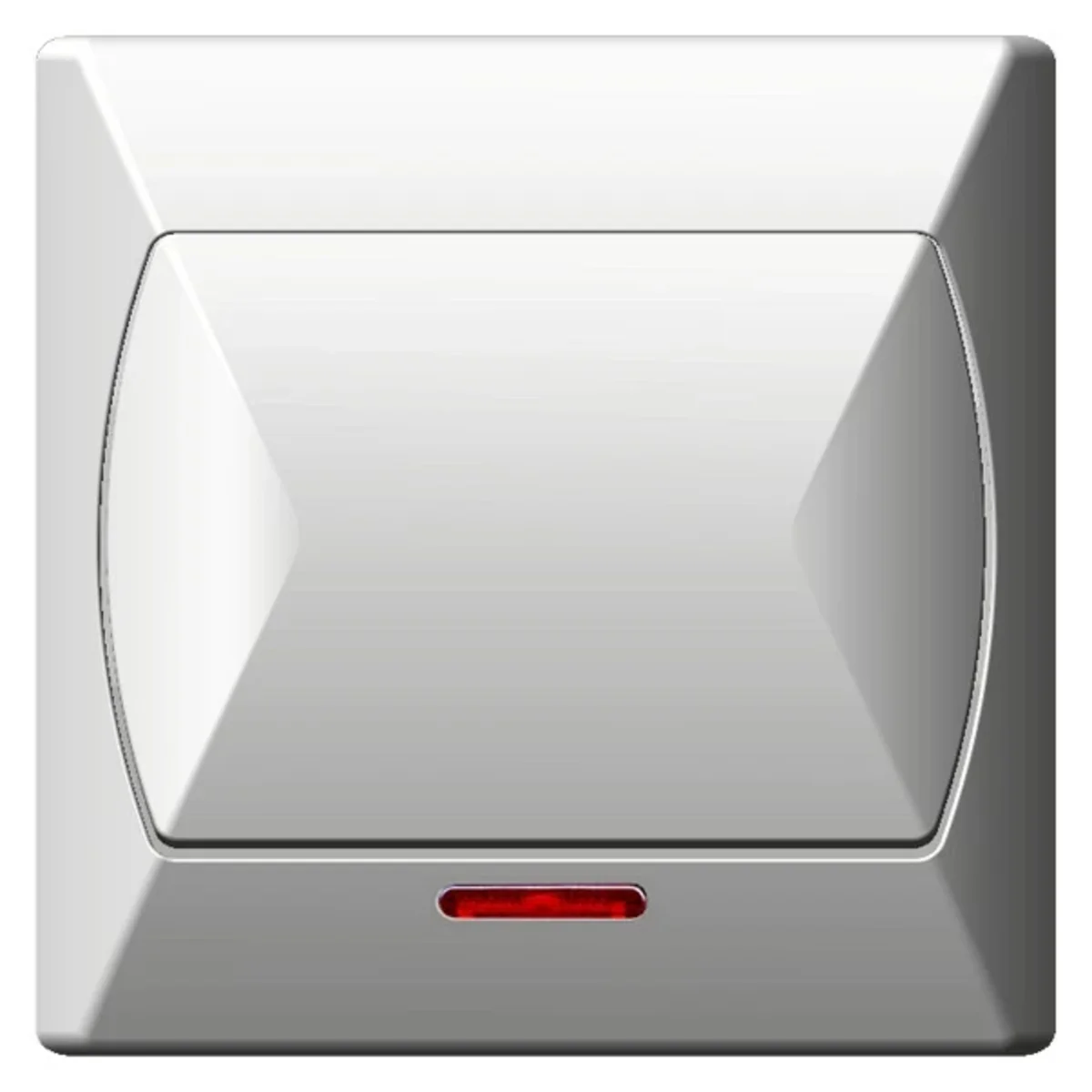

Single-pole switch with backlight, from the Accent series. Standard accessories used to turn on/off lighting.

SERIES DESCRIPTION

The products of the Accent series are complete sockets equipped with frames. They are mounted flush. Akcent is characterized by an original style and adapts to any interior.

Dati tecnici

Depth [mm]

36
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

ACCENT

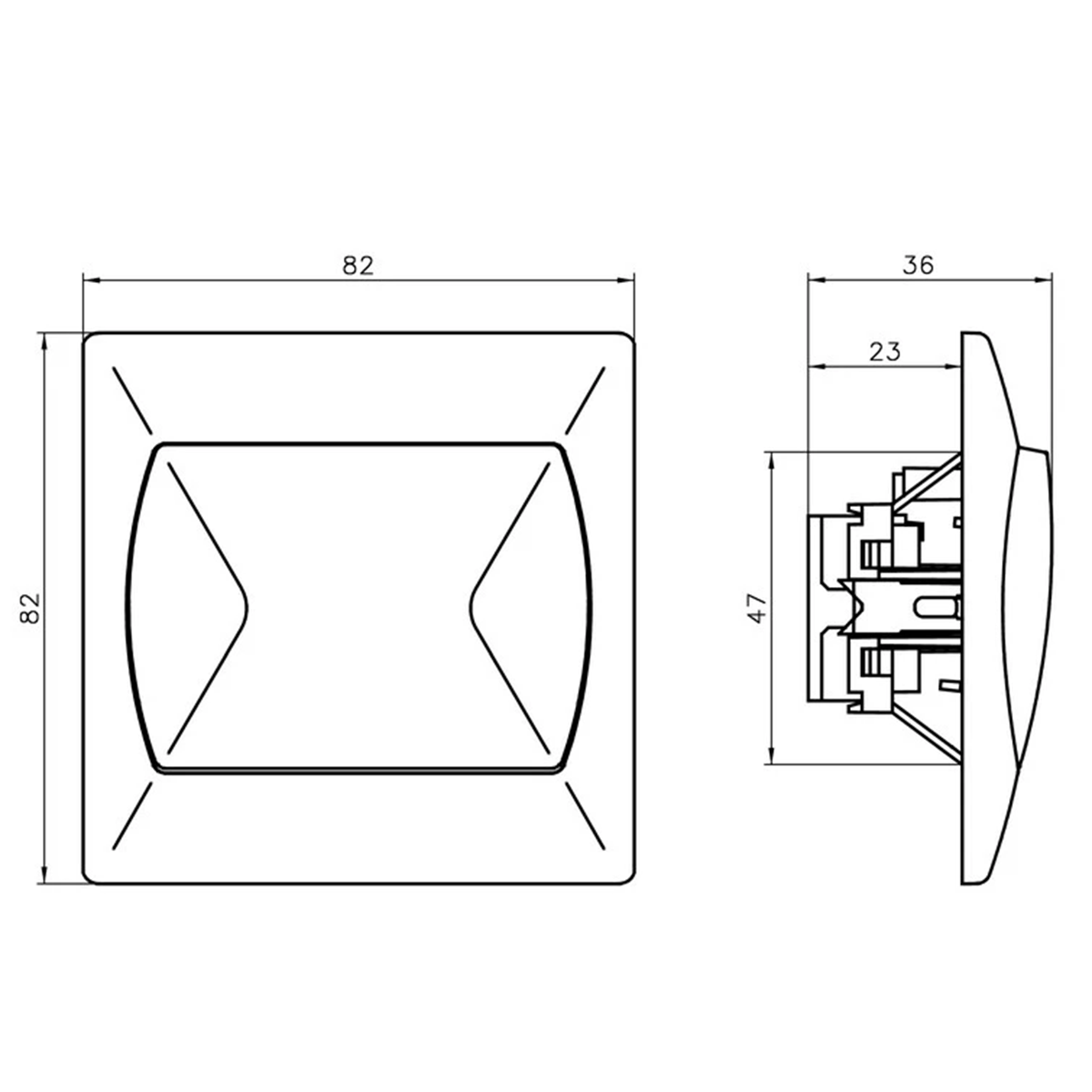

Width [mm]

82
Height [mm]

82
Backlight

Yes
Terminal type

Threaded
Exact material

Plastic Metal
Backlight color

Orange

Number of keys

1
Shape

Square
Fixing

claws screws
Rated voltage [V]

230
Type

Single
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Mounting depth [mm]

23
For the frame system

NO
Backlight type

Indicative LTS
PKWIU

27.33.11.0

Altri dati tecnici

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with complete housing
Push button switch

No
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Label space/information surface

No
Function lighting

Orientation
Suitable for degree of protection (IP)

IP20
Rated current

16 A
Feedback-signal contact

No
Washing machine switch

No
Device height

82 mm
Built-in depth

23 mm

Method of operation

Rocker/button
Number of modules (module system)

0
Number of rockers

1
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
Illumination

Yes
Type of lighting

Glow lamp
Nominal voltage

250 V
Switching current for fluorescent lamps

16 AX
Connection type

Push-in clamp
Device width

82 mm
Device depth

36 mm

Dettagli del produttore

Produttore

OSPEL S.A.
Indirizzo

42-436 Wierbka Główna 128 Polska
Email

ospel@ospel.com.pl

Imballaggio sfuso

Una specie di pacchetto	Pudełko
Quantità	10 pezzi
Larghezza (m)	0,162
Lunghezza (m)	0,290
Profondità (m)	0,090
