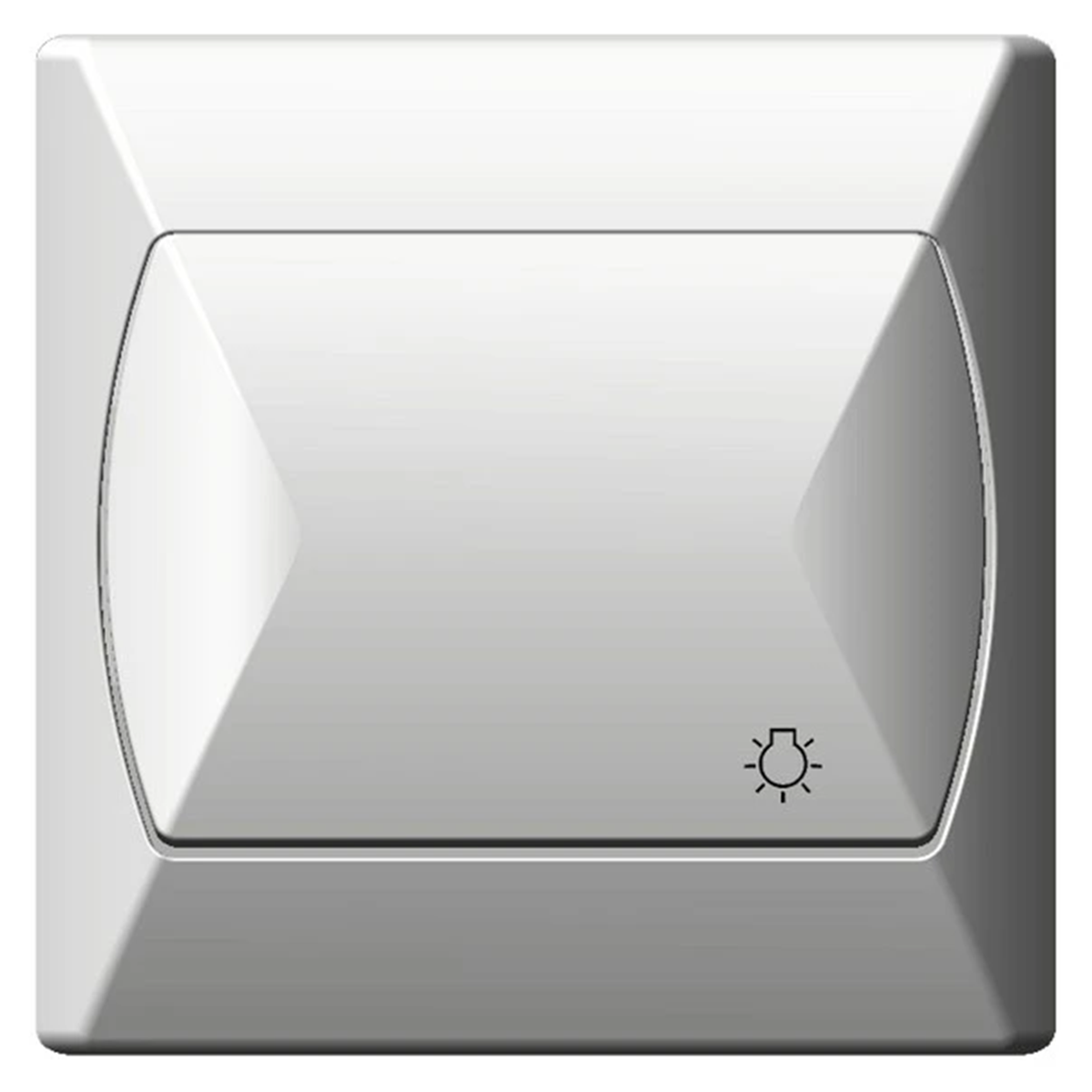

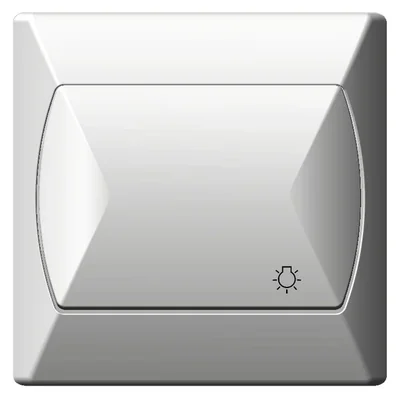

AKCENT Short-circuit switch "light" white ŁP-5A/00

local index:
MMZ176OSPE
Catalog No:
ŁP-5A/00
EAN code:
5907577410735
Manufacturer: OSPEL
Color: White
Material: Plastic
Installation: Flush-mounted
Price:
3,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 18 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

The switch acts as a bounce button. In conjunction with the staircase timer, it can be used to switch on the light in the staircases.

Technical data

  • Color
    White
  • Installation
    Flush-mounted
  • highlighting
    NO
  • Family
    ACCENT
  • Type
    Fasteners
  • Accurate color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Rated current [A]
    10
  • Level of security
    IP20
  • Fastener type
    Single
  • PKWIU
    27.33.11.0

Other technical data

  • Method of operation
    Rocker/button
  • Number of modules (module system)
    0
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp

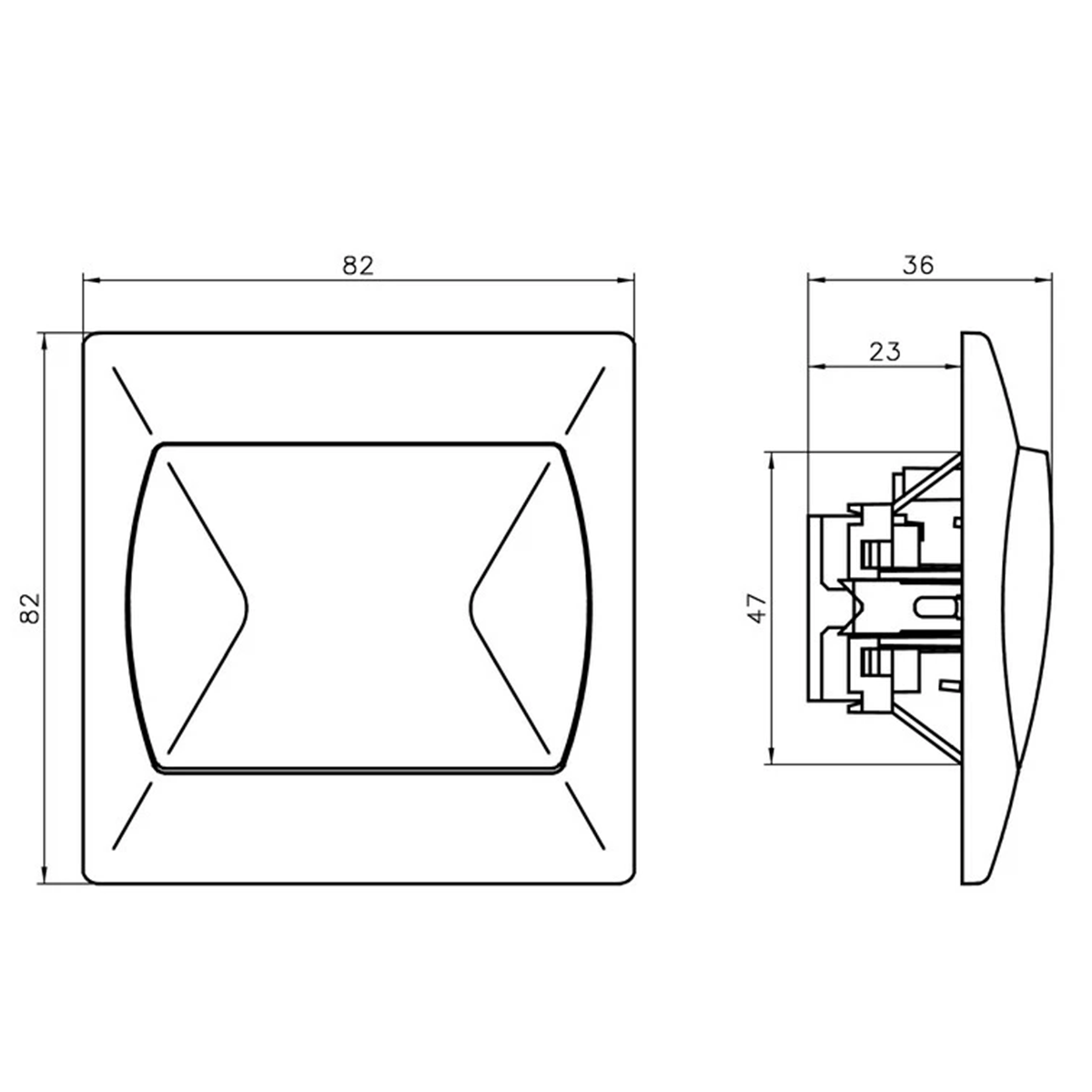

  • Device width
    82 mm
  • Device depth
    36 mm
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    yes
  • Mounting method
    Flush-mounted
  • With mounting plate
    no
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    no
  • Washing machine switch
    no
  • Device height
    82 mm
  • Built-in depth
    23 mm
