AKCENT RTV socket GAP-14 dB white GPA-14AP/00
local index:
MEA077OSPE
Catalog No:
GPA-14AP/00
EAN code:
5907577410926
Price:
12,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

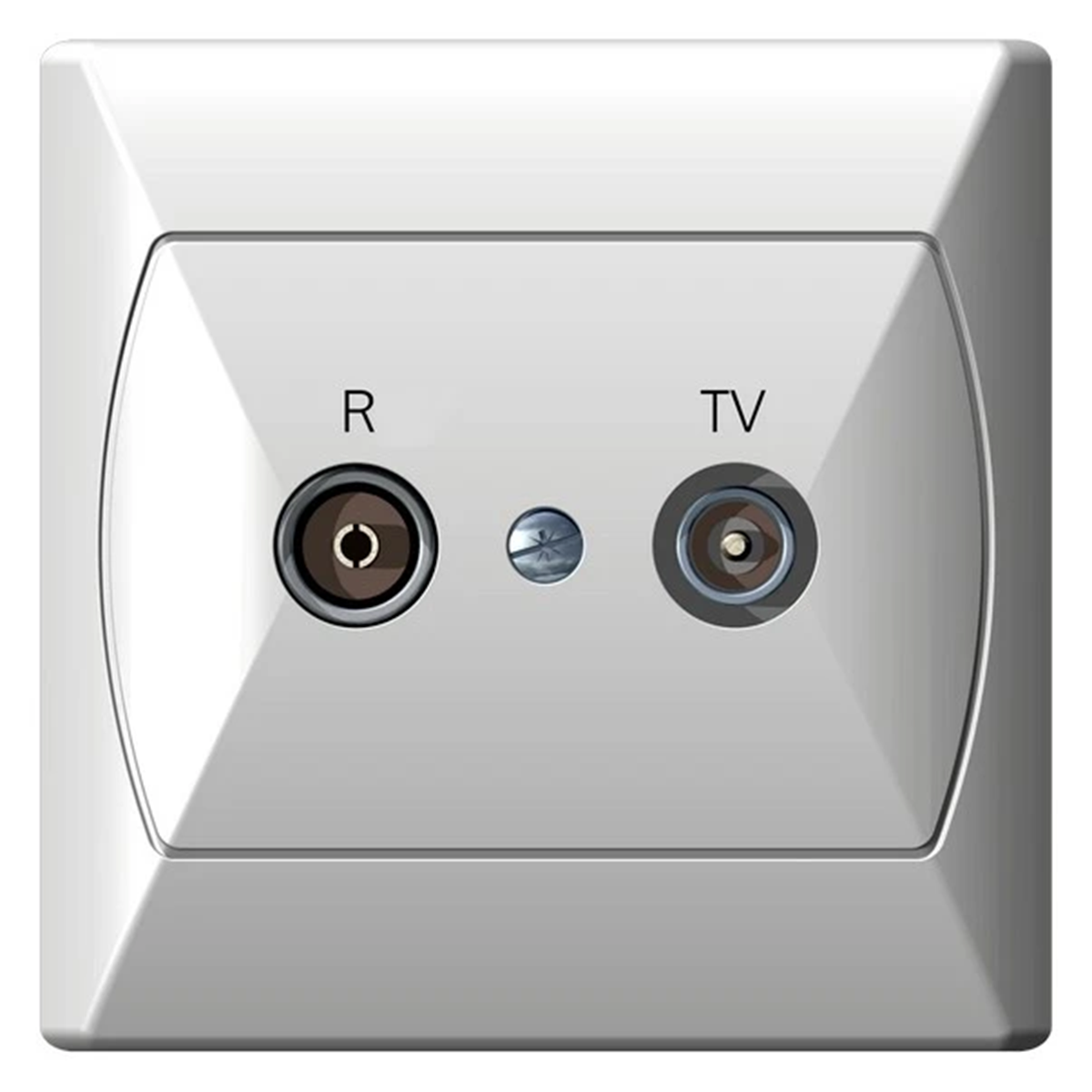

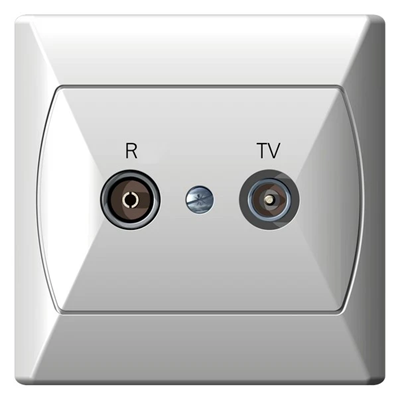

RTV antenna socket pass-through. It is designed for serial installation, where one cable passes through various receivers. Equipped with a frame.
SERIES DESCRIPTION
The products of the Akcent series are complete sockets equipped with frames. They are mounted flush. Akcent is characterized by an original style and adapts to any interior.
Technical data
-
Depth [mm]31
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
TypeAntenna
-
Level of securityIP20
-
Attenuation [dB]R: 14 TV: 14
-
Versionthrough
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
F-type inputNO
-
Exact materialPlastic Metal
-
Number of sockets2
-
ShapeSquare
-
Fixingclaws screws
-
OverprintYes
-
FamilyACCENT
-

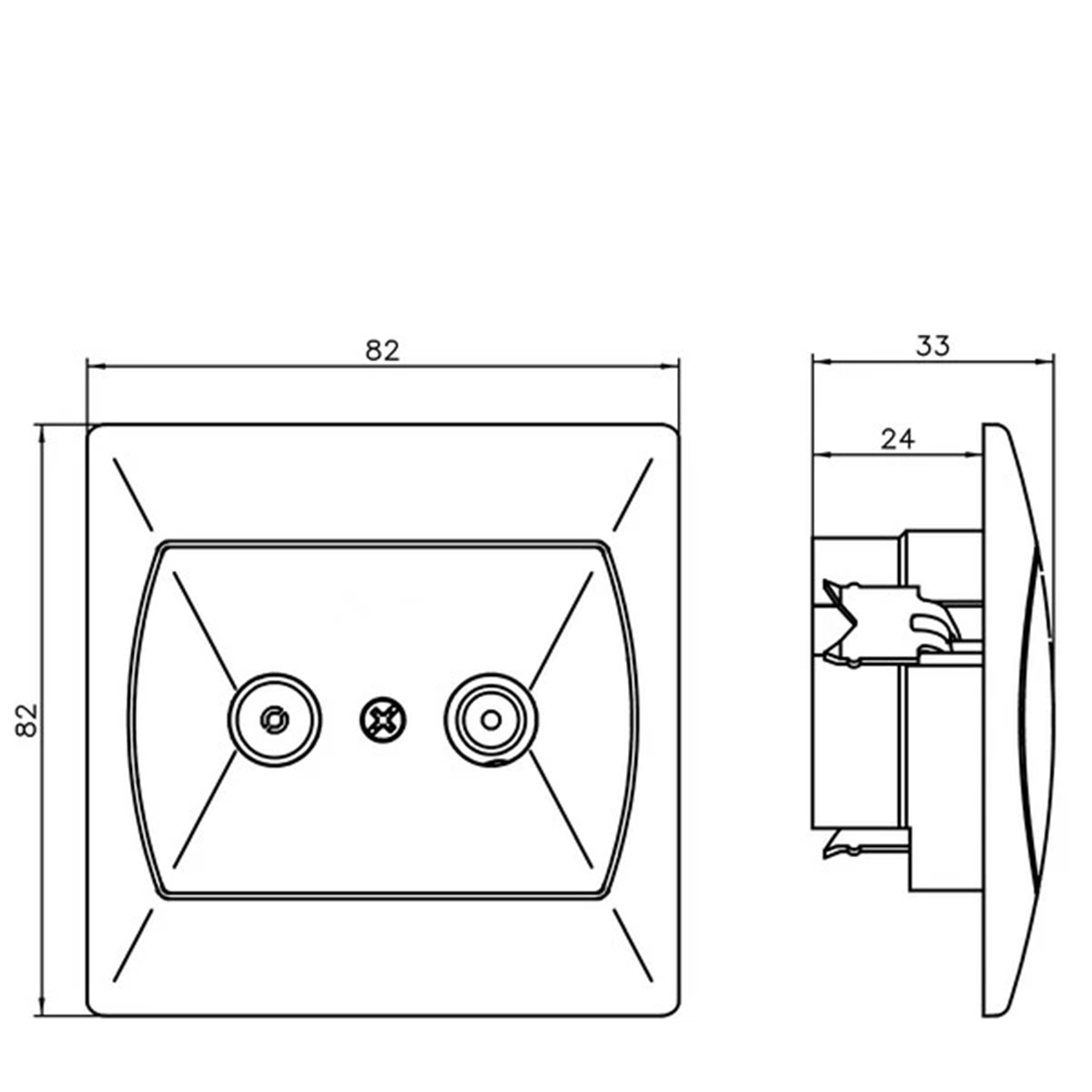

Width [mm]82
-
TypeFlush-mounted
-
Height [mm]82
-
Frequency Range [MHz]R: 88-108 TV: 5-70 TV: 120-862
-
Mounting depth [mm]20
-
VariantR TV
-
For the frame systemNO
-
PKWIU26.40.52.0
Other technical data
-
ModelLoop-through socket
-
Number of modules (module system)1
-
Tap loss at 860 MHz0 dB
-
Number of outlets1
-
Through loss at 860 MHz14 dB
-
Suitable for remote power supplyNo
-
Type of fasteningMounting with claw and screw
-
RAL-number (similar)9003
-
Surface finishingGlossy
-
Material qualityThermoplastic
-
Mounting methodFlush-mounted
-
CoverComplete housing
-
Tap loss at 2150 MHz0 dB
-
Suitable for cable modemNo
-
Through loss at 2150 MHz0 dB
-
Frequency5 ... 860 MHz
-
ColourWhite
-
Surface protectionUntreated
-
MaterialPlastic
-
Halogen freeYes
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
