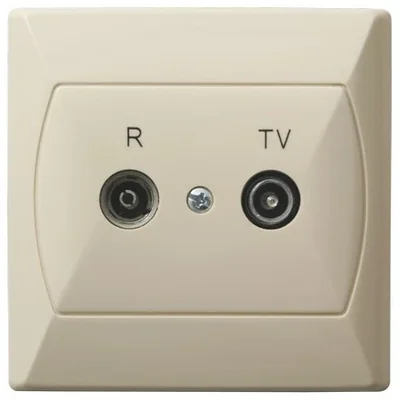

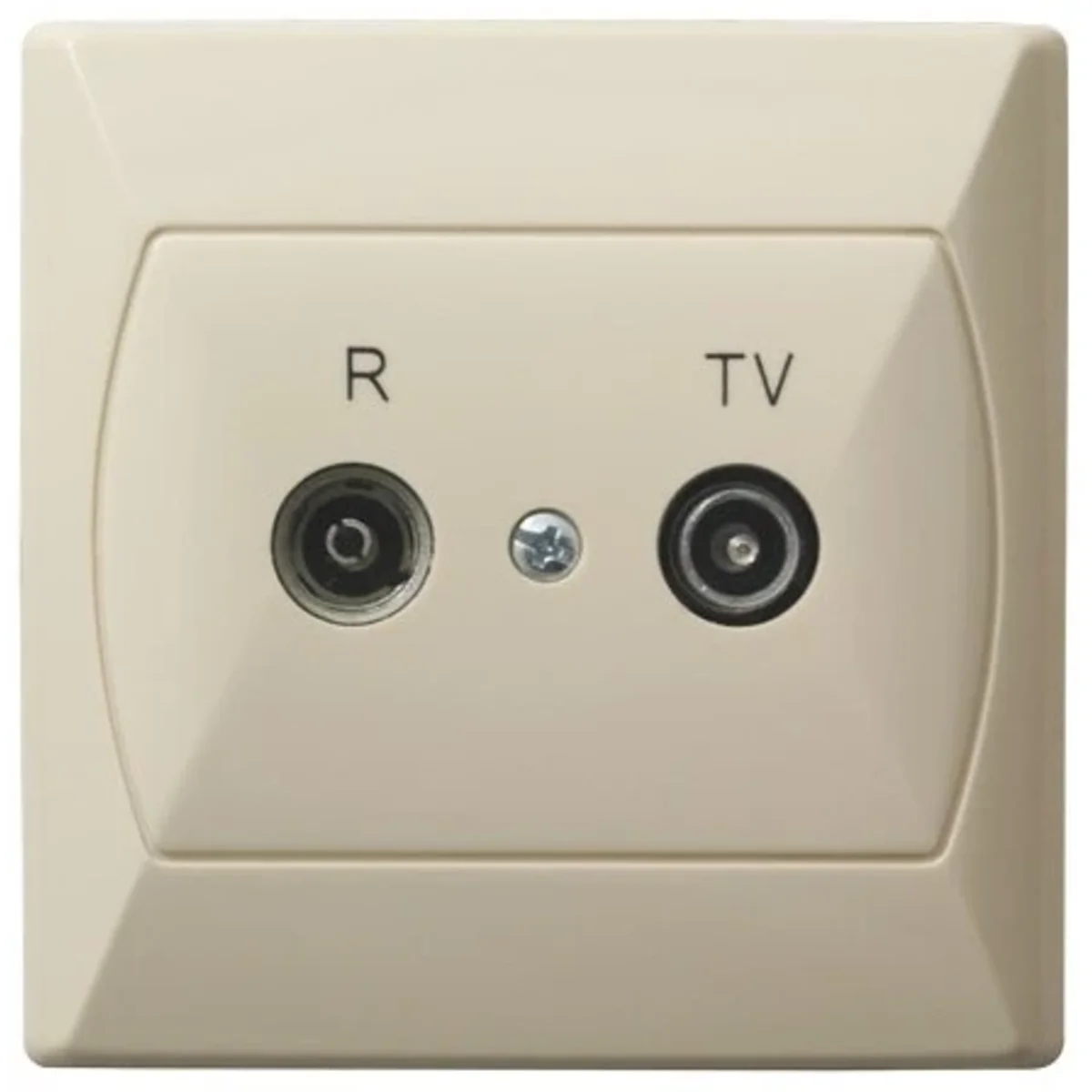

AKCENT RTV socket GAP-14 dB beige GPA-14AP/01

Místní index:
MEA078OSPE
Katalogové číslo.:
GPA-14AP/01
EAN kód:
5907577413521
Výrobce: OSPEL
Depth [mm]: 31
Number of sockets: 2
Color: Beige
Cena:
59,11 zł
gross / kusů.
(včetně DPH 23%)
do 2 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

RTV antenna socket pass-through. It is designed for serial installation, where one cable passes through various receivers. Equipped with a frame.



SERIES DESCRIPTION

The products of the Akcent series are complete sockets equipped with frames. They are mounted flush. Akcent is characterized by an original style and adapts to any interior.

Technické údaje

  • Depth [mm]
    31
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 14 TV: 14
  • Version
    through
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    ACCENT
  • Width [mm]
    82
  • Type
    Flush-mounted
  • Height [mm]
    82
  • Frequency Range [MHz]
    R: 88-108 TV: 5-70 TV: 120-862
  • Mounting depth [mm]
    20
  • Variant
    R TV
  • For the frame system
    NO
  • PKWIU
    26.40.52.0

Další technické údaje

  • Model
    Loop-through socket
  • Number of modules (module system)
    1
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    1001
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Device width
    82 mm
  • Device depth
    31 mm
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    0 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    14 dB
  • Suitable for remote power supply
    No
  • Colour
    Beige
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    Yes
  • Device height
    82 mm
  • Min. depth of built-in installation box
    60 mm

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Pudełko
Množství 10 kusů.
Šířka (m) 0,162
Délka (m) 0,237
Hloubka (m) 0,090
