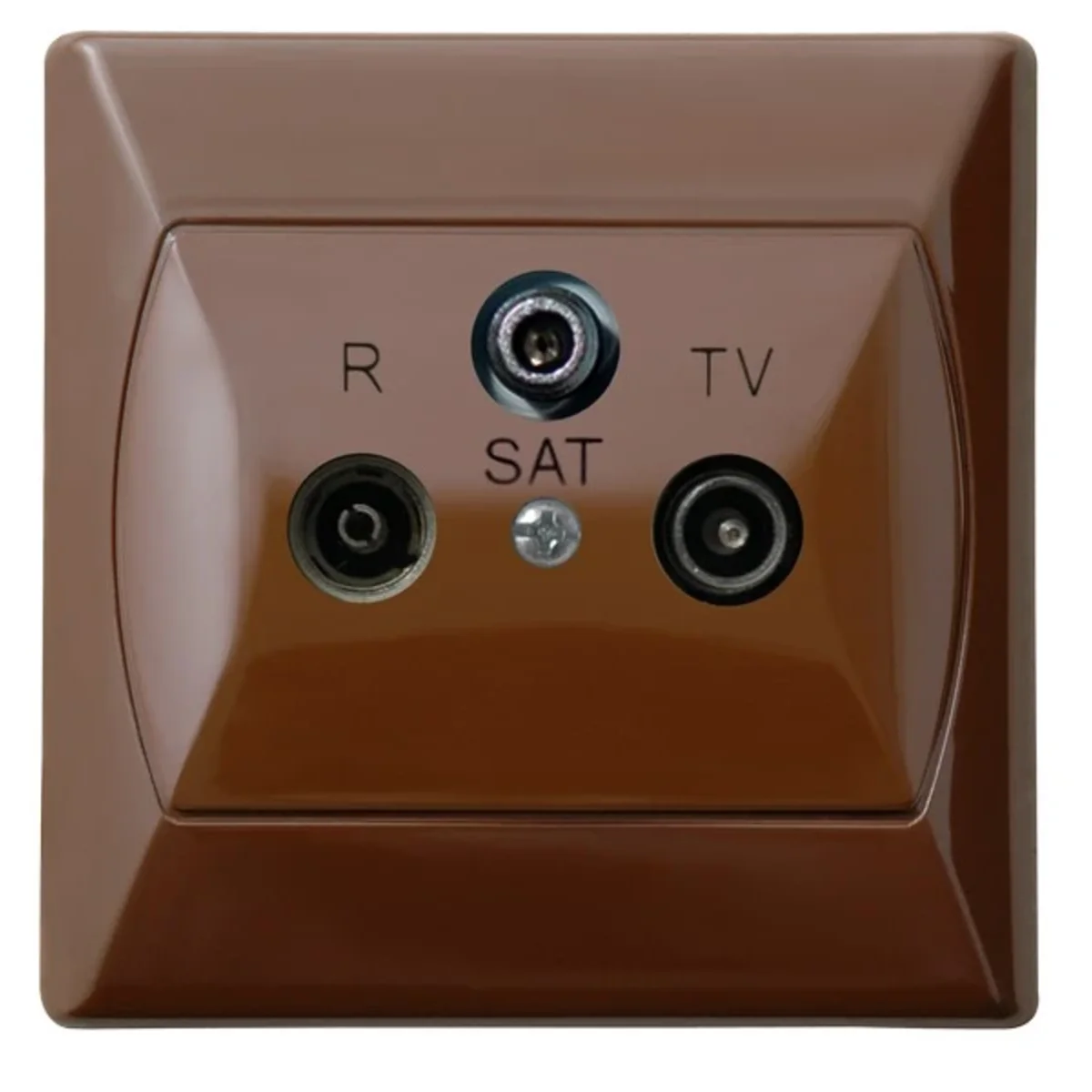

AKCENT RTV-SAT socket brown GPA-AS/24

local index:
MEA219OSPE
Catalog No:
GPA-AS/24
EAN code:
5907577426583
Manufacturer: OSPEL
Depth [mm]: 31
Number of sockets: 3
Color: Brown
Price:
16,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RTV-SAT end socket. It is designed for parallel installation, in which an independent cable from the antenna runs to each receiver.



SERIES DESCRIPTION

Accent products

strong> are complete sockets, equipped with frames. They are mounted flush. Akcent is characterized by an original style and adapts to any interior.

Technical data

  • Depth [mm]
    31
  • Color
    Brown
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 1.5 TV: 1-1.5 SAT: 1.5-2
  • Version
    Final
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    ACCENT

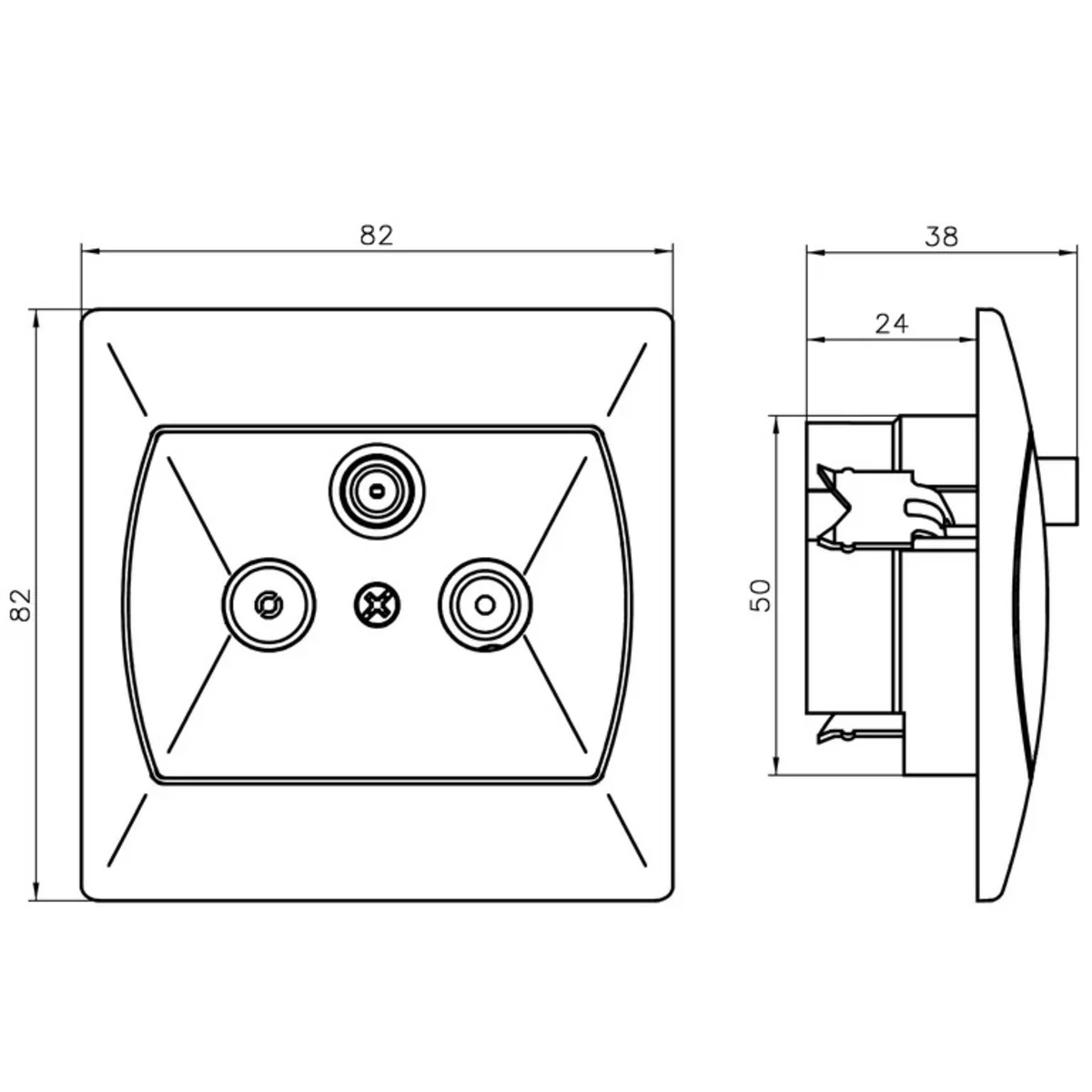

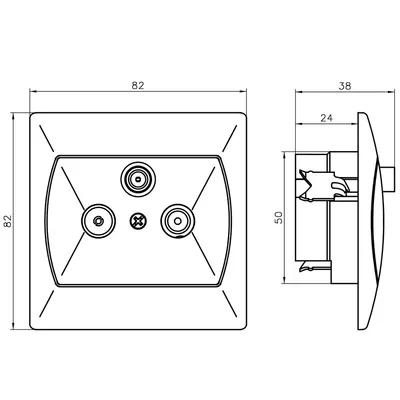

  • Width [mm]
    82
  • Type
    Flush-mounted
  • Height [mm]
    82
  • Frequency Range [MHz]
    For output R: 88 For entry: 5-2400
  • Mounting depth [mm]
    20
  • Variant
    R TV sat
  • For the frame system
    NO
  • PKWIU
    26.40.52.0

Other technical data

  • Model
    End socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    1.5 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    8014
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    2 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Brown
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    Yes

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
