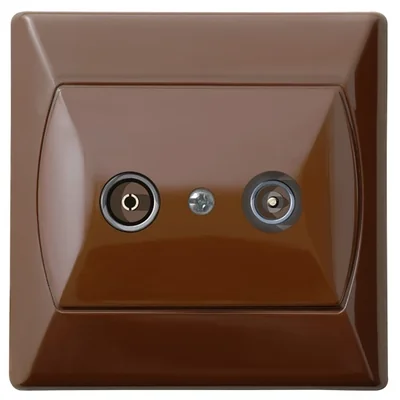

AKCENT RTV end socket GAR, 2.5-3 dB brown GPA-AK/24

local index:
MEA216OSPE
Catalog No:
GPA-AK/24
EAN code:
5907577413866
Manufacturer: OSPEL
Depth [mm]: 31
Number of sockets: 2
Color: Brown
Price:
12,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

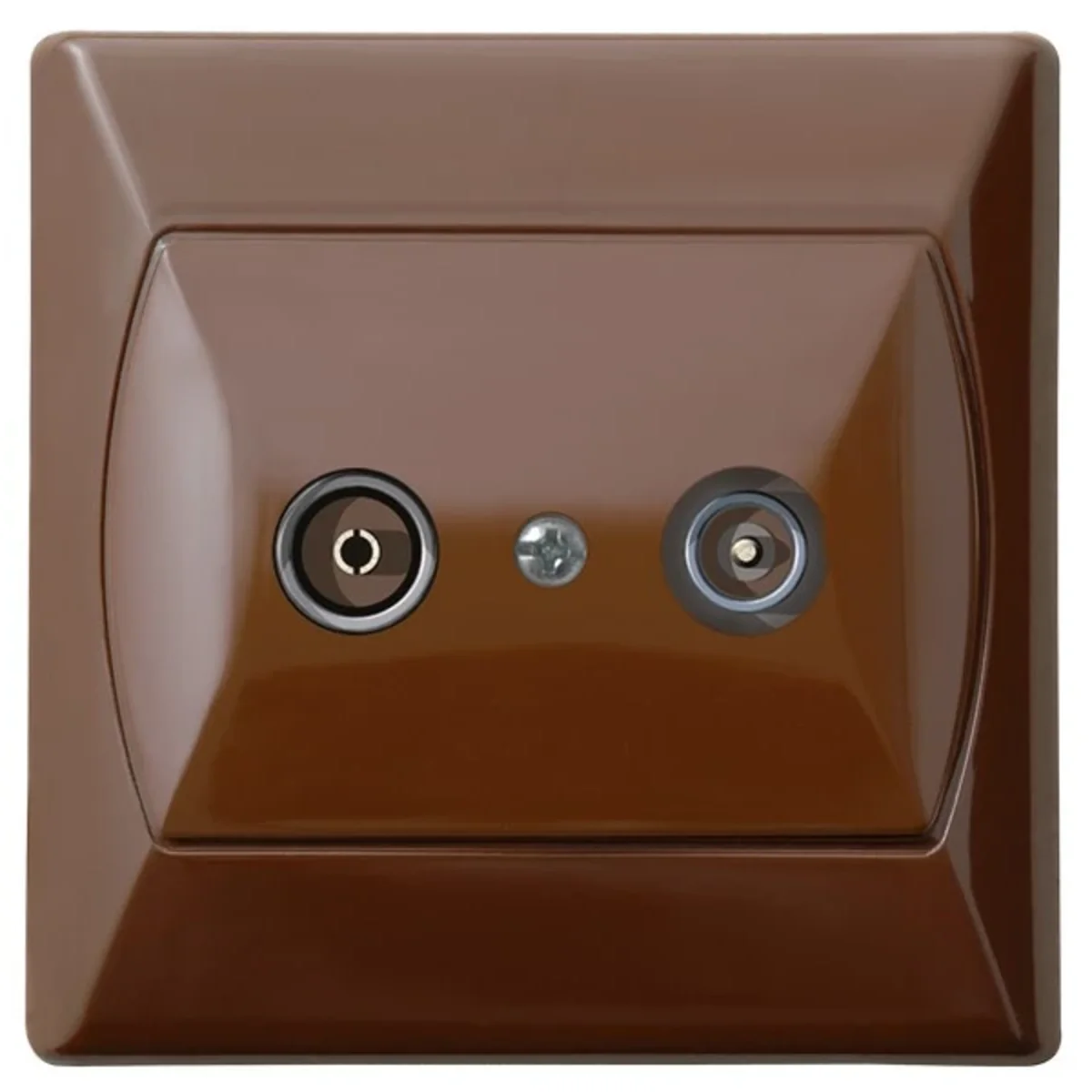

RTV antenna socket end. It is designed for parallel installation, in which an independent cable from the antenna runs to each receiver.



SERIES DESCRIPTION

Accent products

strong> are complete sockets, equipped with frames. They are mounted flush. Akcent is characterized by an original style and adapts to any interior.

Technical data

  • Depth [mm]
    31
  • Color
    Brown
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 1-1.5 TV: 1-1.5
  • Version
    Final
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    ACCENT

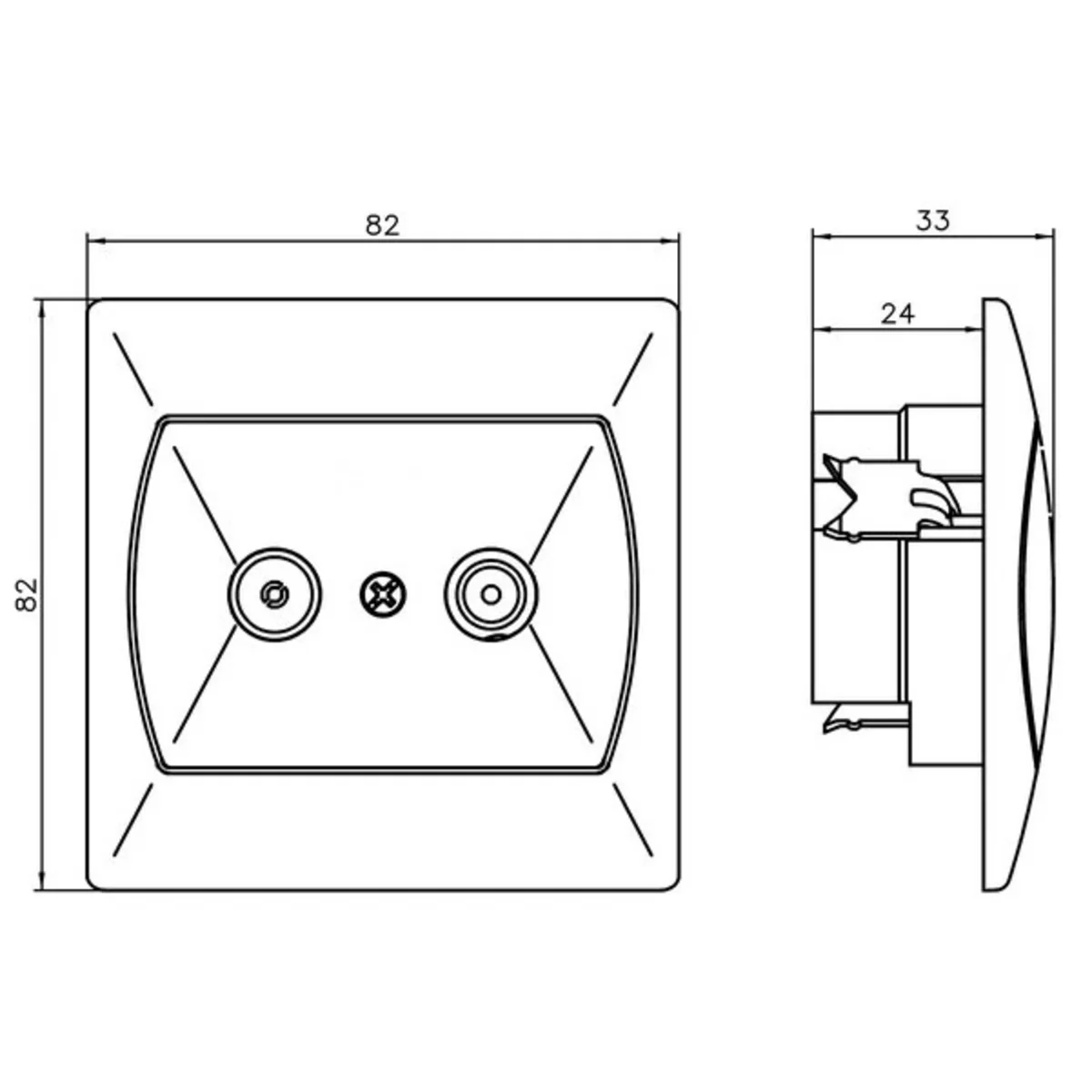

  • Width [mm]
    82
  • Type
    Flush-mounted
  • Height [mm]
    82
  • Frequency Range [MHz]
    R: 88-108 TV: 5-70 TV: 120-862
  • Mounting depth [mm]
    20
  • Variant
    R TV
  • For the frame system
    NO
  • PKWIU
    26.40.52.0

Other technical data

  • Model
    End socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    2.5 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    8014
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Brown
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
