AKCENT Opening switch "bell" beige ŁP-6A/01
local index:
MMZ002OSPE
Catalog No:
ŁP-6A/01
EAN code:
5907577413378
Price:
3,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

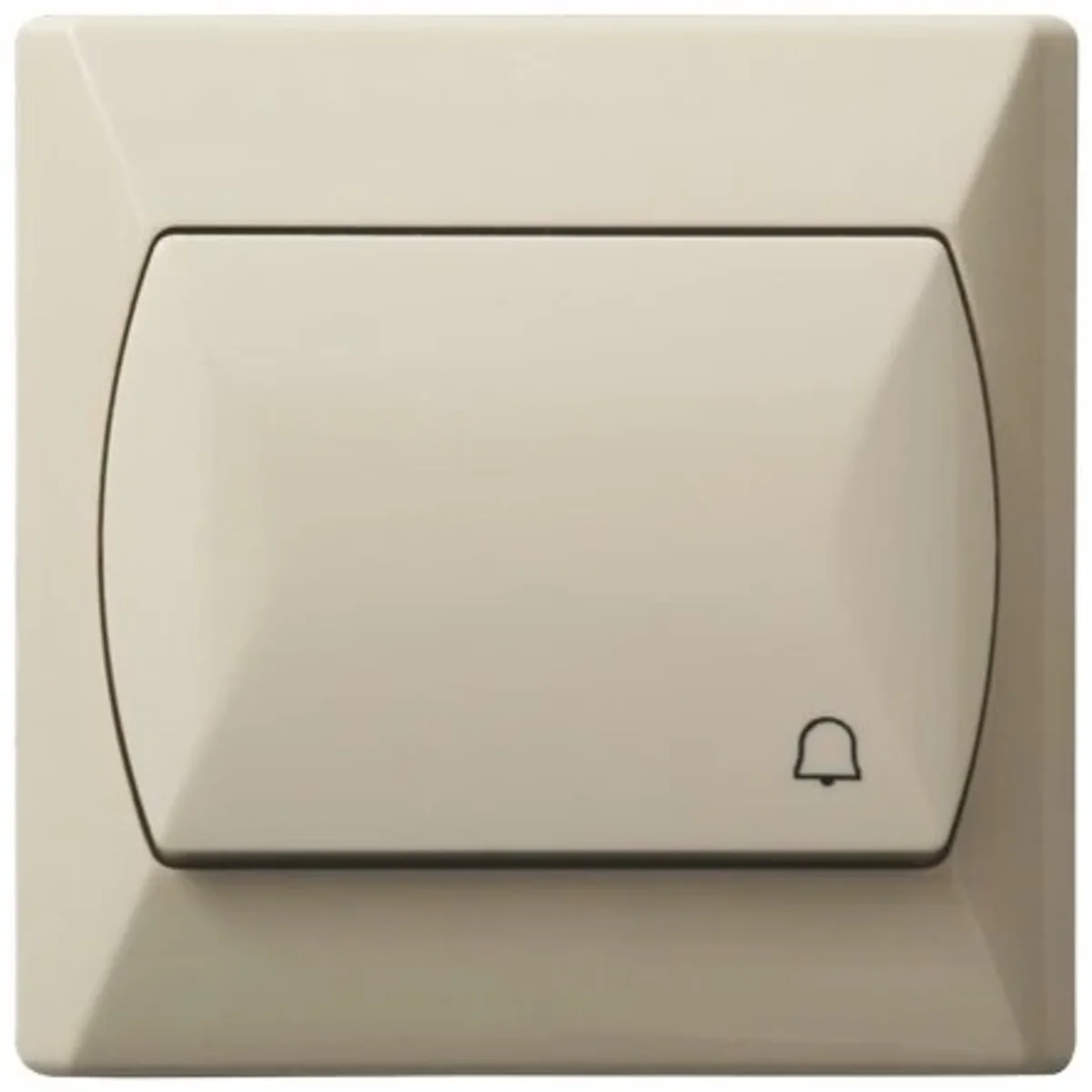

Short-circuit switch "bell" from the Akcent series, from the manufacturer Ospel. The product catalog number is ŁP-6A/01. Beige.
FEATURES
- Equipped with a frame.
- Symbol "bell" on the key.
SERIES DESCRIPTION
The products of the Accent series are complete sockets equipped with frames. They are mounted flush. Akcent is characterized by an original style and adapts to any interior.

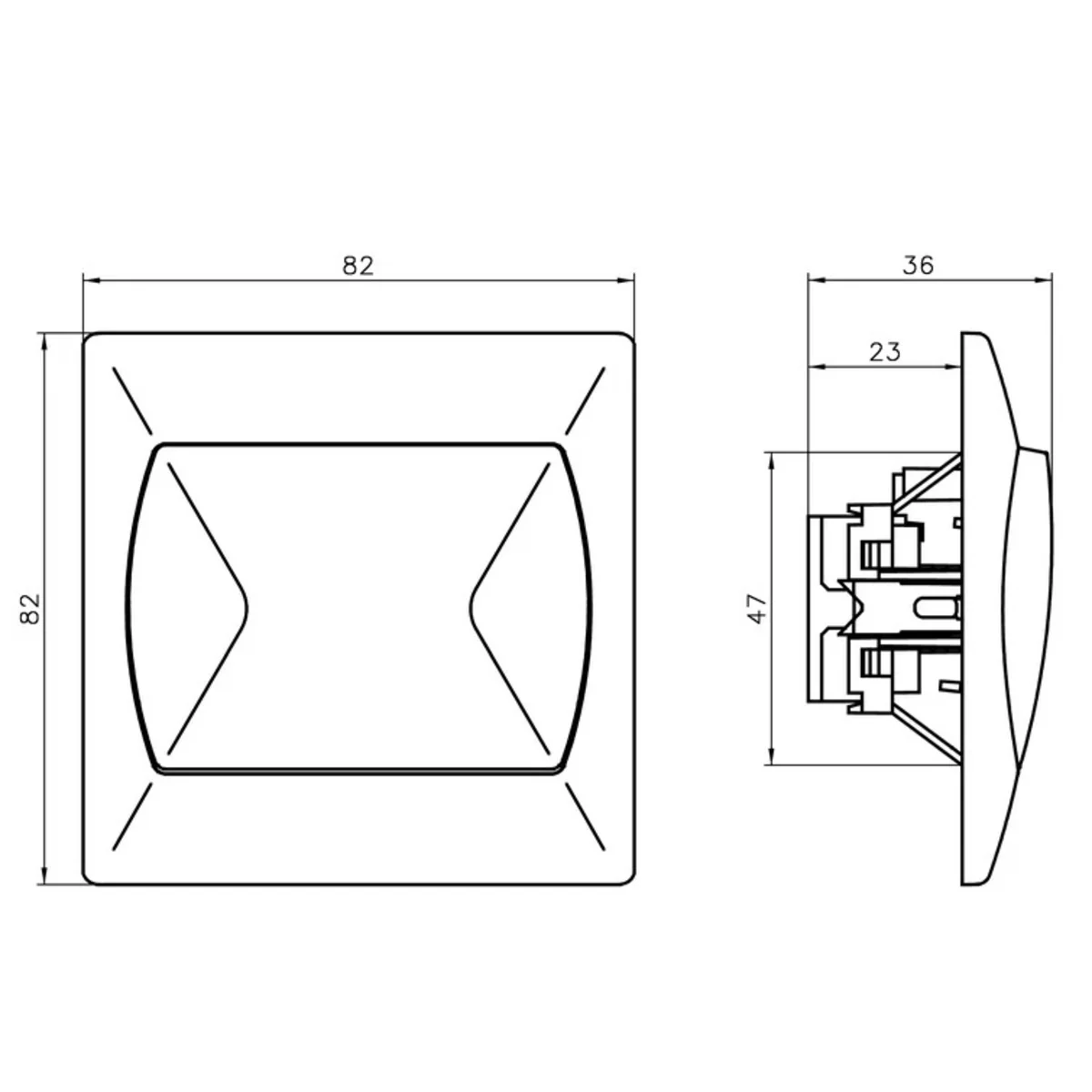

Technical data
-
Depth [mm]36
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyACCENT
-
SymbolBell
-
TypeFlush-mounted
-
Height [mm]82
-
BacklightNO
-
Terminal typeThreaded
-
For the frame systemNO
-
PKWIU27.33.11.0
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
Width [mm]82
-
VersionConfident
-
Surface protectionNatural
-
Mounting depth [mm]23
-
VariantBell
-
Exact materialPlastic Metal
Other technical data
-
Method of operationRocker/button
-
Number of modules (module system)0
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)1001
-
IlluminationNo
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width82 mm
-
Device depth36 mm
-
Assembly arrangementBasic element with complete housing
-
Push button switchYes
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourBeige
-
Label space/information surfaceNo
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height82 mm
-
Built-in depth23 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
