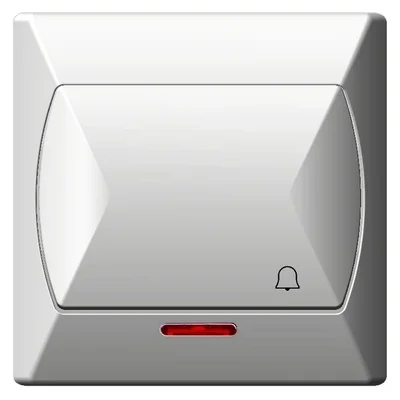

AKCENT Normally open switch "bell" with white backlight ŁP-6AS/00

local index:
MMZ113OSPE
Catalog No:
ŁP-6AS/00
EAN code:
5907577410803
Manufacturer: OSPEL
Depth [mm]: 36
Number of keys: 1
Color: White
Price:
5,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

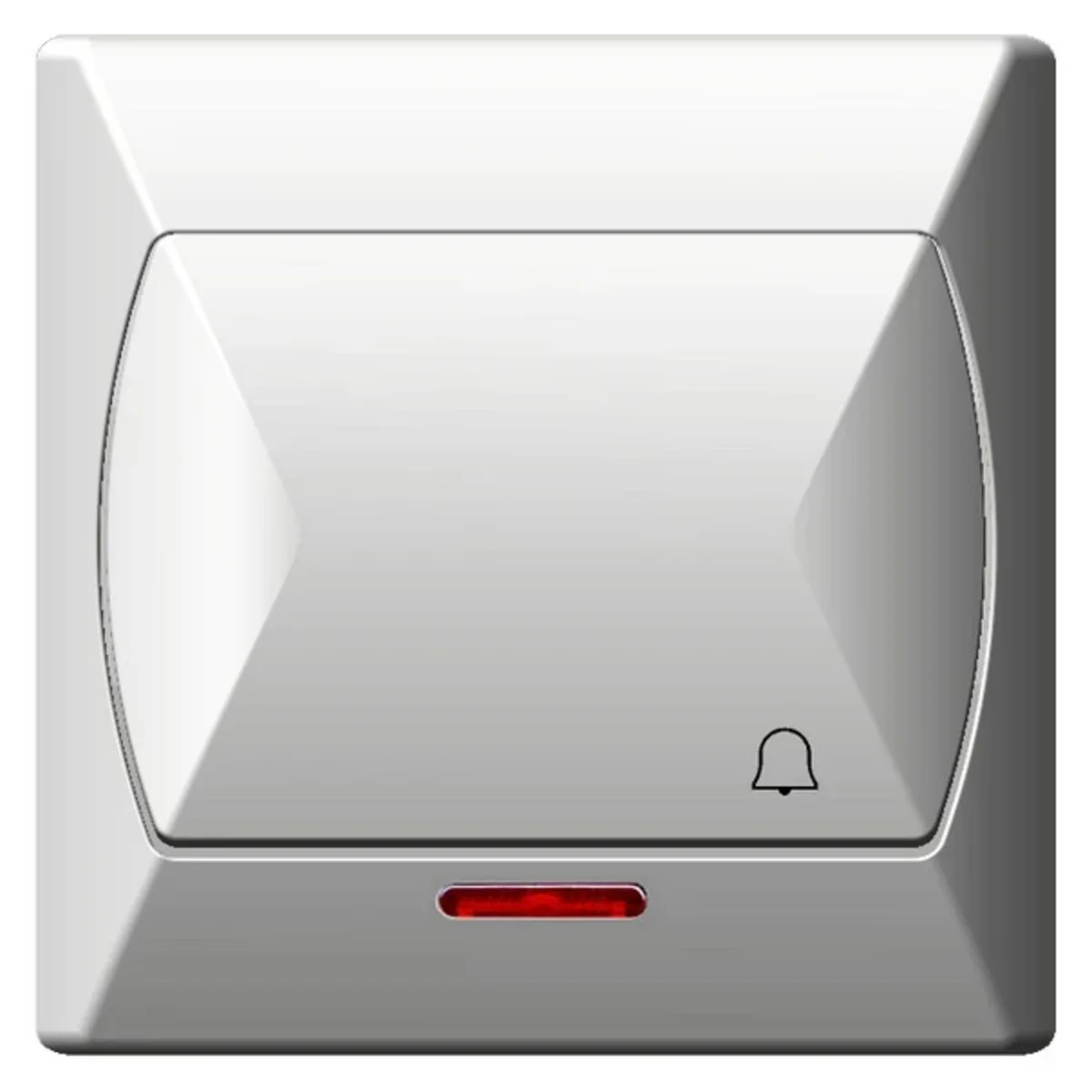

Short-circuit switch "bell with backlight, from the Akcent series, from the Ospel manufacturer. Catalog number ŁP-6AS/00. In white.



FEATURES

  • Equipped with frame.
  • Backlight - LTS lamp.
  • Symbol "bell" on the key.



SERIES DESCRIPTION

The products of the Accent series are complete sockets equipped with frames. They are mounted flush. Akcent is characterized by an original style and adapts to any interior.

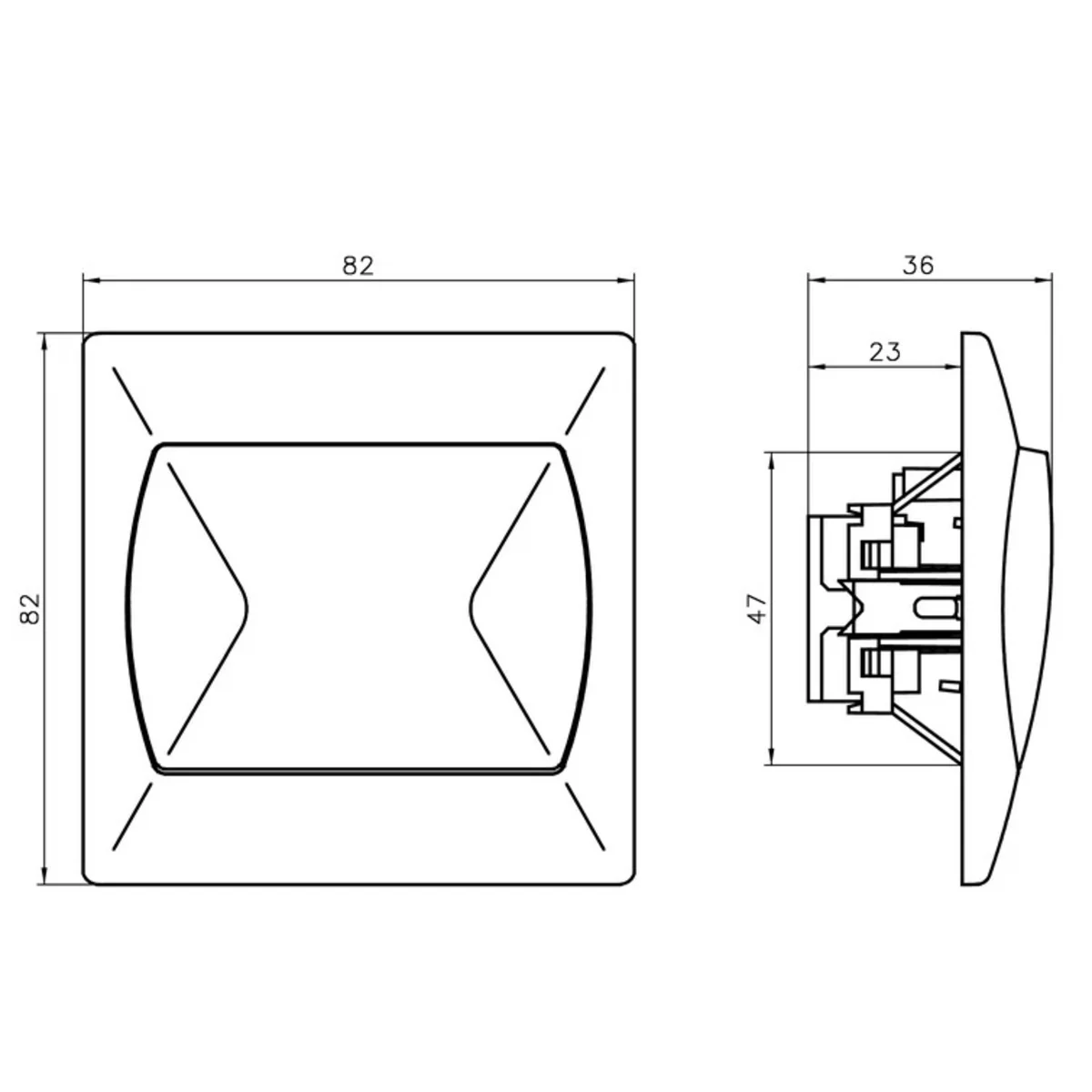

Technical data

  • Depth [mm]
    36
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ACCENT
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    82
  • Backlight
    Yes
  • Terminal type
    Threaded
  • For the frame system
    NO
  • Backlight type
    LTS
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    82
  • Version
    Confident
  • Surface protection
    Natural
  • Mounting depth [mm]
    23
  • Variant
    Bell
  • Exact material
    Plastic Metal
  • Backlight color
    Orange

Other technical data

  • Method of operation
    Rocker/button
  • Number of modules (module system)
    0
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    82 mm
  • Device depth
    36 mm
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    Yes
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    82 mm
  • Built-in depth
    23 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,290
Depth (m) 0,090
