AKCENT Double socket with grounding white GP-2AZ/00

local index:
MEE670OSPE
Catalog No:
GP-2AZ/00
EAN code:
5907577410841
Manufacturer: OSPEL
Depth [mm]: 44
Number of sockets: 2
Color: White
Price:
3,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 138 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

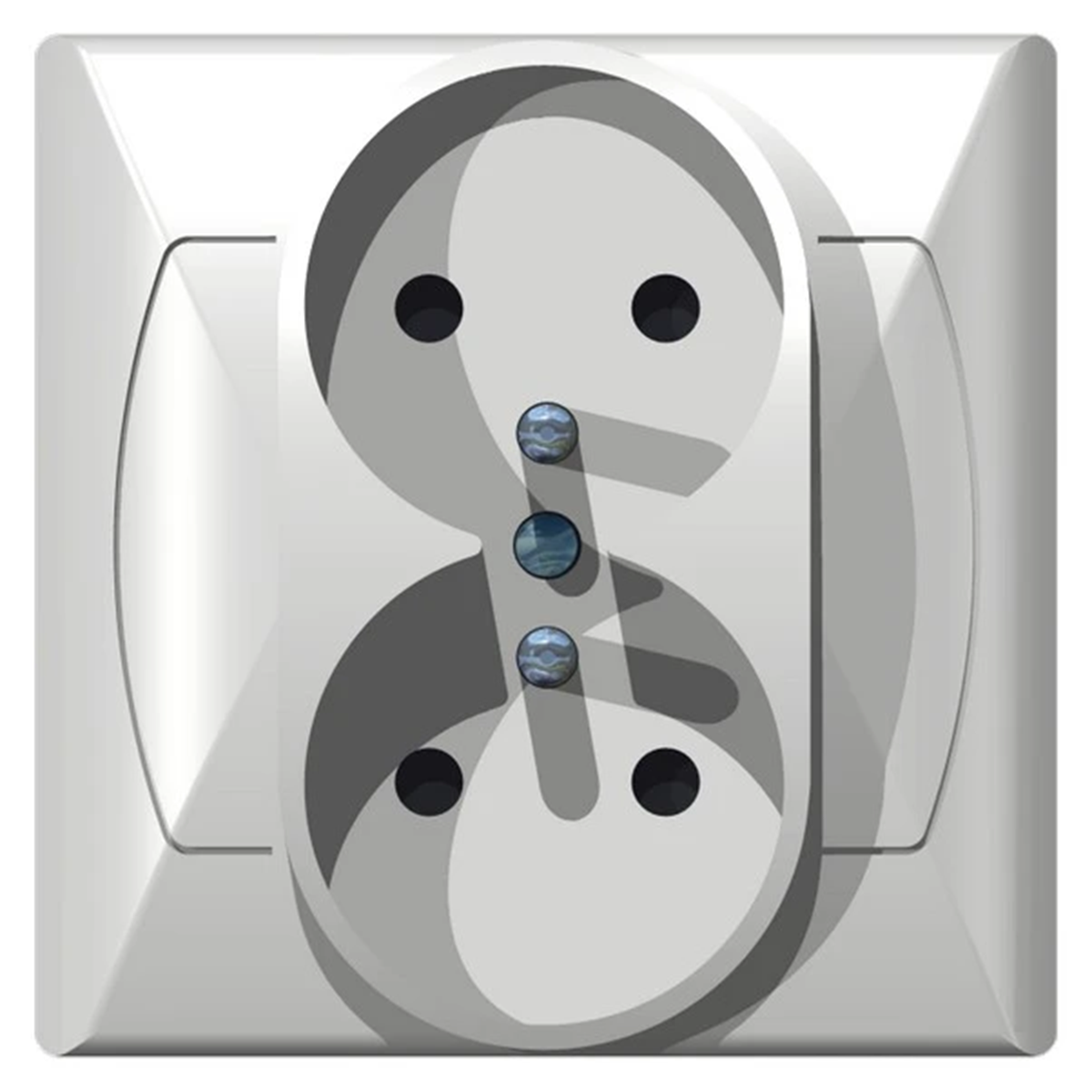

Electric socket from the Akcent series, from the manufacturer Ospel. The product part number is GP-2AZ/00.



FEATURES

  • Doubleó jne.
  • Earth; ground pin.
  • Thread terminals.
  • Complete product.
  • Color white.
  • Rated current 16A.
  • Rated voltage 230V.
  • Mounting flush.
  • Rating IP20.

Technical data

  • Depth [mm]
    44
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    ACCENT
  • Width [mm]
    82
  • Ground
    Hurt
  • Surface protection
    Natural
  • Mounting depth [mm]
    28
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    82
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of modules (module system)
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    no
  • Colour
    White
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    82 mm
  • Min. depth of built-in installation box
    60 mm
  • Protective contact
    yes
  • Number of active contacts (round)
    2
  • With signal lamp
    no
  • Number of units
    2
  • Number of socket outlets switchable
    0
  • With hinged lid
    no
  • Label space/information surface
    no
  • RAL-number (similar)
    9003
  • Lockable
    no
  • Insulated mounting
    no
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    82 mm
  • Device depth
    44 mm
