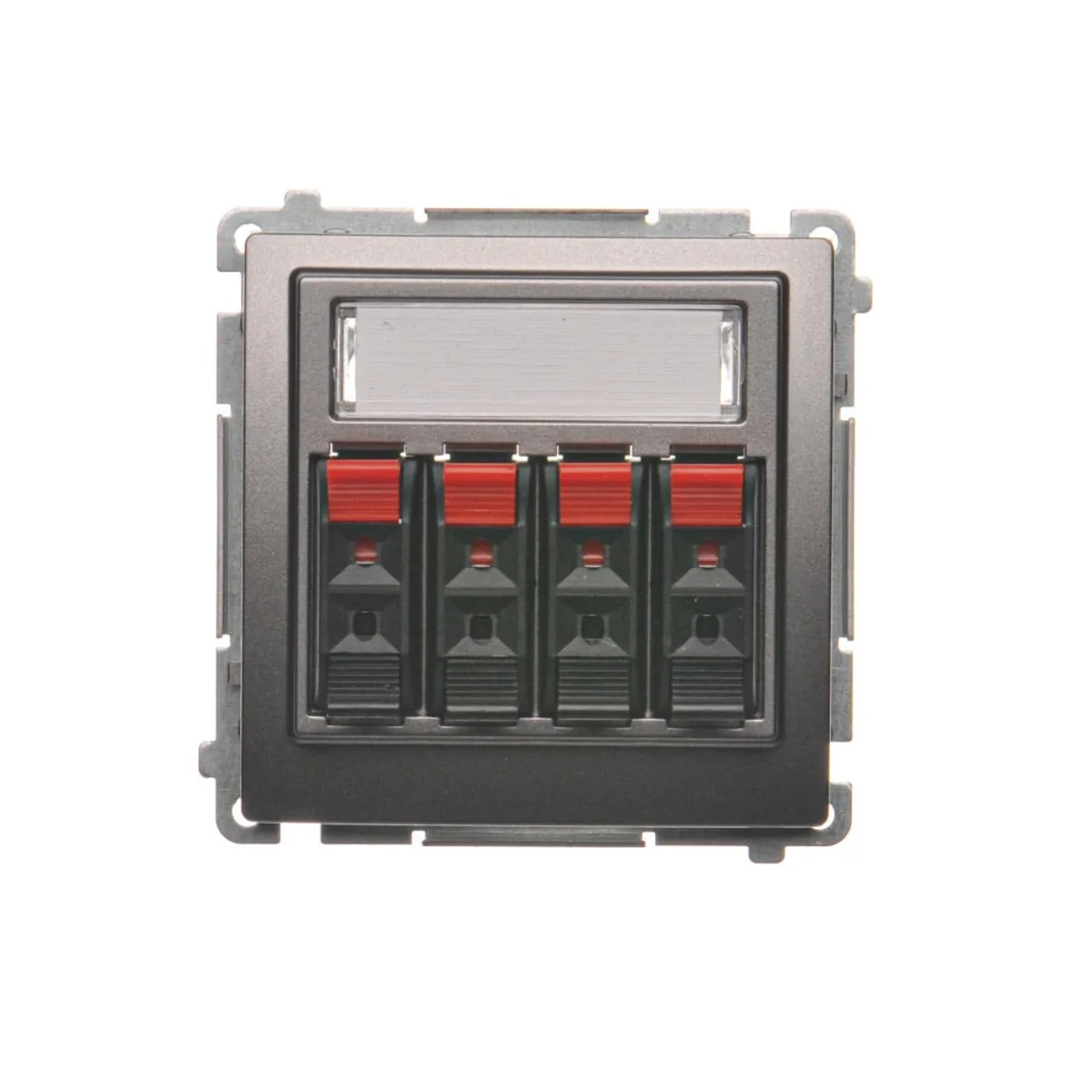

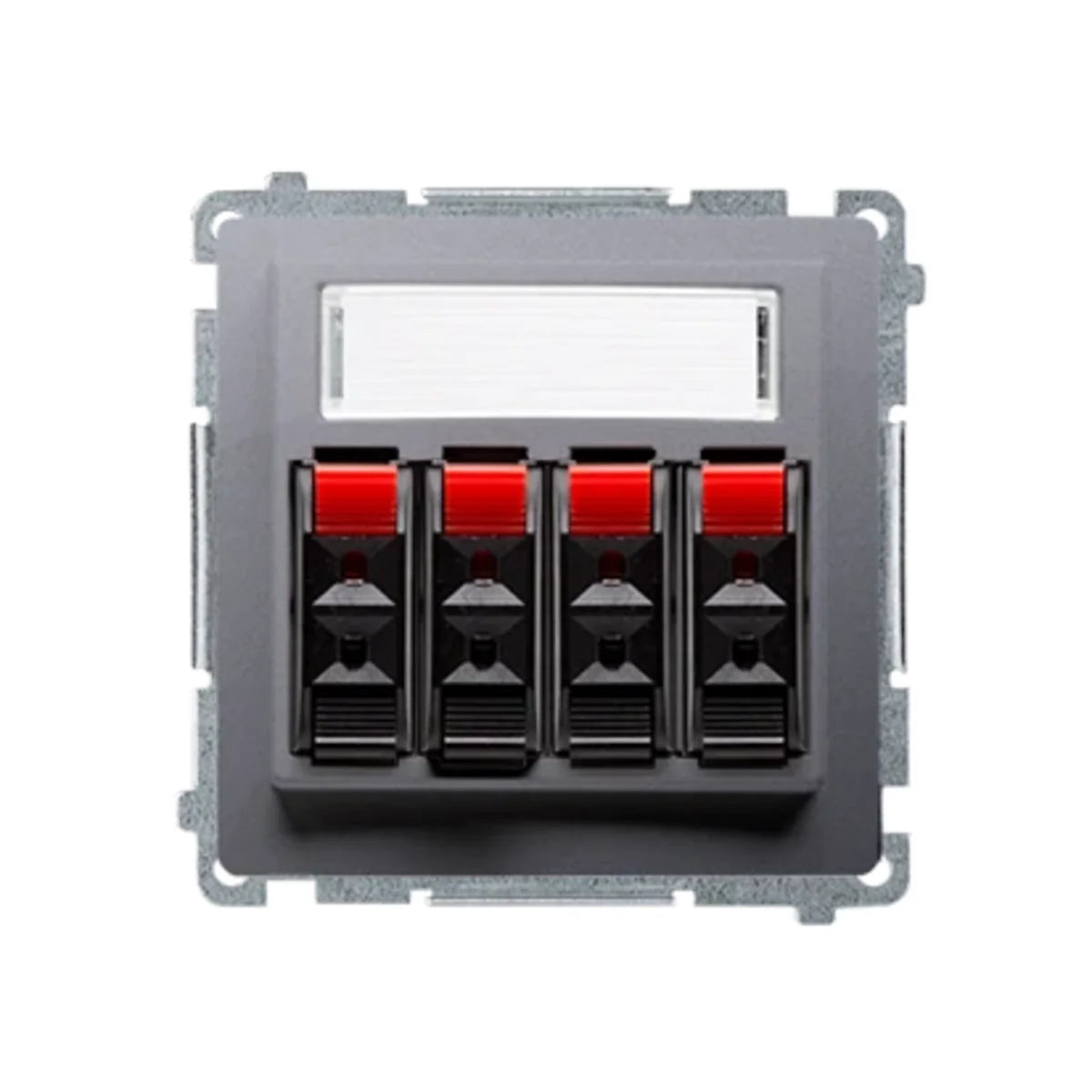

4-way loudspeaker socket with labeling field (module) in metallic stainless steel BMGL34.01/21

Index local:
MEG027KONT
Numéro de catalogue:
BMGL34.01/21
Code EAN:
5902787560188
Producteur: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 55
Number of sockets: 4
93
05
zł
gross / pcs.  (y compris la TVA 23%)
Disponibilité
Dostępne jusqu'à 2 semaines
Sur commande
Twoja hurtowinia
Dostępność w oddziale
Choisissez votre grossiste
Sélectionner
Quantité pcs. (plusieurs: 1 )
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Speaker socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMGL34.01/21.



FEATURES

  • For connecting 4 loudspeakers.
  • Module without frame.
  • Crimp (clamp).
  • inox color, metallic.
  • flush mounting.
  • Made of PC.
  • Cable cross-section for input and output 2.5 mm2.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office. The Speaker socket has all the features of this unique series.

Données techniques

  • Halogen free
    Yes
  • Number of sockets
    4
  • Shape
    Square
  • Fixing
    claws Screws
  • Descriptive field
    Yes
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    matte
  • Wire cross-section [mm²]
    2.5
  • Mounting depth [mm]
    28
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Depth [mm]
    55
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    speaker
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Metallized stainless steel
  • Backlight
    NO
  • Variant
    Pin-type plugs
  • Exact material
    PC

Autres données techniques

  • Assembly arrangement
    Basic element with central cover plate
  • Imprintable label
    With indication plate
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20
  • Utilization
    Loudspeaker connection
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt

Détails du fabricant

Emballage en vrac

Une sorte de paquet PA CT
Quantité 1 pcs. 10 pcs.
poids (kg) 0,065 0,741
Largeur (m) 0,110 0,190
Longueur (m) 0,060 0,230
Profondeur (m) 0,160 0,100
