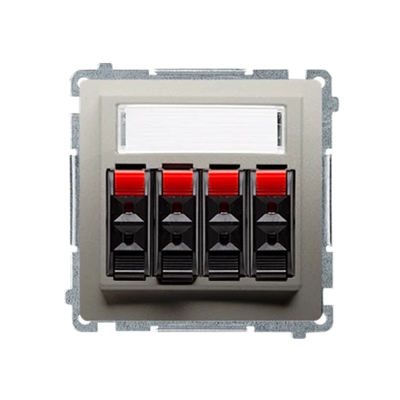

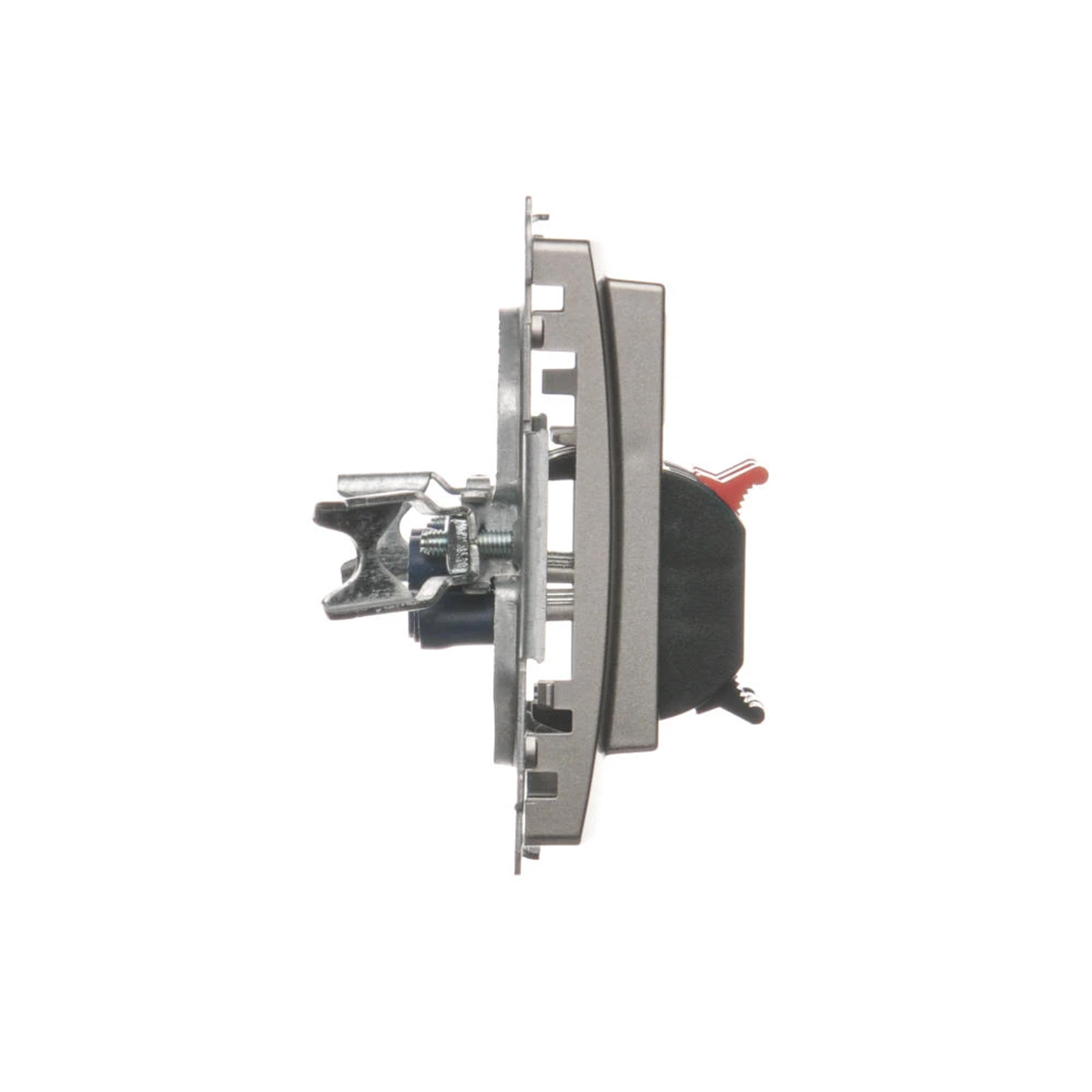

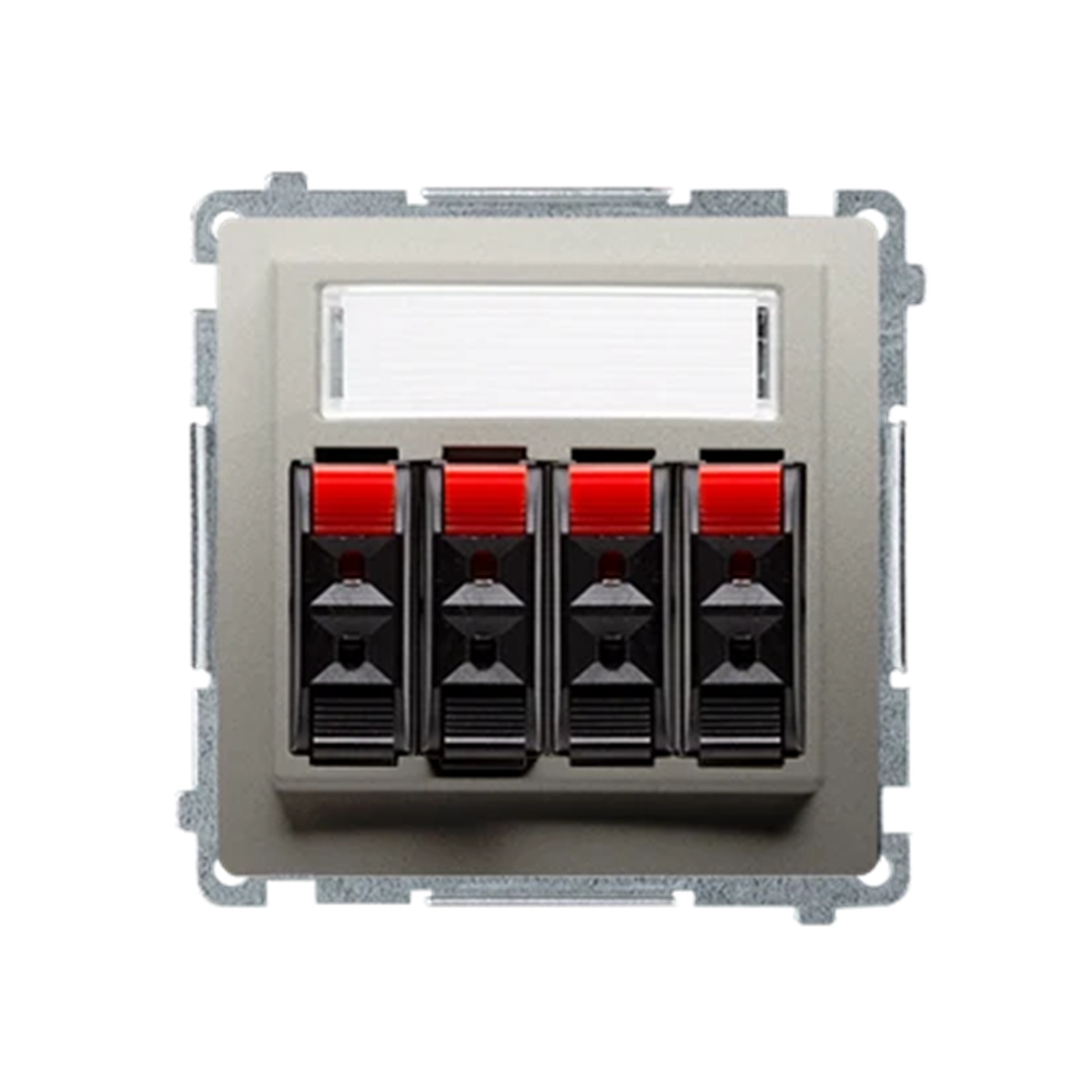

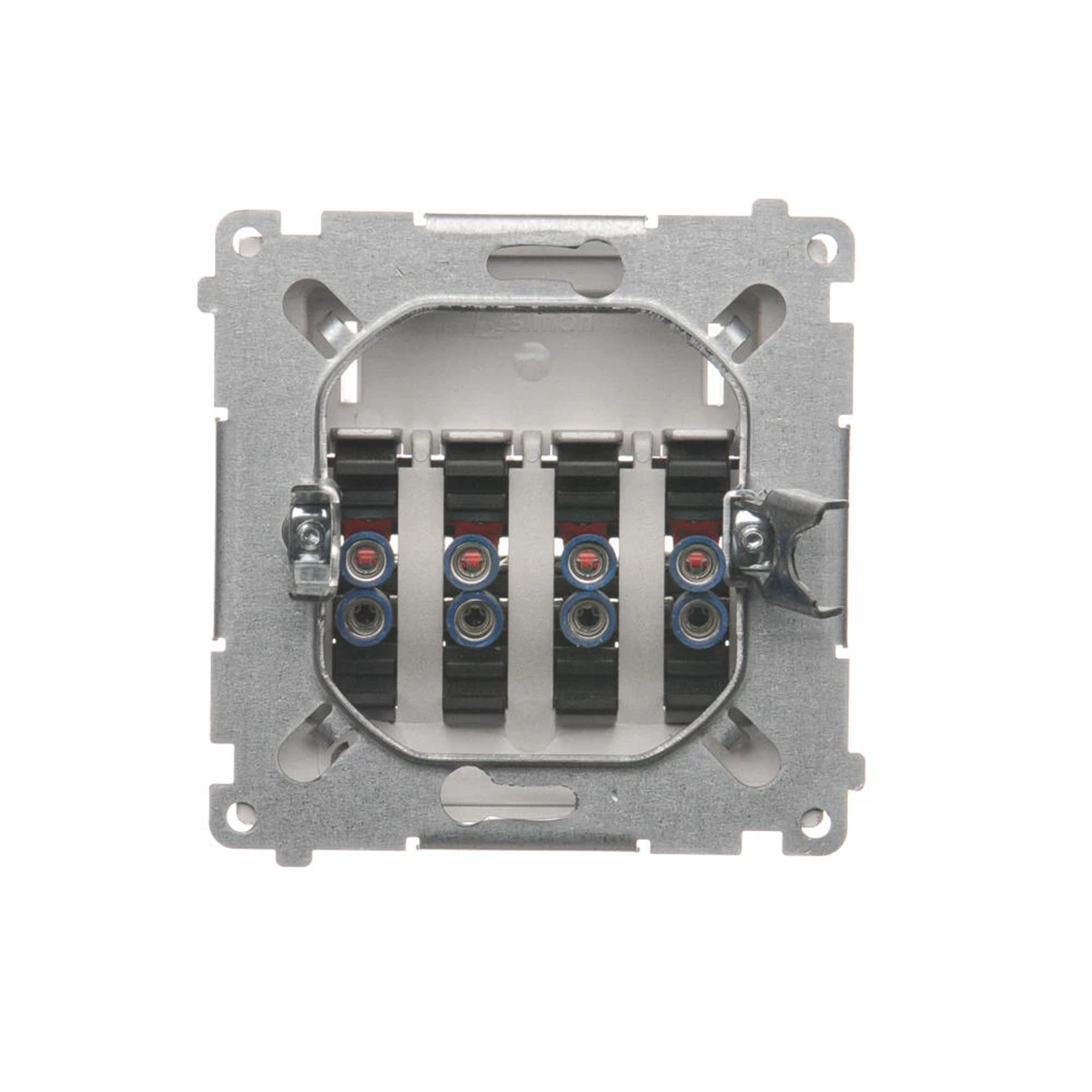

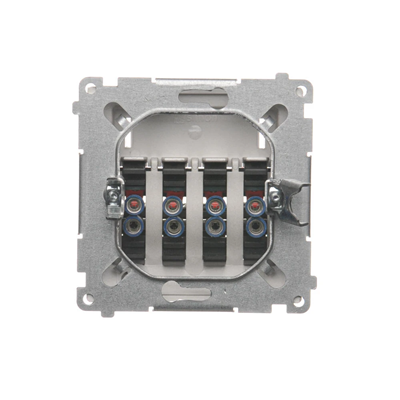

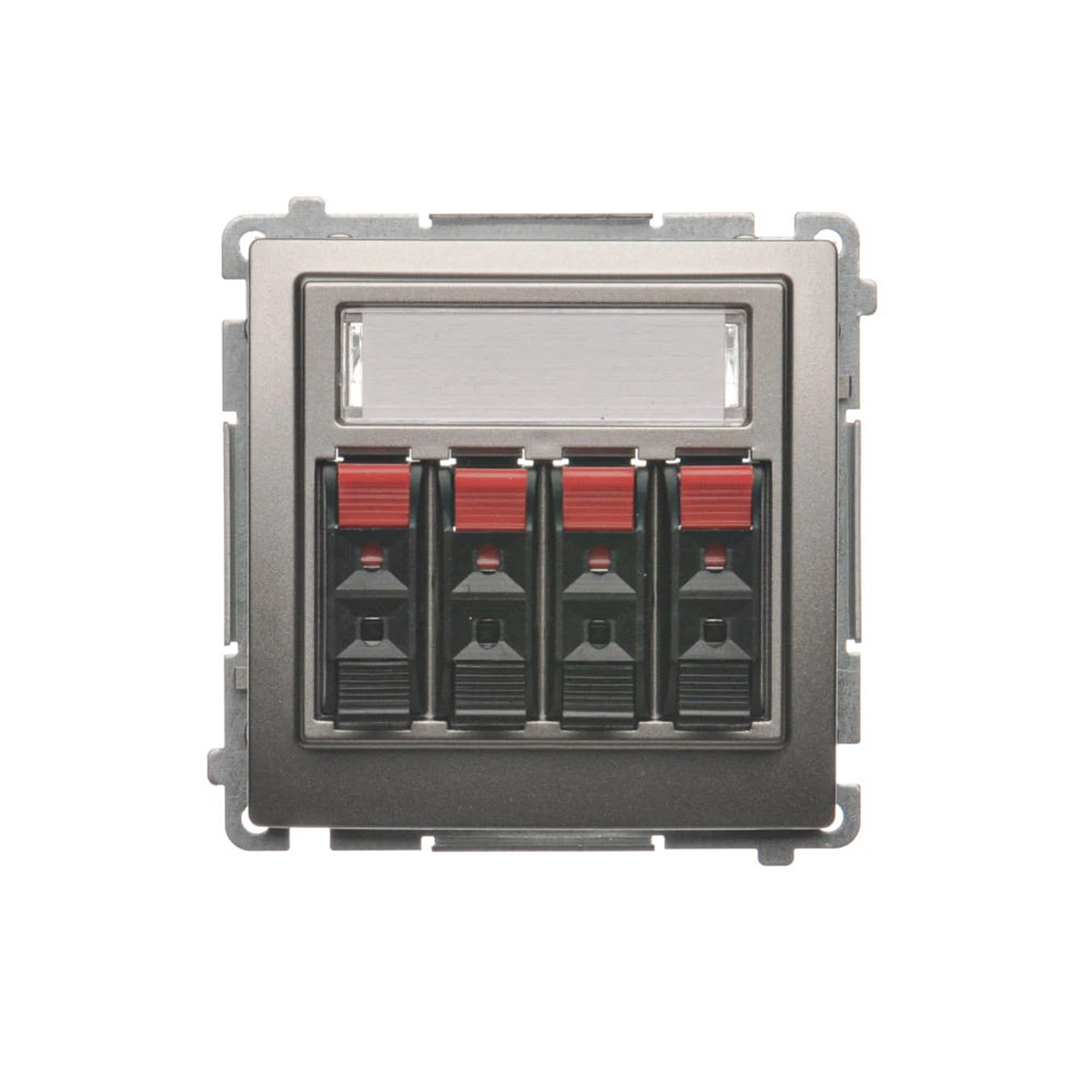

4-way loudspeaker socket with description field (module) metallic satin BMGL34.01/29

local index:
MEG028KONT
Catalog No:
BMGL34.01/29
EAN code:
5902787560195
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 55
Number of sockets: 4
Price:
19,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Speaker socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMGL34.01/29.



FEATURES

  • For connecting 4 loudspeakers.
  • Module without frame.
  • Crimp (clamp).
  • Color satin, metallized.
  • flush mounting.
  • Made of PC.
  • Cable cross-section for input and output 2.5 mm2.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office. The Speaker socket has all the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    4
  • Shape
    Square
  • Fixing
    claws Screws
  • Descriptive field
    Yes
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    matte
  • Wire cross-section [mm²]
    2.5
  • Mounting depth [mm]
    28
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Depth [mm]
    55
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    speaker
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Satin metallic
  • Backlight
    NO
  • Variant
    Pin-type plugs
  • Exact material
    PC

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Imprintable label
    With indication plate
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20
  • Utilization
    Loudspeaker connection
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt

Manufacturer details

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,065 0,065 0,741
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,060 0,230
Depth (m) 0,055 0,160 0,100
