Manufacturer: BERKER
Number of sockets: 4
Wave impedance [Ω]: 75
Shape: Square
Price:
37,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 8 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

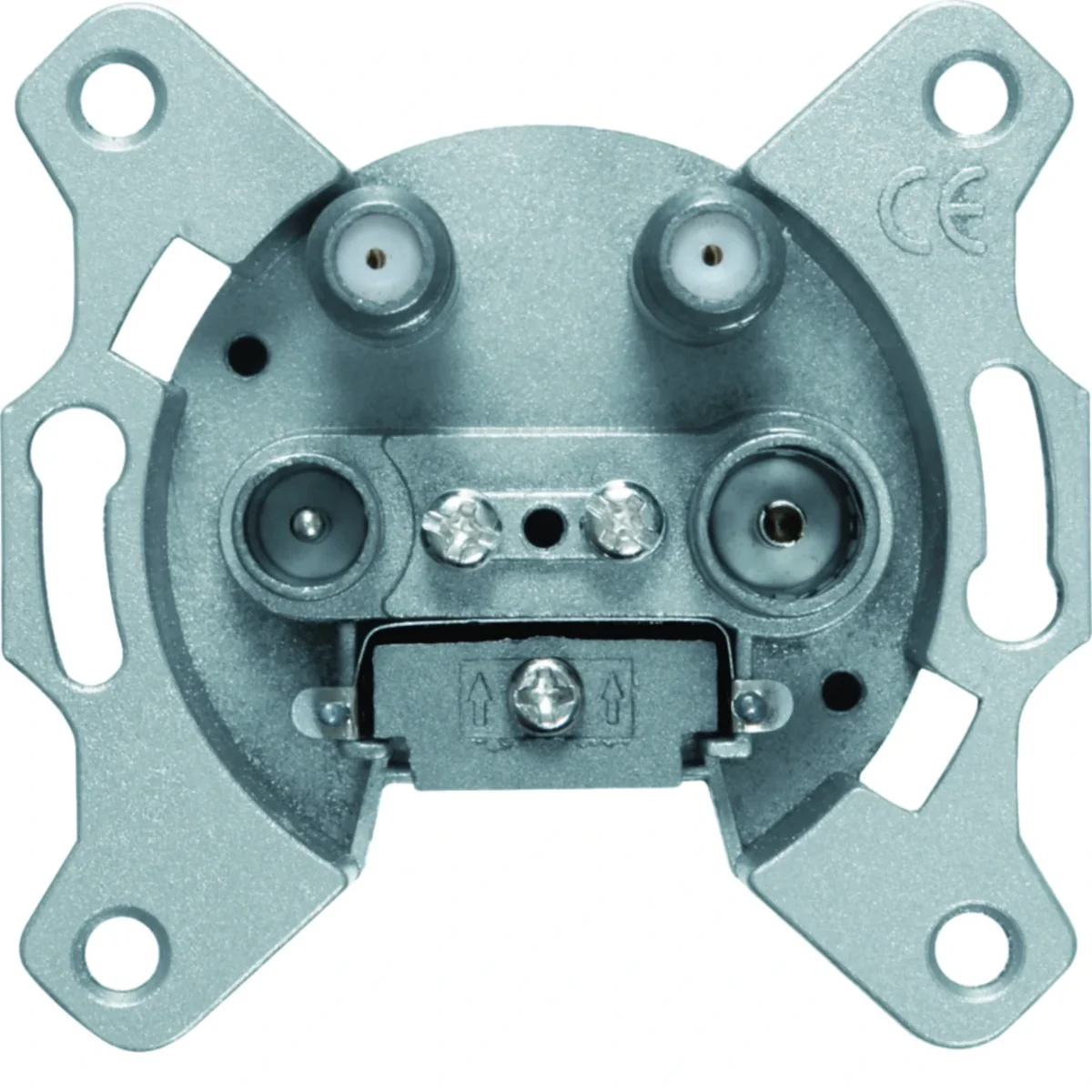

Mechanism of the antenna socket from the one.platform series, from the manufacturer Berker. The product catalog number is 459410.



FEATURES

  • R-TV-SAT-SAT .
  • Final.
  • 4 outputs.
  • HDTV ready.
  • Z LNB can be powered via F output.
  • With 2 independent SAT outputs and 2 IEC outputs.
  • For terrestrial reception.
  • For analog and digital transmission.< /li>
  • Direct voltage permeable.
  • For collective and broadband (cable) installations.
  • For single and distribution SAT installations.
  • For installations with Multiswitch.
  • For simultaneous connection of radio and TV receivers as well as 2 independent receivers.
  • To be supplemented with additional SAT programs in the broadband cable.< /li>
  • For individual digital DVB-T installations.
  • Transferring DC voltage on the SAT output.
  • For star structure.
  • For numbers order 1484 ..
  • 2 independent SAT inputs and outputs.
  • For decoders with two SAT inputs, eg: with recording function.

Technical data

  • Number of sockets
    4
  • Shape
    Square
  • Type
    Antenna
  • Level of security
    IP20
  • Type
    Socket mechanism
  • Frequency Range [MHz]
    5-2400
  • Terminal type
    Threaded
  • F-type input
    NO
  • PKWIU
    27.33.13.0
  • Wave impedance [Ω]
    75
  • Material
    Metal
  • Family
    ONE.PLATFORM
  • Attenuation [dB]
    At 860MHz: 2 At 2150MHz: 2
  • Version
    Final
  • Backlight
    NO
  • Variant
    R TV sat sat2
  • For the frame system
    Yes

Other technical data

  • Model
    Multimedia end box
  • Cover
    None
  • Tap loss at 2150 MHz
    2 dB
  • Suitable for cable modem
    Yes
  • Frequency
    5 ... 2400 MHz
  • Material
    Metal
  • Halogen free
    Yes
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    2 dB
  • Number of outlets
    4
  • Suitable for remote power supply
    Yes
  • Type of fastening
    Mounting with screw
  • Material quality
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 100 pcs. 2000 pcs.
Weight (kg) 0,090 1,075 11,020 243,400
Width (m) 0,087 0,155 0,315 0,800
Length (m) 0,027 0,080 0,190 1,025
Depth (m) 0,087 0,175 0,415 1,200
