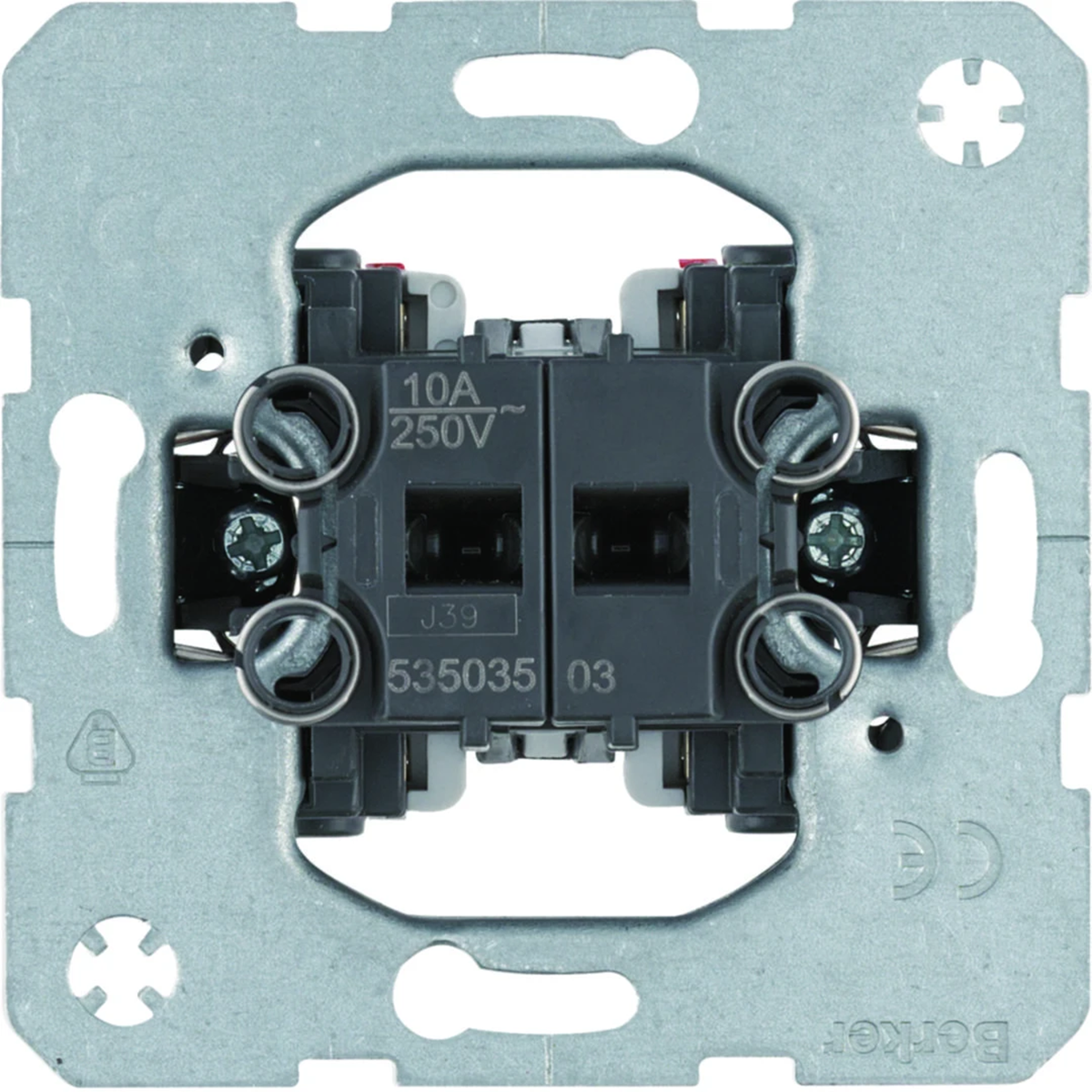

2-gang push-button switch serially open (candlestick type) separate input terminals, one.platform Berker 53503503

local index:
MPZ012BERK
Catalog No:
53503503
EAN code:
4011334430186
Manufacturer: BERKER
Number of keys: 2
Shape: Square
Material: Plastic | Metal
Price:
10,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

2-gang button switch mechanism from the one.platform series, from Berker. Product part number is 53503503.

  • 2 NO contacts.
  • Separate input terminals.
  • With backlighting capability using glow, incandescent and LED cartridges with neutral terminal.
  • For connection to backlight.
  • With self-clamps.

Technical data

  • Number of keys
    2
  • Material
    Plastic Metal
  • Rated current [A]
    10
  • Family
    ONE.PLATFORM
  • Type
    The linkage mechanism
  • Backlight
    NO
  • Variant
    Ordinary
  • PKWIU
    27.33.11.0
  • Shape
    Square
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Version
    Confident
  • Terminal type
    Threadless
  • For the frame system
    Yes

Other technical data

  • Number of modules (module system)
    0
  • With signal lamp
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Other
  • Anti-bacterial treatment
    No
  • Transparent
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    70.8 mm
  • Min. depth of built-in installation box
    35 mm
  • Rated current
    10 A
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Label space/information surface
    No
  • Device width
    70.8 mm
  • Device depth
    41.6 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,062 0,710 3,995 147,849
Width (m) 0,071 0,160 0,300 0,800
Length (m) 0,042 0,075 0,225 1,050
Depth (m) 0,071 0,225 0,400 1,200
