10AX white two-pole switch CW2.01/11

Name: 10AX white two-pole switch
Brand: KONTAKT-SIMON
SKU: MMD040KONT
Price: 5.66 PLN

local index:

MMD040KONT

Catalog No:

CW2.01/11

EAN code:

5902787854553

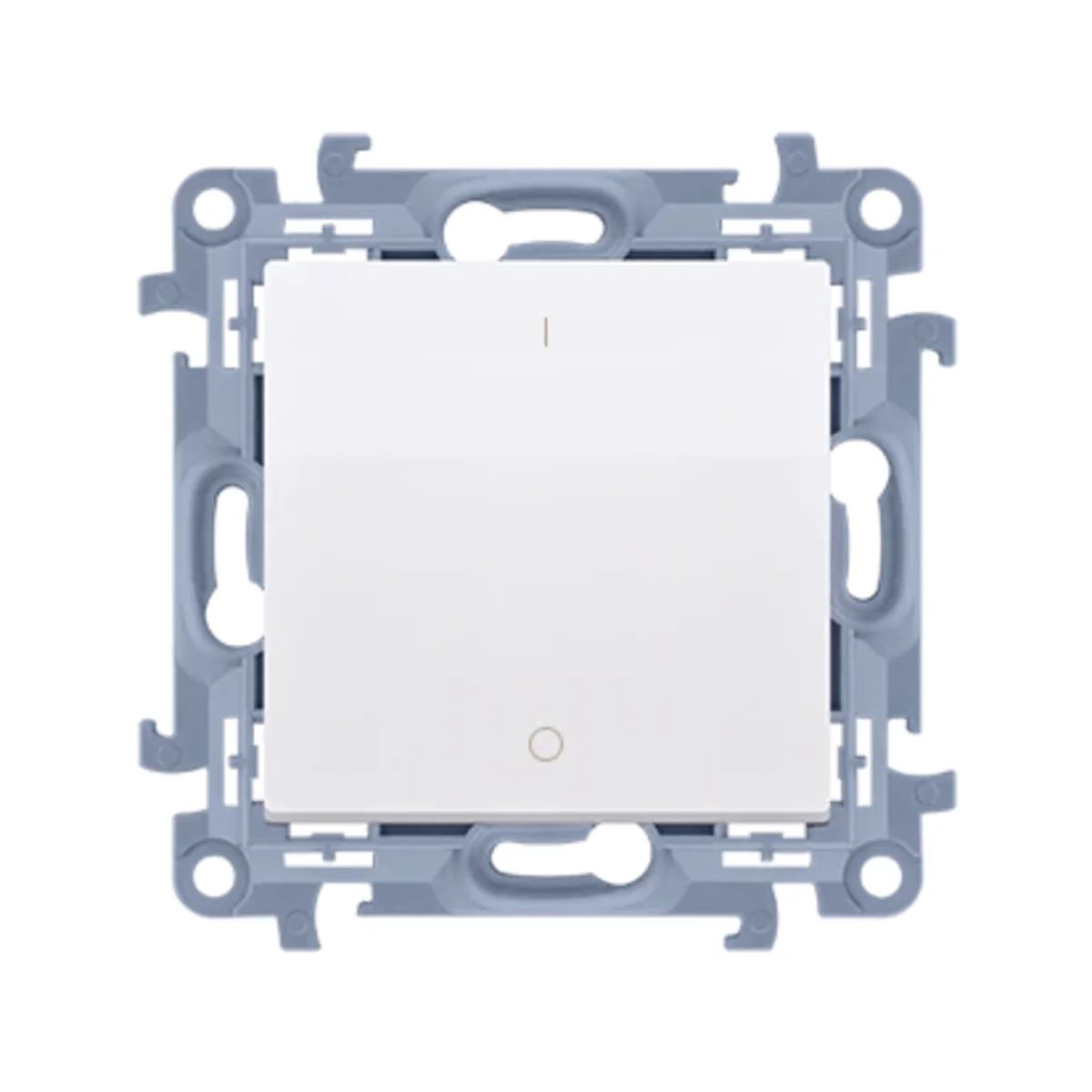

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 42

Number of keys: 1

See full description

Price:

5,66 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Double pole switch from the Simon 10 series, from the manufacturer Contact Simon. The product catalog number is CW2.01/11.

FEATURES

Module without frame.< /li>
Screw terminals.
Rocker switch.
Toggle switch.

DESCRIPTION SERIES

Simon 10 is an economical series of electrical equipment, the colors of which are limited to white and cream. Double pole switch characterize features of this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Bipolar
Level of security

IP20
Width [mm]

77
Height [mm]

77
Surface finish

Shiny
Mounting depth [mm]

26
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

42
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 10
Symbol

0-1
Type

Flush-mounted
Surface protection

Natural
Backlight

NO
Terminal type

Threaded
Exact material

PC

Other technical data

Wiring system

2-pole switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,052	0,052	0,610
Width (m)	0,077	0,110	0,190
Length (m)	0,077	0,047	0,230
Depth (m)	0,042	0,160	0,100
