1-way loudspeaker socket with labeling field (module) anthracite (metallic) DGL31.01/48

Name: 1-way loudspeaker socket with labeling field (module) anthracite (metallic)
Brand: KONTAKT-SIMON
SKU: MEG042KONT
Price: 11.05 PLN

local index:

MEG042KONT

Catalog No:

DGL31.01/48

EAN code:

5902787825645

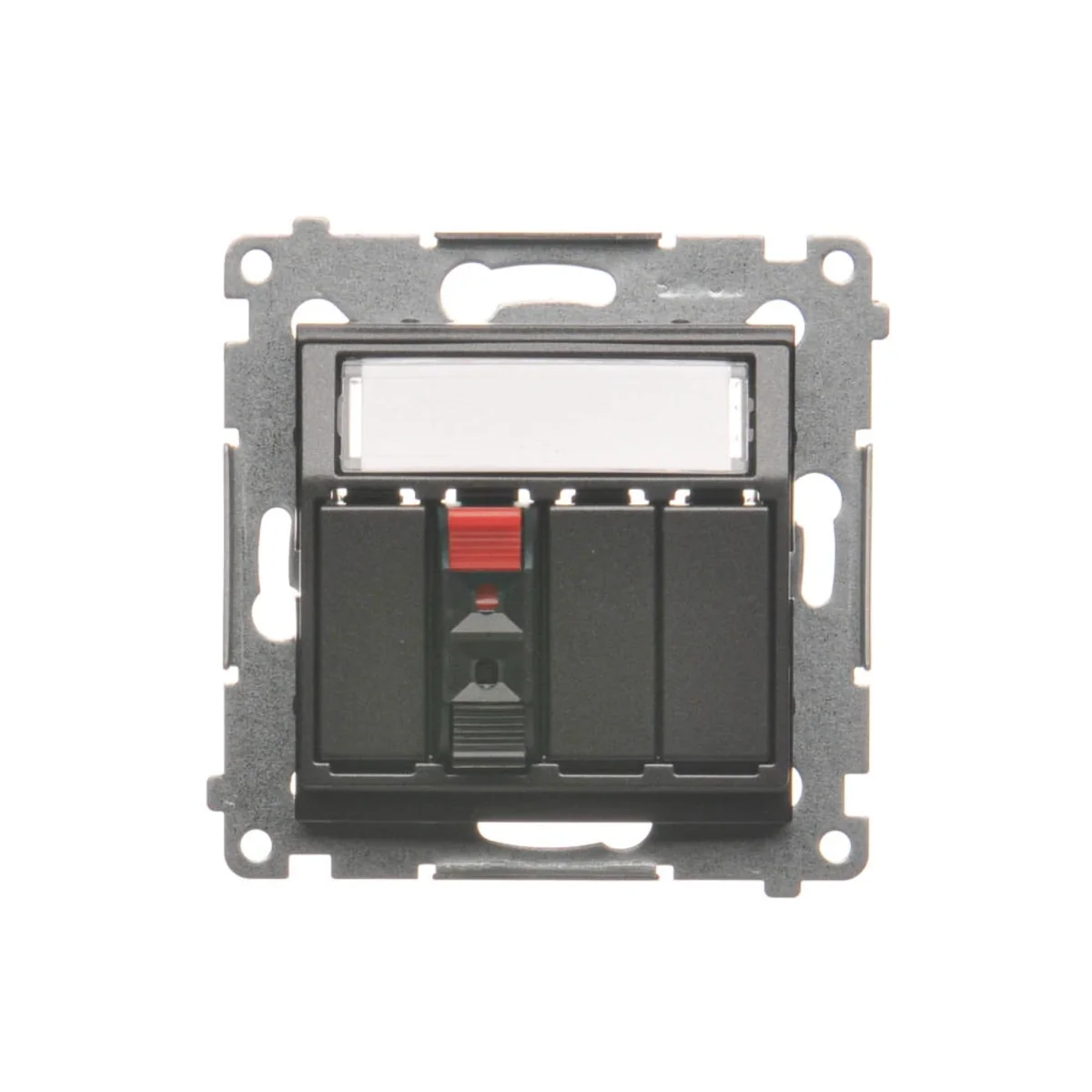

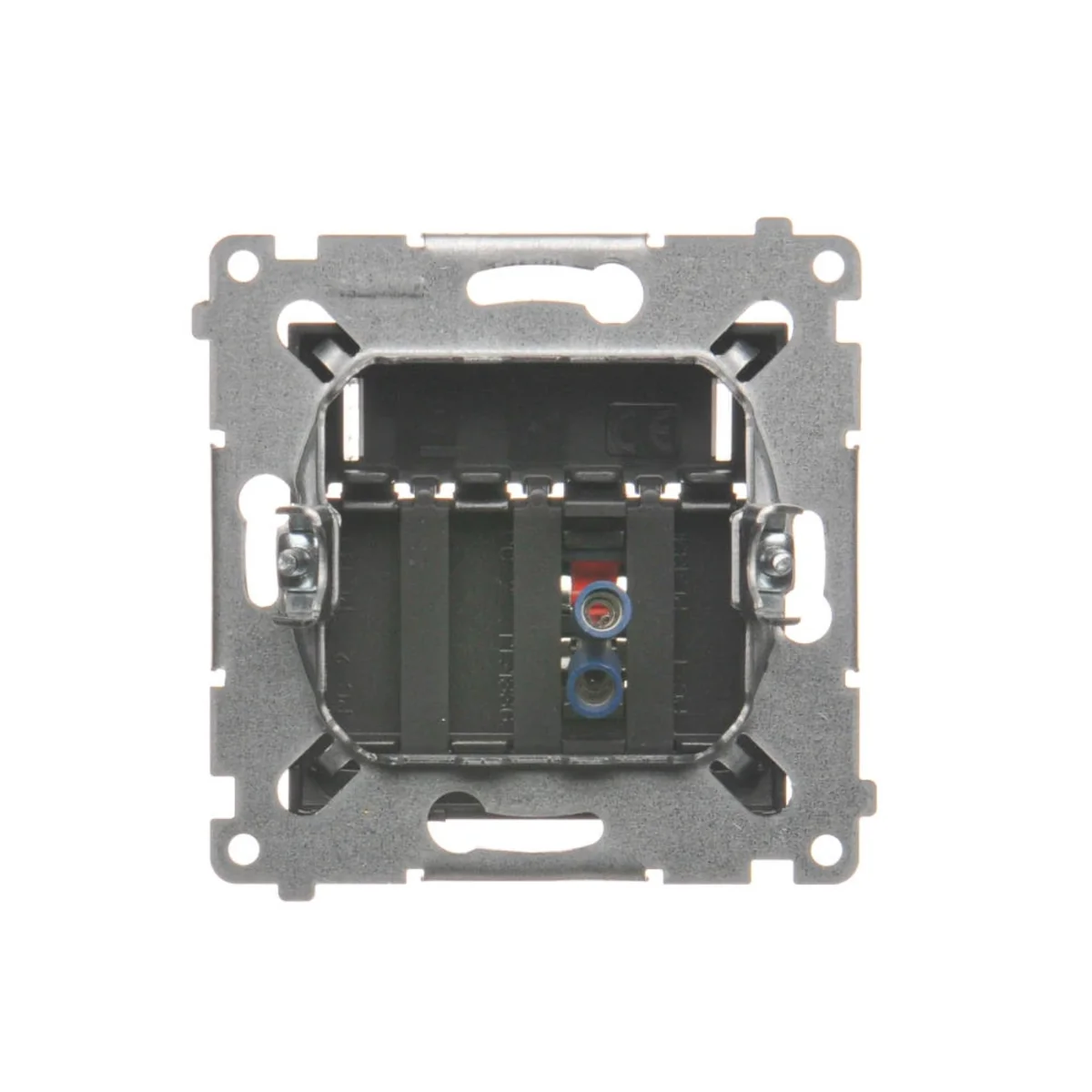

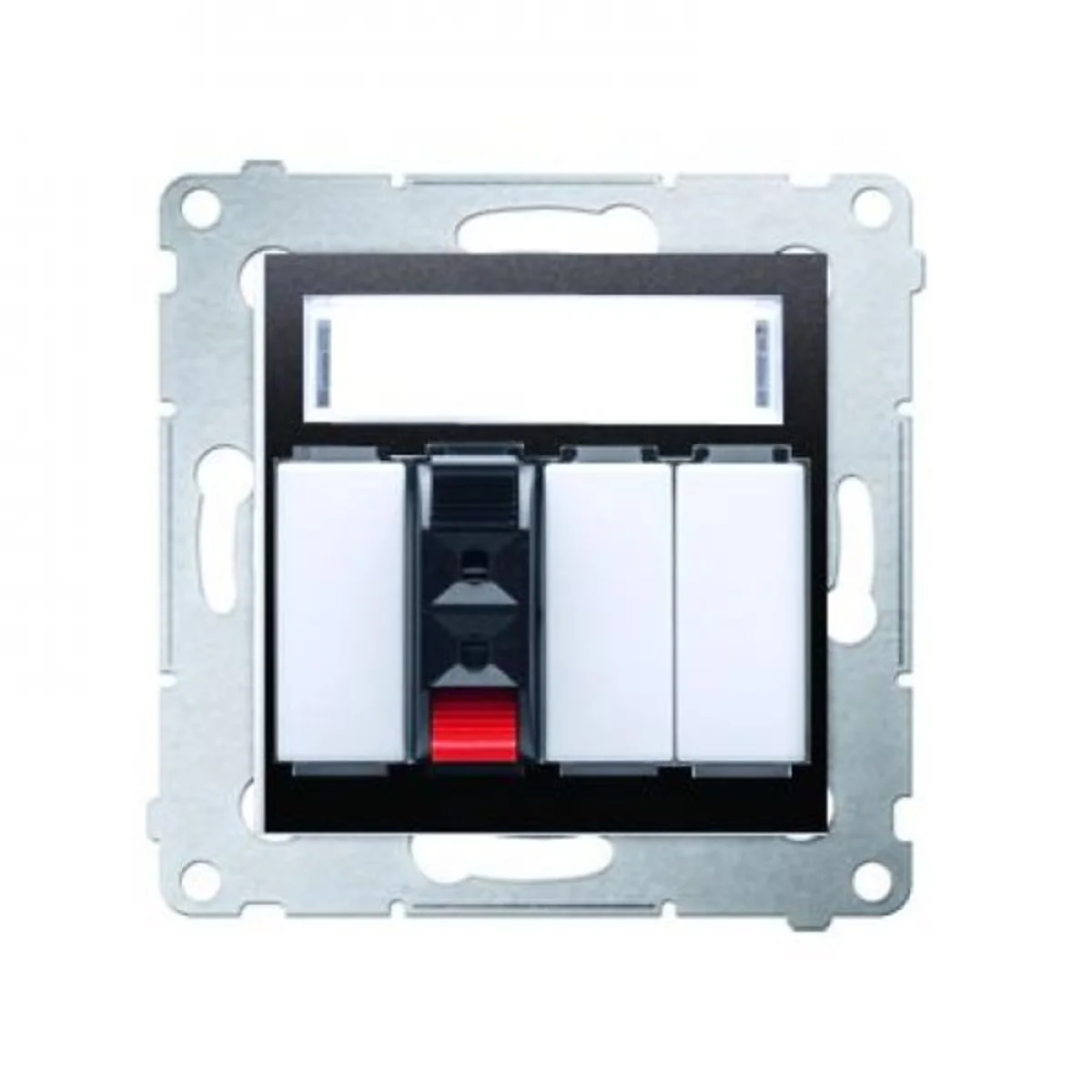

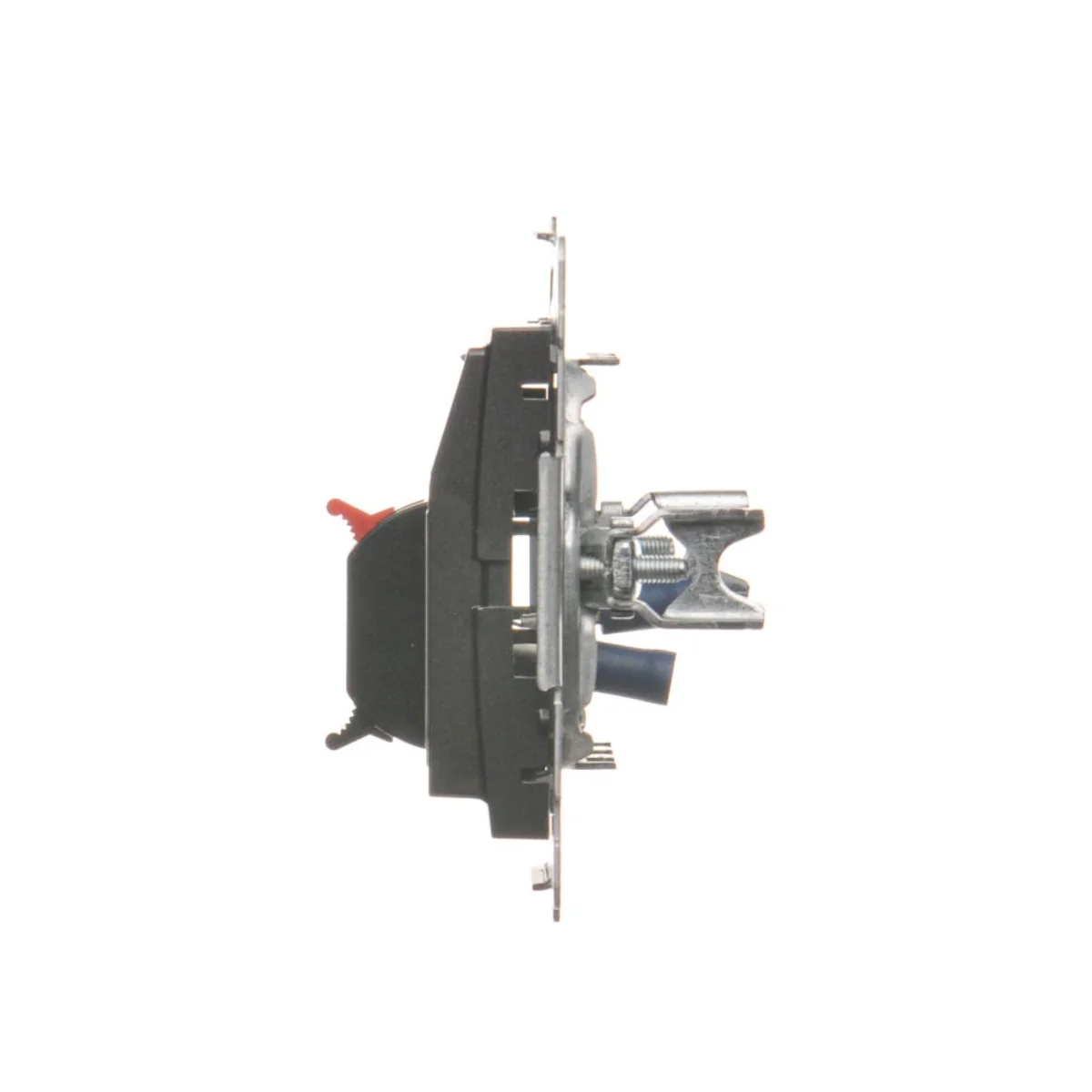

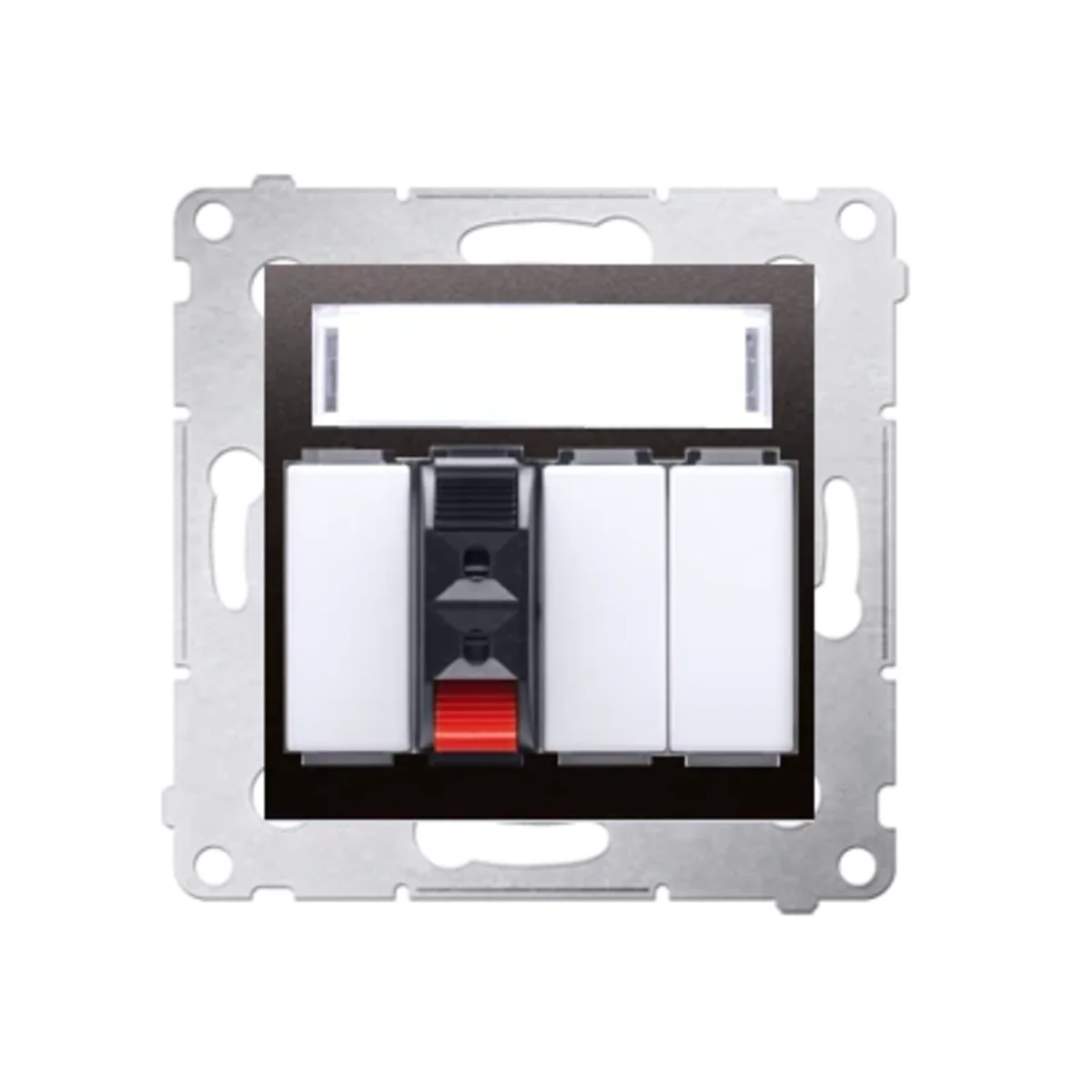

1-way loudspeaker socket with labeling field (module) anthracite (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 48

Number of sockets: 1

See full description

Price:

11,05 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Speaker socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DGL31.01/48.

FEATURES

For connection 1 loudspeaker box.
Module without frame.
Crimp (clamp).
Color anthracite, metallised.
flush mounting.
Made of PC.
Cable cross-section for input and output2.5 mm2.
Expandable with an additional loudspeaker terminal.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, designed distinguished by a noble form and rich colors. The loudspeaker socket has all the features of this unique series.

Technical data

Halogen free

Yes
Number of sockets

1
Shape

Square
Fixing

claws Screws
Descriptive field

Yes
Family

Simon 54
Width [mm]

75
Height [mm]

75
Surface finish

matte
Wire cross-section [mm²]

2.5
Mounting depth [mm]

22
For the frame system

Yes
Exact material

PC

Depth [mm]

48
Color

Graphite
Material

Plastic
Installation

Flush-mounted
Type

speaker
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Metallized anthracite
Backlight

NO
Variant

Pin-type plugs
Extra socket

Blank space
PKWIU

27.33.13.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Imprintable label

With indication plate
Material

Plastic
Surface protection

Lacquered
Colour

Anthracite

Utilization

Loudspeaker connection
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,048	0,048	0,570
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,054	0,230
Depth (m)	0,048	0,160	0,100
