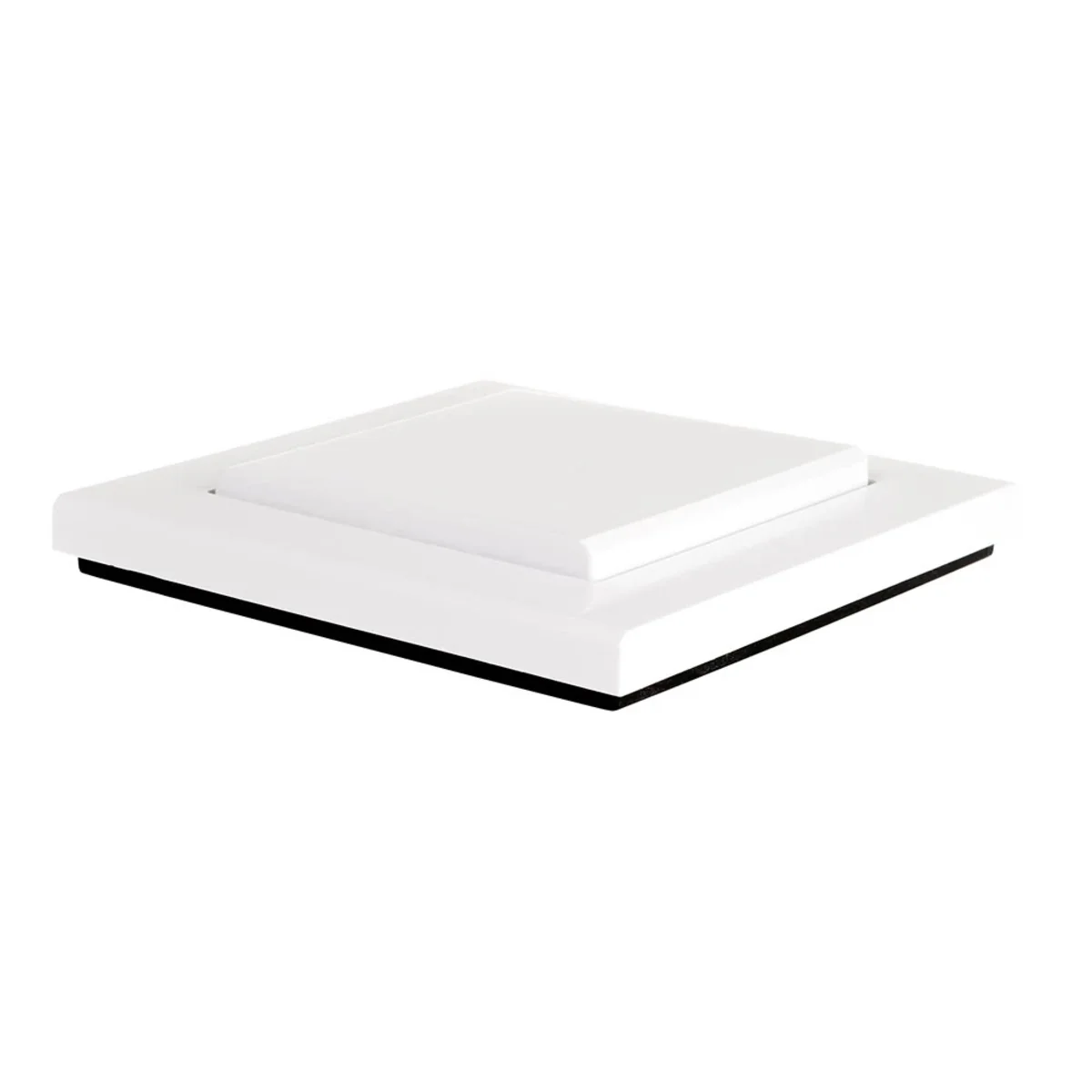

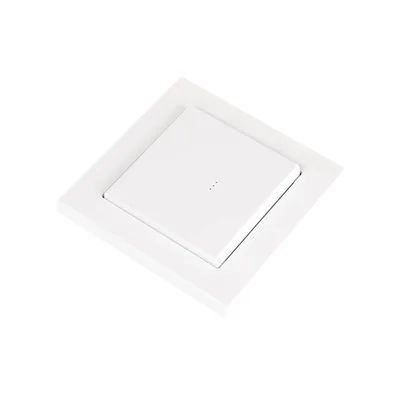

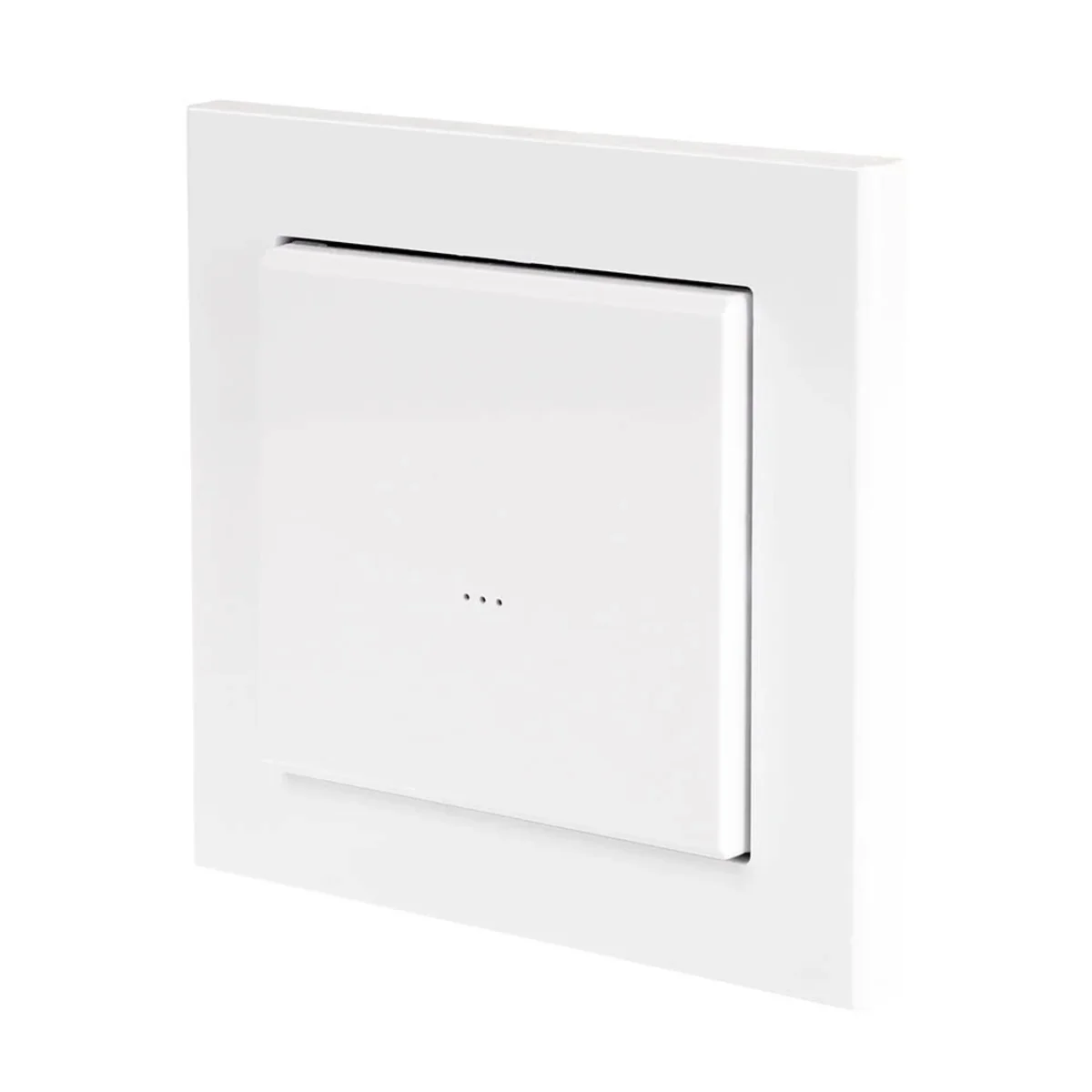

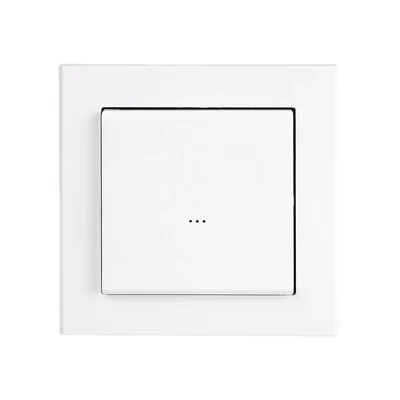

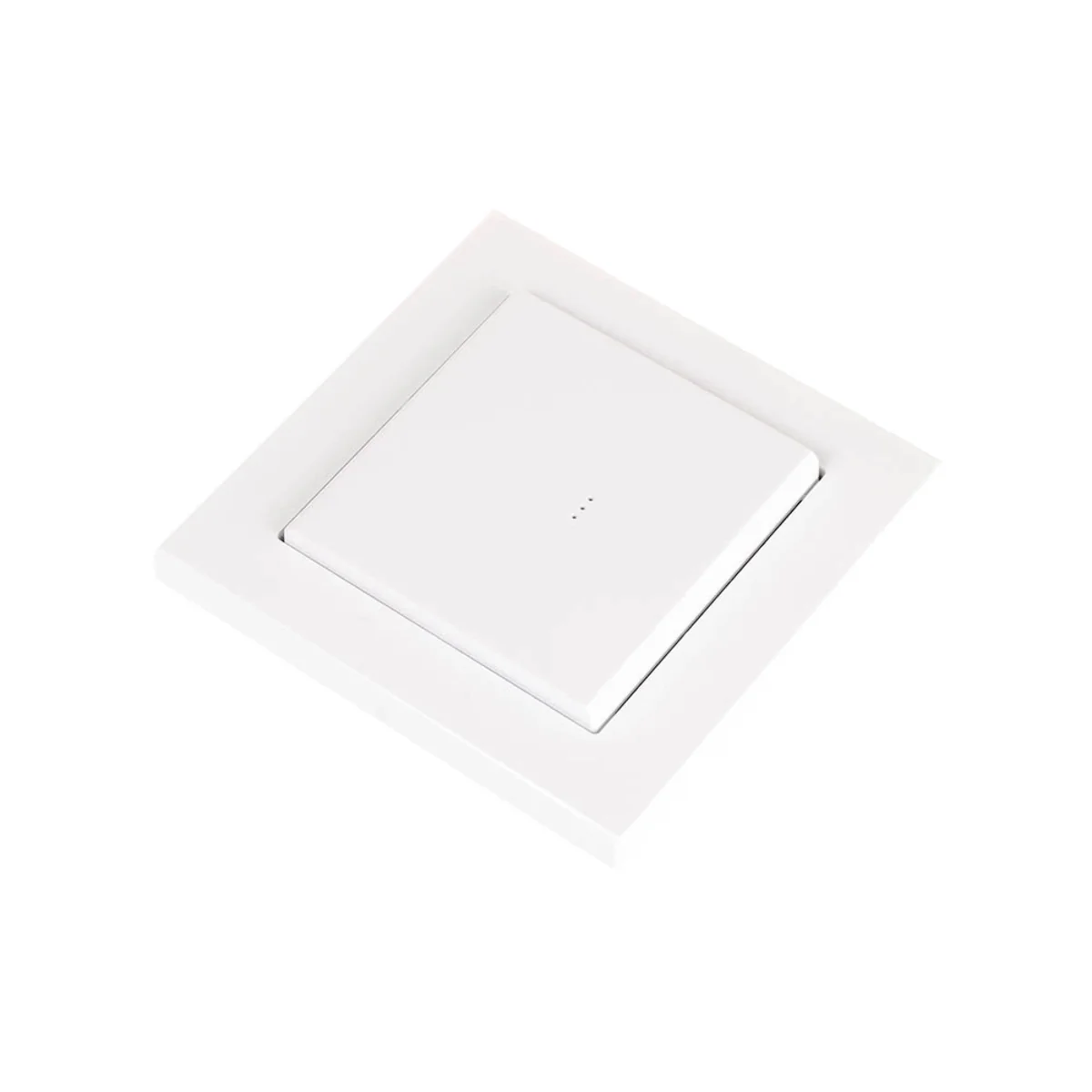

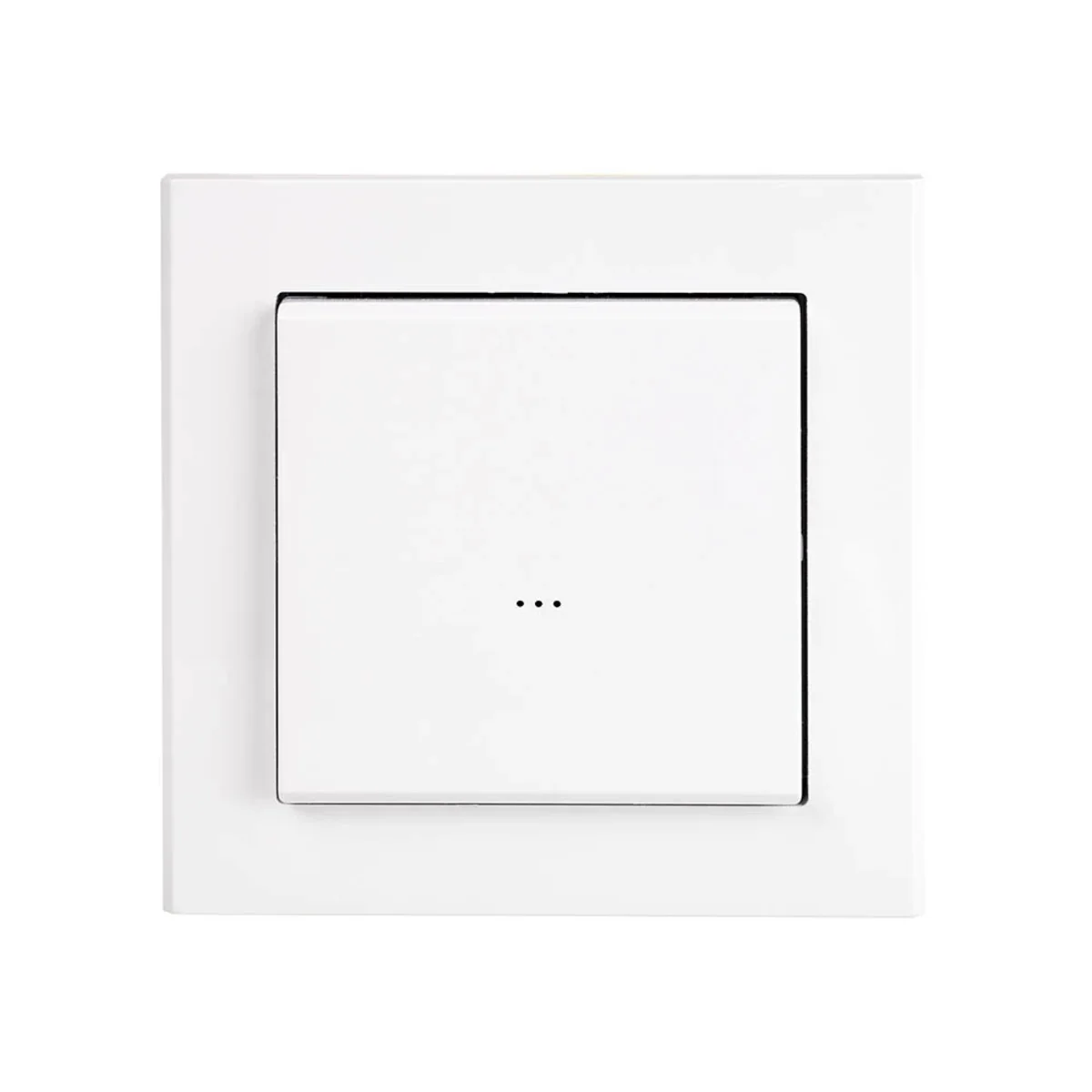

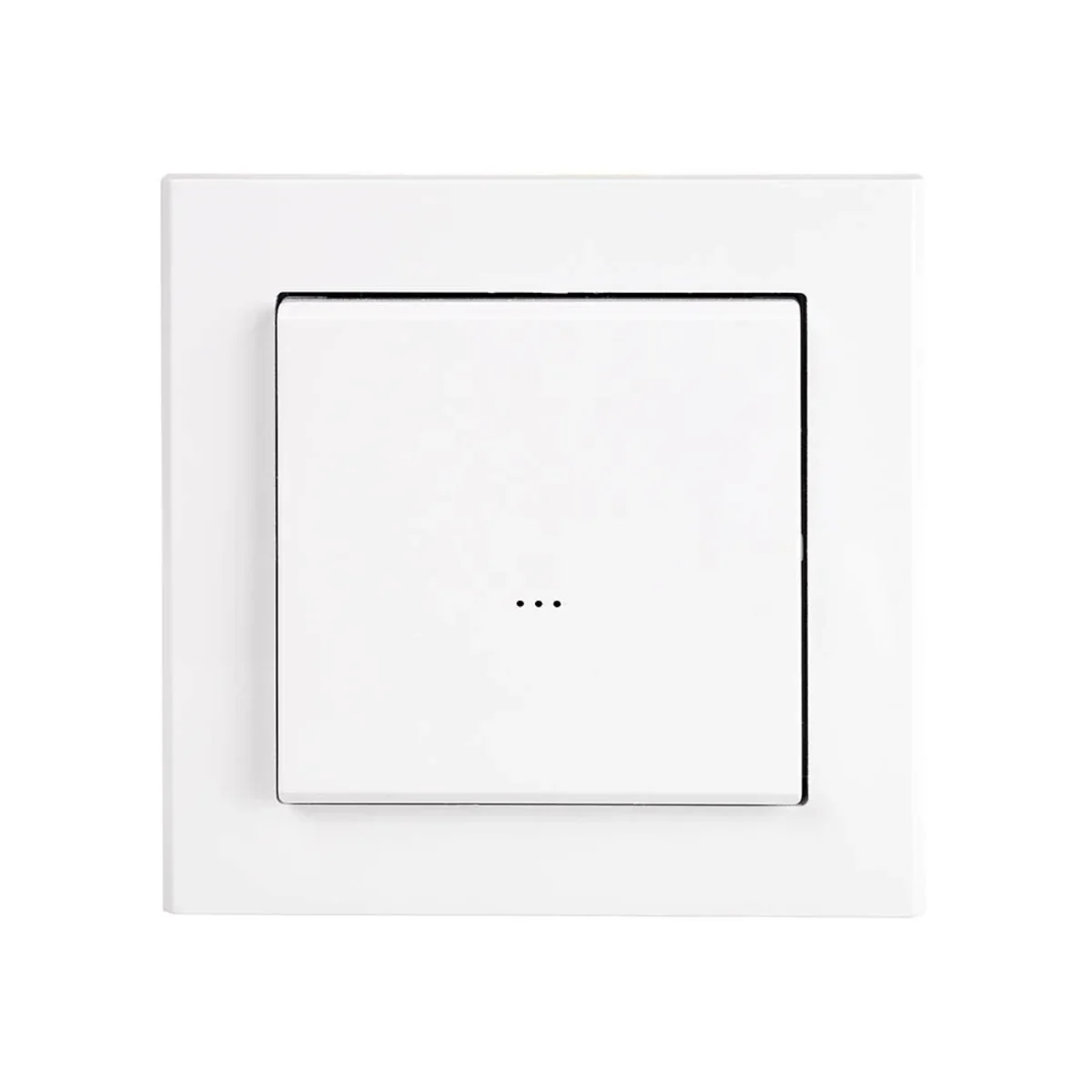

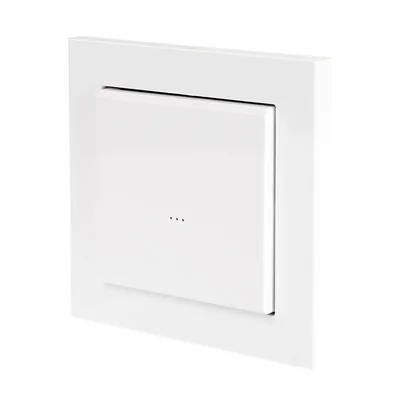

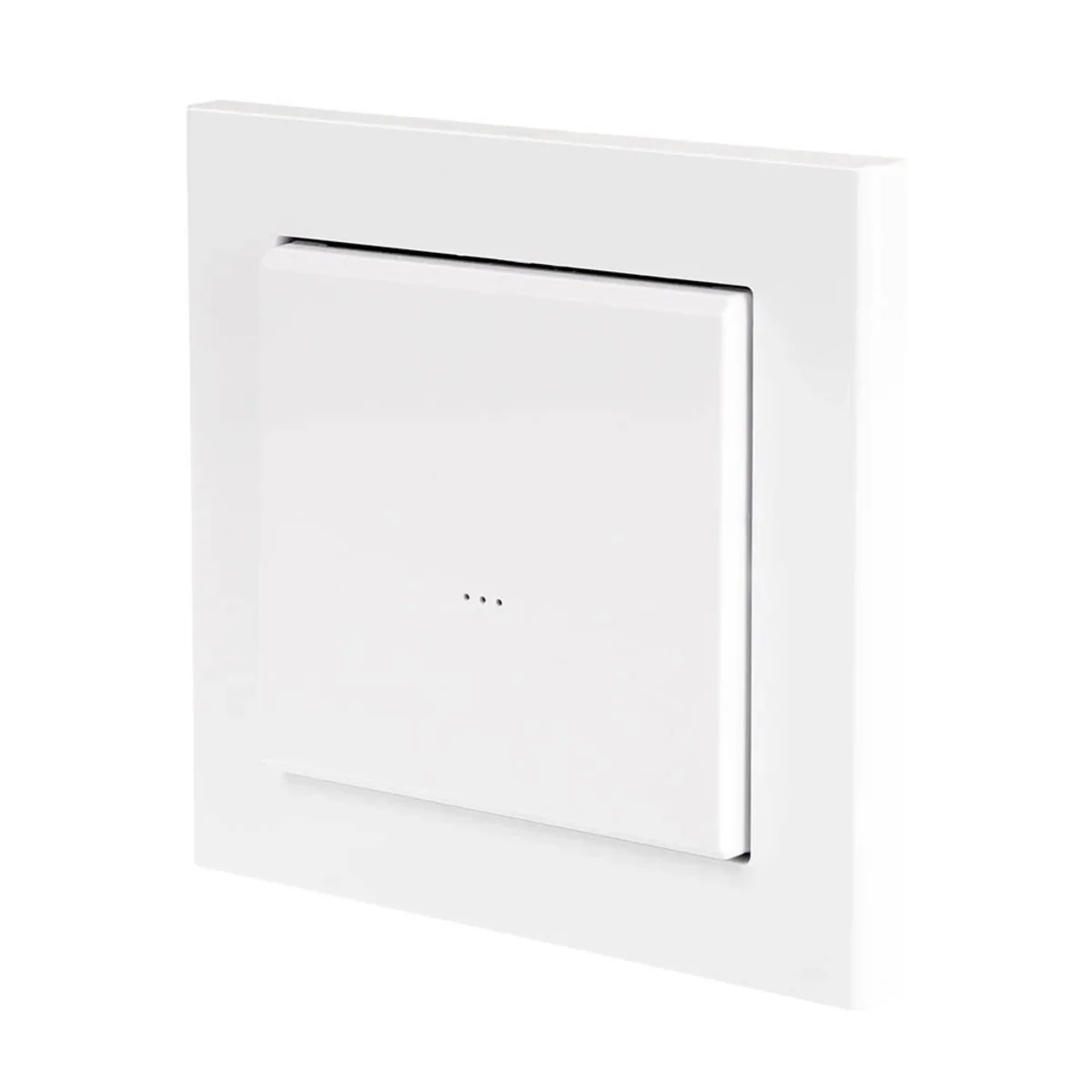

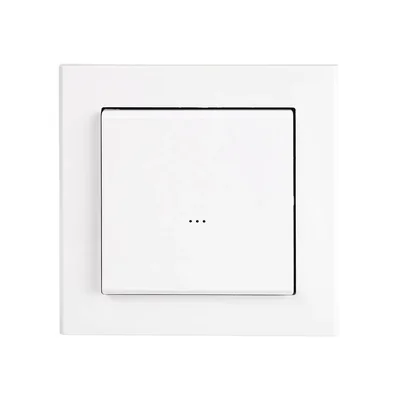

1-key 2-channel white radio button for lighting control FW-WSO2

local index:
MNZ001FIFQ
Catalog No:
FW-WSO2
EAN code:
5902431672618
Manufacturer: F&F
Battery: CR2032
Installation: Surface-mounted
Level of security: IP20
Price:
29,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 18 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Battery, 2-channel remote control transmitter. The FW-WSO2 button belongs to the OSPEL Sonata family of accessories.
Allows  radio control lighting, smooth regulation of lighting brightness, control of roller blinds, blinds, awnings, entrance and garage gates and other devices at home.

Button FW- WSO2 belongs to the Sonata series of products by OSPEL and fits perfectly with the other elements in the collection. Without the slightest problem, you can adapt it to your own concepts by changing the color of the frames and combine it with other Sonata series devices using multiple frames.

Features of the device
FW-WSO2 is 1-key, 2-channel remote transmitter, radio control dedicated to work with all devices of the F&Wave family.
Capabilities:

    < li>independent control of two receivers or two groups of receivers,
  • any number of receivers within each group,
  • switching receivers and lighting circuits on and off*,< /li>
  • brightening and dimming the light*,
  • raising and lowering the blinds*,
  • triggering time functions*,
  • optical transmission signaling,
  • easy installation in any place,
  • problem-free installation ensured by energy-saving battery power supply,

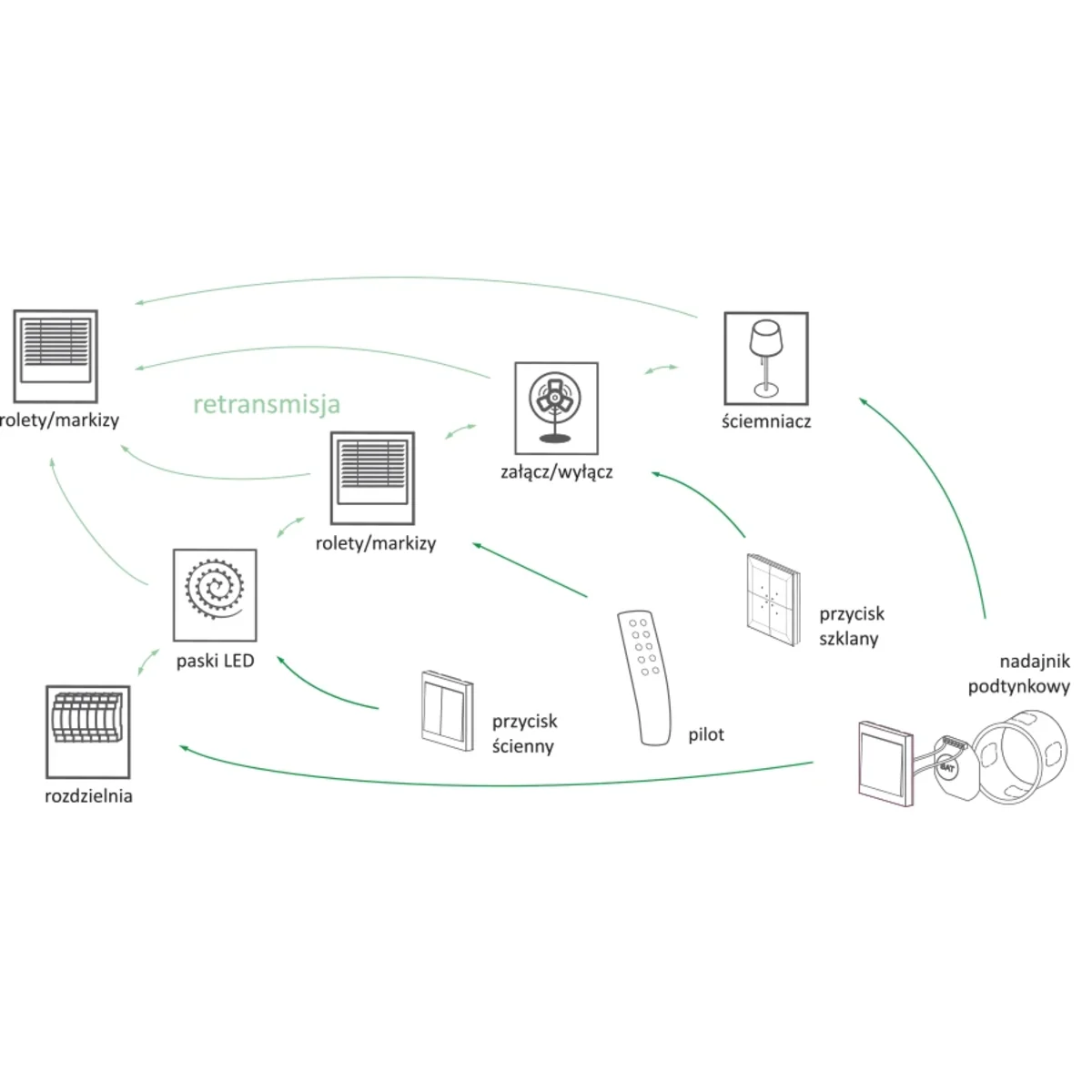

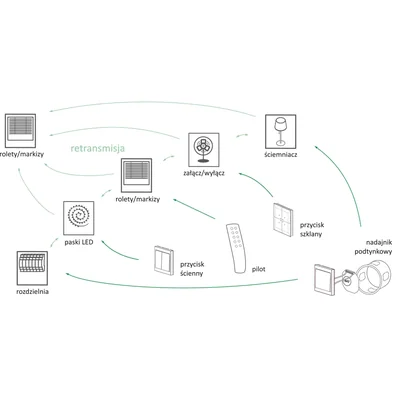

  • high quality of operation thanks to long range of transmission and retransmission of commands between receivers.
  •  functionality depends on the controlled receiver

Technical data

  • Battery
    CR2032
  • Level of security
    IP20
  • Dimensions [mm]
    84x84x14
  • PKWIU
    26.51.20.0
  • Installation
    Surface-mounted
  • Working temperature [°C]
    5+50
  • Transmitter range [m]
    100

Other technical data

  • Radio frequency
    868 MHz
  • Rolling code system
    Yes
  • Number of commands
    2
  • Flush-mounted radio transmitter
    No
  • With radio coding device
    Yes
  • Keyboard protection cover
    Yes
  • Modulation
    FM
  • Range
    100 m
  • With manual radio transmitter
    No
  • Surface mounted radio transmitter
    Yes
  • Degree of protection (IP)
    IP20
  • Current supply
    Battery

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,180
Length (m) 0,108
Depth (m) 0,040
