1-gang push-button switch NO changeover contact 535036
local index:
MPZ013BERK
Catalog No:
535036
EAN code:
4011334449171
Price:
7,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

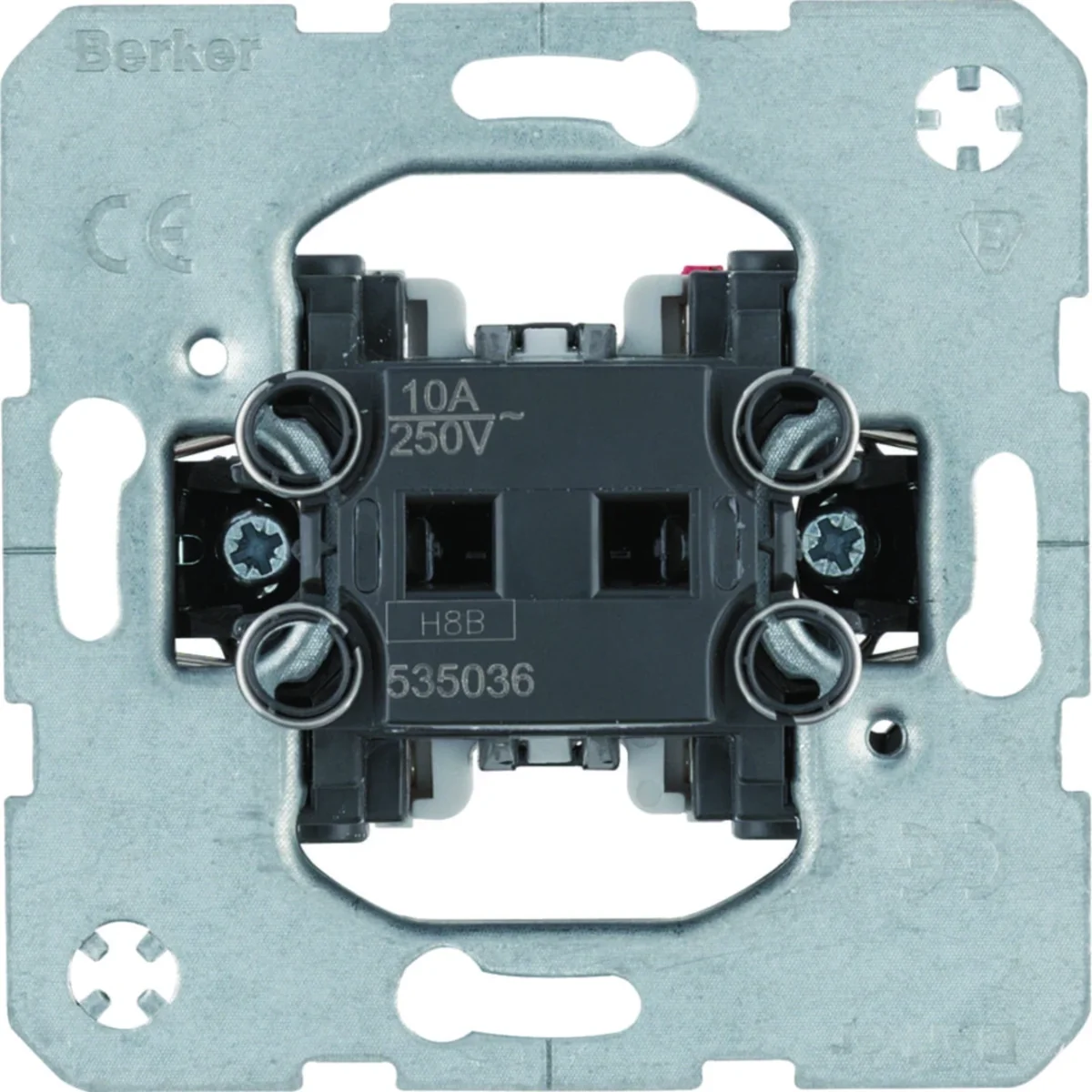

Single-button switch mechanism from the one.platform series, from Berker. Product part number is 535036.
- Changeover contact.
- Can be illuminated with glow and incandescent cartridges with neutral terminal.
- For illuminated connection and illuminated control connection.
- With self-clamps.
Technical data
-
Depth [mm]42
-
ShapeSquare
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
TypeThe linkage mechanism
-
Height [mm]71
-
BacklightNO
-
Terminal typeThreadless
-
For the frame systemYes
-
Number of keys1
-
MaterialPlastic Metal
-
Rated current [A]10
-
FamilyONE.PLATFORM
-
Width [mm]71
-
VersionCloser Open
-
Maximum conductor cross-section [mm²]2.5
-
Mounting depth [mm]31
-
VariantOrdinary
-
PKWIU27.33.11.0
Other technical data
-
Assembly arrangementBasic element
-
Method of operationRocker
-
Number of modules (module system)0
-
Nominal voltage250 V
-
With lightingNo
-
Feedback-signal contactNo
-
Type of fasteningMounting with claw
-
Material qualityOther
-
Anti-bacterial treatmentNo
-
TransparentNo
-
ImprintNone
-
Device width71 mm
-
Device depth42 mm
-
ModelSingle push button
-
Number of rockers1
-
Number of poles1
-
Rated current10 A
-
With signal lampNo
-
Mounting methodFlush-mounted
-
MaterialOther
-
Halogen freeYes
-
Surface protectionOther
-
Label space/information surfaceNo
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box34 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 50 pcs. | 1600 pcs. |
| Weight (kg) | 0,058 | 0,680 | 3,845 | 146,040 |
| Width (m) | 0,071 | 0,170 | 0,300 | 0,800 |
| Length (m) | 0,042 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,235 | 0,400 | 1,200 |
