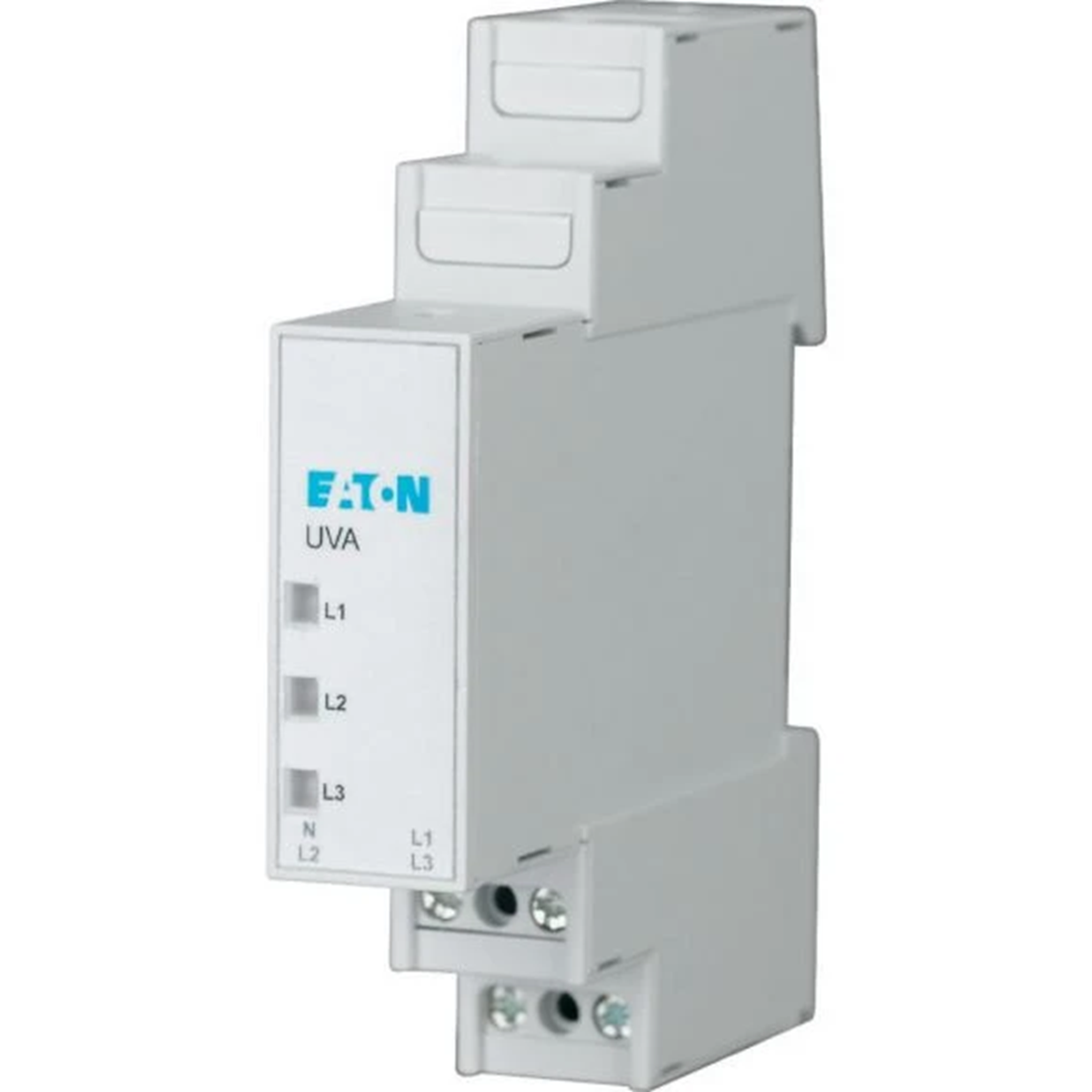

Voltage indicator 3-phase UVA 230/400VAC IP20 green 167285

local index:
AKS968MOEL
Catalog No:
167285
EAN code:
4015081637881
Manufacturer: EATON
number of phases: 3
Installation: On the TH-35 rail
Rated voltage [V]: 230 | 400
Price:
67,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 31 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Voltage indicator 3-phase UVA 230/400VAC IP20 green

Technical data

  • number of phases
    3
  • Rated voltage [V]
    230 400
  • Level of security
    IP20
  • Number of traffic lights
    3
  • Installation
    On the TH-35 rail
  • Type of voltage
    AC/DC
  • Width [number of modules]
    1
  • Lamp color
    Green

Other technical data

  • Number of indicator lights
    3
  • Type of lamp socket
    LED
  • Rated operating voltage Ue
    400 ... 400 V
  • Type of electric connection
    Screw connection
  • Type of lens
    Flat
  • Width opening
    18 mm
  • With front ring
    No
  • Colour front ring
    Other
  • Degree of protection (NEMA)
    Other
  • Colour lens
    Without hood
  • With light source
    Yes
  • Voltage type
    AC/DC
  • Construction type lens
    Rectangular
  • Hole diameter
    0 mm
  • Height opening
    45 mm
  • Material front ring
    Other
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 200 pcs.
Weight (kg) 0,053 13,200
Volume (m3) 0,000 0,052
Width (m) 0,022 0,400
Length (m) 0,095 0,590
Depth (m) 0,085 0,220
