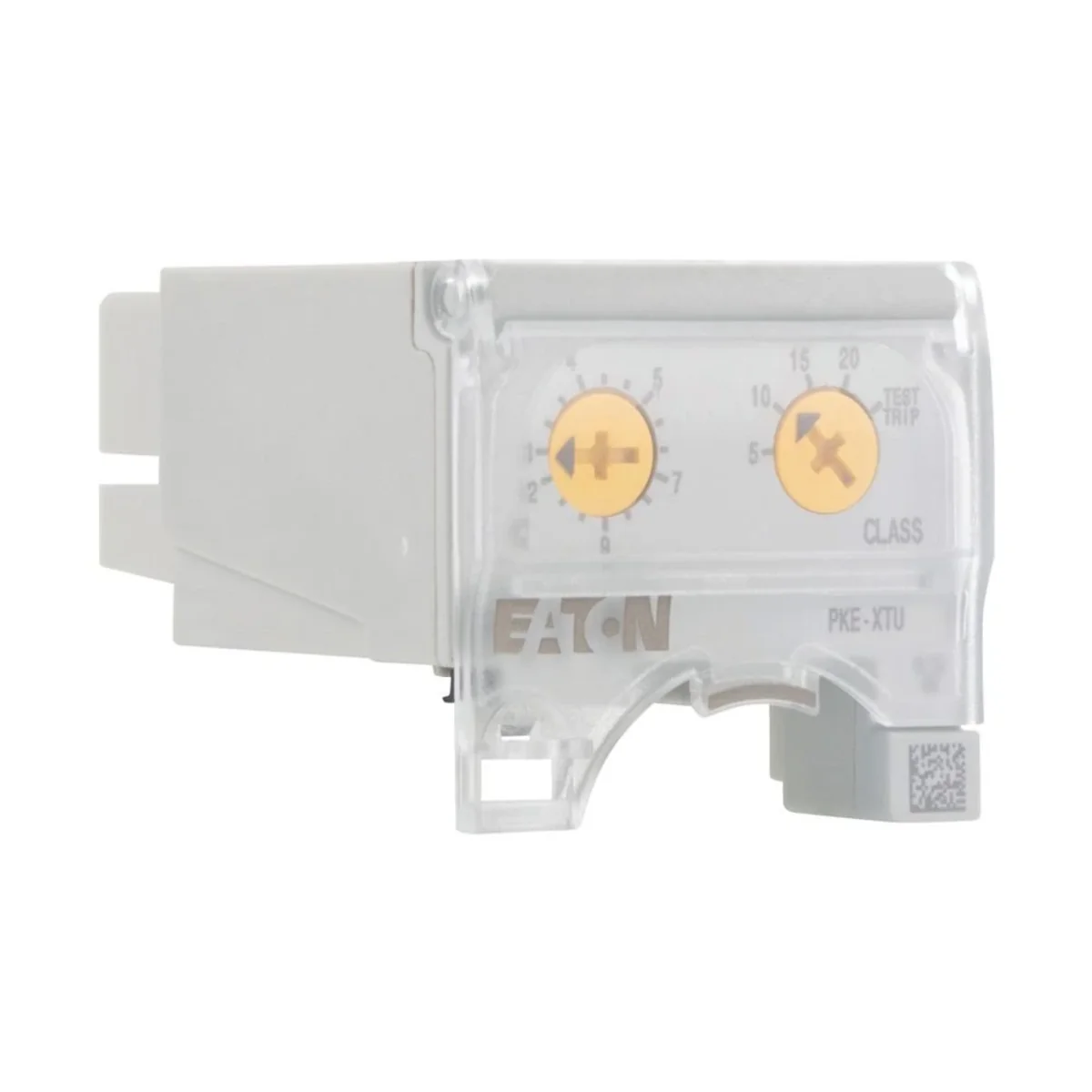

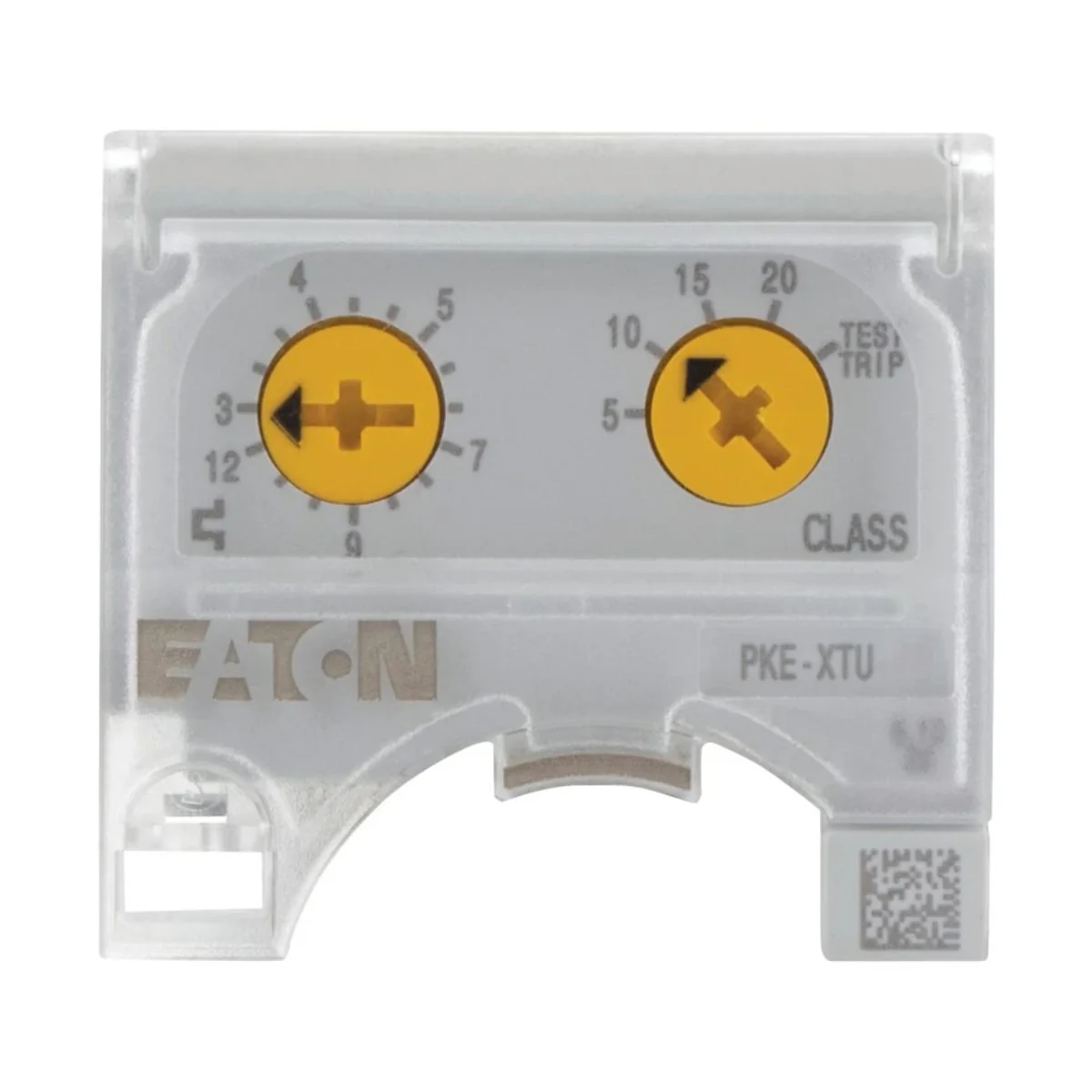

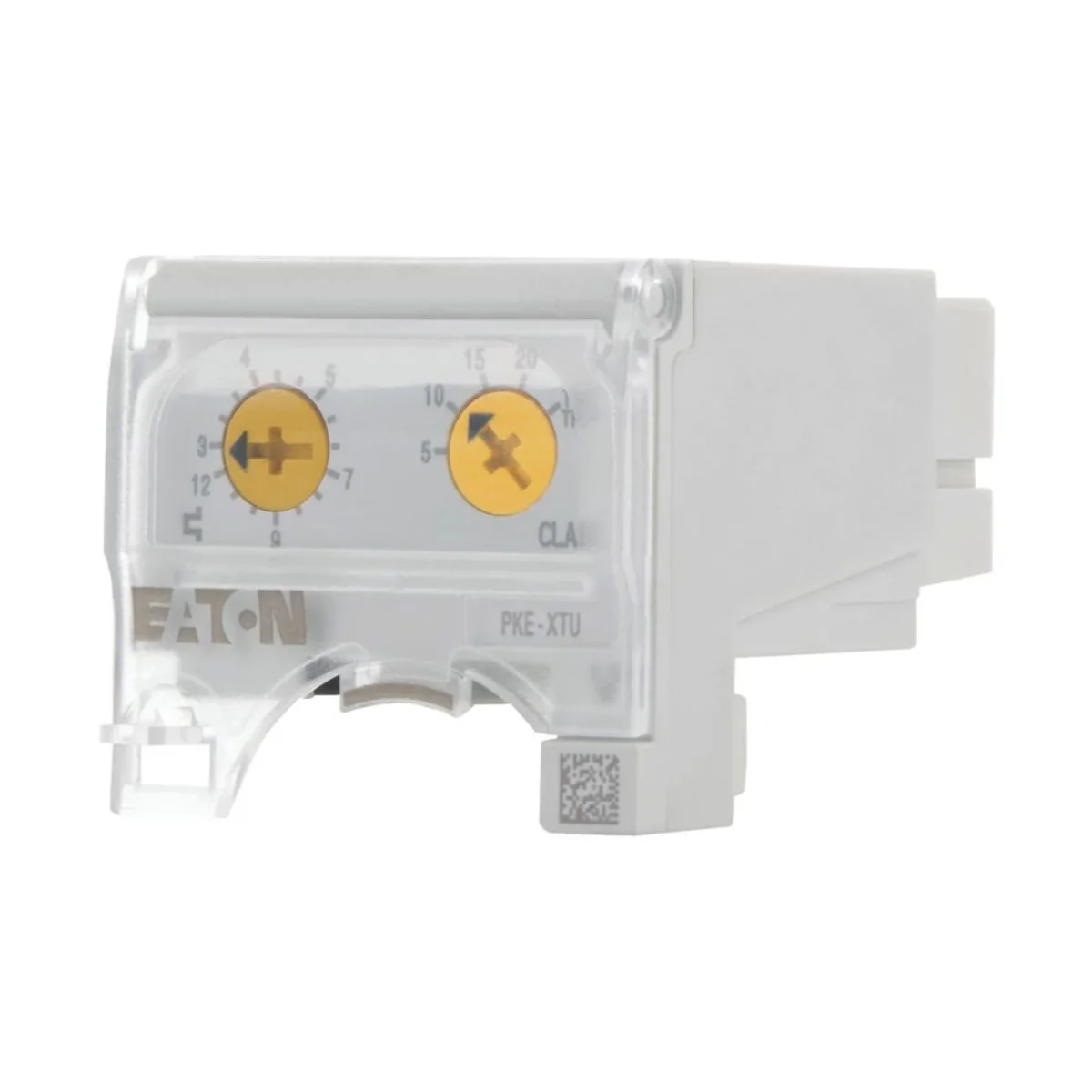

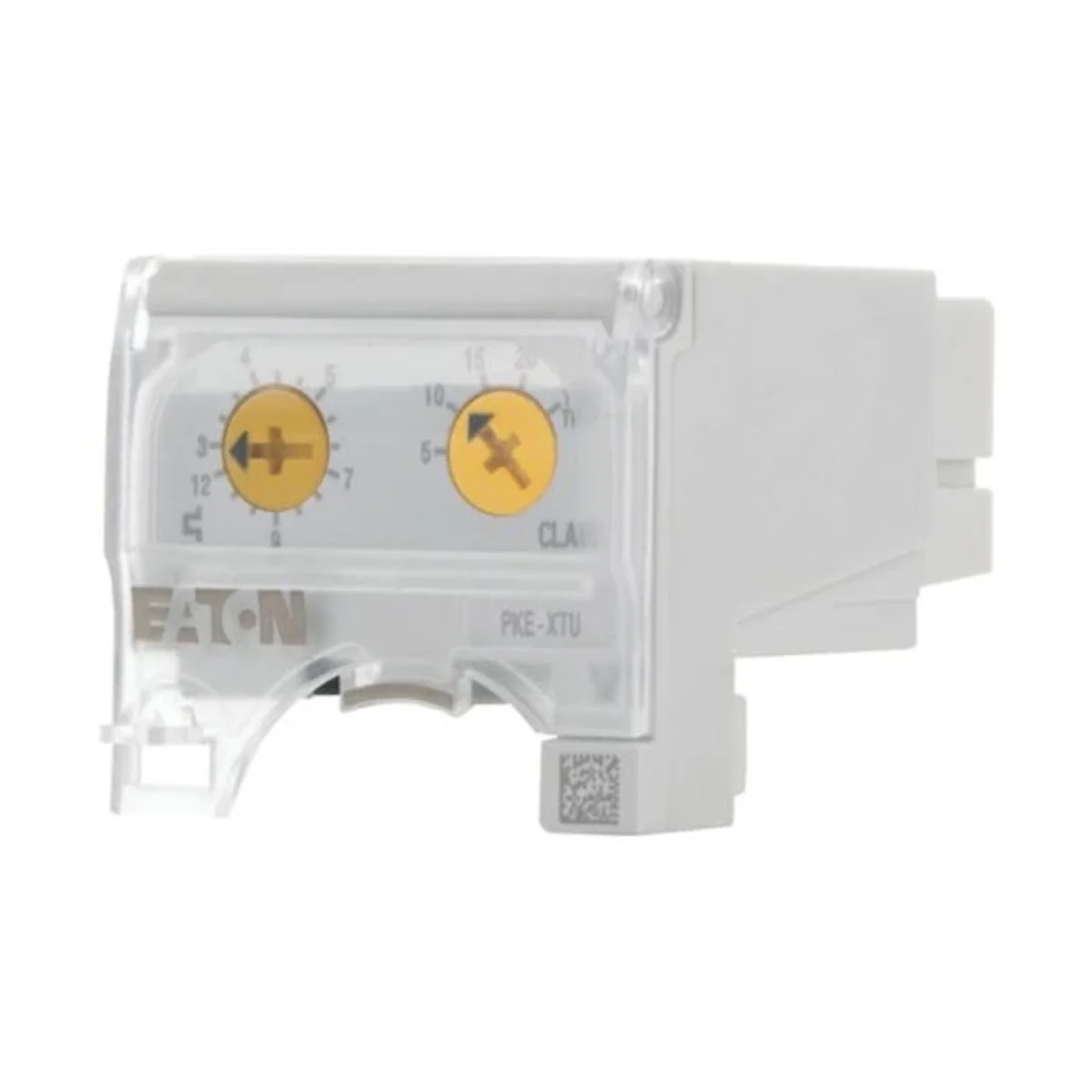

Trip block, 3-12A, standard, motor protection 121725

local index:
ASN034MOEL
Catalog No:
121725
EAN code:
4015081195350
Manufacturer: EATON
Number of poles: 3
Price:
208,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electronic trip block for motor protection according to IEC60947-4-1 for basic device PKE12 / PKE32, electronic wide range overload protection (4:1), phase failure and asymmetry protection, adjustable trip class. Weltmarktgerät, ATEX approval

Technical data

  • Number of poles
    3

Other technical data

  • Overload release current setting
    3 ... 12 A
  • End value adjustment range undelayed short-circuit release
    186 A
  • Voltage type for actuating
    Samozasilający się
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Number of poles
    3
  • With ground fault protection function
    No
  • Initial value of the undelayed short-circuit release - setting range
    46.5 A
  • Rated permanent current Iu
    12 A
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Short-circuit release function
    Delayed
  • Type of motor protection
    Electronic release

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,101
Volume (m3) 0,000
Width (m) 0,075
Length (m) 0,055
Depth (m) 0,050
