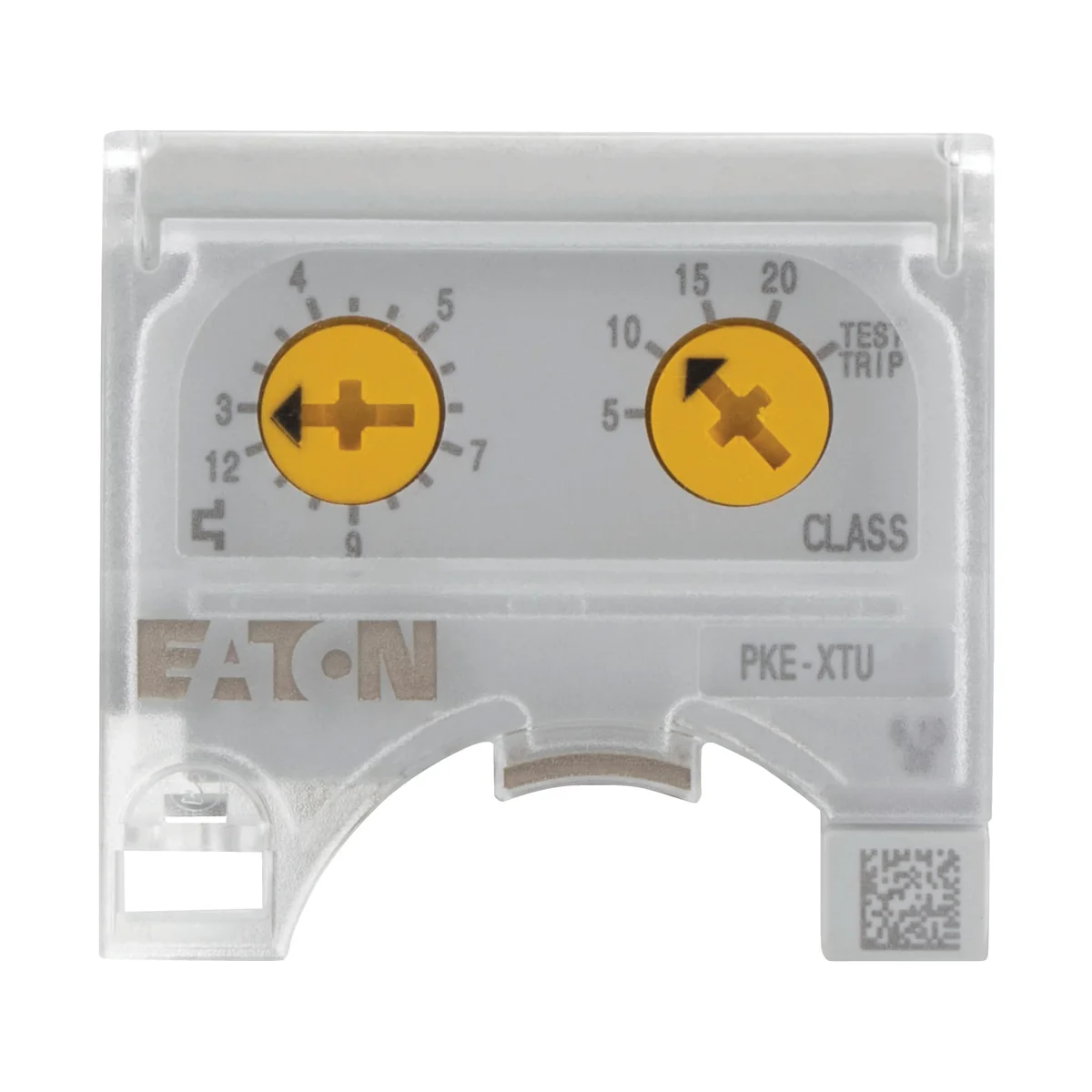

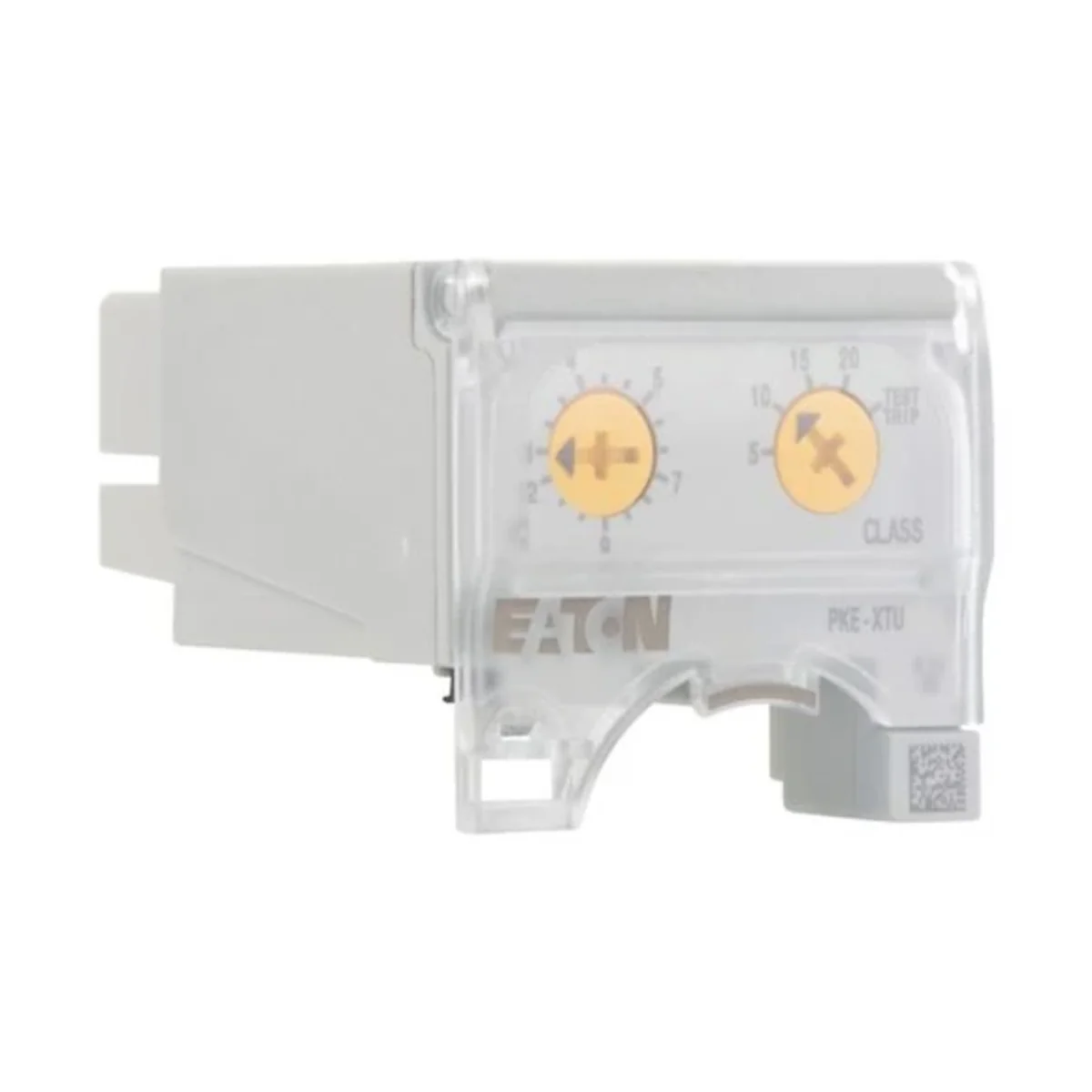

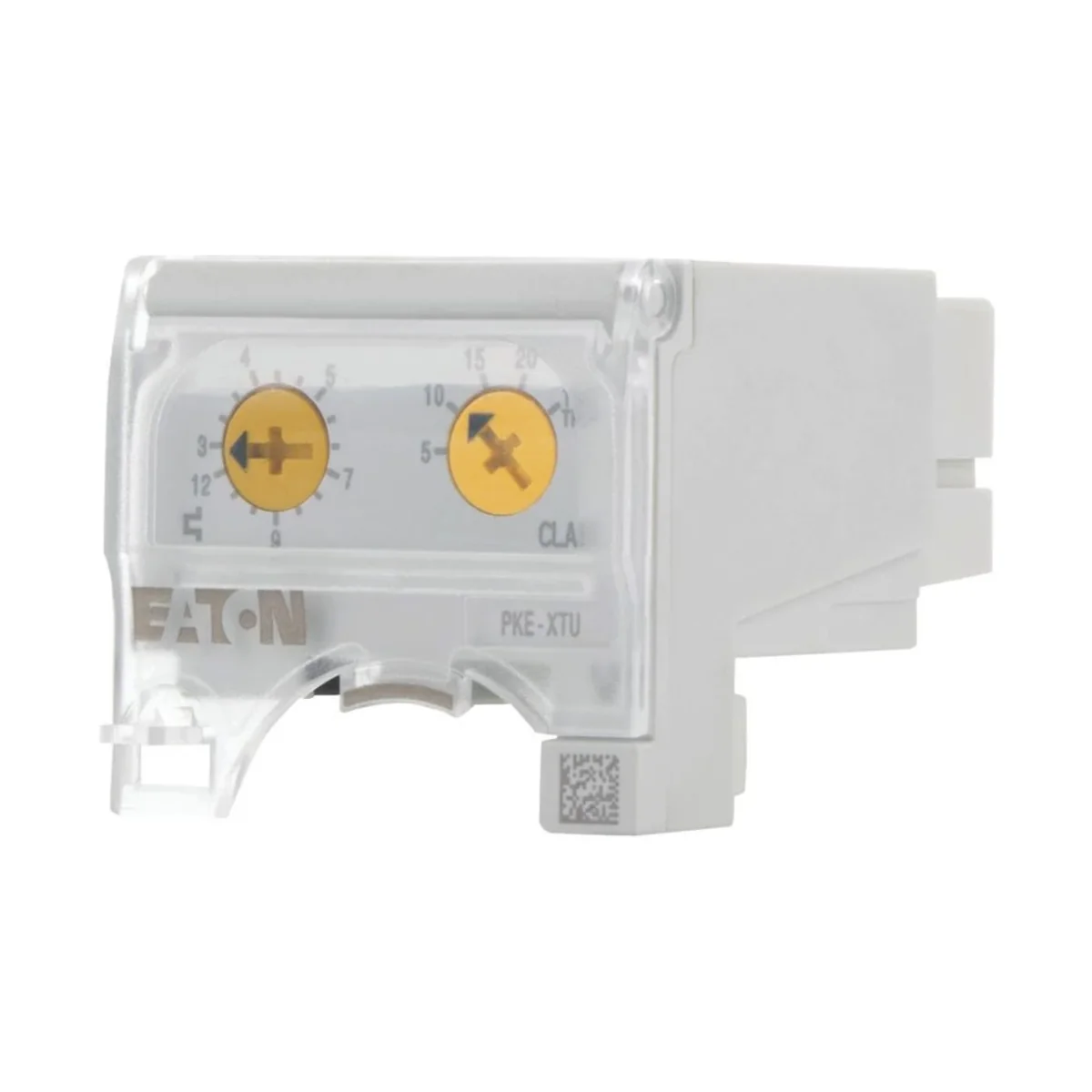

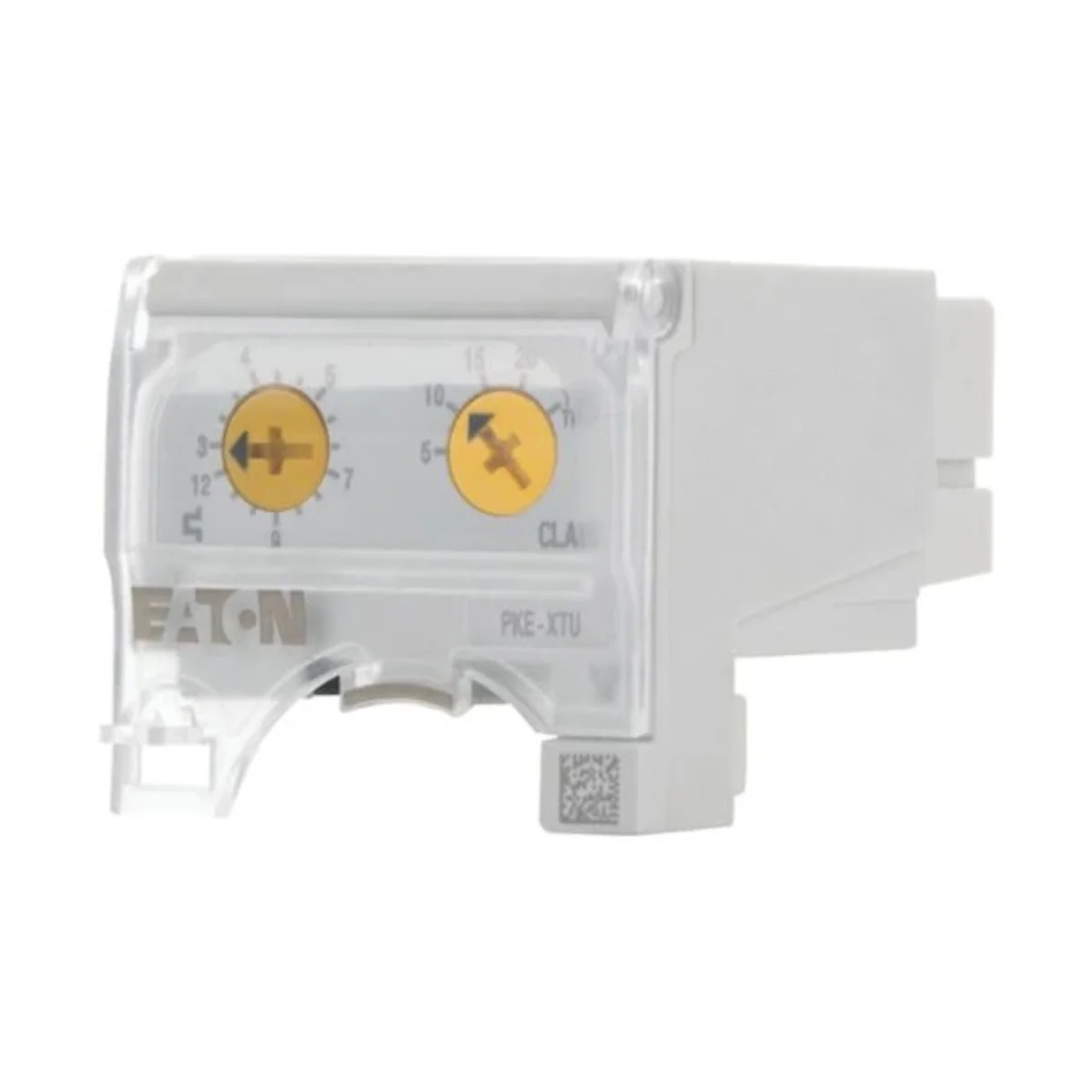

Trip block, 3-12A, cross-linked, motor protection 121729
local index:
ASN038MOEL
Catalog No:
121729
EAN code:
4015081195398
Manufacturer:
EATON
Number of poles: 3
Price:
241,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electronic trip block for motor protection according to IEC60947-4-1 for PKE12 / PKE32 basic unit, electronic wide range overload protection (4:1), phase failure and unbalance protection, adjustable trip class. Interface for connection to SmartWire-DT for decentralized commissioning and evaluation (status, trip messages, power consumption). Device for all markets, ATEX approved
Technical data
-
Number of poles3
Other technical data
-
Overload release current setting3 ... 12 A
-
End value adjustment range undelayed short-circuit release186 A
-
Voltage type for actuatingSamozasilający się
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Number of poles3
-
With ground fault protection functionNo
-
Initial value of the undelayed short-circuit release - setting range46.5 A
-
Rated permanent current Iu12 A
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC0 ... 0 V
-
Short-circuit release functionDelayed
-
Type of motor protectionElectronic release
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,101 |
| Volume (m3) | 0,000 |
| Width (m) | 0,075 |
| Length (m) | 0,055 |
| Depth (m) | 0,050 |
