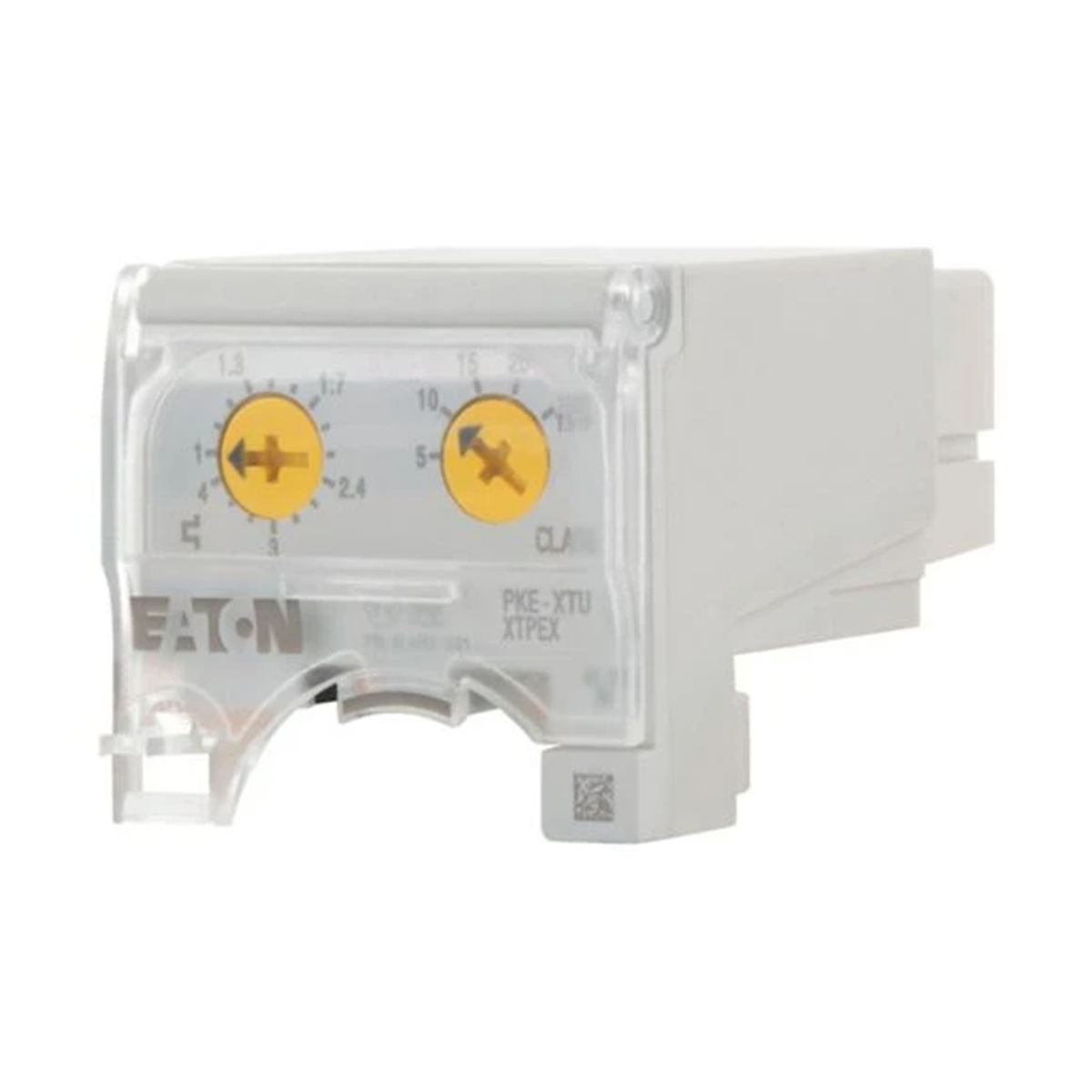

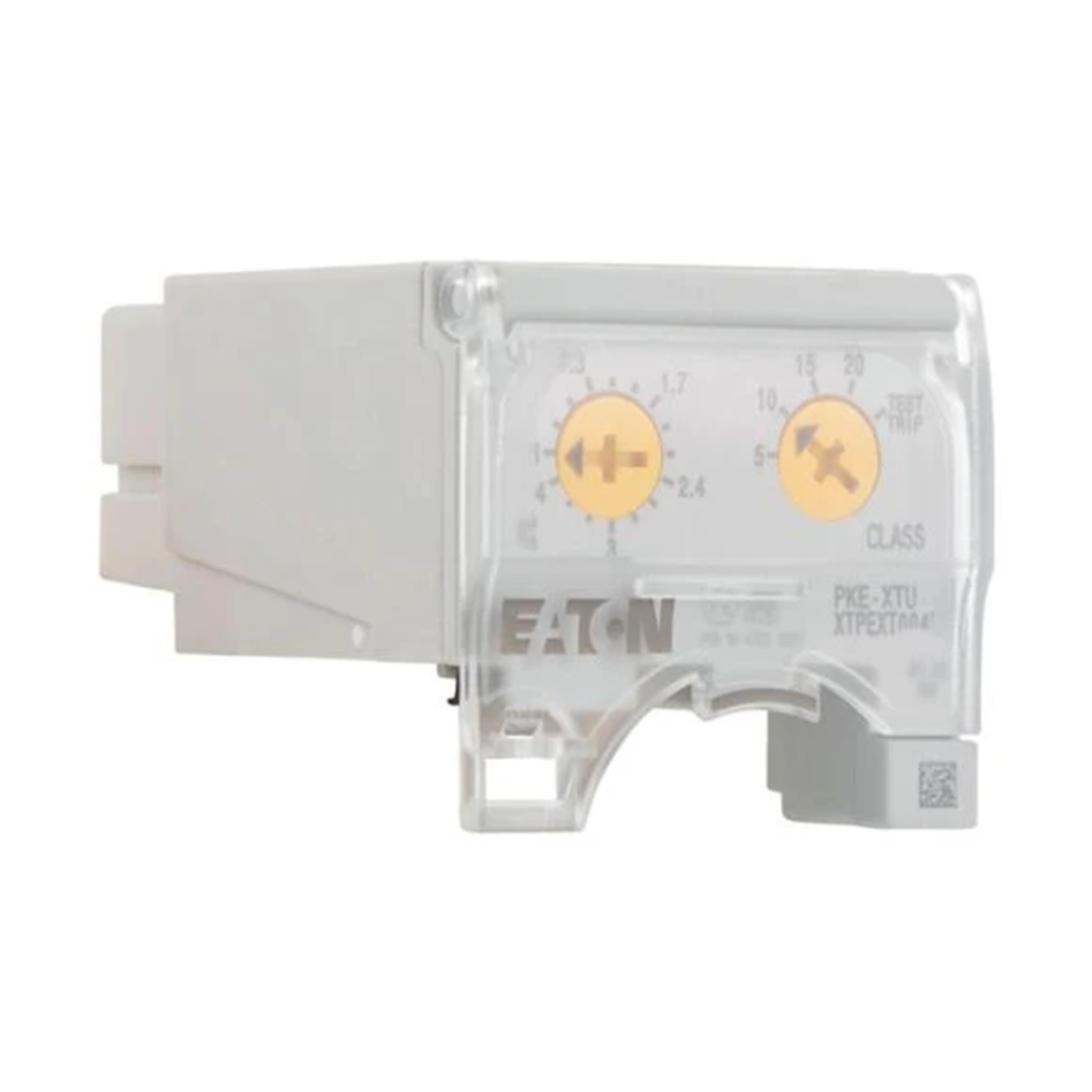

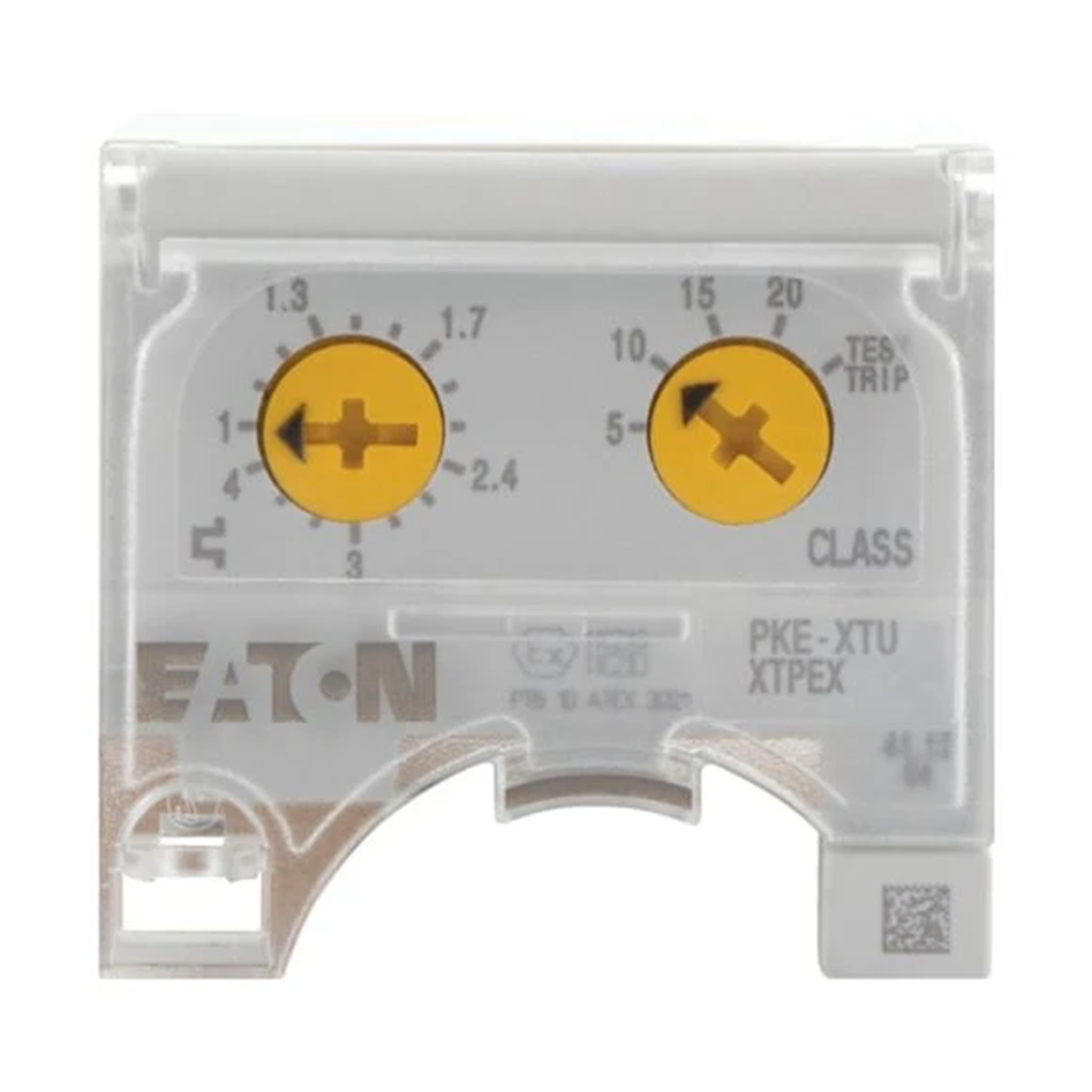

Name: Trip block, 1-4A, standard, motor protection
Brand: EATON
SKU: ASN033MOEL
Price: 198.62 PLN

Electronic trip block for motor protection according to IEC60947-4-1 for PKE12 / PKE32 basic unit, electronic wide range overload protection (4:1), phase failure and unbalance protection, adjustable trip class. Weltmarktgerät, ATEX approval

Number of poles

3

Other technical data

Overload release current setting

1 ... 4 A
End value adjustment range undelayed short-circuit release

62 A
Voltage type for actuating

Samozasilający się
Rated control supply voltage AC 60 Hz

0 ... 0 V
Number of poles

3
With ground fault protection function

No

Initial value of the undelayed short-circuit release - setting range

15.5 A
Rated permanent current Iu

4 A
Rated control supply voltage AC 50 Hz

0 ... 0 V
Rated control supply voltage DC

0 ... 0 V
Short-circuit release function

Delayed
Type of motor protection

Electronic release

A kind of package	Skrzynia
Quantity	1 pcs.
Weight (kg)	0,101
Volume (m3)	0,000
Width (m)	0,075
Length (m)	0,055
Depth (m)	0,050
