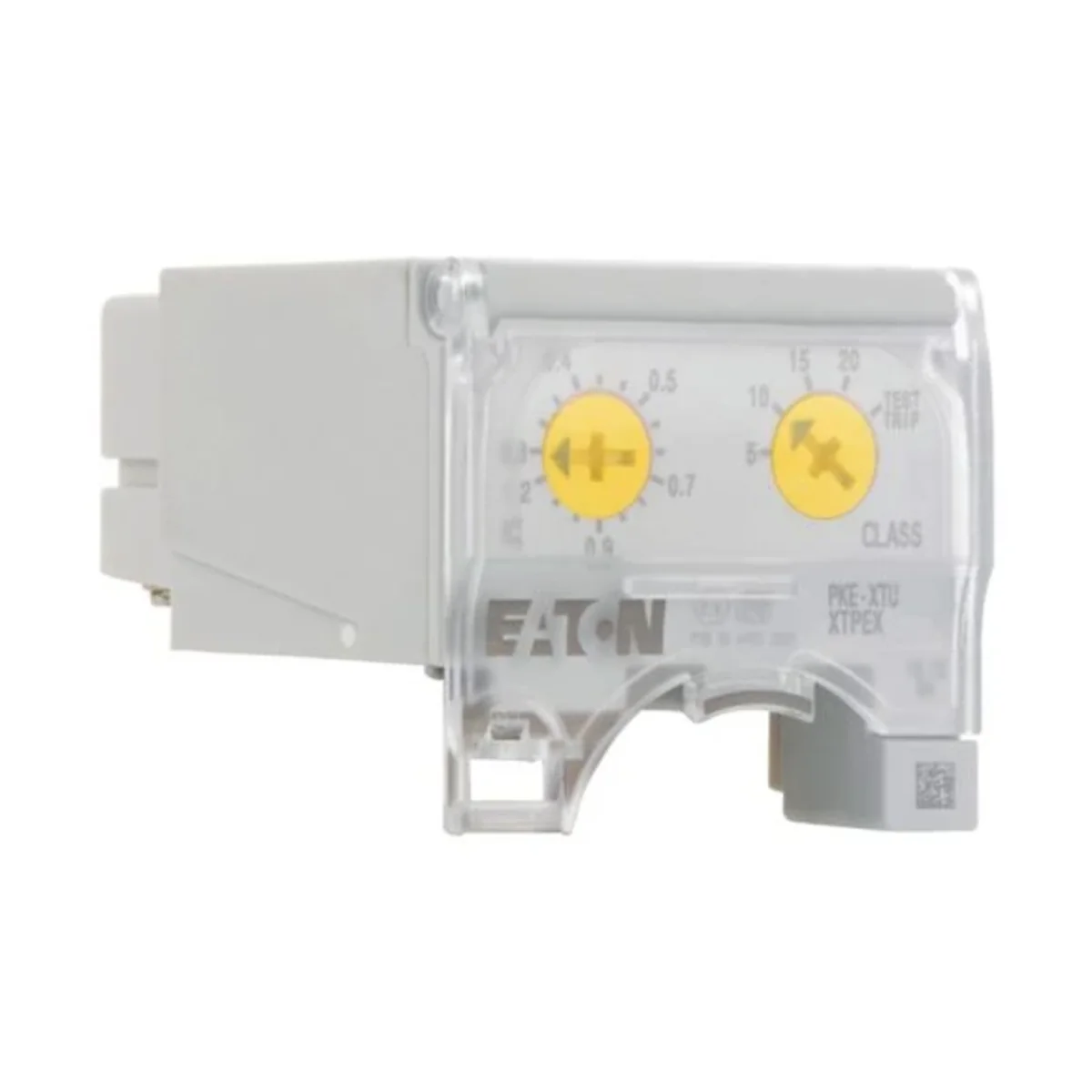

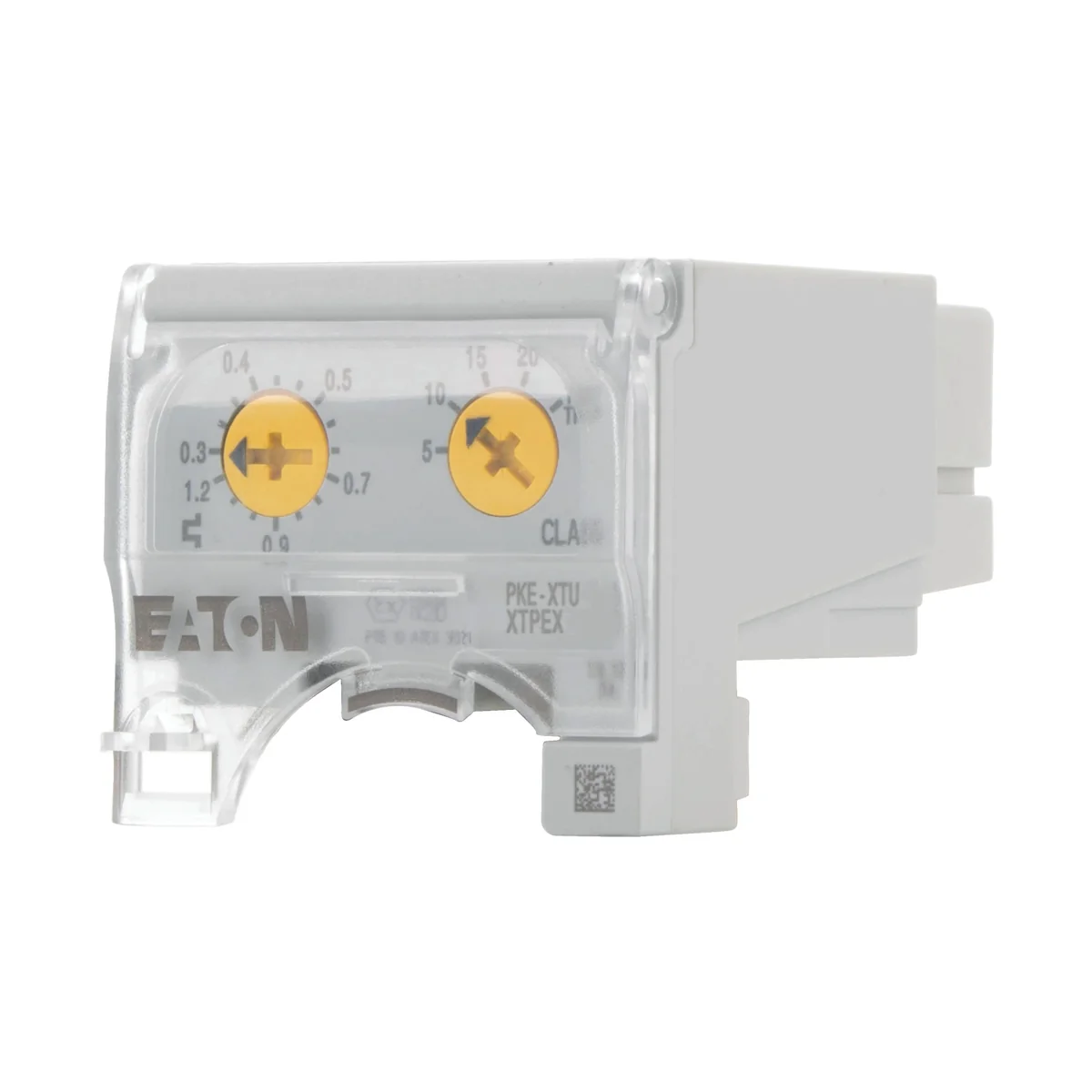

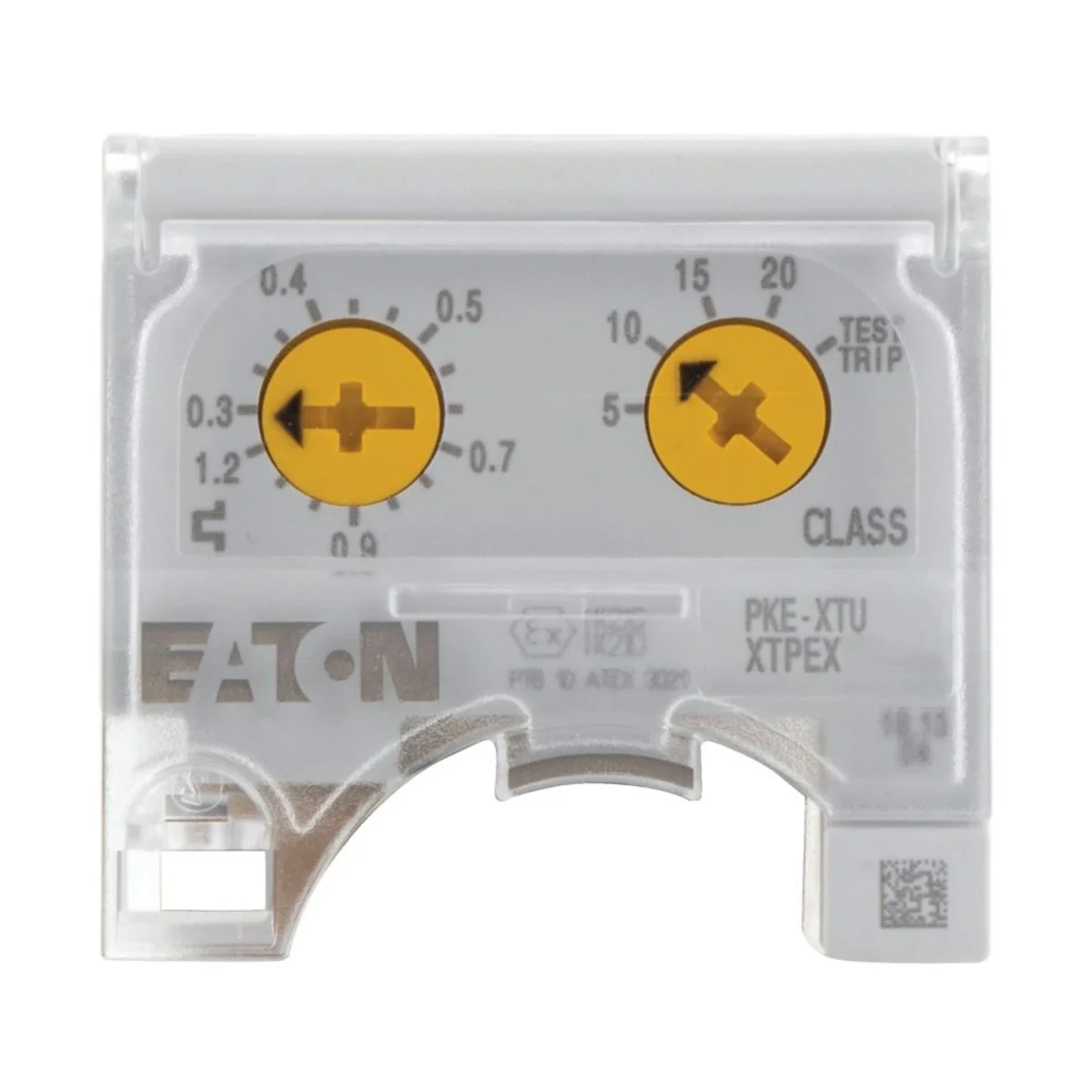

Name: Trip block, 0.3-1.2A, standard, motor protection
Brand: EATON
SKU: ASN032MOEL
Price: 202.80 PLN

Electronic trip block for motor protection according to IEC60947-4-1 for PKE12 basic device, electronic wide range overload protection (4:1), phase failure and unbalance protection, adjustable trip class. Weltmarktgerät, ATEX approval

Number of poles

3

Other technical data

Overload release current setting

0.3 ... 1.2 A
End value adjustment range undelayed short-circuit release

18.6 A
Voltage type for actuating

Samozasilający się
Rated control supply voltage AC 60 Hz

0 ... 0 V
Number of poles

3
With ground fault protection function

No

Initial value of the undelayed short-circuit release - setting range

4.65 A
Rated permanent current Iu

1.2 A
Rated control supply voltage AC 50 Hz

0 ... 0 V
Rated control supply voltage DC

0 ... 0 V
Short-circuit release function

Delayed
Type of motor protection

Electronic release

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package	Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,105	0,090
Volume (m3)	0,000	0,000
Width (m)	0,075	0,045
Length (m)	0,055	0,042
Depth (m)	0,050	0,064
