Trip block, 0.3-1.2A, cross-linked, motor protection 121727

Name: Trip block, 0.3-1.2A, cross-linked, motor protection
Brand: EATON
SKU: ASN036MOEL
Price: 1105.91 PLN
Availability: BackOrder

local index:

ASN036MOEL

Catalog number:

121727

EAN code:

4015081195374

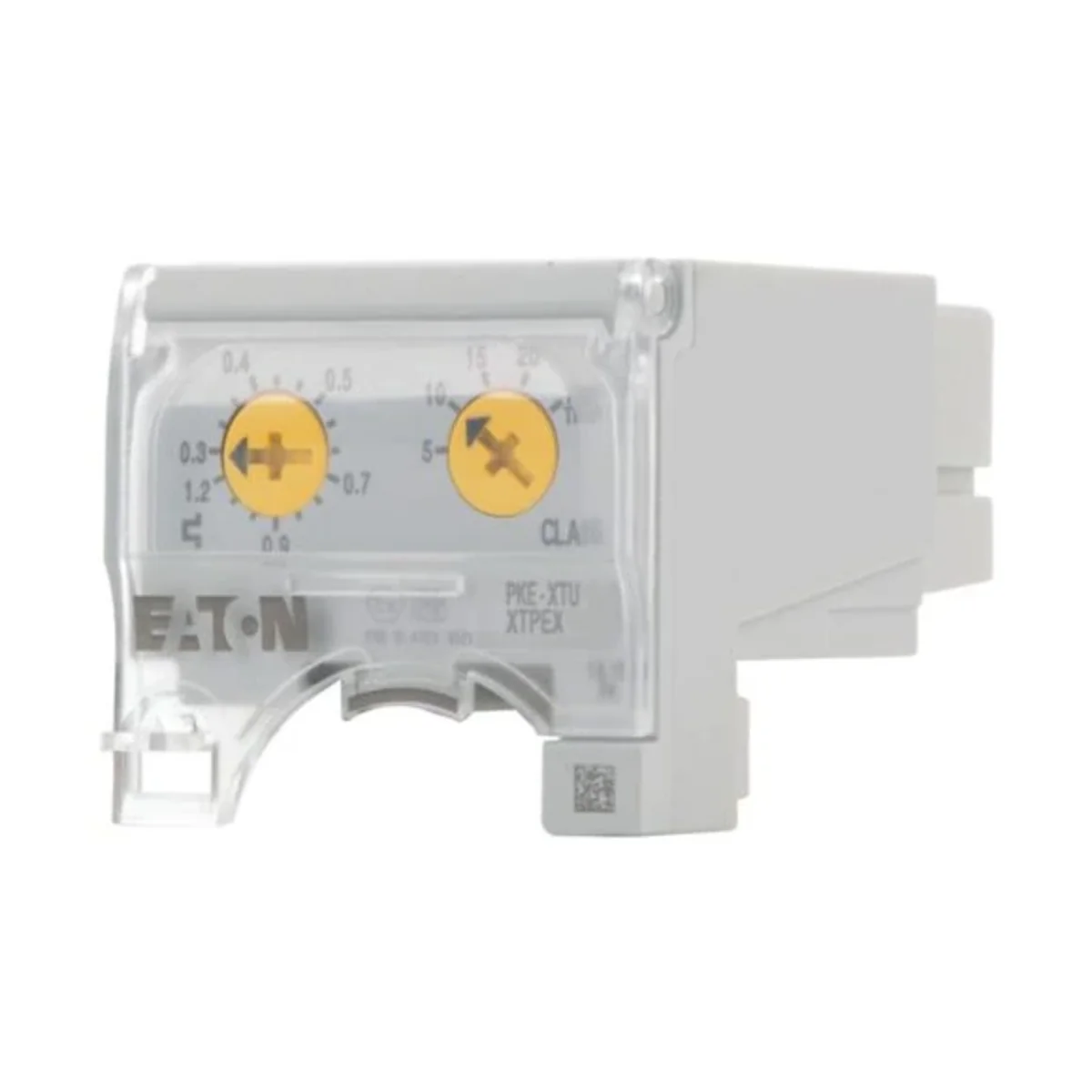

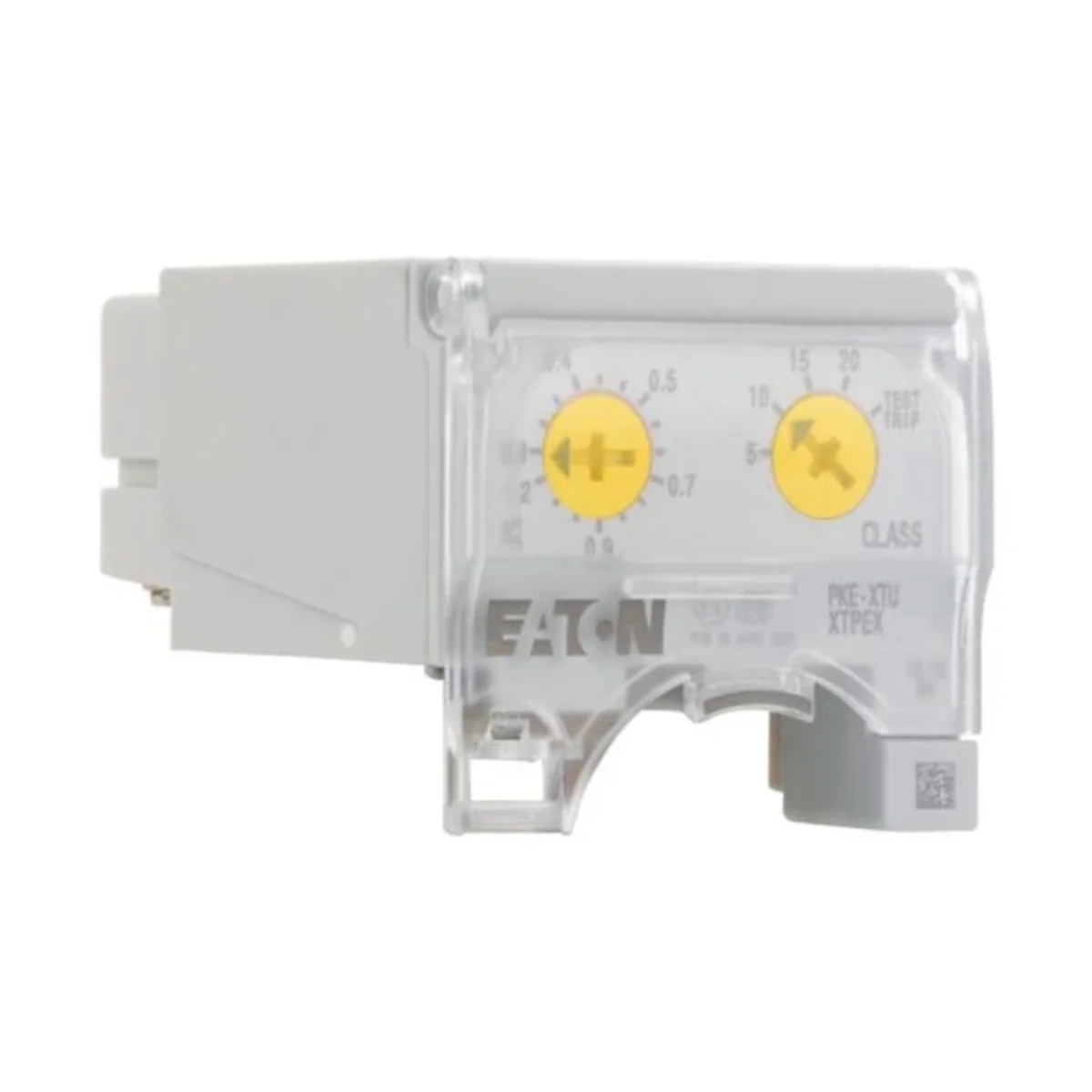

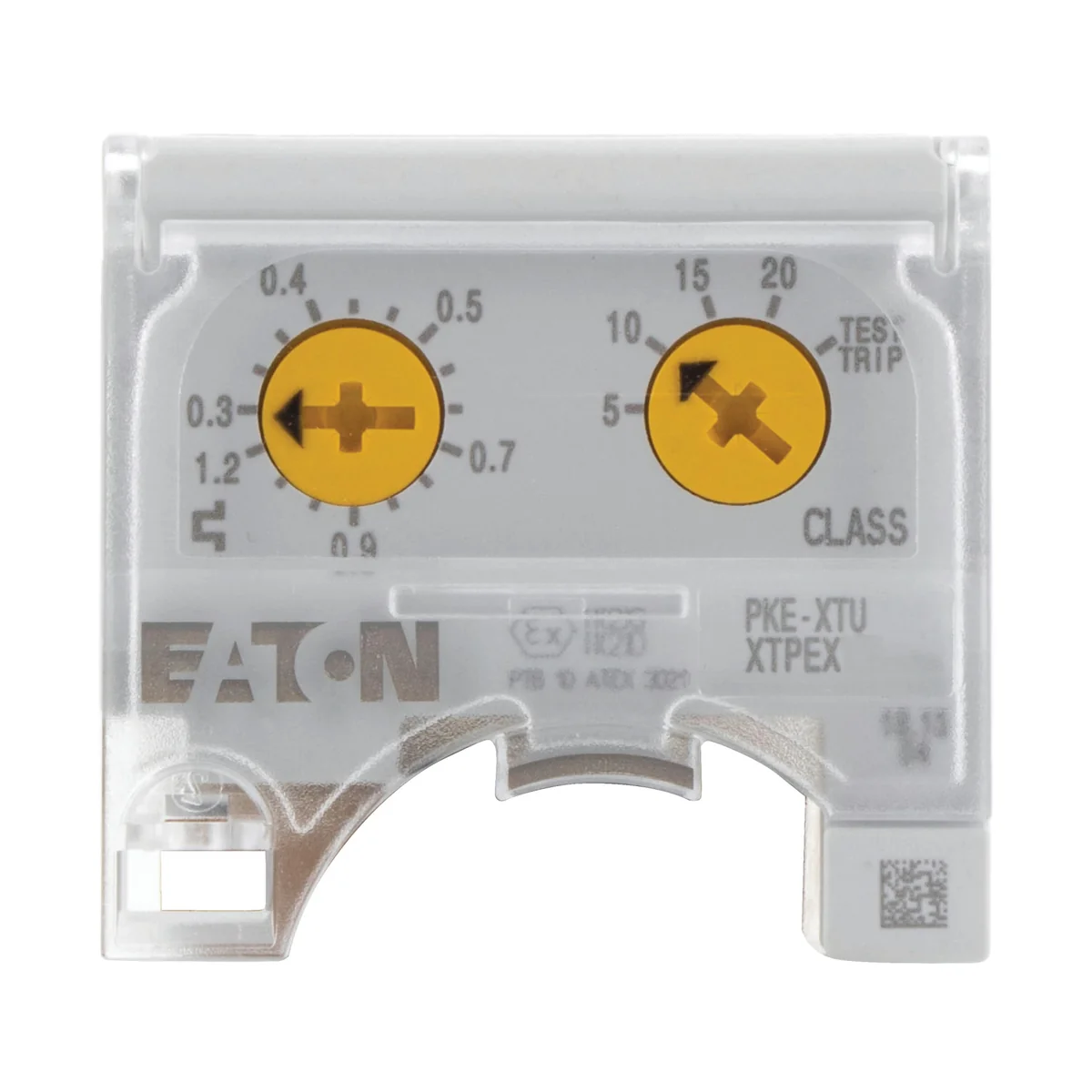

Trip block, 0.3-1.2A, cross-linked, motor protection

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 3

See full description

Price:

1 105,91 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Electronic trip block for motor protection according to IEC60947-4-1 for basic device PKE12, electronic wide range overload protection (4:1), phase failure and unbalance protection, adjustable trip class. Interface for connection to SmartWire-DT. Device for all markets, ATEX approved

Technical data

Number of poles

3

Other technical data

Overload release current setting

0.3 ... 1.2 A
End value adjustment range undelayed short-circuit release

18.6 A
Voltage type for actuating

Samozasilający się
Rated control supply voltage AC 60 Hz

0 ... 0 V
Number of poles

3
With ground fault protection function

No

Initial value of the undelayed short-circuit release - setting range

4.65 A
Rated permanent current Iu

1.2 A
Rated control supply voltage AC 50 Hz

0 ... 0 V
Rated control supply voltage DC

0 ... 0 V
Short-circuit release function

Delayed
Type of motor protection

Electronic release

Manufacturer details

Manufacturer

Eaton Electric Sp. z o.o.
Address

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Bulk packaging

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,090	0,105
Volume (m3)	0,000	0,000
Width (m)	0,047	0,075
Length (m)	0,044	0,055
Depth (m)	0,066	0,050
