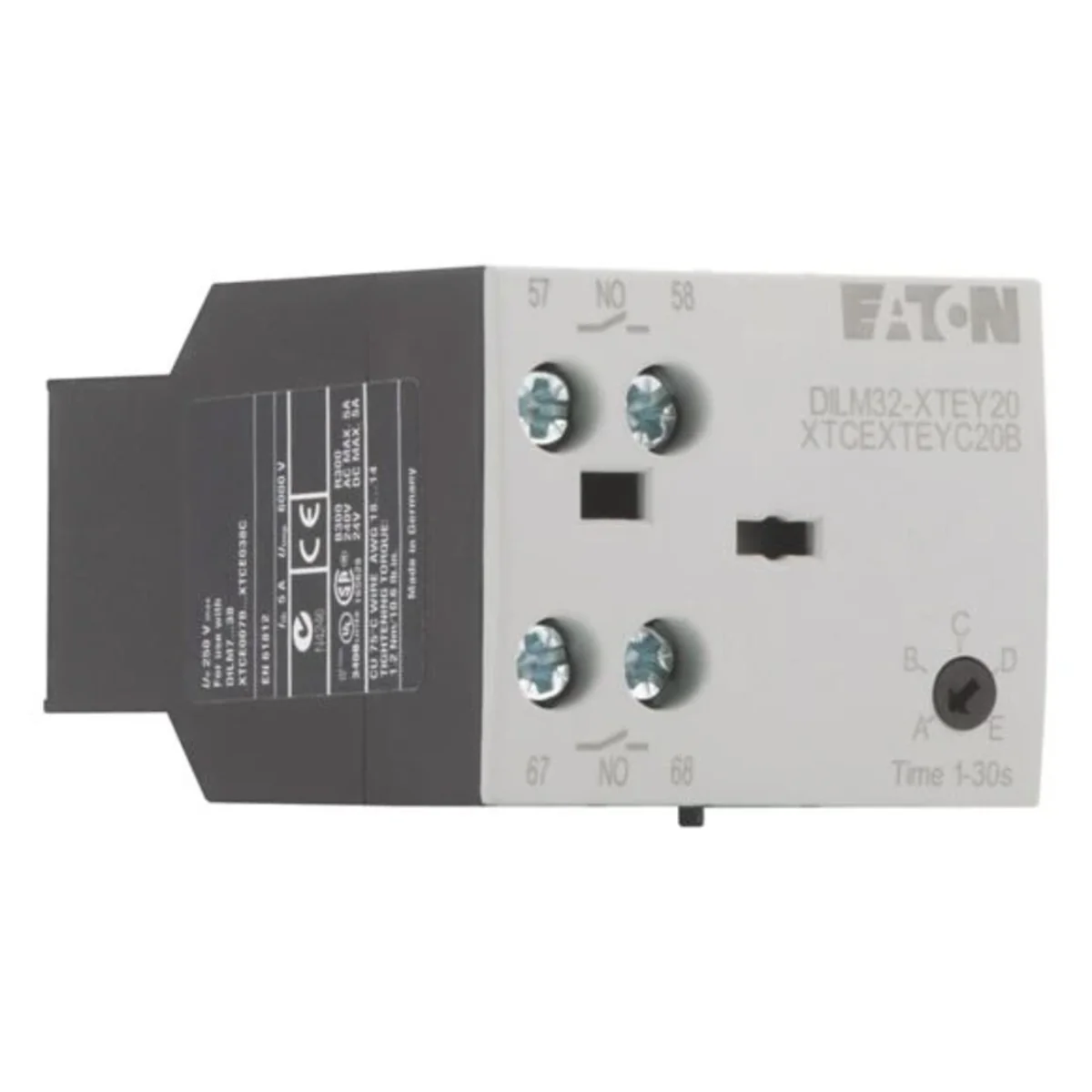

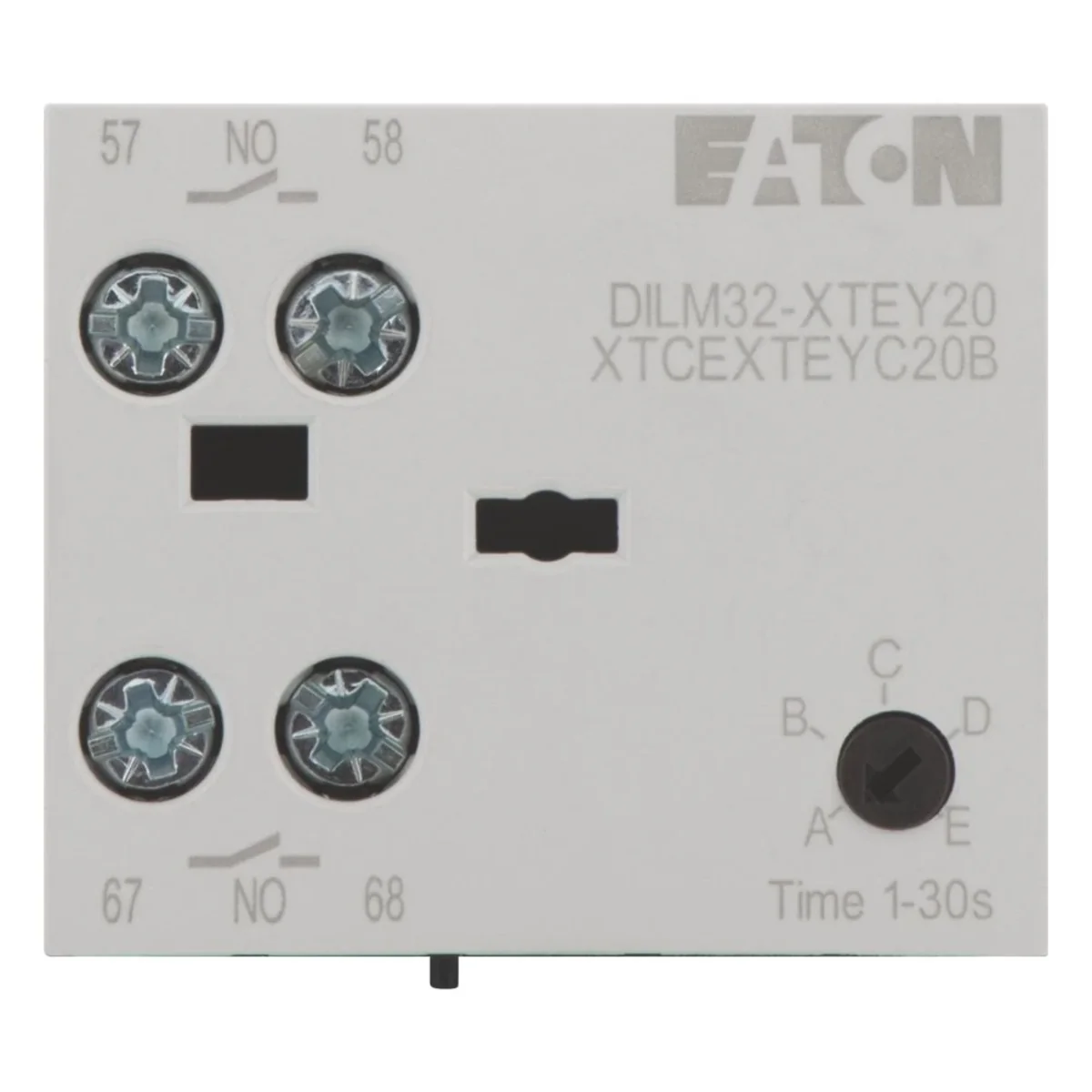

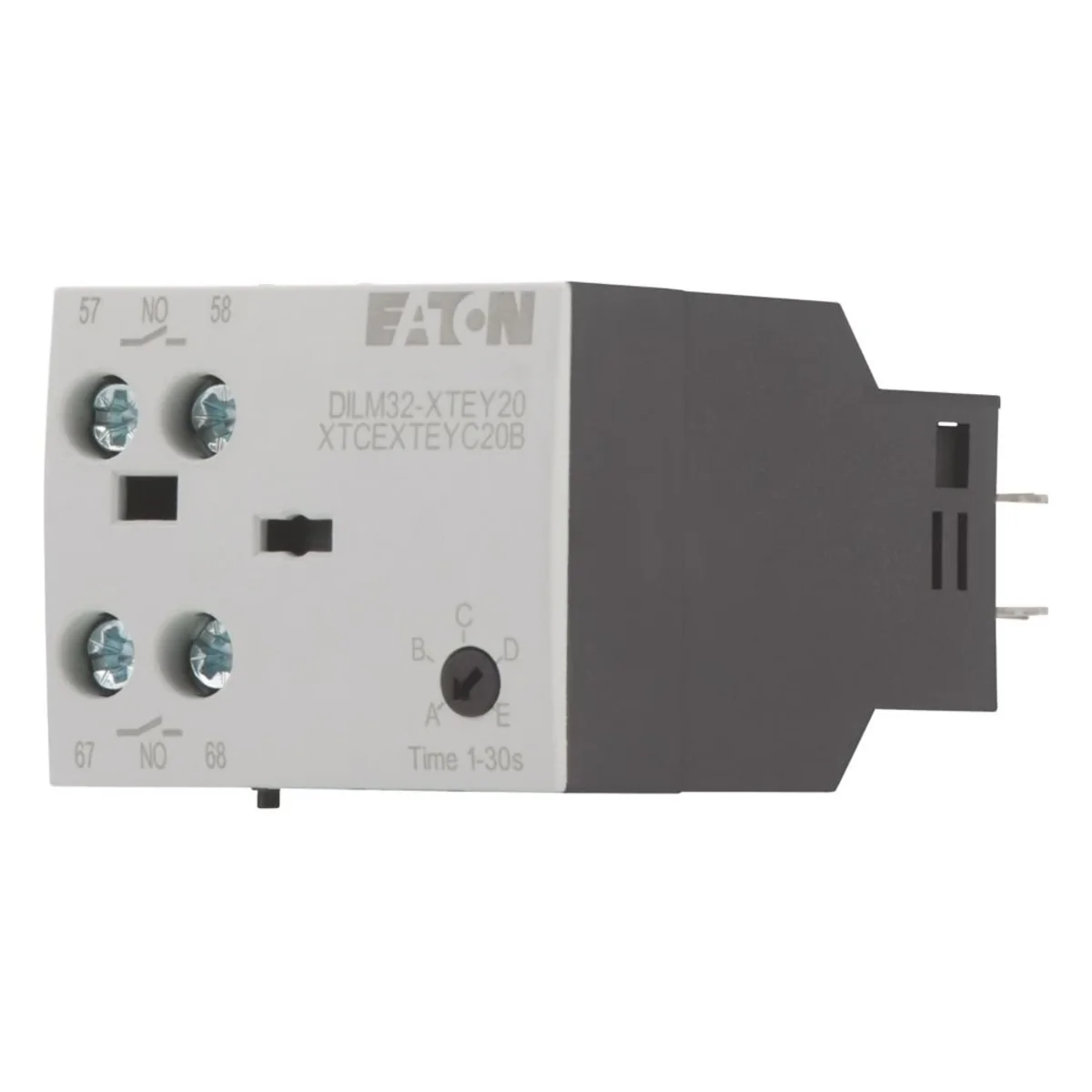

Timer module, 200-240VAC, 1-30s, star delta 101448

local index:
ATA076MOEL
Catalog No:
101448
EAN code:
4015081013685
Manufacturer: EATON
Level of security: IP20
Price:
135,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Time module, for star-delta applications, cannot be combined with modular circuit breaker modules, With protective circuits, Range: Accessories, Time interval: Switching time, 1 - 30 s, Switching pause, 50 ms, Mounting position: any, except hanging, Degree of protection: IP20, Weight: 0.08 kg, Suitable for: DILM7 - DILM38, DILMP20, DILMP32-DILMP45, DILA, DILMF7, DILMF11, DILMF14, DILMF25, DILMF32, Standards and regulations DIN EN 61812, IEC/EN 60947, VDE 0660, UL, CSA

Technical data

  • Level of security
    IP20

Other technical data

  • Switching function
    Other
  • Number of contacts as normally open contact
    2
  • Number of contacts as change-over contact
    0
  • Setting time
    1 ... 30 s
  • Number of contacts as normally closed contact
    0
  • Operating principle
    Electronic

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,090
Volume (m3) 0,000
Width (m) 0,049
Length (m) 0,095
Depth (m) 0,043
