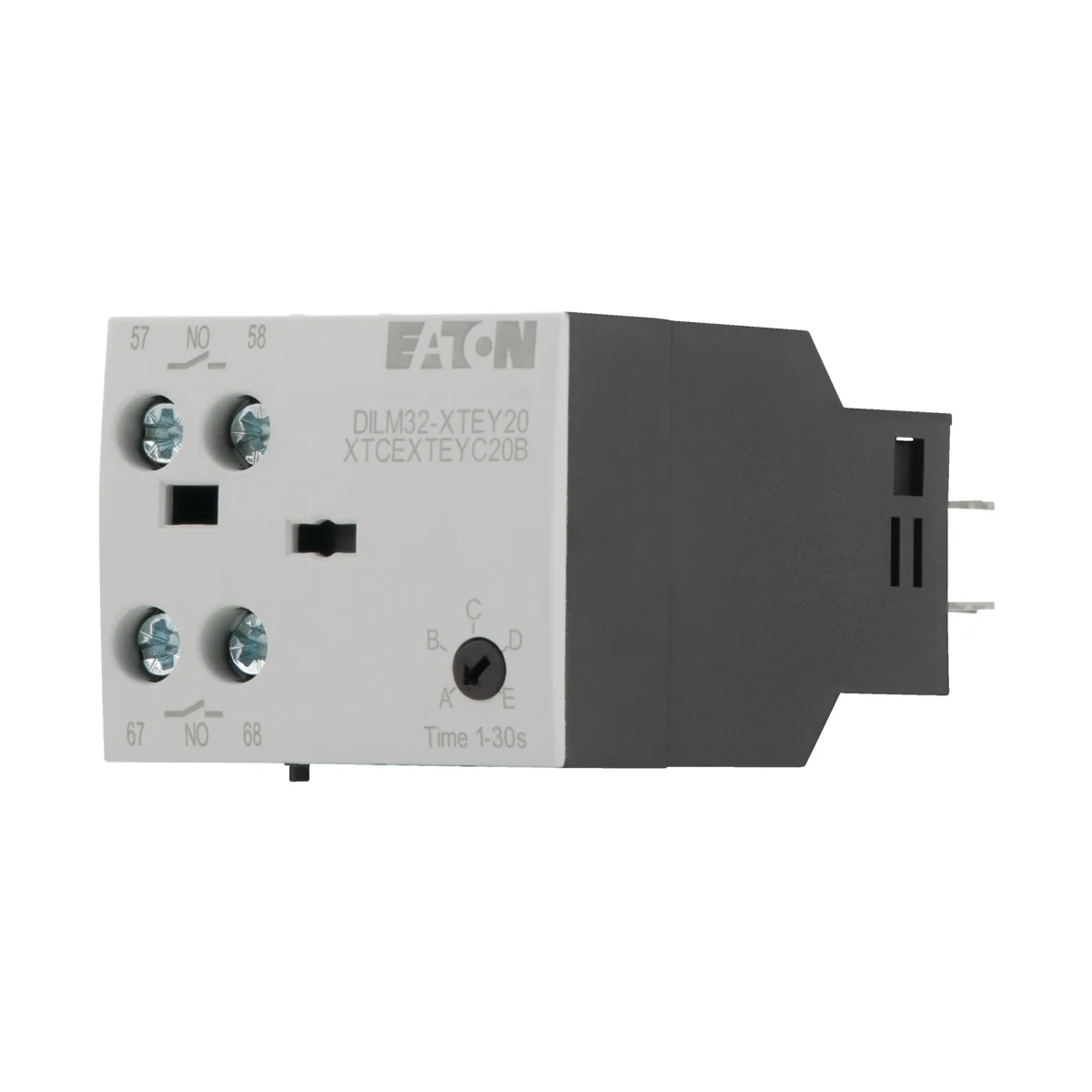

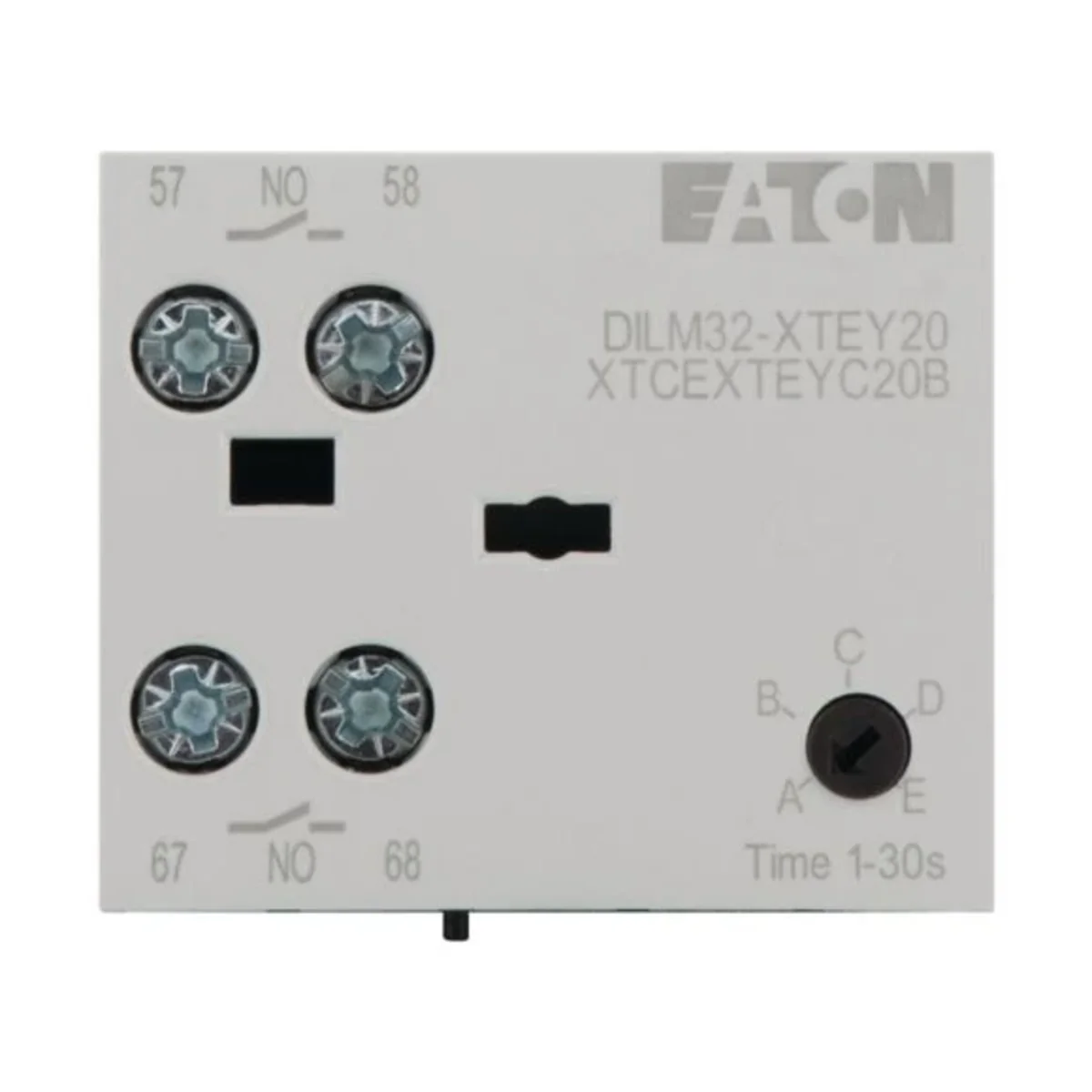

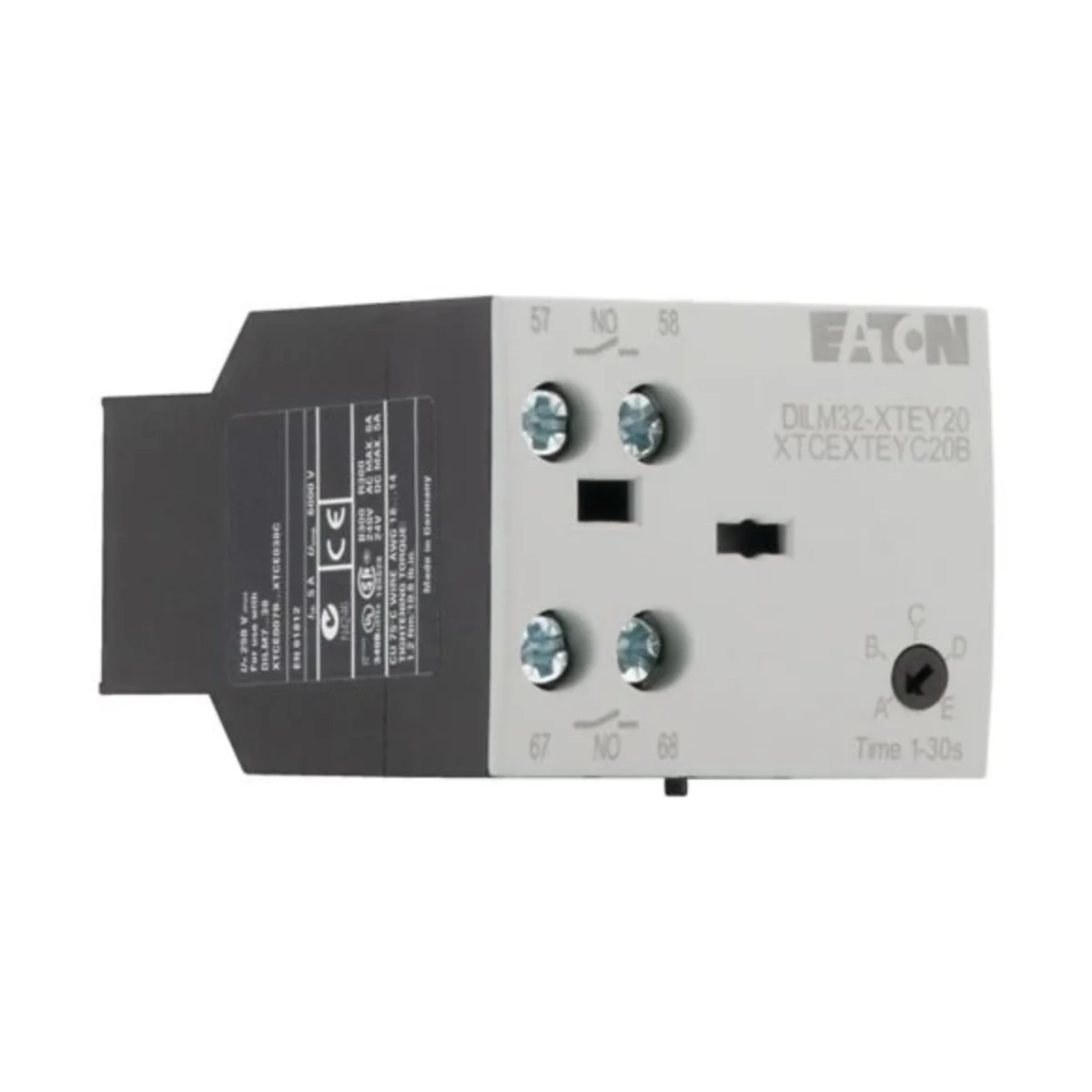

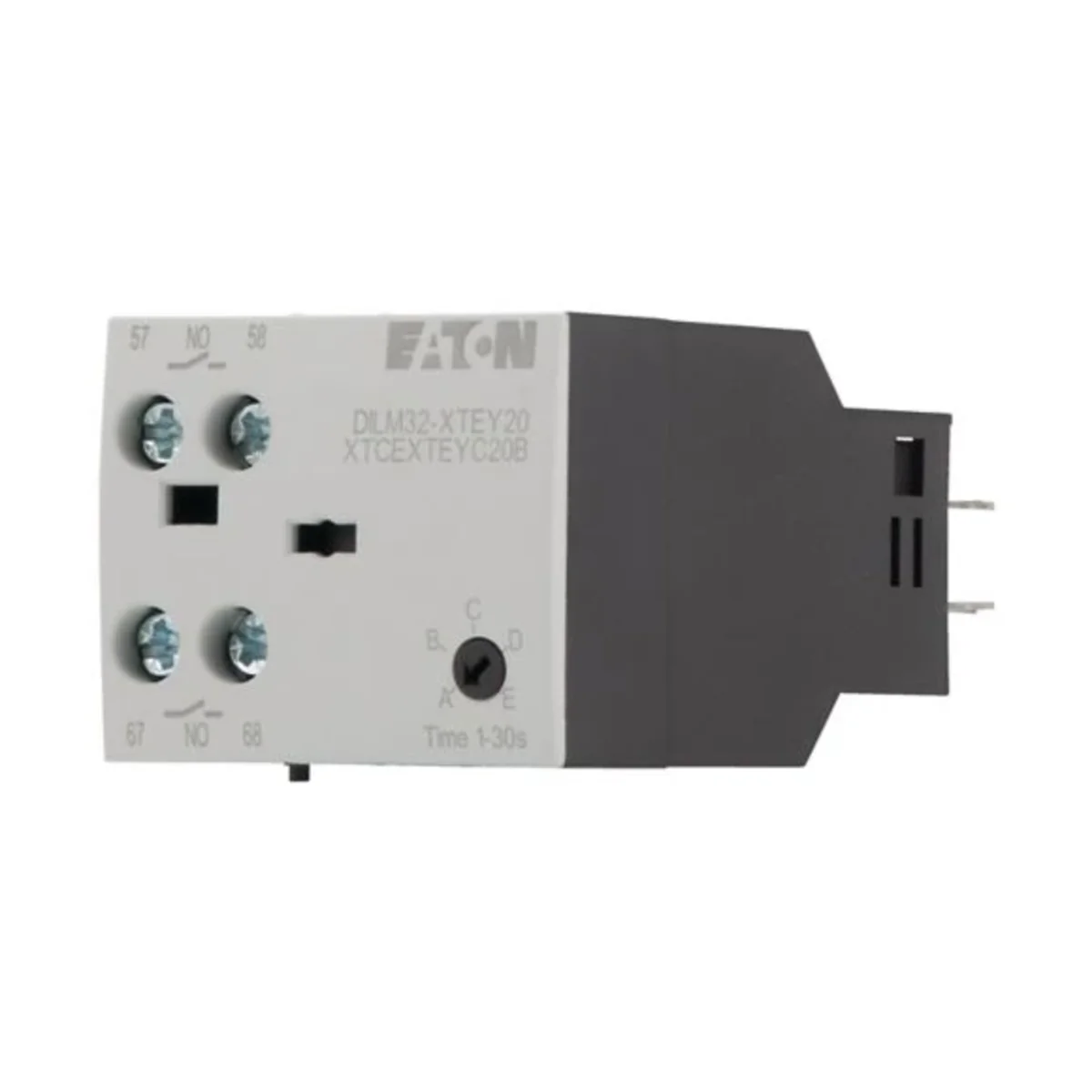

Timer module, 100-130VAC, 1-30s, star delta 101447
local index:
ATA075MOEL
Catalog No:
101447
EAN code:
4015081013678
Manufacturer:
EATON
Level of security: IP20
Price:
137,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Time module, for star-delta applications, cannot be combined with modular circuit breaker modules, With protective circuits, Range: Accessories, Time interval: Switching time, 1 - 30 s, Switching pause, 50 ms, Mounting position: any, except hanging, Degree of protection: IP20, Weight: 0.08 kg, Suitable for: DILM7 - DILM38, DILMP20, DILMP32-DILMP45, DILA, DILMF7, DILMF11, DILMF14, DILMF25, DILMF32, Standards and regulations DIN EN 61812, IEC/EN 60947, VDE 0660, UL, CSA
Technical data
-
Level of securityIP20
Other technical data
-
Switching functionOther
-
Number of contacts as normally open contact2
-
Number of contacts as change-over contact0
-
Setting time1 ... 30 s
-
Number of contacts as normally closed contact0
-
Operating principleElectronic
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,090 |
| Volume (m3) | 0,000 |
| Width (m) | 0,049 |
| Length (m) | 0,095 |
| Depth (m) | 0,043 |
