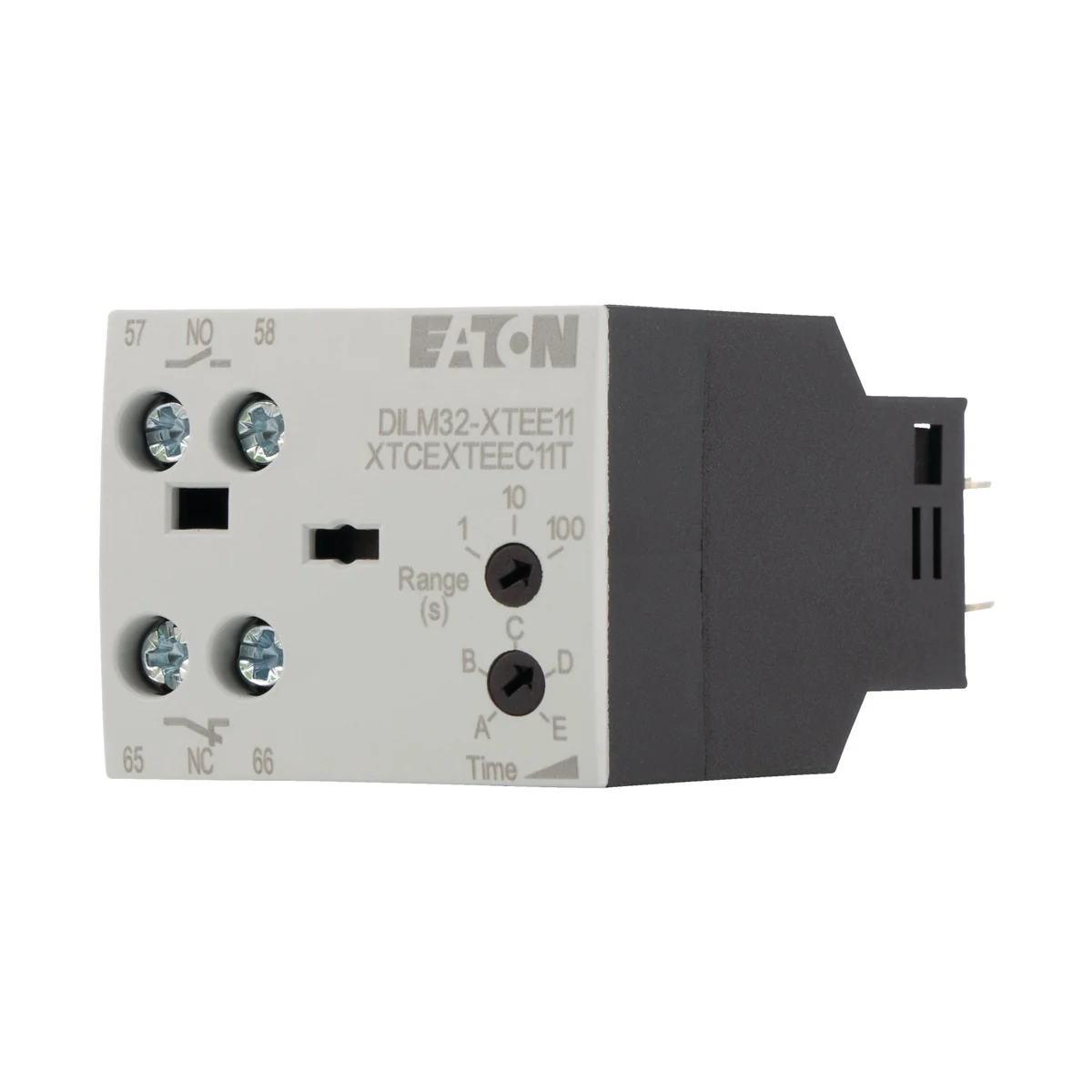

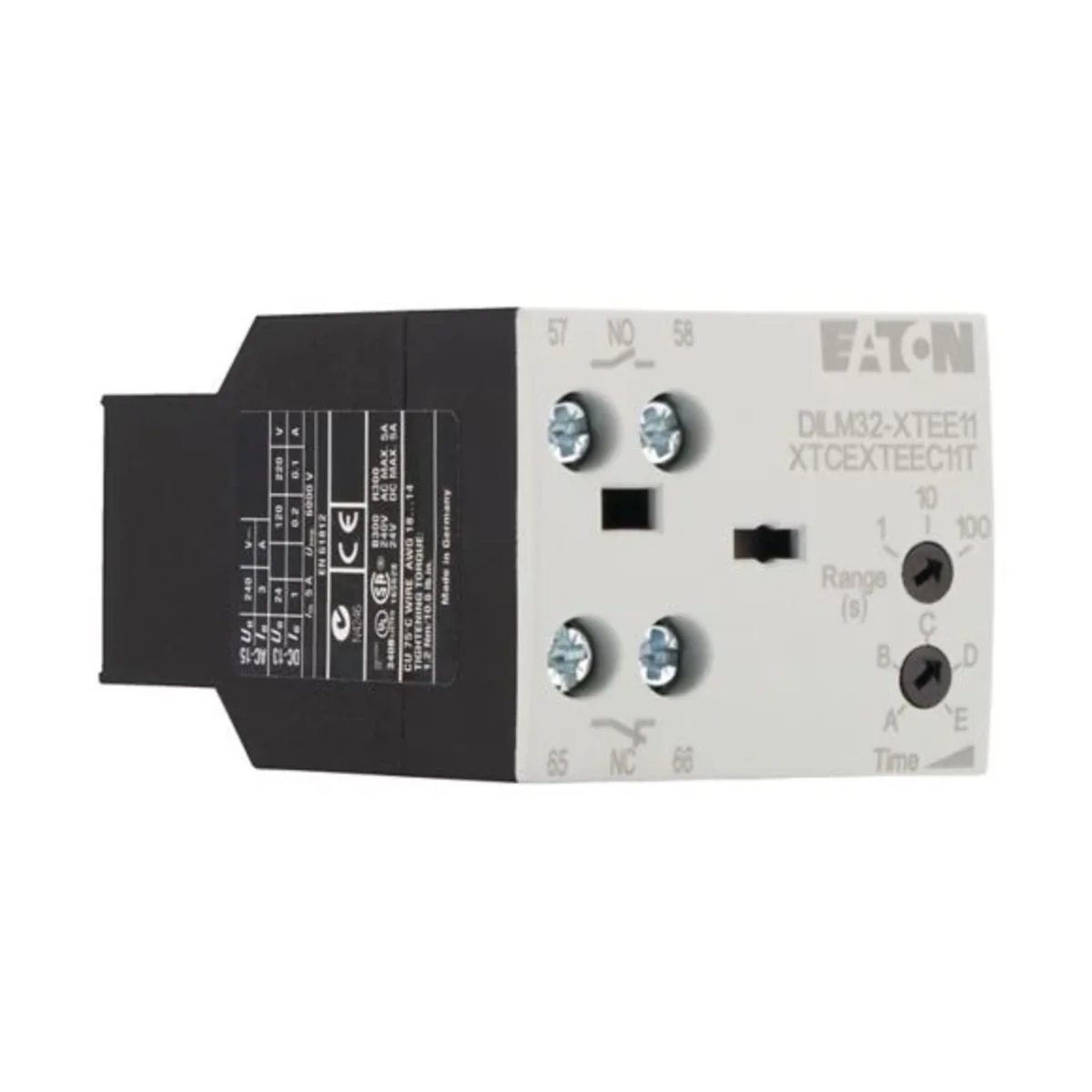

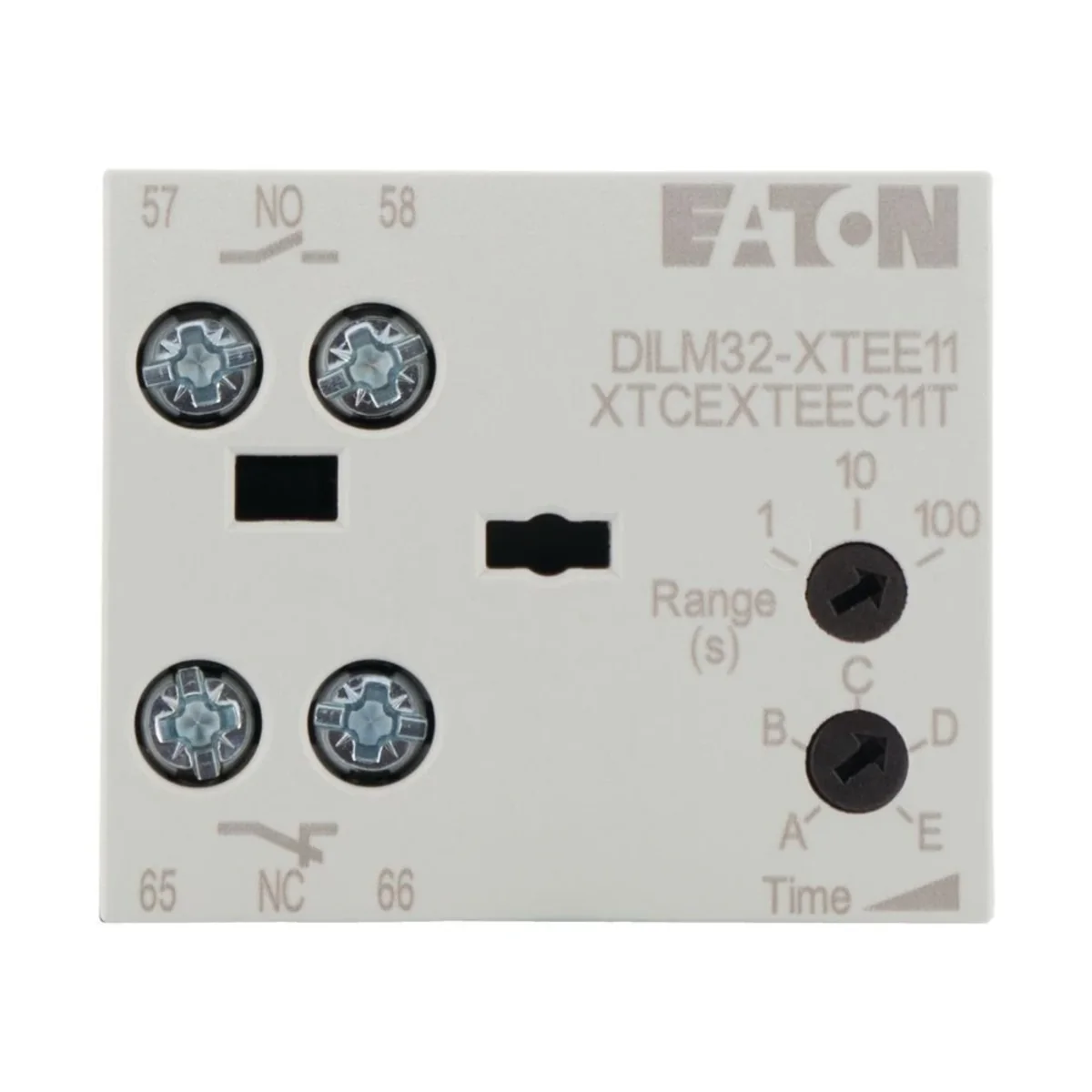

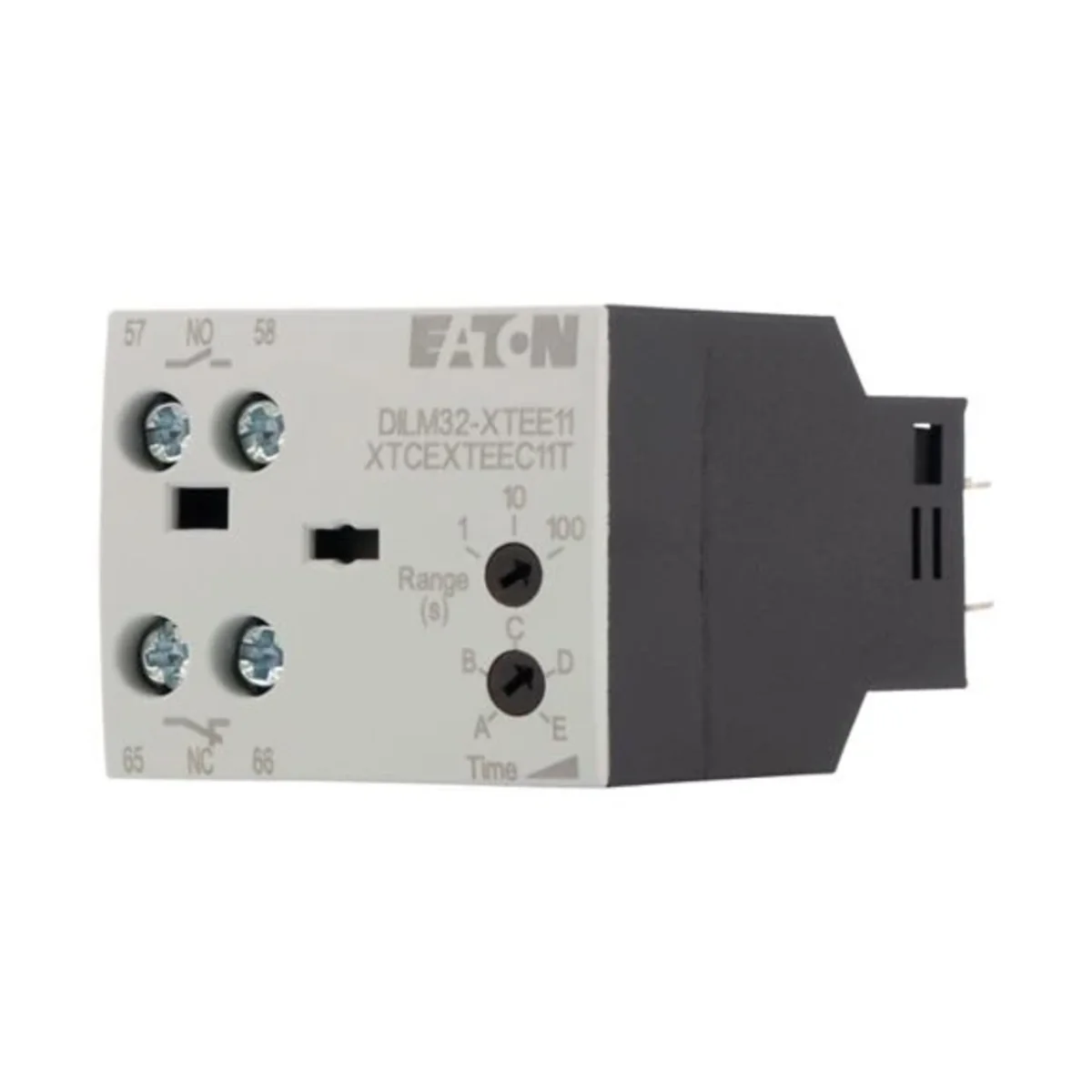

Time Module, 100-130VAC, 0.1-100s, On Delay 101441
local index:
ATA073MOEL
Catalog No:
101441
EAN code:
4015081013616
Manufacturer:
EATON
Level of security: IP20
Price:
93,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Time module, trip-delayed, cannot be combined with built-in modular circuit breaker modules, With protective circuits, Switchable time ranges, Range: Accessories, Time range: switching, 0.05 - 1 s, 0.5 - 10 s, 5 - 100 s, Mounting position: any, except pendent, Degree of protection: IP20, Weight: 0.08 kg, Suitable for: DILM7 - DILM38, DILMP20, DILMP32-DILMP45, DILA, DILMF7, DILMF11, DILMF14, DILMF25, DILMF32 , Standards and regulations DIN EN 61812, IEC/EN 60947, VDE 0660, UL, CSA
Technical data
-
Level of securityIP20
Other technical data
-
Switching functionOperating delayed
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Setting time0.05 ... 100 s
-
Number of contacts as normally closed contact1
-
Operating principleElectronic
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,090 |
| Volume (m3) | 0,000 |
| Width (m) | 0,049 |
| Length (m) | 0,095 |
| Depth (m) | 0,043 |
