Three-phase bridge for DILM7...15, DILM12-XDSB0/3 240084
local index:
ATA037MOEL
Catalog No:
240084
EAN code:
4015082400842
Manufacturer:
EATON
Pieces in the package: 5
Price:
108,38 €
gross / pkg.
(including VAT 23%)
21,68 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

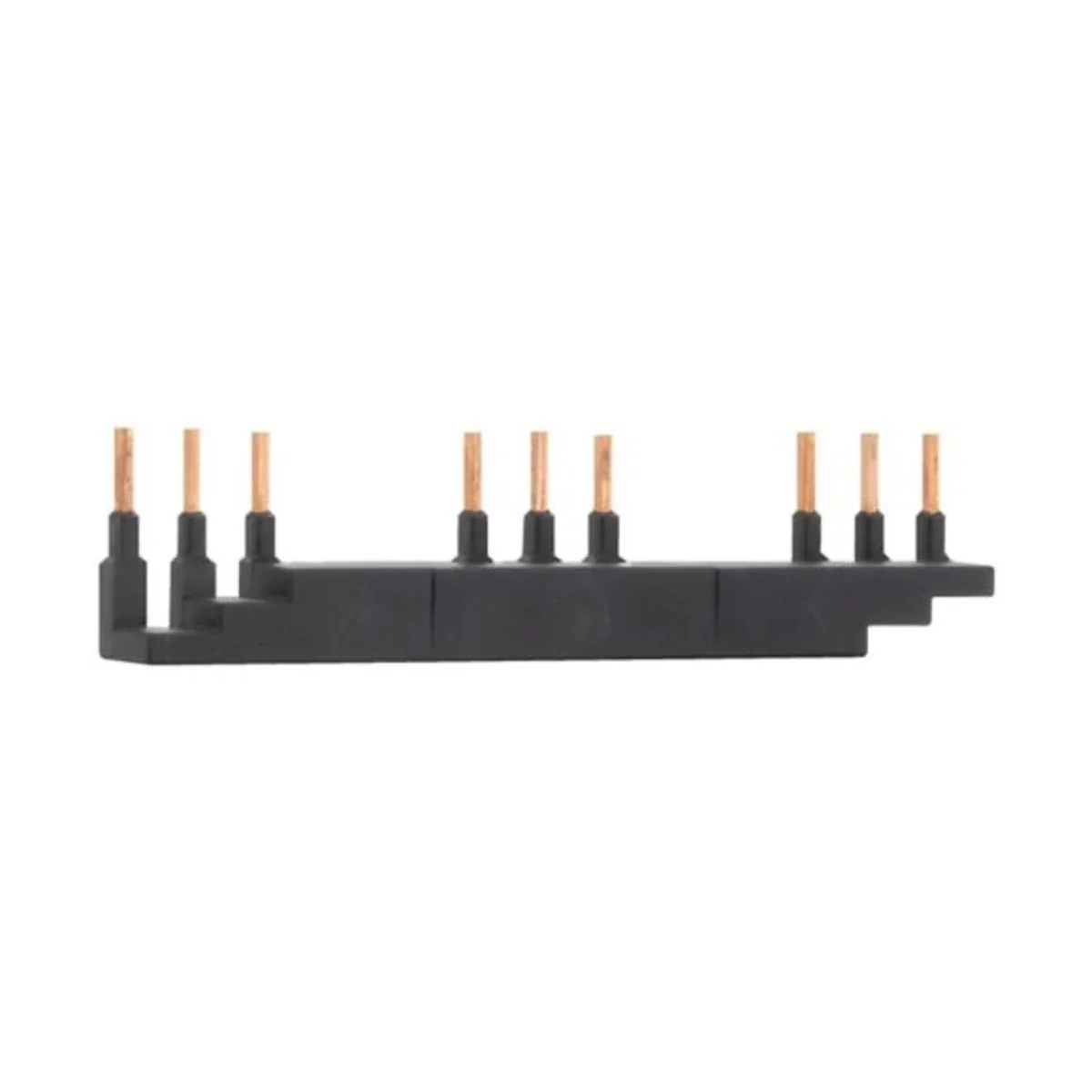

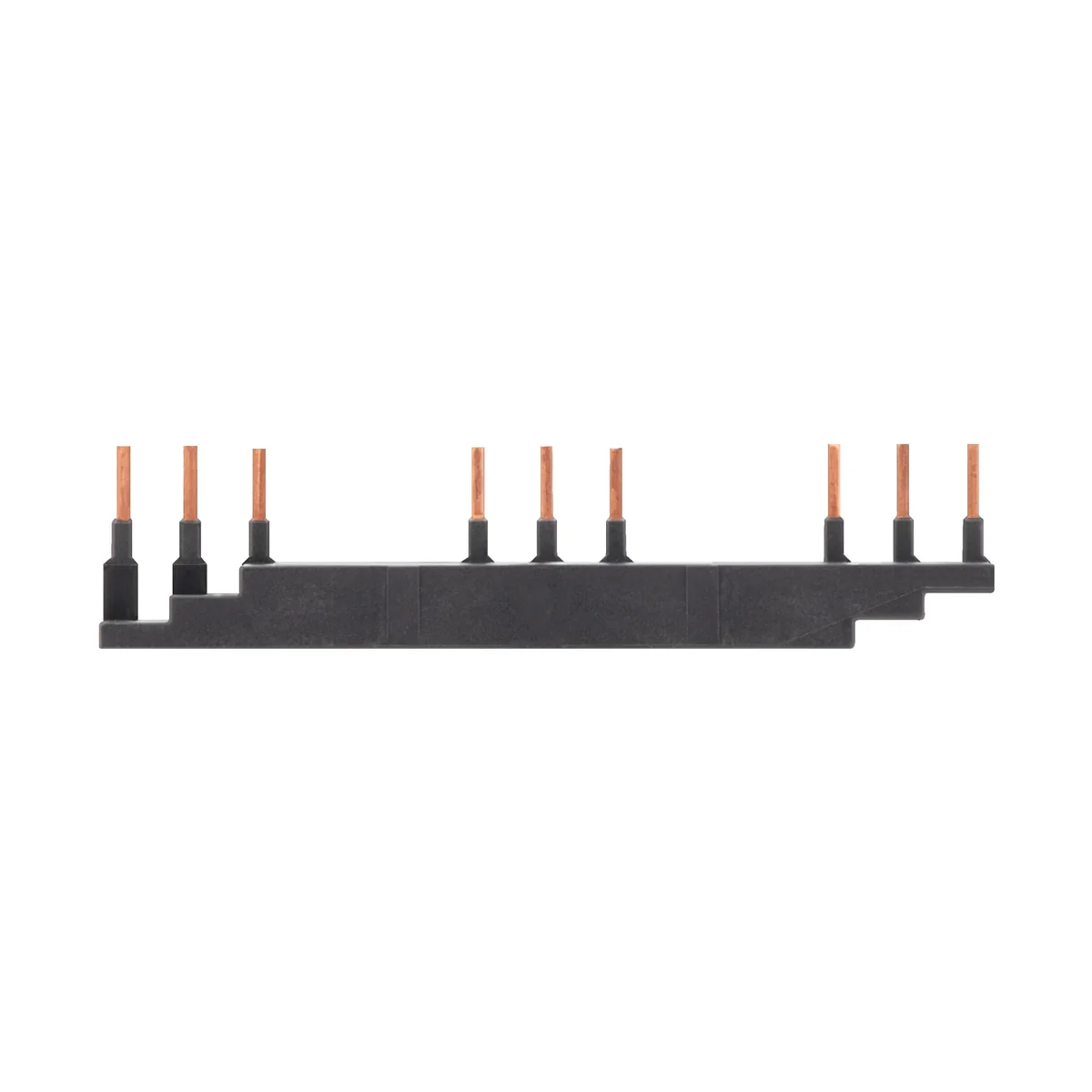

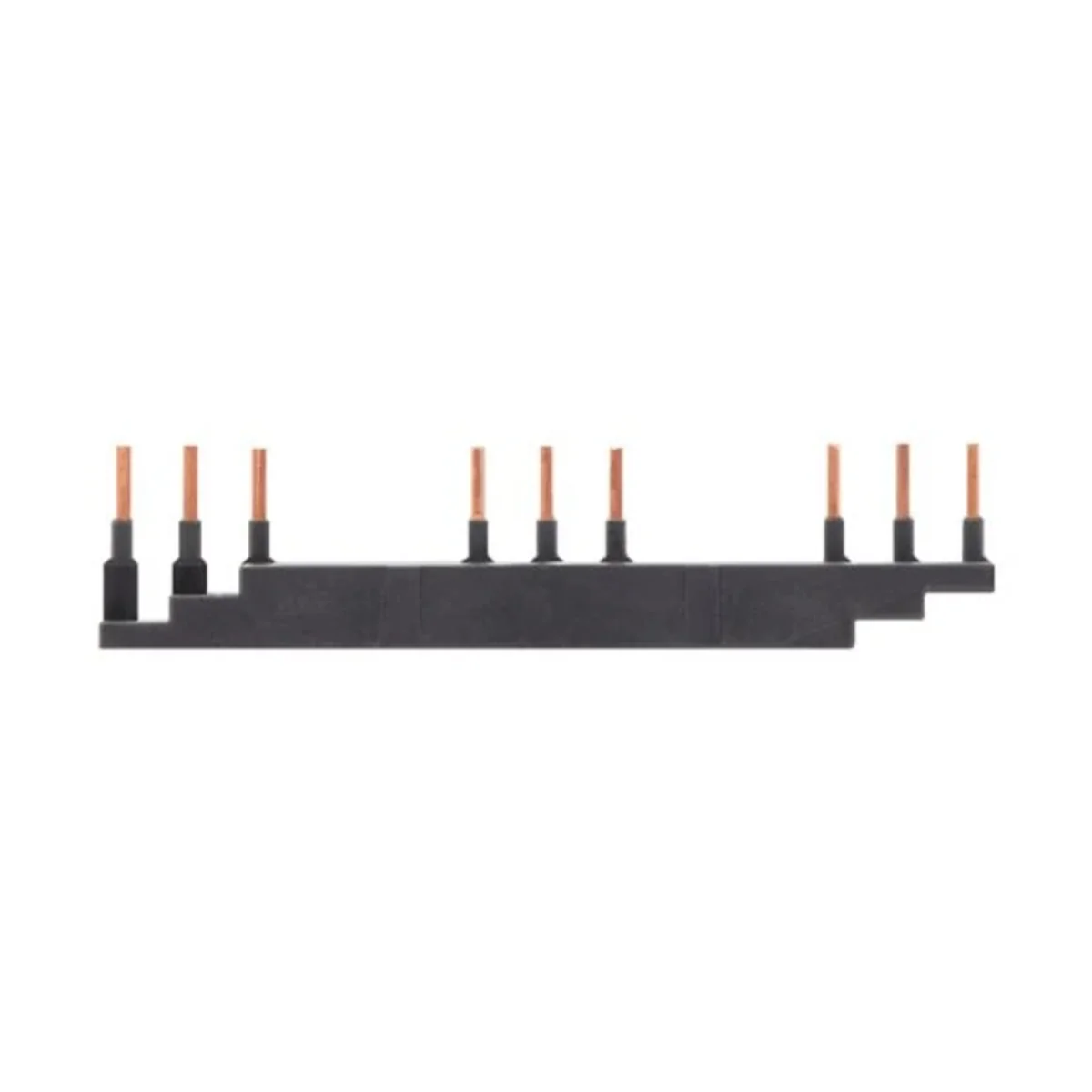

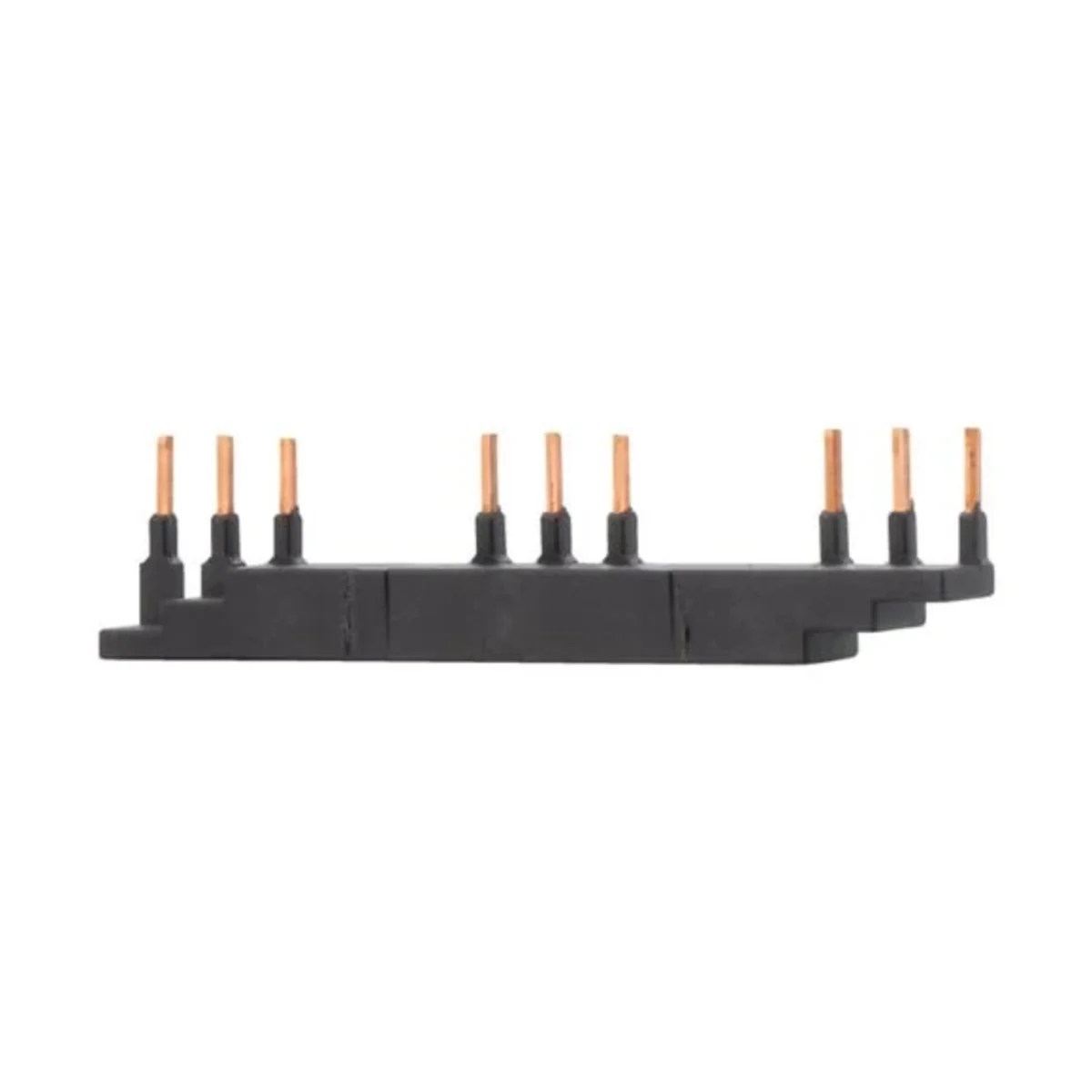

DILM7 three-phase jumper blocks for DS7 primary, touch-proof, short-circuit proof, Ue = 690 V, Iu = 35 A, extendable by staggered mounting
Notes : Allows connection of 3 DS7 starters length 135 mm
Notes : Allows connection of 3 DS7 starters length 135 mm
Technical data
-
Pieces in the package5
Other technical data
-
Number of phases3
-
Suitable for number of devices3
-
Cross section0 mm²
-
Rated permanent current Iu35 A
-
InsulatedYes
-
Conditioned rated short-circuit current Iq0 kA
-
Rated short-time withstand current lcw0 kA
-
Suitable for devices with auxiliary switchNo
-
Number of poles3
-
Module width45 mm
-
Length112 mm
-
Type of electric connectionPin
-
Rated surge voltage0 kV
-
Max. rated operation voltage Ue690 V
-
Suitable for devices with N-conductorNo
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Karton |
| Quantity | 1 pkg. |
| Weight (kg) | 0,192 |
| Volume (m3) | 0,000 |
| Width (m) | 0,040 |
| Length (m) | 0,175 |
| Depth (m) | 0,040 |
