three-phase bridge blocks, B3.1/4-PKZ0 044947
local index:
ASA010MOEL
Catalog No:
044947
EAN code:
4015080449478
Manufacturer:
EATON
Number of poles: 3
Price:
23,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
10
)
Add to clipboard
Print
Ask about the product
Product description

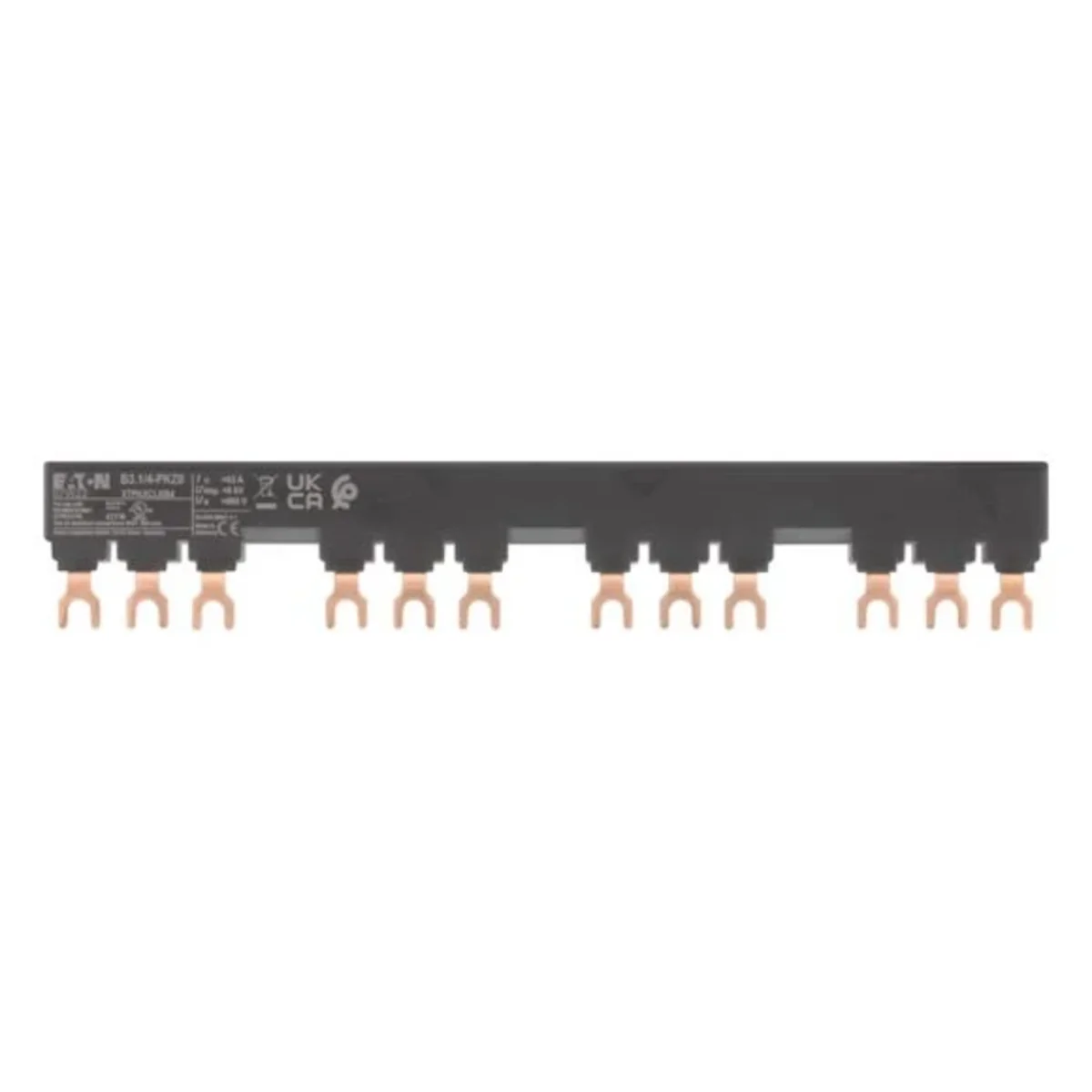

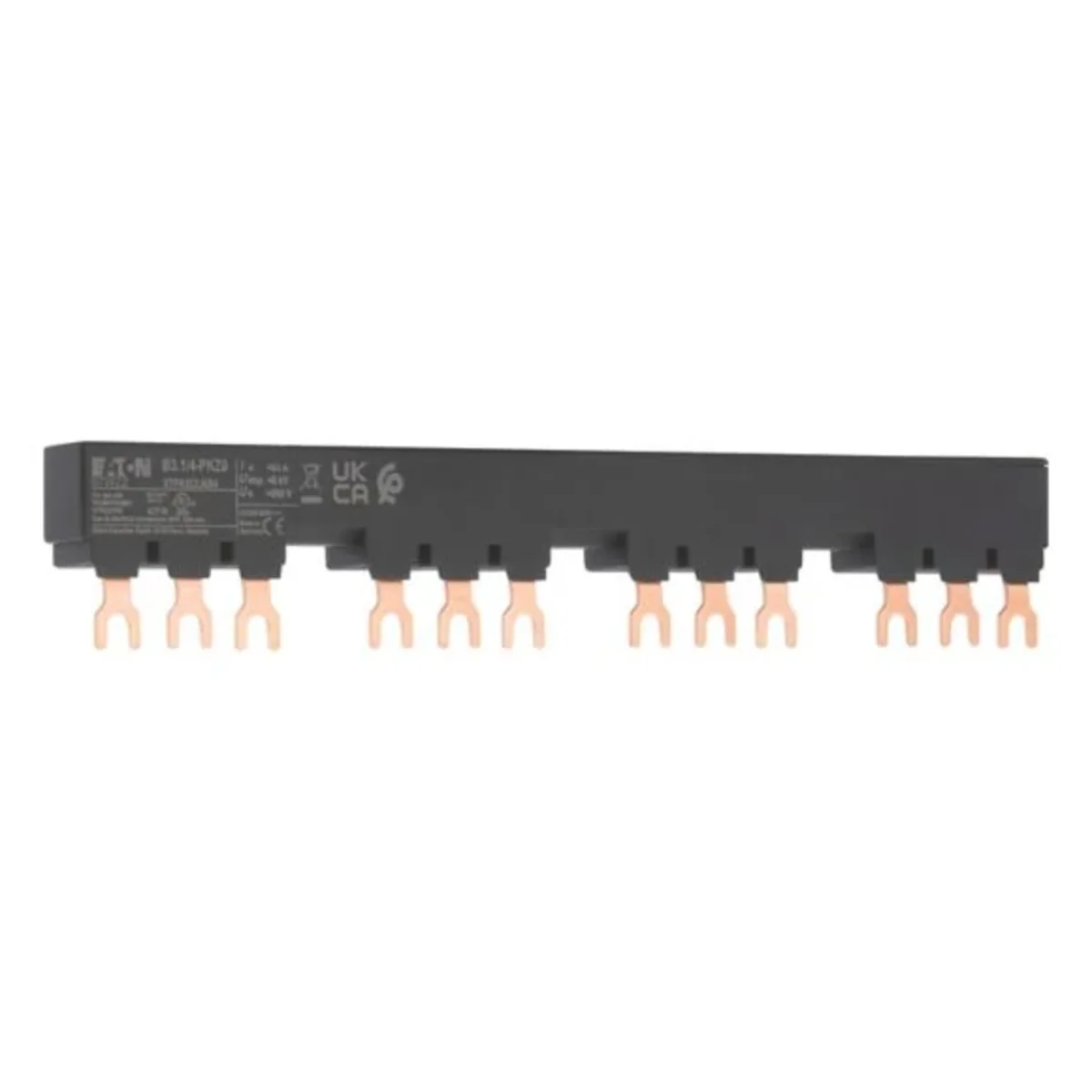

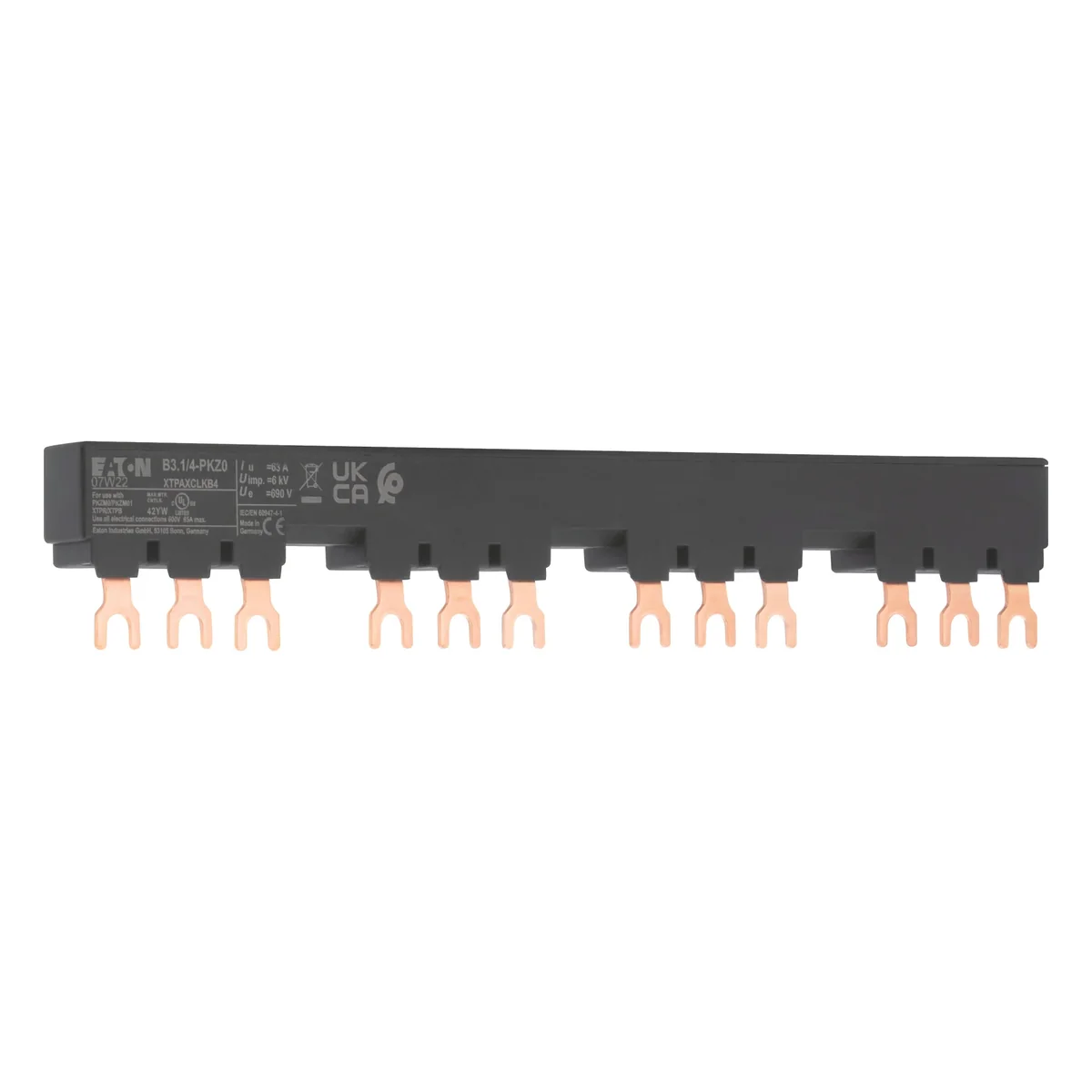

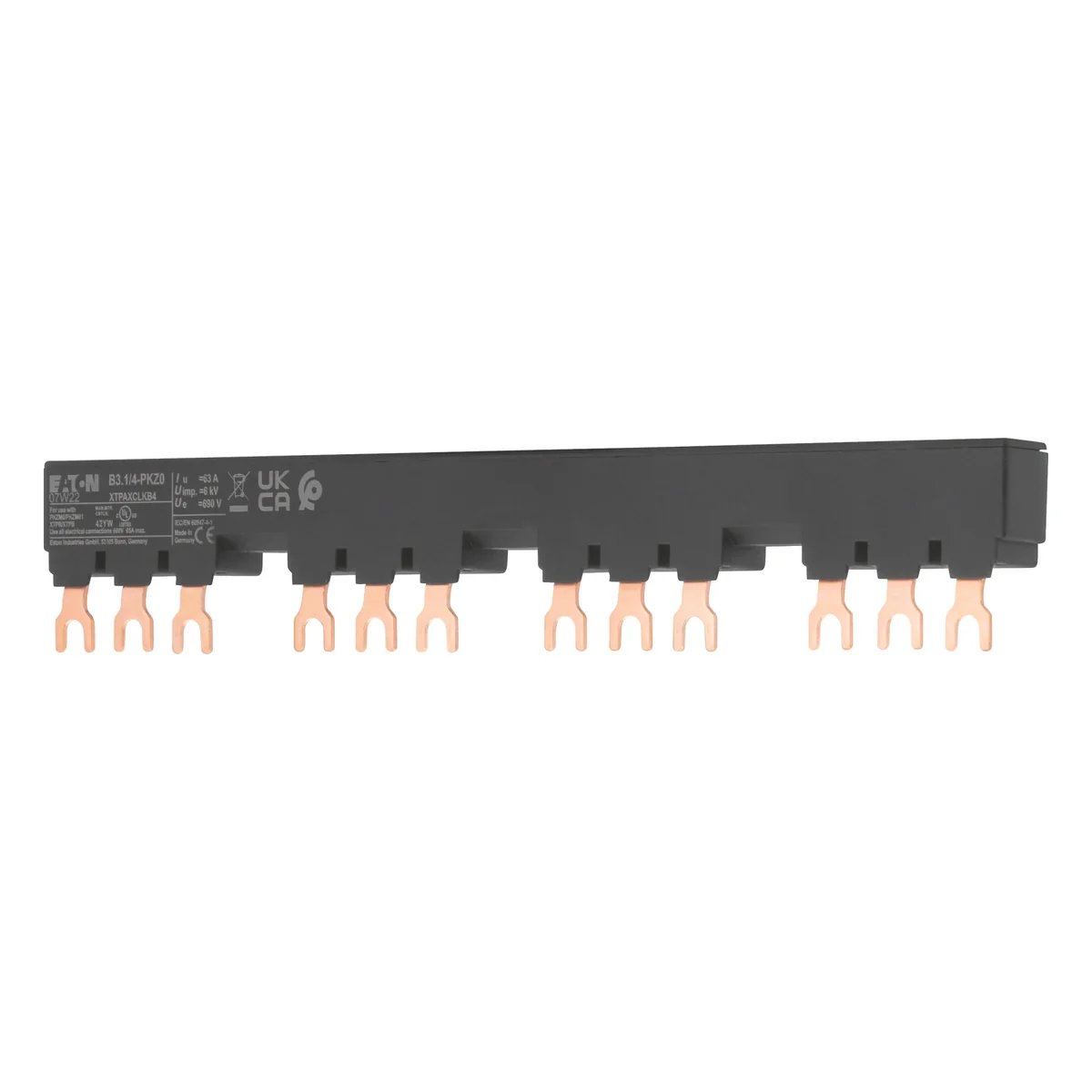

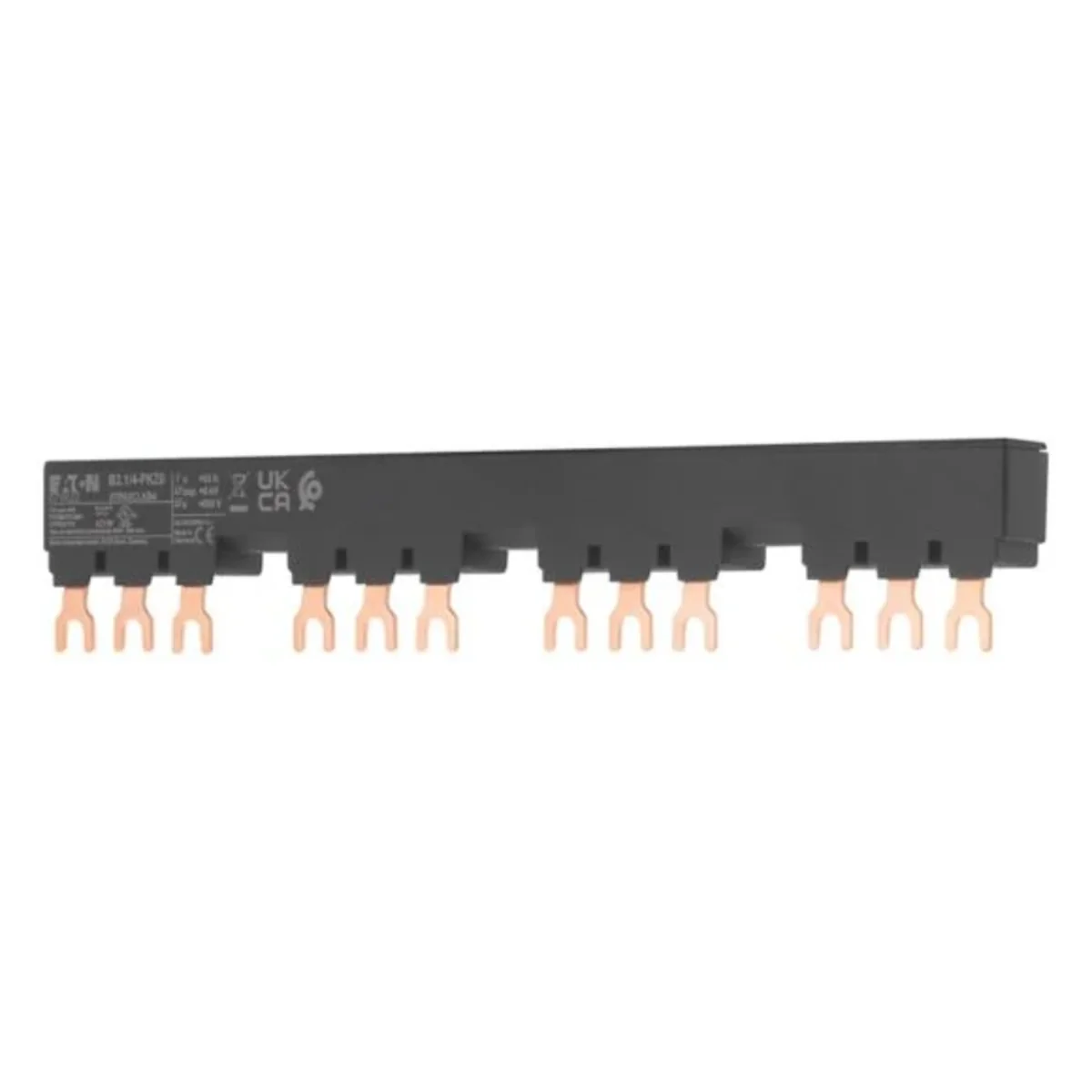

three-phase bridge blocks, B3.1/4-PKZ0
Technical data
-
Number of poles3
Other technical data
-
Number of phases3
-
Suitable for number of devices4
-
Cross section0 mm²
-
Width in number of modular spacings11.5
-
Type of electric connectionFork
-
Rated surge voltage6 kV
-
Max. rated operation voltage Ue690 V
-
Suitable for devices with N-conductorNo
-
ColourBlack
-
Number of poles3
-
Module width54 mm
-
Length209 mm
-
Rated permanent current Iu63 A
-
InsulatedYes
-
Conditioned rated short-circuit current Iq0 kA
-
Rated short-time withstand current lcw0 kA
-
Suitable for devices with auxiliary switchNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,090 | 0,094 | 0,943 |
| Volume (m3) | 0,000 | 0,000 | 0,001 |
| Width (m) | 0,011 | 0,013 | 0,062 |
| Length (m) | 0,209 | 0,211 | 0,280 |
| Depth (m) | 0,034 | 0,036 | 0,073 |
