Thermal relay ZB12-2, 4 278437

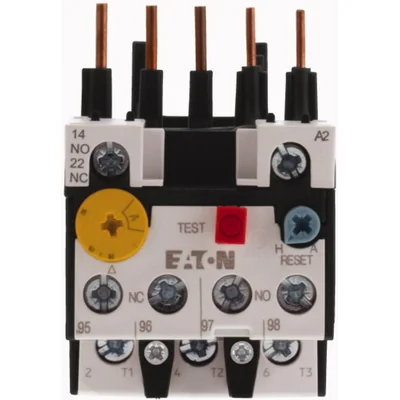

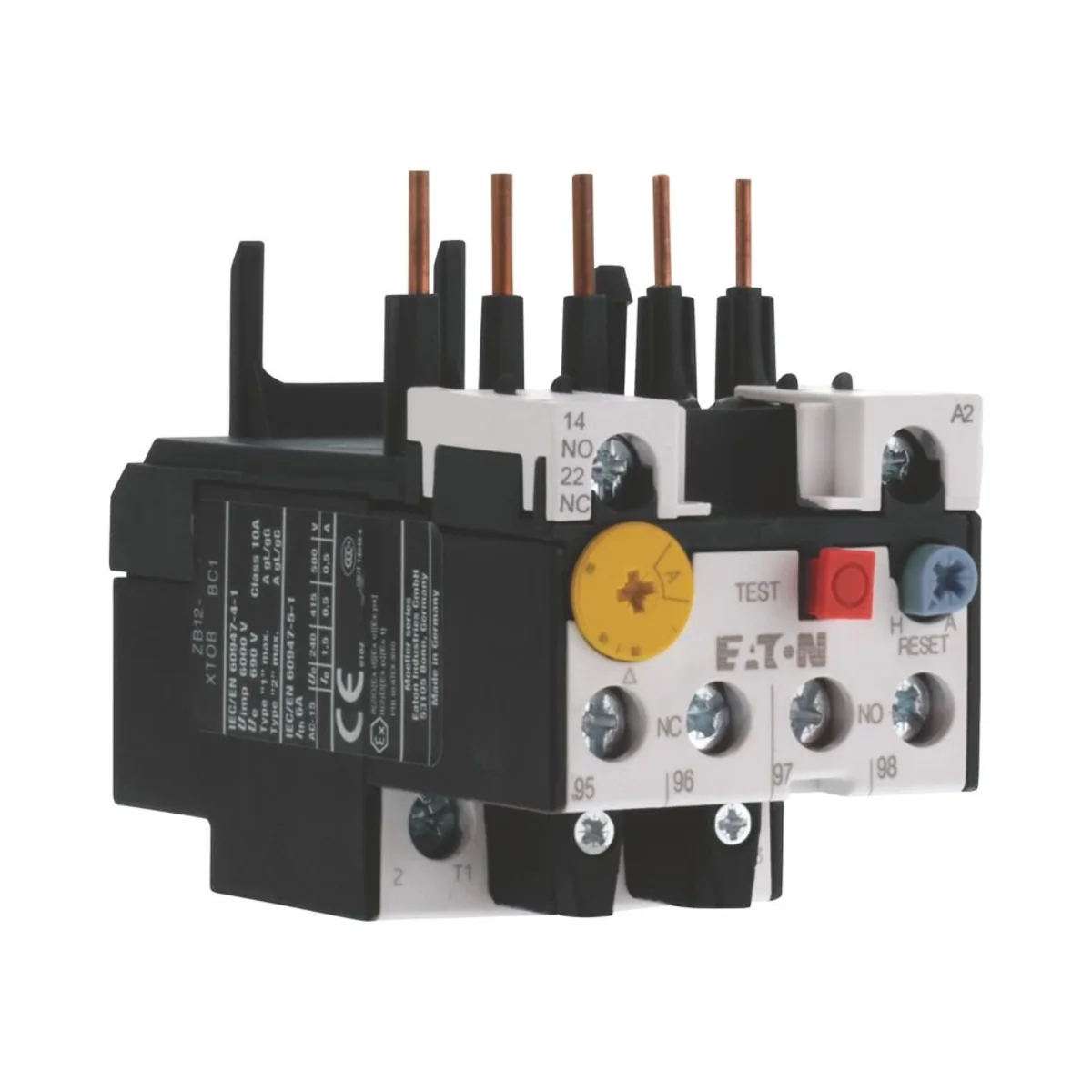

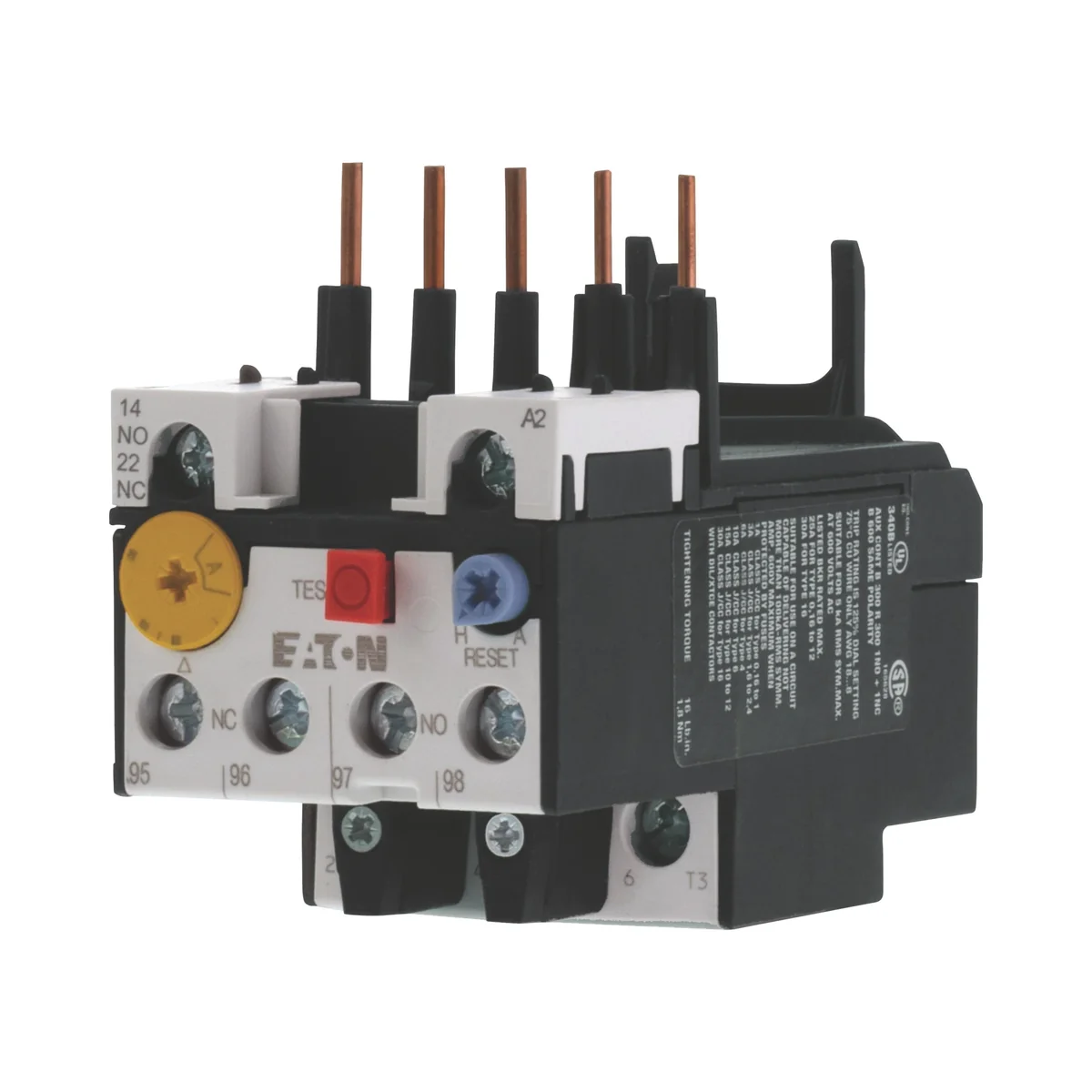

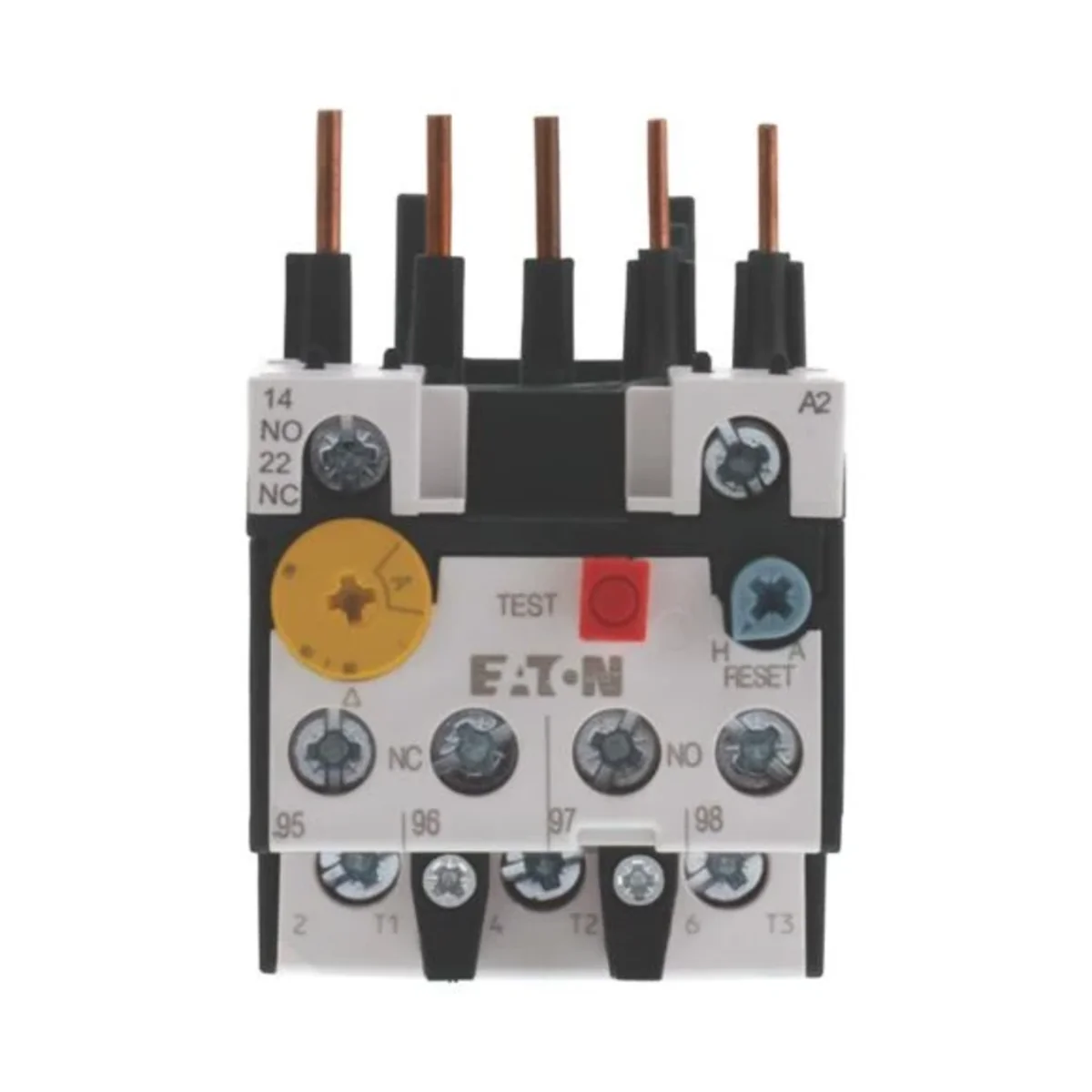

Name: Thermal relay ZB12-2, 4
Brand: EATON
SKU: ASN331MOEL
Price: 53.58 PLN

local index:

ASN331MOEL

Catalog No:

278437

EAN code:

4015082784379

Click on the photo to enlarge

Manufacturer: EATON

Current setting range [A] to: 2.4

Current setting range [A] from: 1.6

See full description

Price:

53,58 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Overload relay. Overload release: tripping class 10 A Short-circuit protection: For direct mounting, pay attention to the max. permissible fuse of the contactor. Suitable for protection of EEx motors.
• Phase failure sensitive according to IEC/EN 60947, VDE 0660 Part 102
• TEST button / shutdown button
• RESET button; manual/automatic
• Free Liberation
• Direct mounting

Technical data

Current setting range [A] to

2.4

Current setting range [A] from

1.6

Other technical data

Adjustable current range

1.6 ... 2.4 A
Mounting method

Direct attachment
Number of auxiliary contacts as normally closed contact

1
Number of auxiliary contacts as change-over contact

0
Reset function input

No
Reset function push-button

Yes

Max. rated operation voltage Ue

690 V
Type of electrical connection of main circuit

Screw connection
Number of auxiliary contacts as normally open contact

1
Release class

CLASS 10 A
Reset function automatic

Yes
