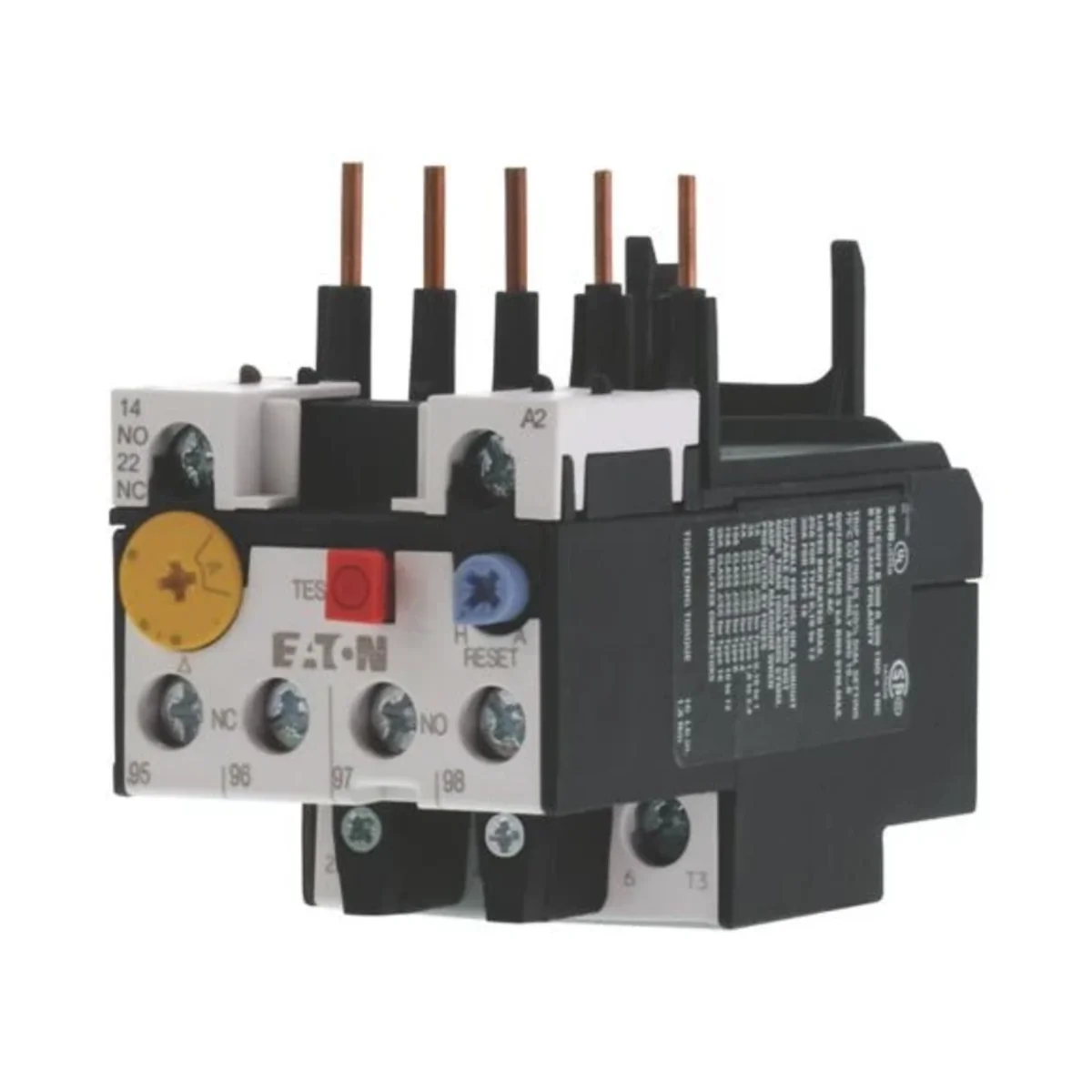

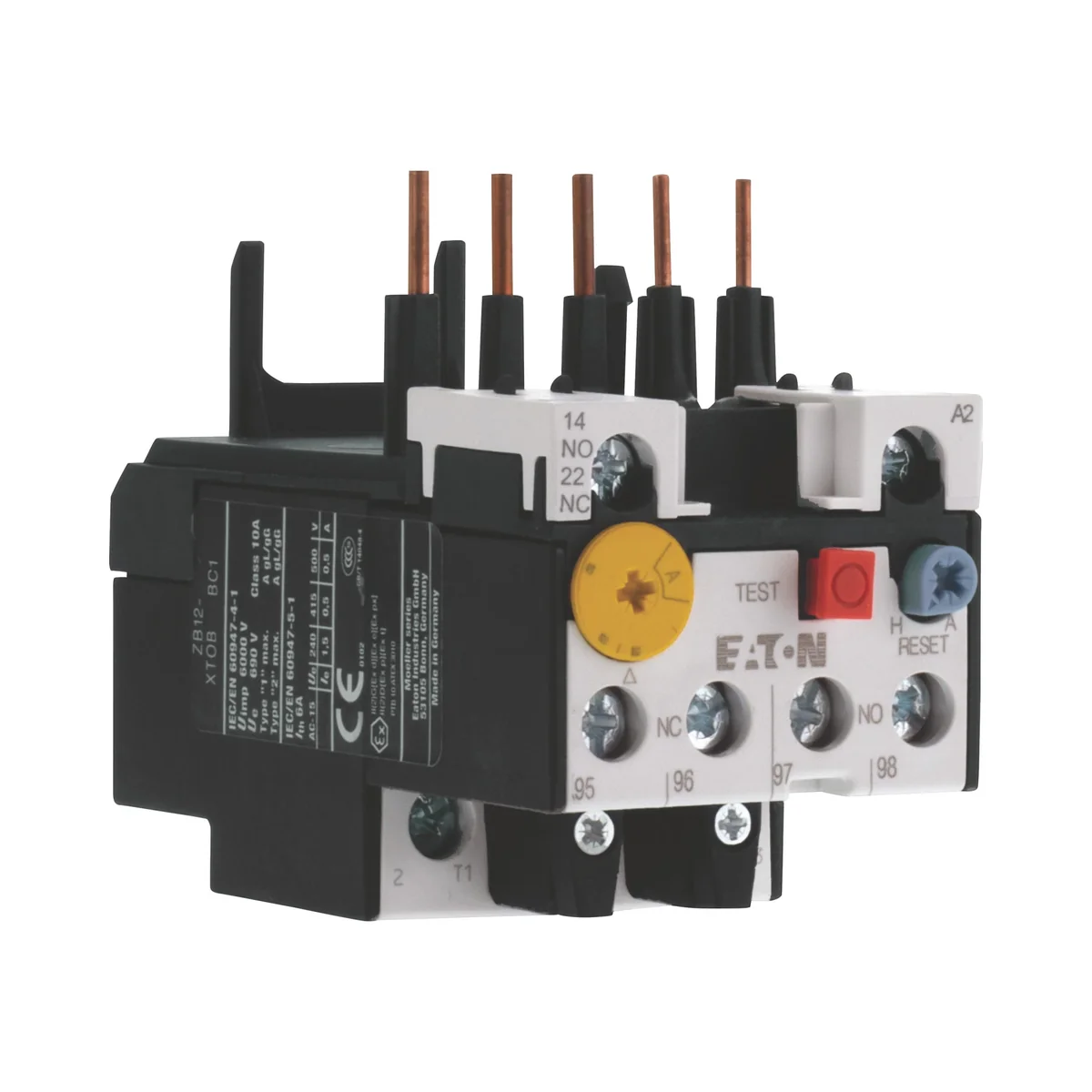

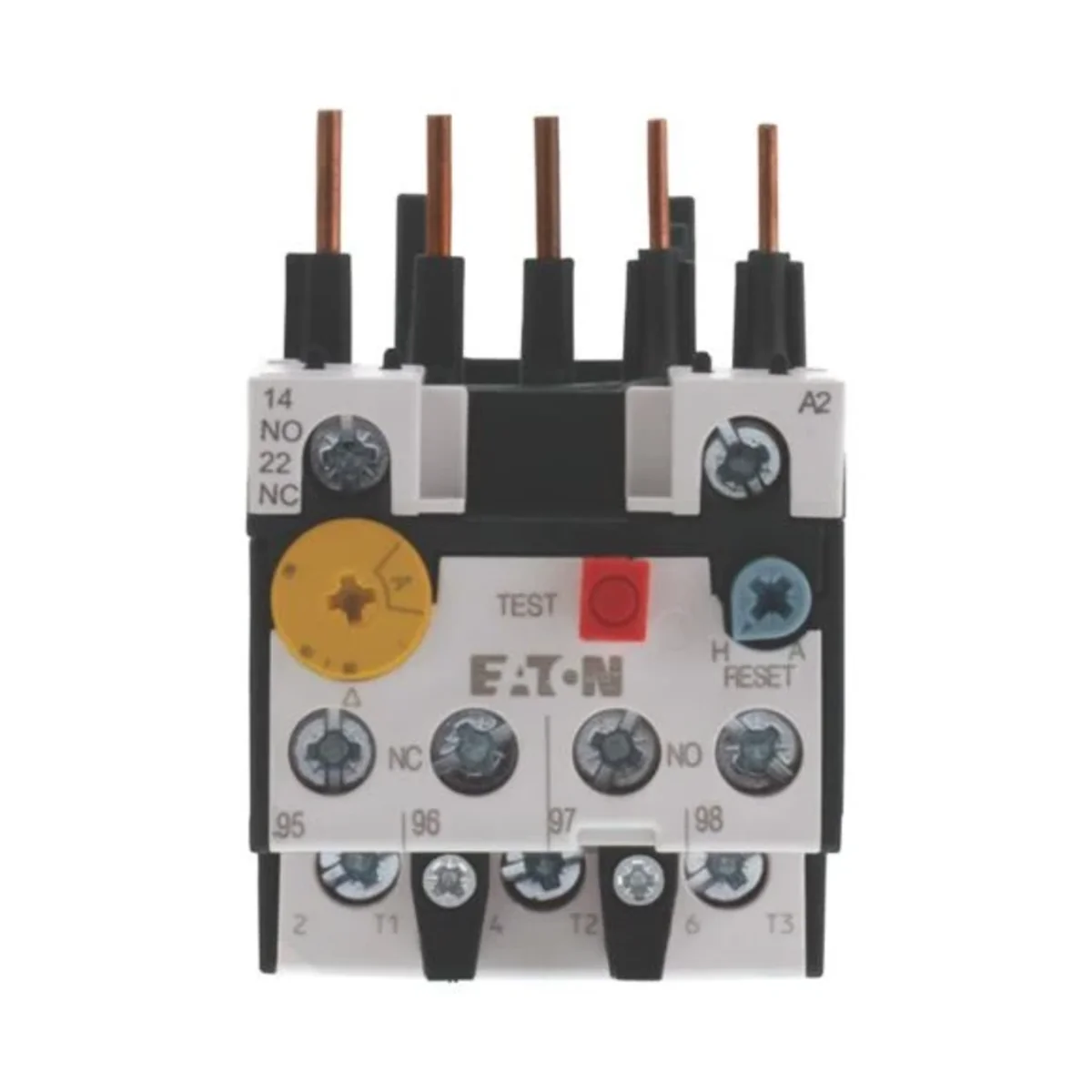

Thermal relay ZB12-1.6 278436
local index:
ASN339MOEL
Catalog No:
278436
EAN code:
4015082784362
Price:
52,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Overload relay. Overload release: tripping class 10 A Short-circuit protection: For direct mounting, pay attention to the max. permissible fuse of the contactor. Suitable for protection of EEx motors.
• Phase failure sensitive according to IEC/EN 60947, VDE 0660 part 102
• TEST button / shutdown button
• RESET button; manual/automatic
• Free Liberation
• Direct mounting
• Phase failure sensitive according to IEC/EN 60947, VDE 0660 part 102
• TEST button / shutdown button
• RESET button; manual/automatic
• Free Liberation
• Direct mounting
Technical data
-
Current setting range [A] to1.6
-
Current setting range [A] from1
Other technical data
-
Adjustable current range1 ... 1.6 A
-
Mounting methodDirect attachment
-
Number of auxiliary contacts as normally closed contact1
-
Number of auxiliary contacts as change-over contact0
-
Reset function inputNo
-
Reset function push-buttonYes
-
Max. rated operation voltage Ue690 V
-
Type of electrical connection of main circuitScrew connection
-
Number of auxiliary contacts as normally open contact1
-
Release classCLASS 10 A
-
Reset function automaticYes
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,158 |
| Volume (m3) | 0,000 |
| Width (m) | 0,049 |
| Length (m) | 0,074 |
| Depth (m) | 0,099 |
