Thermal relay for DILM17...38, ZB32-16 278452

Name: Thermal relay for DILM17...38, ZB32-16
Brand: EATON
SKU: ASN323MOEL
Price: 69.10 PLN

local index:

ASN323MOEL

Catalog No:

278452

EAN code:

4015082784522

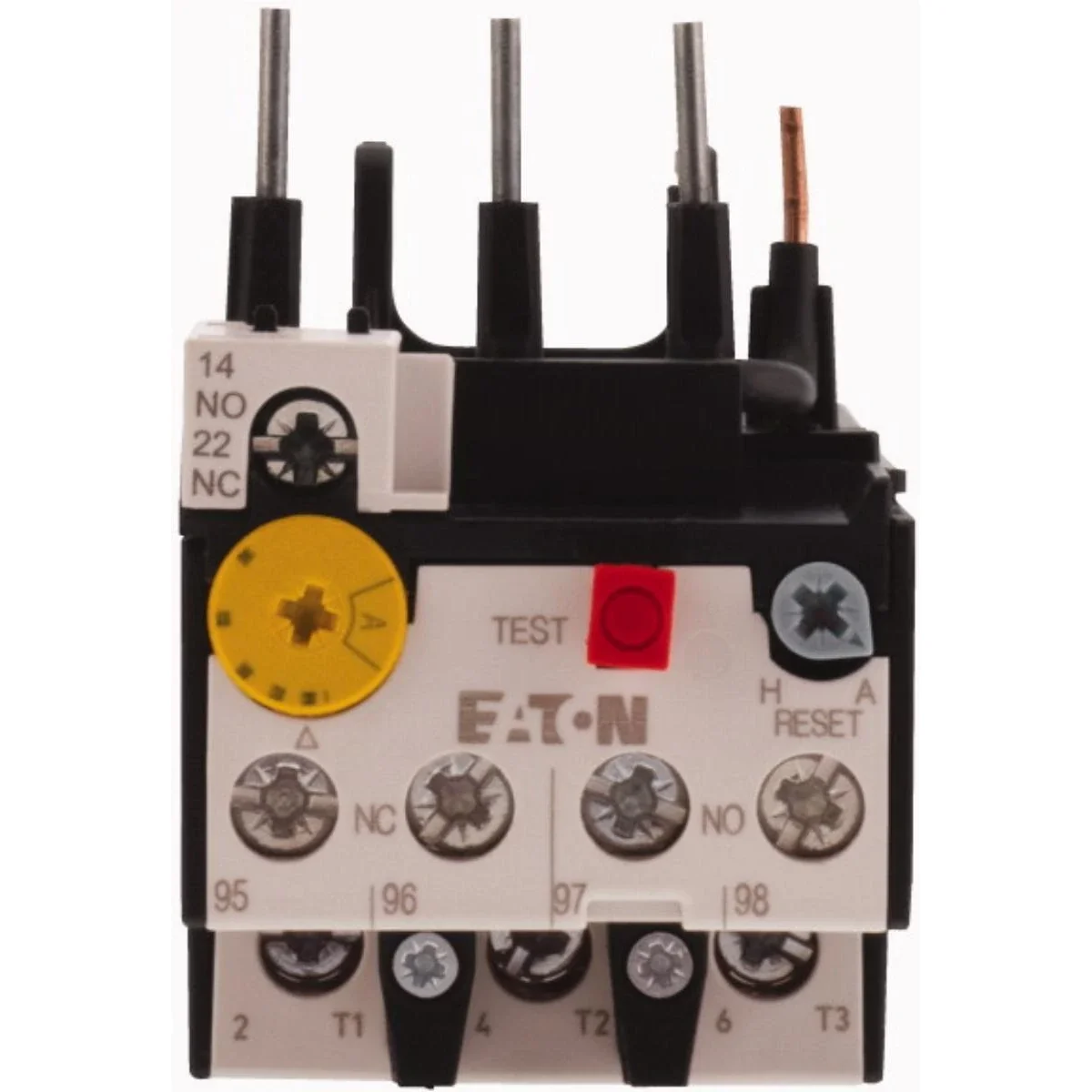

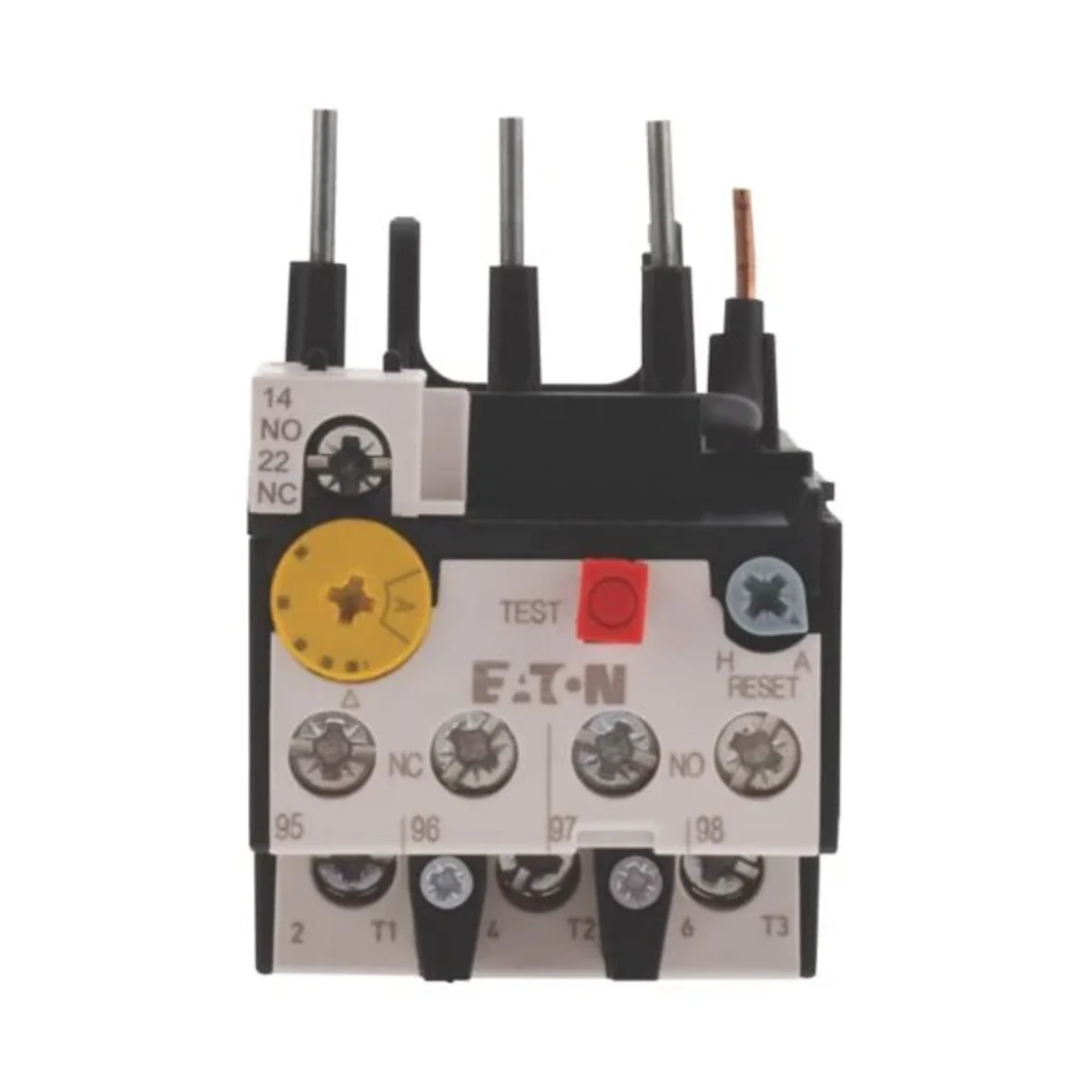

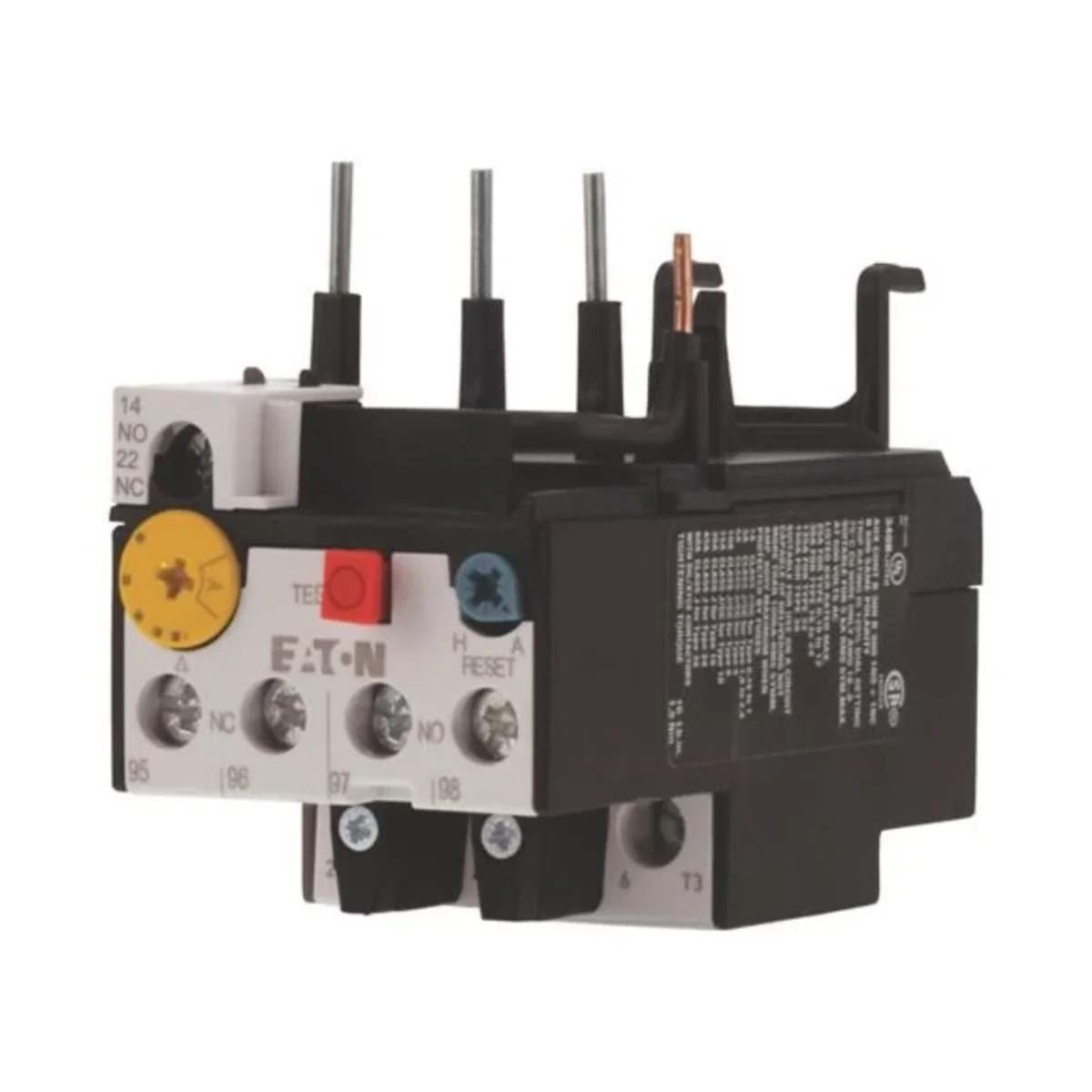

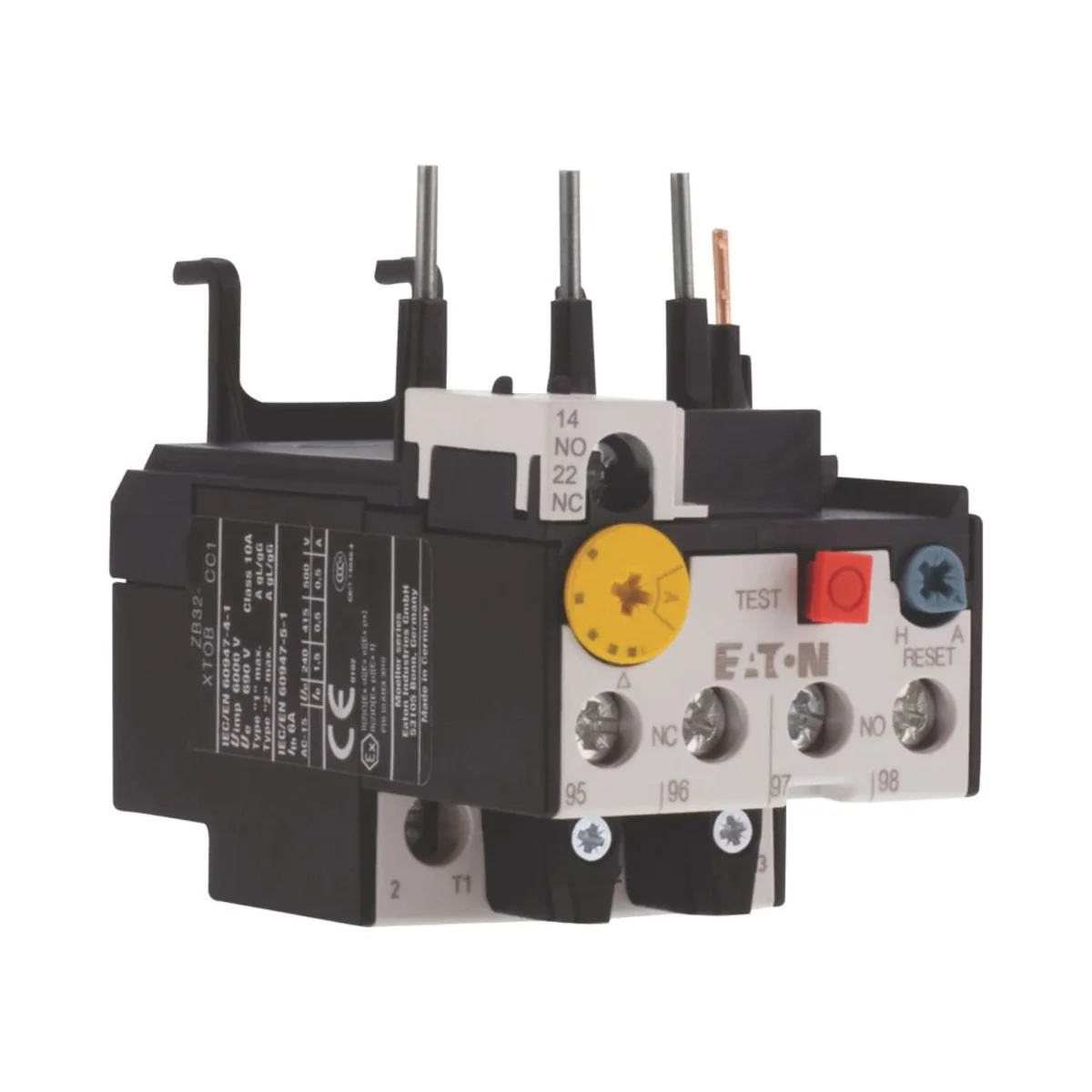

Click on the photo to enlarge

Manufacturer: EATON

Current setting range [A] to: 16

Current setting range [A] from: 10

See full description

Price:

69,10 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Overload release: release class 10 A. Short-circuit protection: For direct mounting, pay attention to the max. permissible fuse of the contactor. Suitable for protecting EEx motors.

Technical data

Current setting range [A] to

16

Current setting range [A] from

10

Other technical data

Adjustable current range

10 ... 16 A
Mounting method

Direct attachment
Number of auxiliary contacts as normally closed contact

1
Number of auxiliary contacts as change-over contact

0
Reset function input

No
Reset function push-button

Yes

Max. rated operation voltage Ue

690 V
Type of electrical connection of main circuit

Screw connection
Number of auxiliary contacts as normally open contact

1
Release class

CLASS 10 A
Reset function automatic

Yes

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,146	0,163
Volume (m3)	0,000	0,000
Width (m)	0,045	0,097
Length (m)	0,096	0,072
Depth (m)	0,067	0,047
