Switch, Z-SWL230/SO 276307
local index:
AKS216MOEL
Catalog No:
276307
EAN code:
4015082763077
Manufacturer:
EATON
Level of security: IP40
Price:
29,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print
Ask about the product
Product description

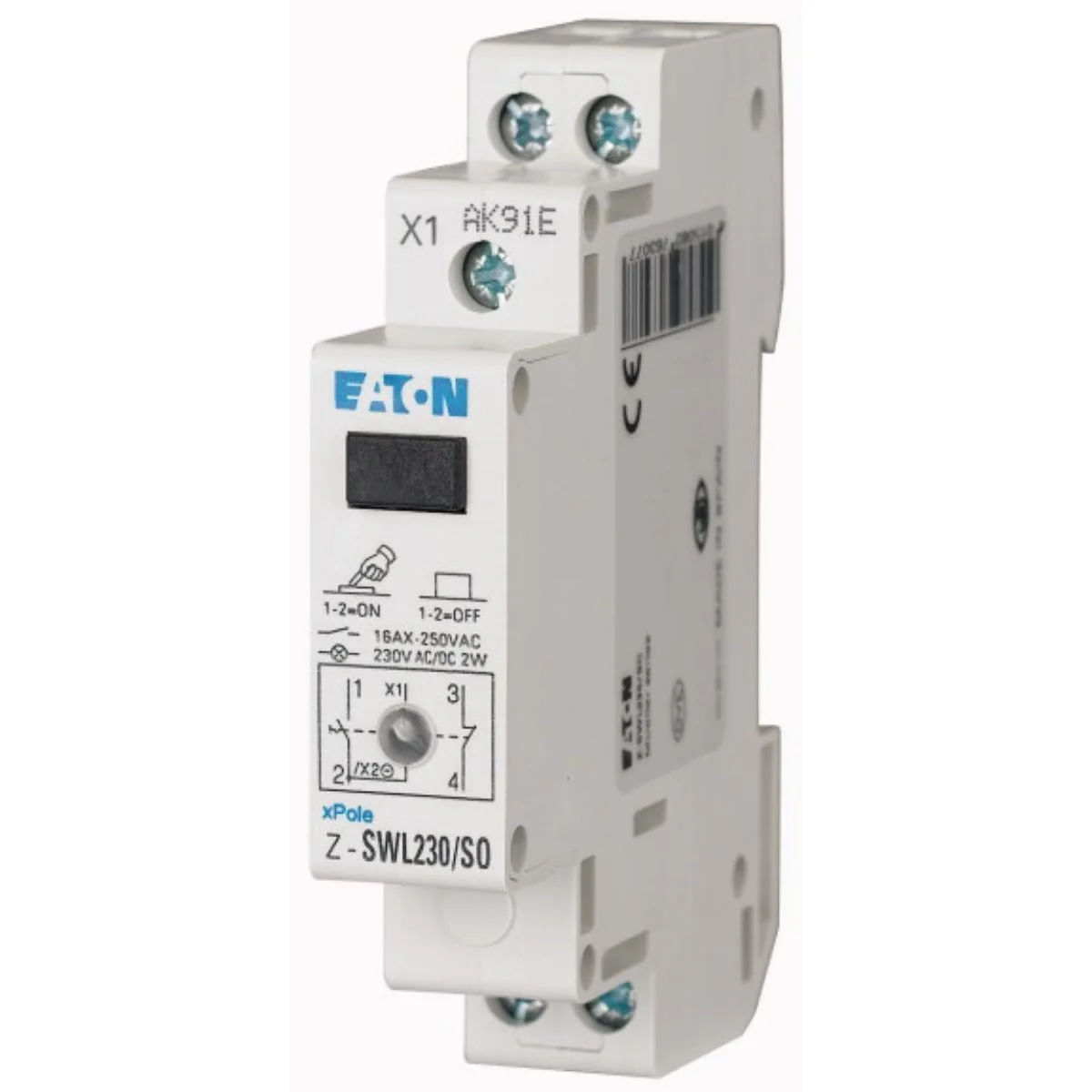

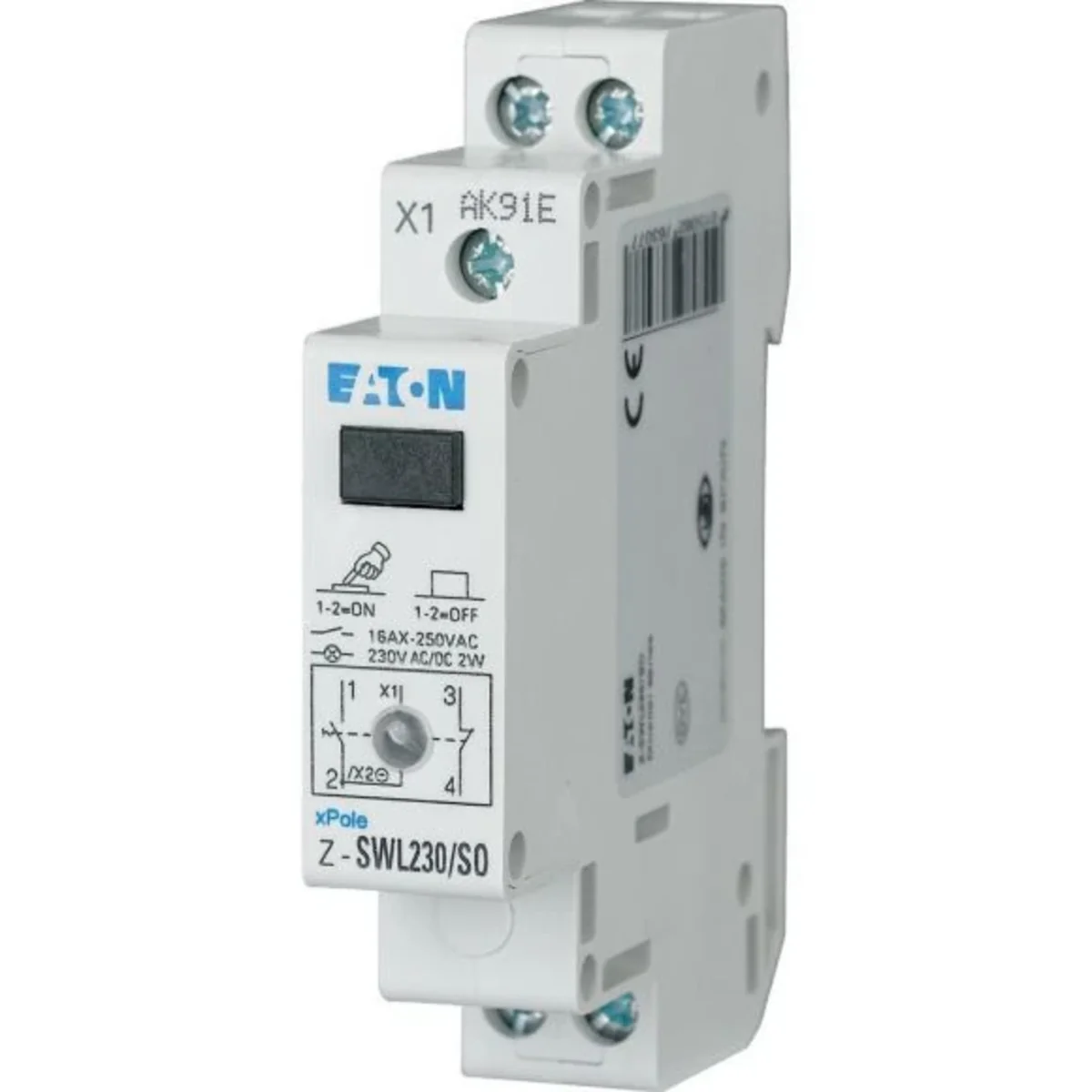

Switch, Z-SWL230/SO
Technical data
-
Level of securityIP40
Other technical data
-
Switching functionControl switch
-
Number of contacts as normally closed contact1
-
Number of poles2
-
Rated voltage250 V
-
Rated switching capacity0.02 kA
-
Voltage typeAC
-
Colour calotteOther
-
Lamp socketOther
-
Width in number of modular spacings1
-
Degree of protection (IP)IP40
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Rated current16 A
-
Min. rated voltage230 V
-
Short-circuit breaking capacity (Icw)0.02 kA
-
With signal lampYes
-
Lamp typeLED
-
Max. lamp power2 W
-
Built-in depth80 mm
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton |
| Quantity | 1 pcs. | 2 pcs. | 120 pcs. |
| Weight (kg) | 0,072 | 0,144 | 8,839 |
| Volume (m3) | 0,000 | 0,000 | 0,017 |
| Width (m) | 0,020 | 0,037 | 0,190 |
| Length (m) | 0,082 | 0,092 | 0,385 |
| Depth (m) | 0,072 | 0,075 | 0,235 |
