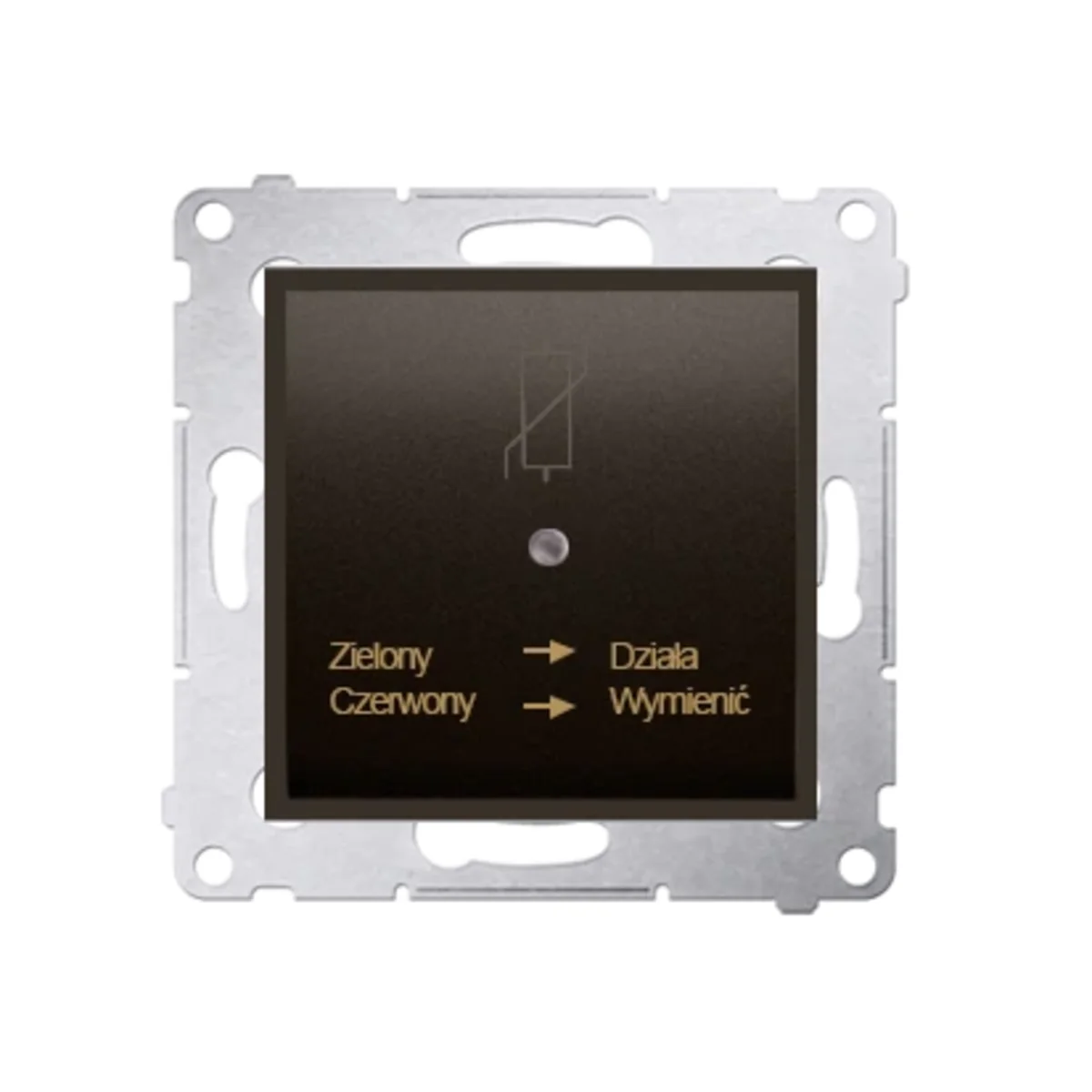

Surge protector (module), matt bronze (metallic) D75420.01/46

local index:
ABD003KONT
Catalog No:
D75420.01/46
EAN code:
5902787832711
Manufacturer: KONTAKT-SIMON
Protection class: d
Color: Brown
Rated voltage [V]: 230
Price:
96,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application
- D75420 surge arrester, protects attached devices connected to the grounded power supply against the effects of atmospheric overvoltages and switching overvoltages
- To connect the D75420 arrester, it is necessary to connect the earthing conductor

Yes is modular equipment - to complete the entire equipment, you must purchase a module + frame.
Modular accessories make it possible to obtain various color combinations in frame systems

Technical data

  • Protection class
    d
  • Rated voltage [V]
    230
  • discharge current [kA]
    2.5
  • Accurate color
    Brown
  • Color
    Brown
  • Protection level [kV]
    1.5
  • Family
    Simon 54
  • PKWIU
    27.12.23.0
