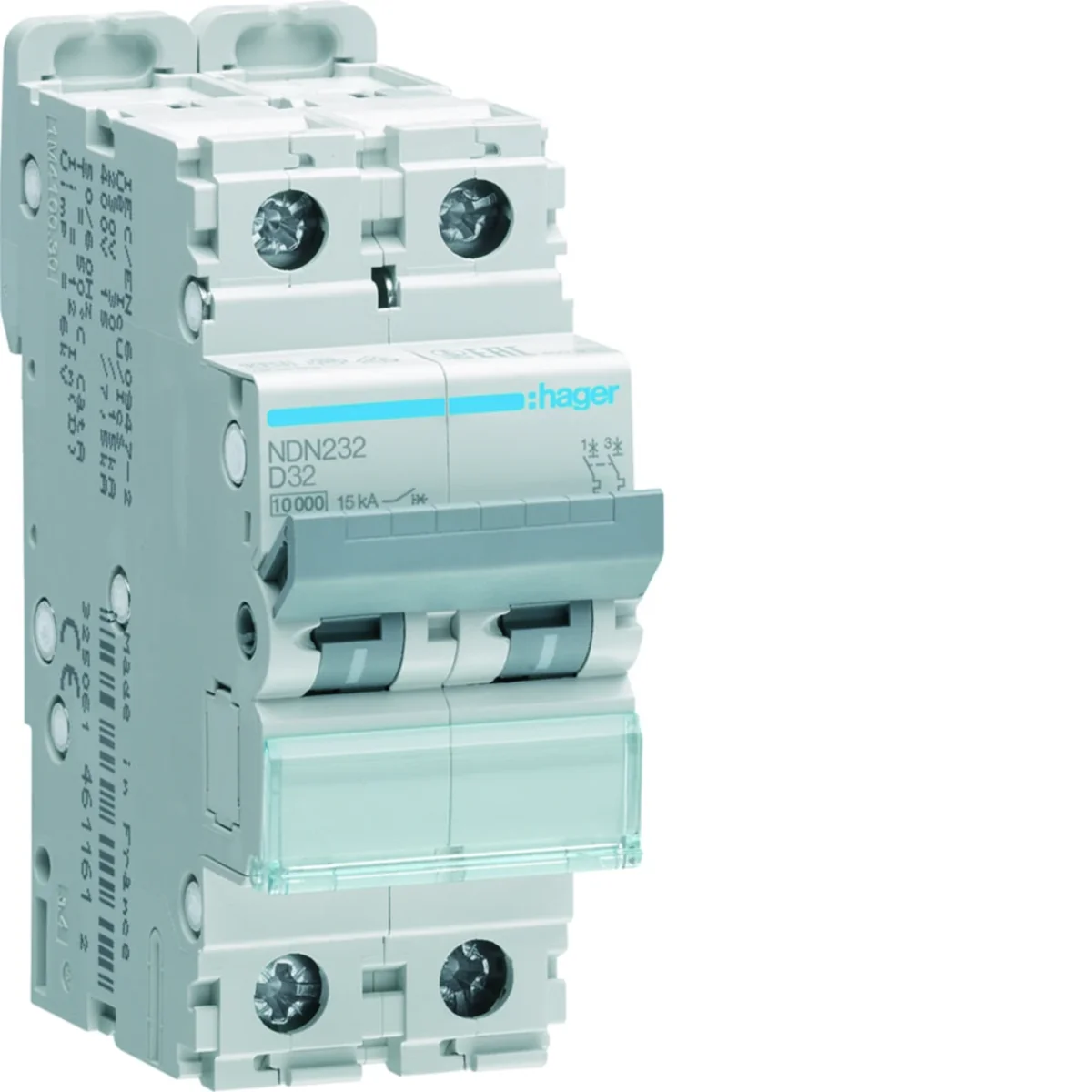

Circuit breaker 10kA D two-speed 32A NDN232
local index:
ABD050HAGE
Catalog No:
NDN232
EAN code:
3250614611643
Price:
43,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Circuit breaker 10kA D two-speed 32A
Technical data
-
Characteristicd
-
Number of modules2
-
Rated voltage [V]230
-
Rated current [A]32
-
Height [mm]83
-
Number of modules2
-
Depth [mm]70
-
Number of poles2
-
Rated insulation voltage [V]500
-
Width [mm]35
-
Rated short-circuit breaking capacity [kA]10
-
PKWIU27.12.22.0
Other technical data
-
Built-in depth70 mm
-
Number of poles (total)2
-
Rated current32 A
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
-
Concurrently switching neutral conductorNo
-
Pollution degree2
-
Width in number of modular spacings2
-
Ambient temperature during operating-25 ... 70 °C
-
Connectable conductor cross section solid-core1 ... 35 mm²
-
Release characteristicD
-
Number of protected poles2
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp6 kV
-
Voltage typeAC
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30 kA
-
Frequency50 ... 60 Hz
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 6 pcs. | 72 pcs. | 1728 pcs. |
| Weight (kg) | 0,224 | 1,448 | 2,896 | 417,023 |
| Width (m) | 0,035 | 0,100 | 0,315 | 0,800 |
| Length (m) | 0,087 | 0,082 | 0,234 | 1,086 |
| Depth (m) | 0,073 | 0,228 | 0,373 | 1,200 |
