Surface mount housing for PKZM01, CI-PKZ01-PVT 281406

local index:
ASN315MOEL
Catalog No:
281406
EAN code:
4015082814069
Manufacturer: EATON
Level of security: IP65
Price:
41,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

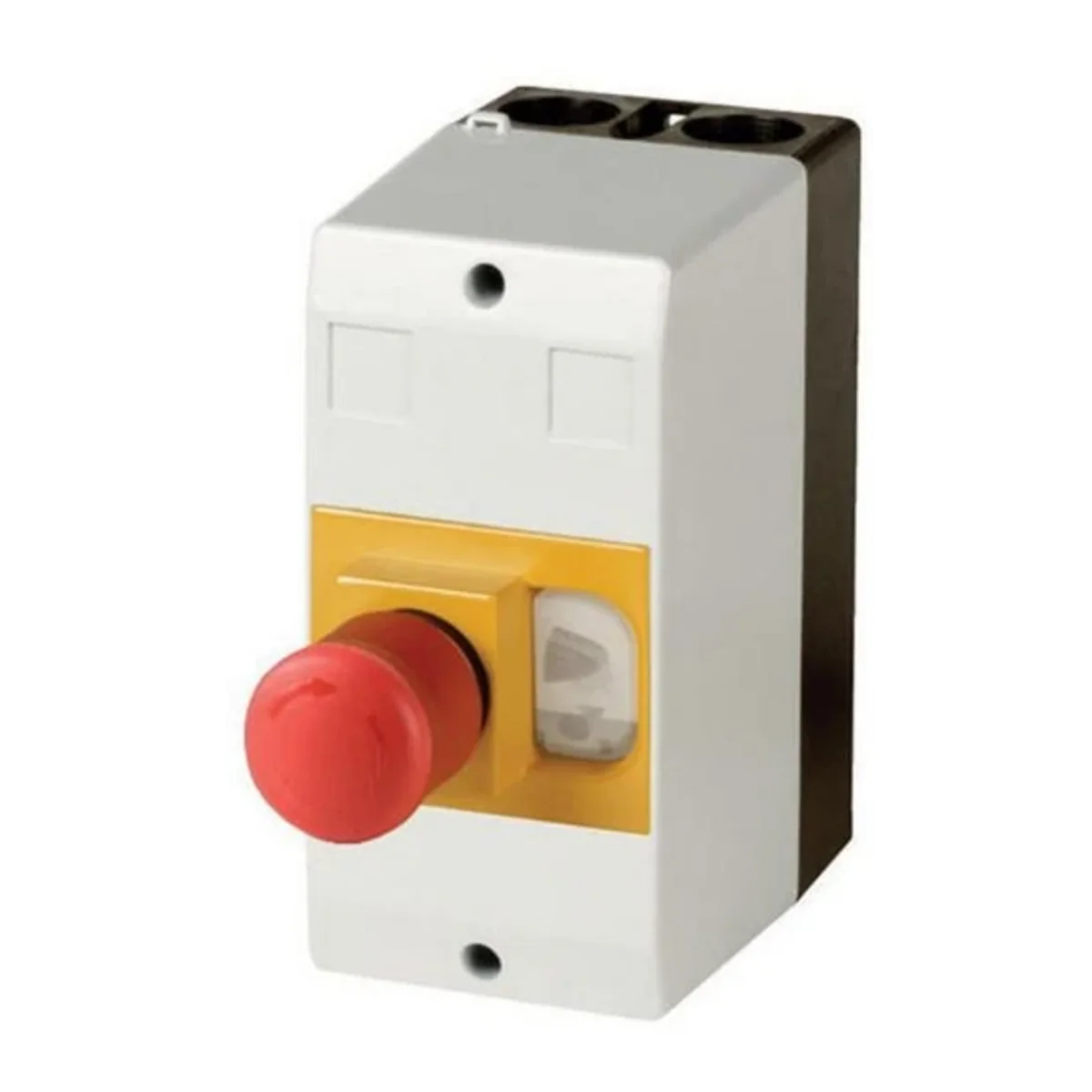

Plastic insulating enclosures for mounting. For PKZM01 motor circuit breakers with mushroom head safety button. Integrated terminal for connecting the PE(N) conductor, 2 places for M25 cable glands on the top and bottom.

Technical data

  • Level of security
    IP65

Other technical data

  • Housing material
    Plastic
  • Height
    158 mm
  • With transparent cover
    No
  • Model
    Surface mounting
  • Degree of protection (NEMA)
    Other
  • Width
    80 mm
  • Depth
    177 mm
  • Suitable for emergency stop
    Yes
  • Degree of protection (IP)
    IP65

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,301
Volume (m3) 0,002
Width (m) 0,080
Length (m) 0,177
Depth (m) 0,158
