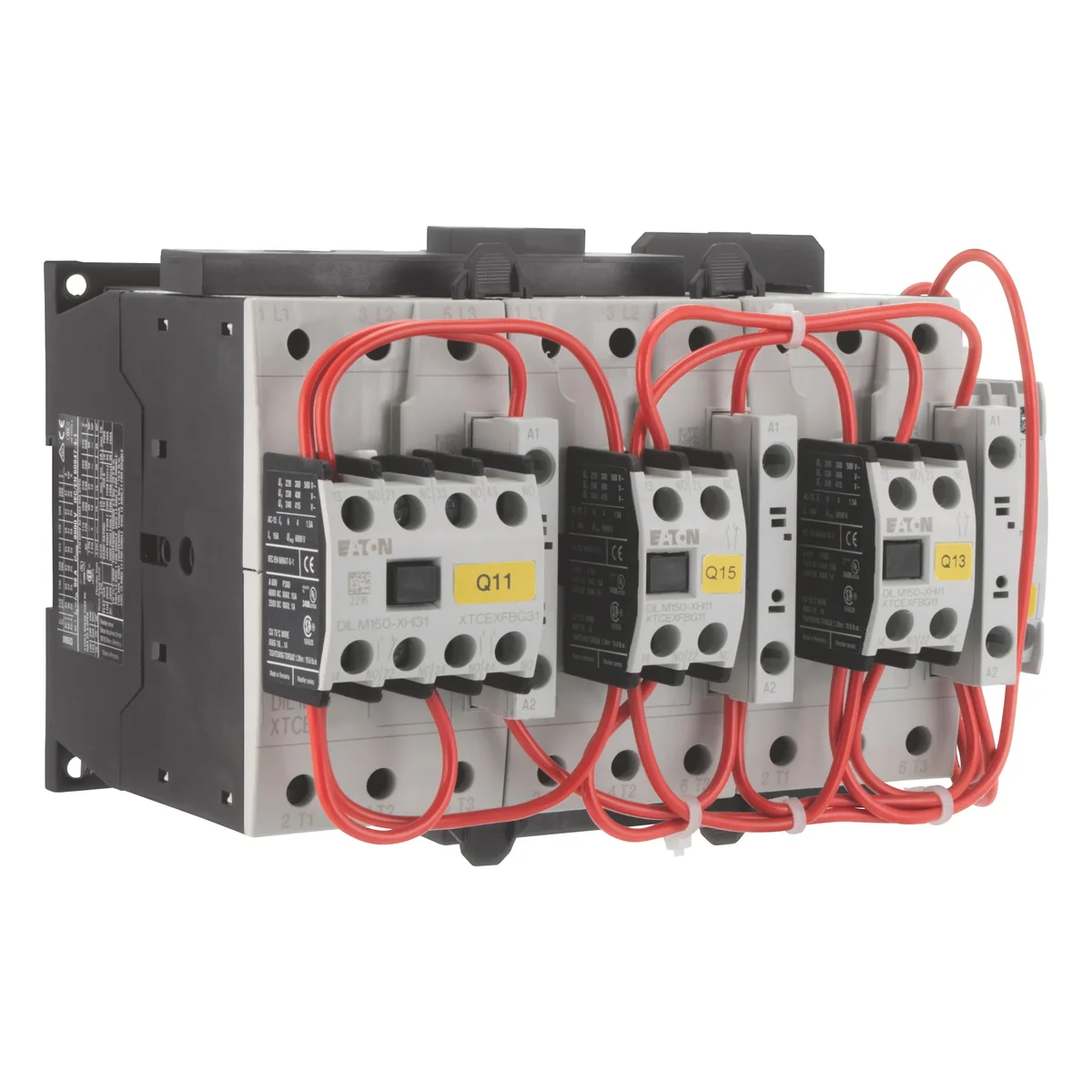

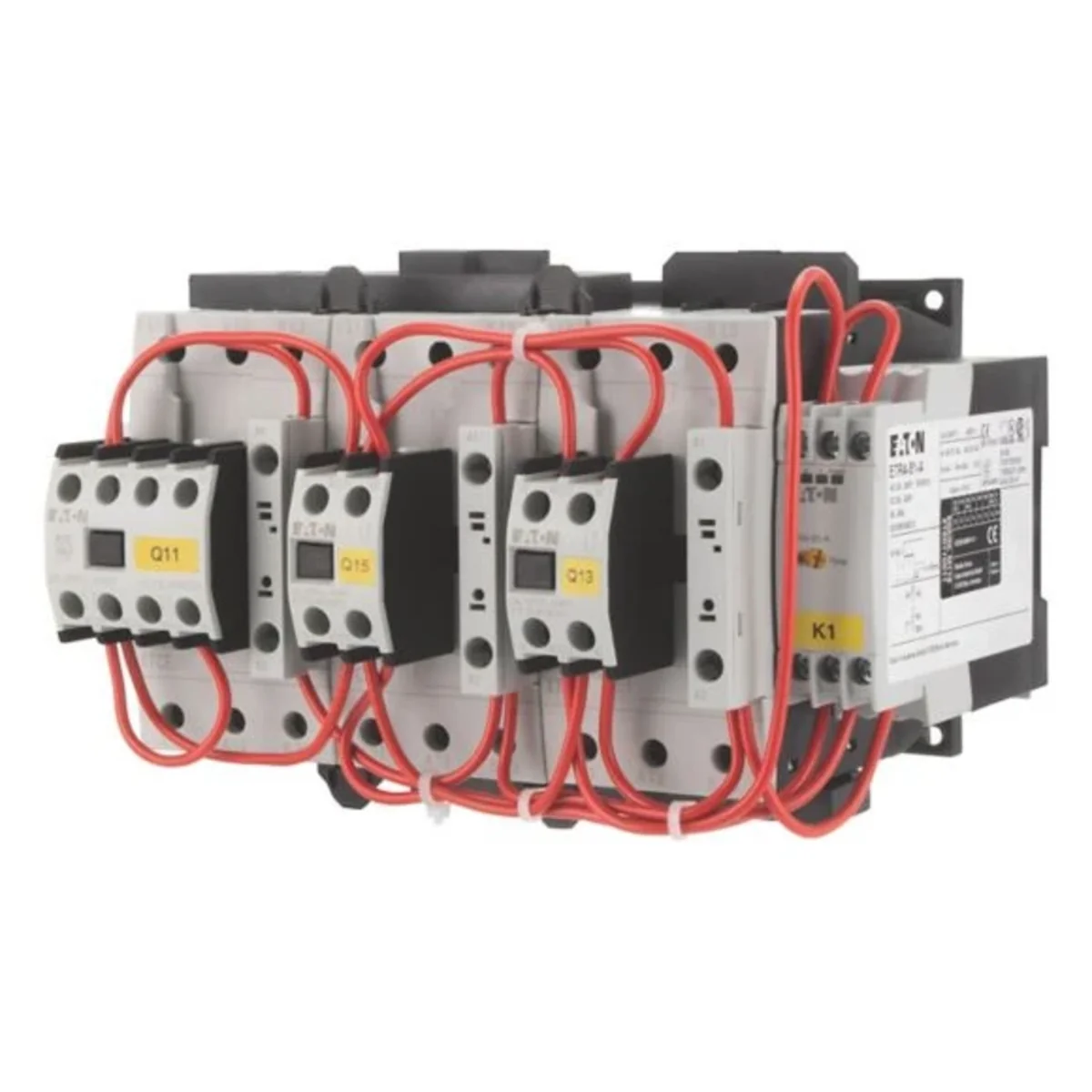

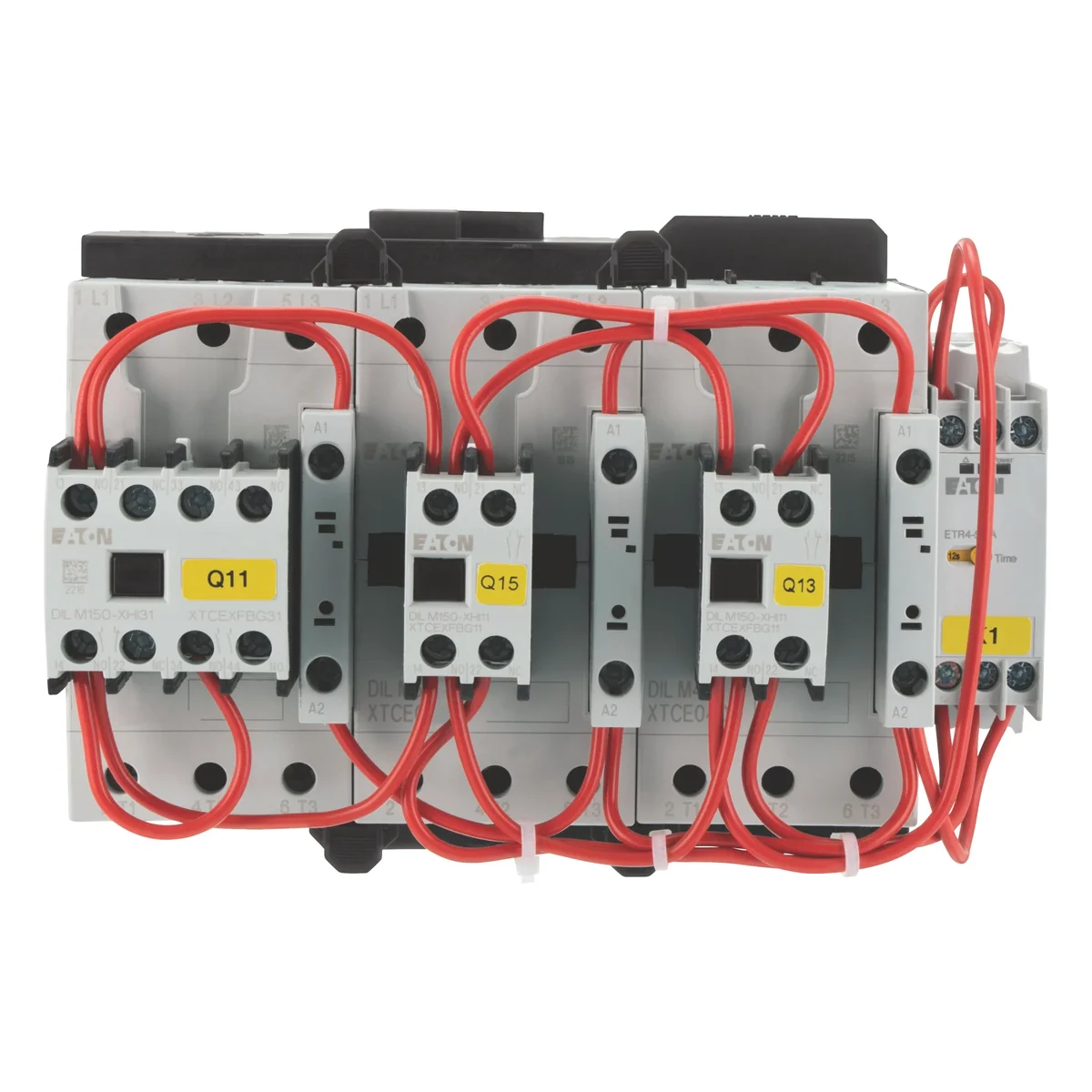

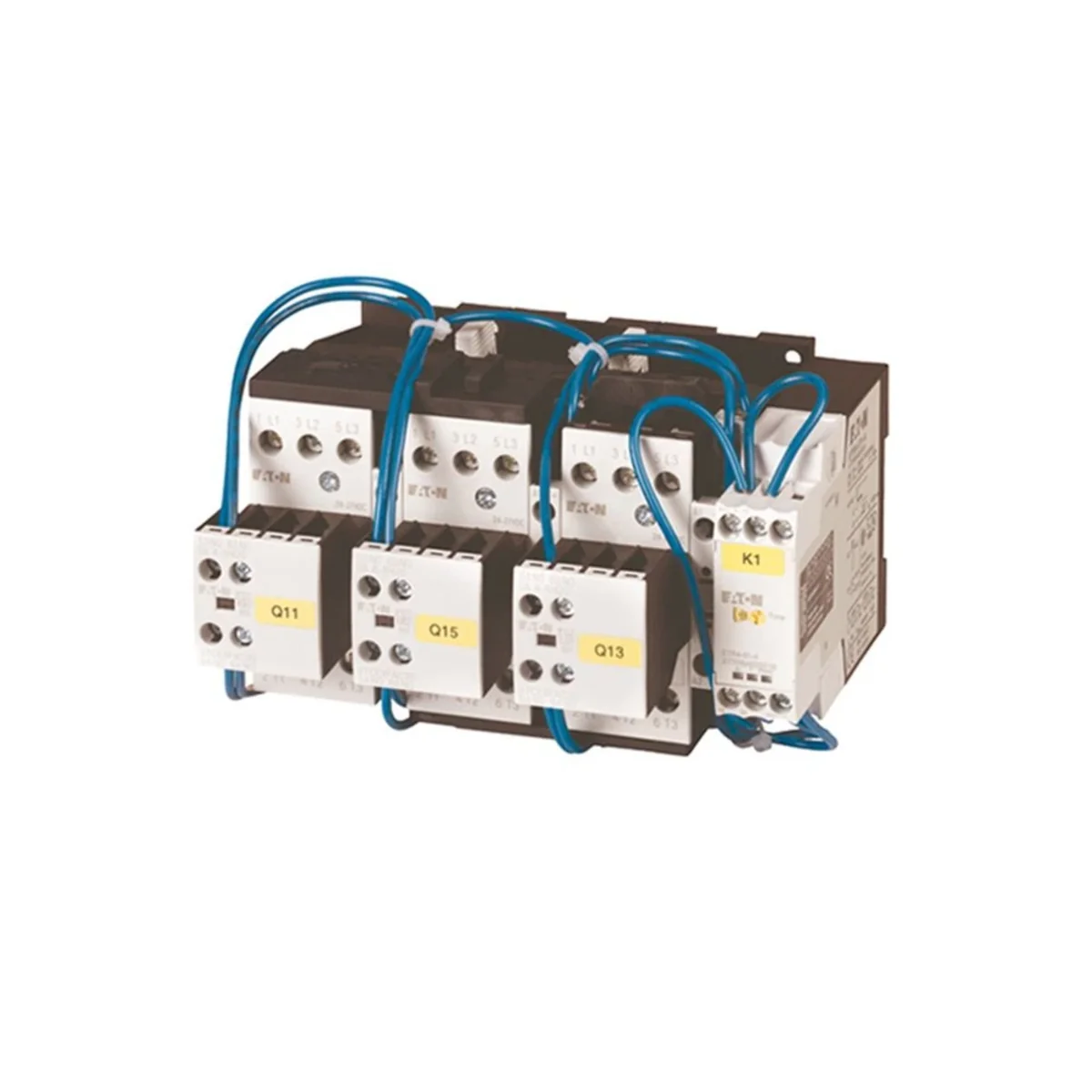

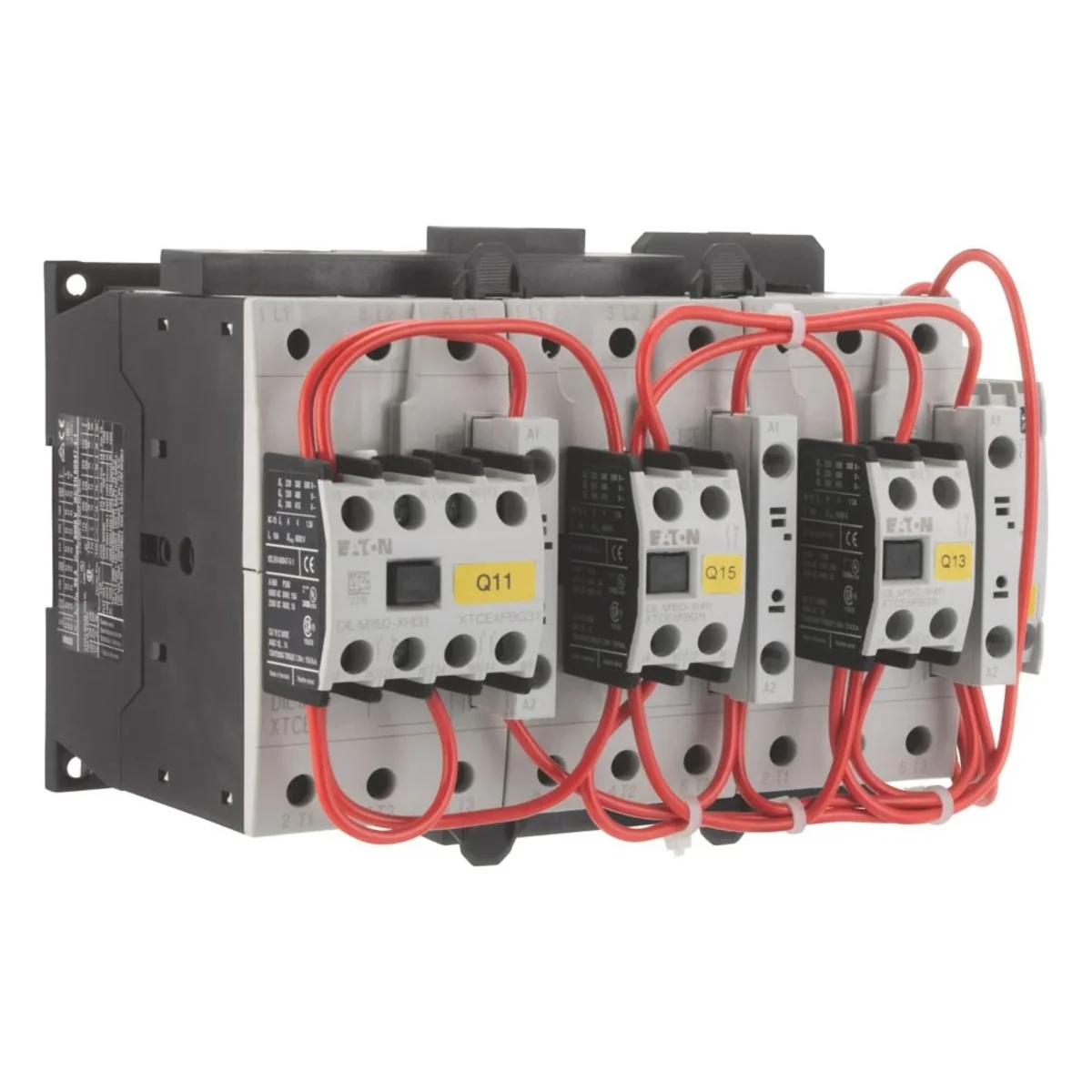

Contactor combinations for starting a star-delta motor, Switching frequency: max. 30 starts/hour, Accessories: Star-delta combinations SDAINL, Utilization category: AC-3: Squirrel cage motors: starting, stopping during operation, Rated operating current AC-3 380 V 400 V: Ie= 70 A, Max. rated power of three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 18.5 kW, 380 V 400 V: P= 37 kW, 500 V : P= 45 kW, 660 V 690 V: P= 37 kW, max. switching time: 20 s, Start voltage: 400 V 50 Hz, Type of AC/DC current: AC operation, Combination components Mains contactor Q11: DILM40, + DILM150-XHI31, Delta contactor Q15: DILM40, + DILM150-XHI11 Type, Star contactor Q13: DILM40, + DILM150-XHI11 Type, Timing relay K1: ETR4-51 Type, Note: Also suitable for motors of energy efficiency class IE3 ., IE3 compatible devices are marked with the appropriate logo on the packaging.

Rated power for 230V [kW]

18.5
Rated power for 500V [kW]

45
Rated current [A]

70

Rated power for 400V [kW]

37
Rated power for 690V [kW]

37
PKWIU

27.12.40.0

Other technical data

Function

Star-delta contactor
Rated control supply voltage AC 60 Hz

0 ... 0 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

70 A
Rated operation power NEMA

0 kW
Number of normally open contacts as main contact

9
Degree of protection (IP)

IP00

Rated control supply voltage AC 50 Hz

400 ... 400 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

70 A
Rated operation power at AC-3, 400 V

37 kW
Number of normally closed contacts as main contact

0
Type of electrical connection of main circuit

Screw connection
Rail mounting possible

No

Manufacturer details

Manufacturer

EATON ELECTRIC SP. Z O.O.
Address

80-299 UL. GALAKTYCZNA 30
E-mail

pl-zamowienia@eaton.com
Tax identification number

5841022327

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	2,940	3,041
Volume (m3)	0,003	0,004
Width (m)	0,188	0,194
Length (m)	0,147	0,161
Depth (m)	0,115	0,132
