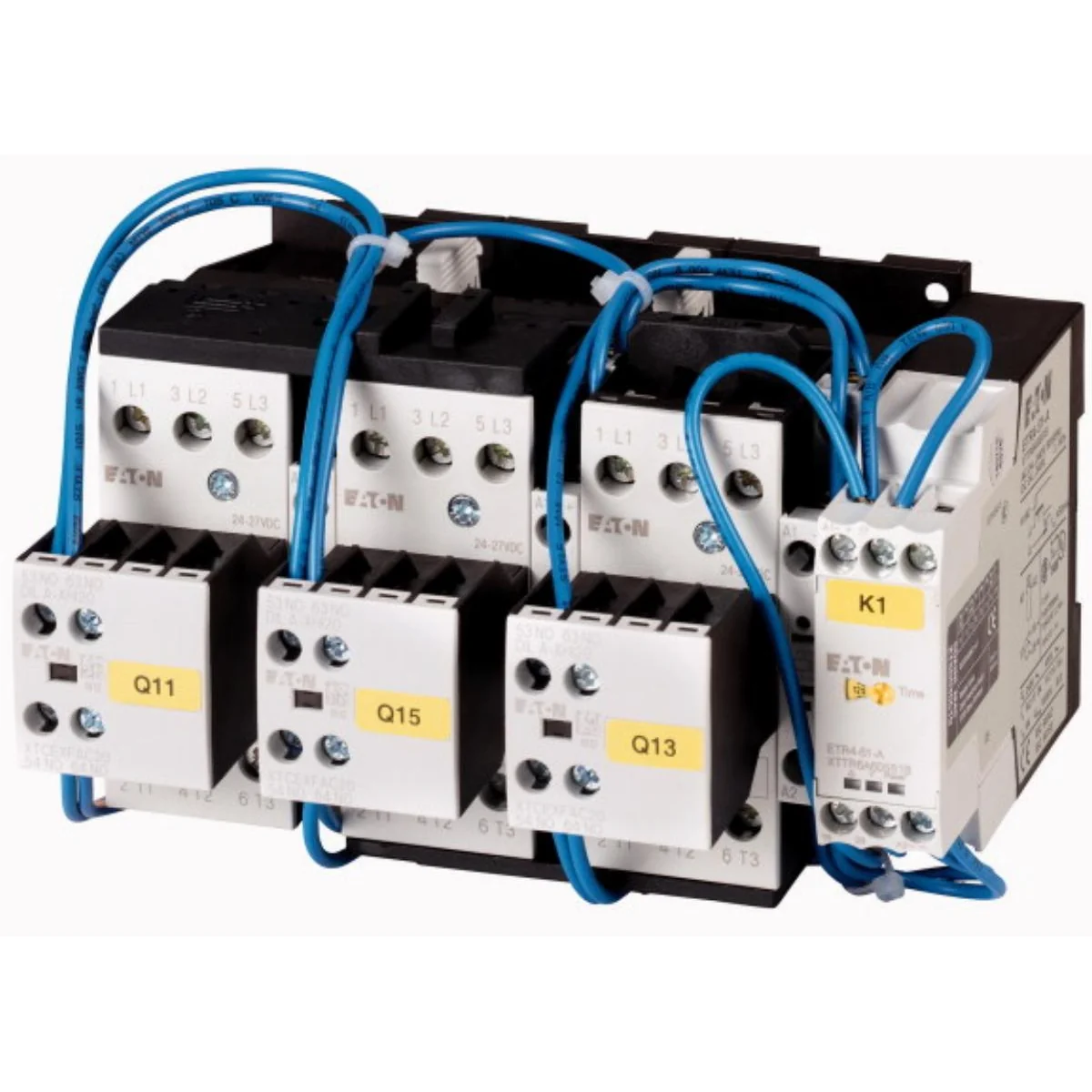

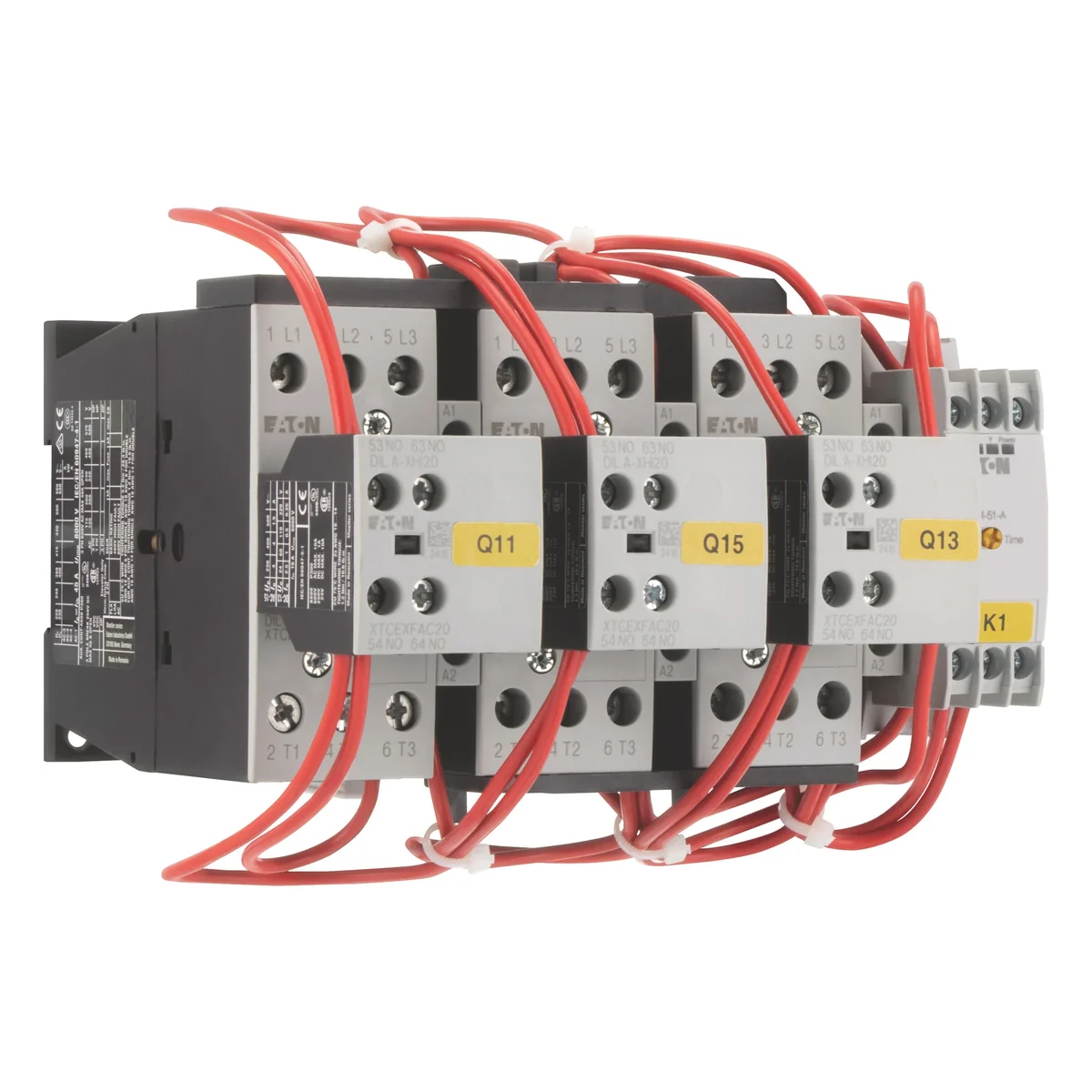

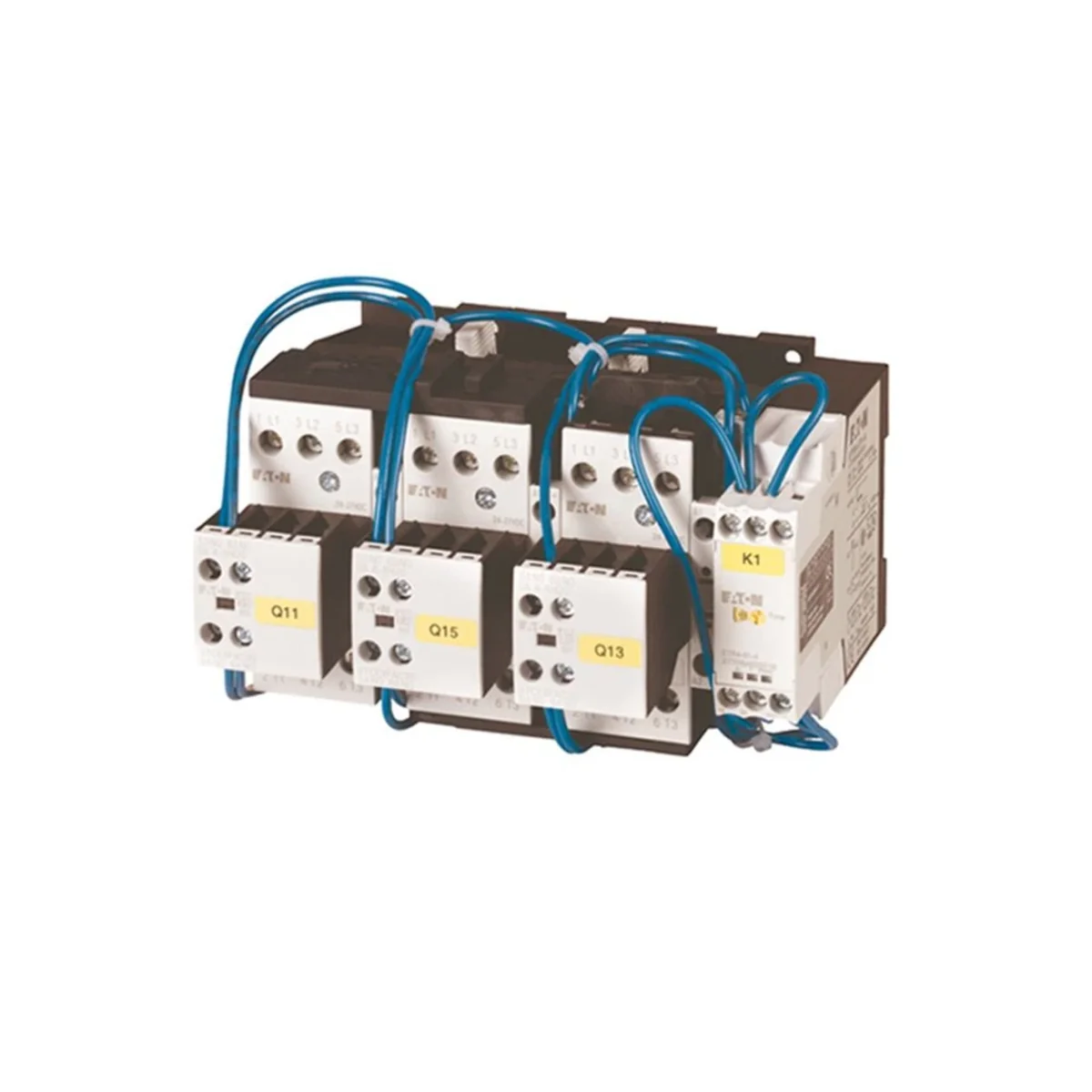

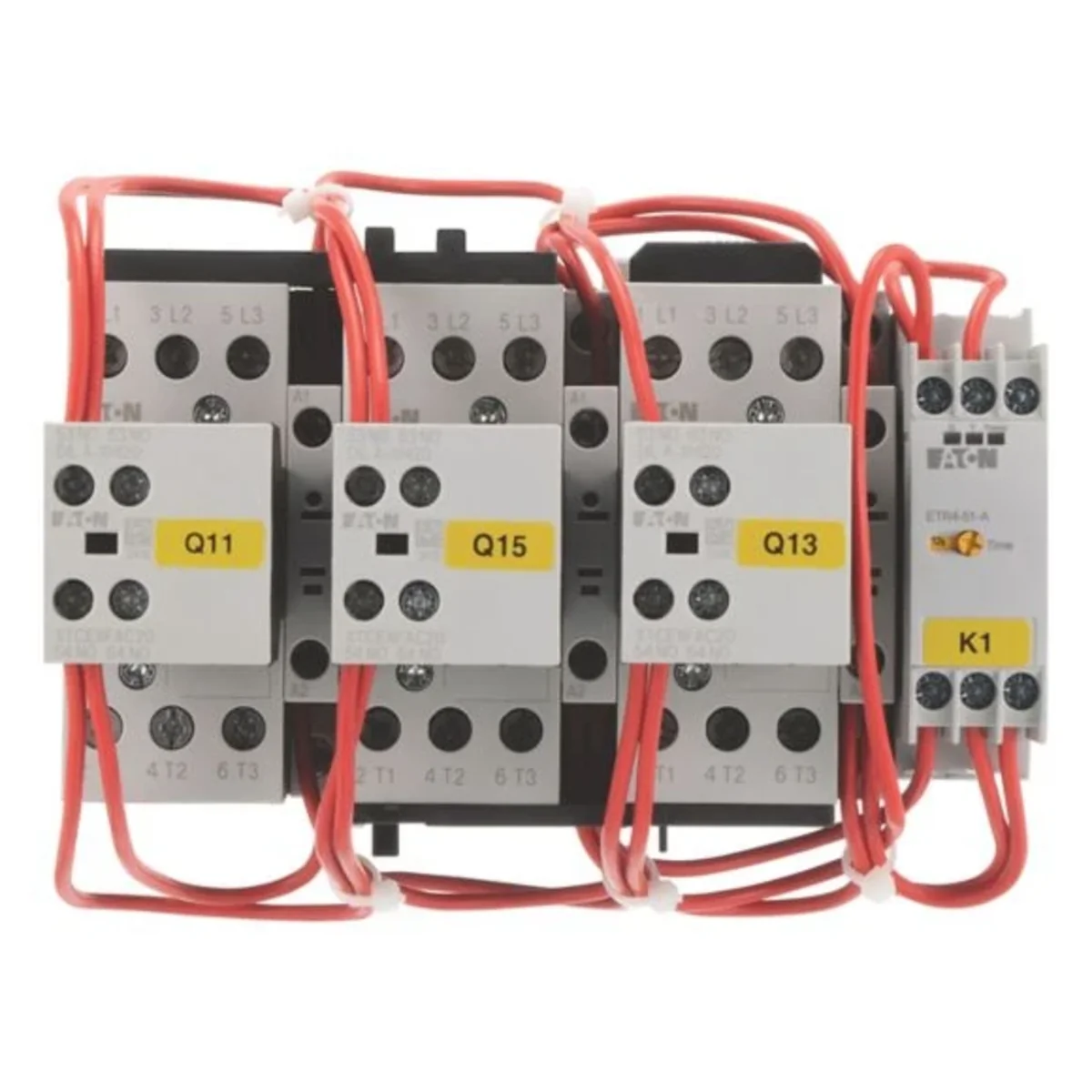

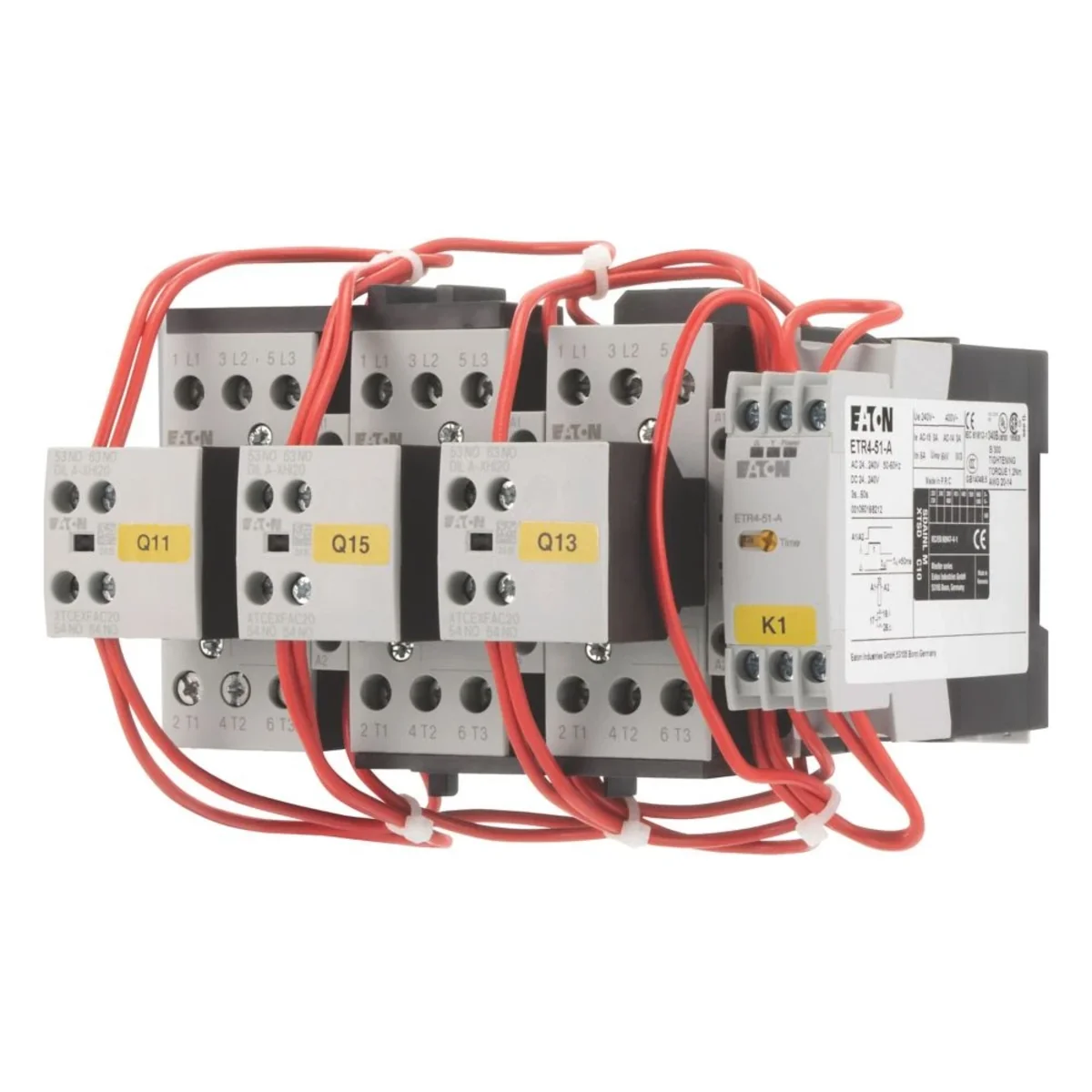

Star-delta set, SDAINLM30(230V50HZ,240V60HZ) 278361

local index:
ATR005MOEL
Catalog No:
278361
EAN code:
4015082783617
Manufacturer: EATON
Rated power for 230V [kW]: 7.5
Rated power for 400V [kW]: 15
Rated power for 500V [kW]: 18.5
Price:
489,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

SDAINL Star-Triangle Sets. Starting frequency: max. 30 starts per hour

Technical data

  • Rated power for 230V [kW]
    7.5
  • Rated power for 500V [kW]
    18.5
  • Rated current [A]
    thirty
  • Rated power for 400V [kW]
    15
  • Rated power for 690V [kW]
    18.5

Other technical data

  • Function
    Star-delta contactor
  • Rated control supply voltage AC 60 Hz
    240 ... 240 V
  • Voltage type for actuating
    AC
  • Rated operation power at AC-3, 400 V
    15 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    Other
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-3, 400 V
    30 A
  • Rated operation power NEMA
    0 kW
  • Degree of protection (IP)
    IP00

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,784
Volume (m3) 0,006
Width (m) 0,244
Length (m) 0,187
Depth (m) 0,140
